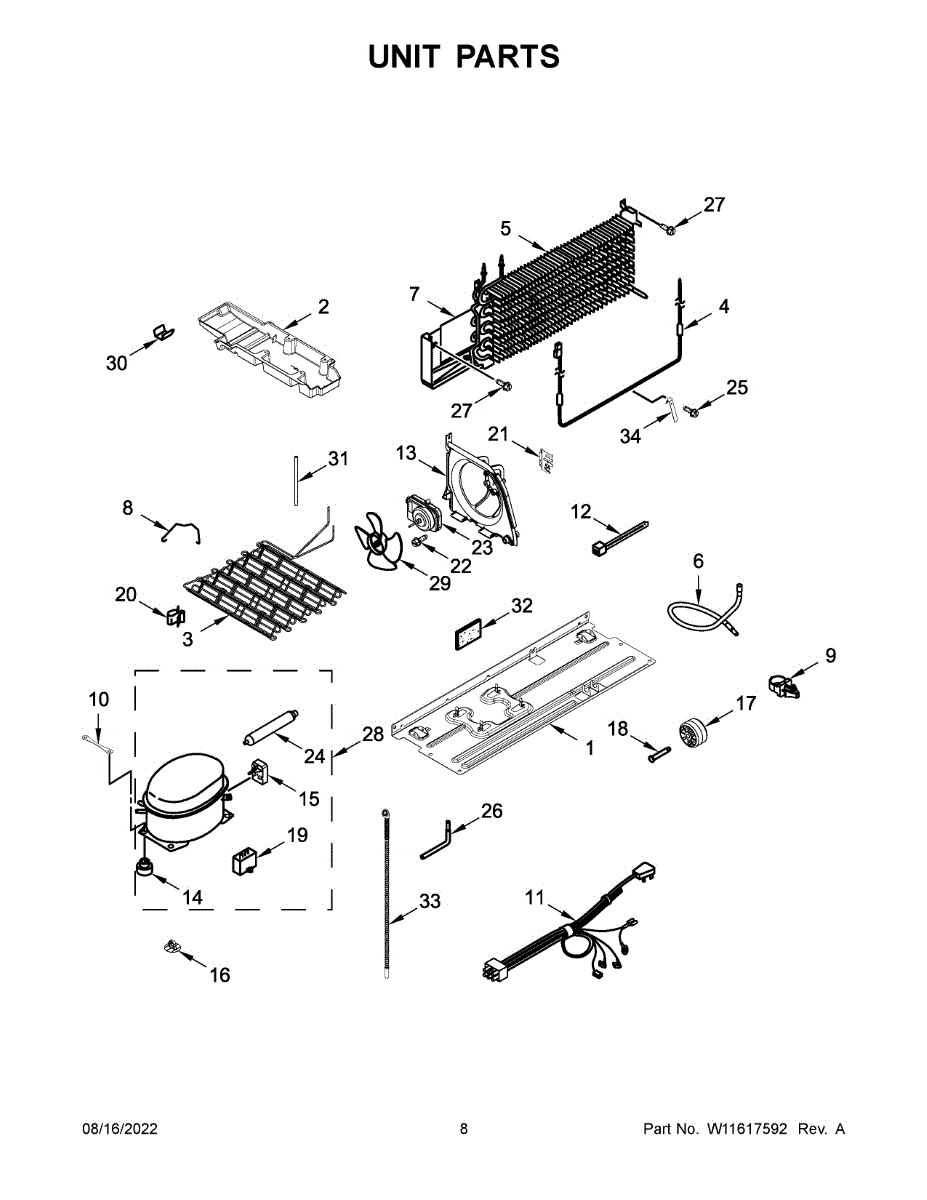

Parts for Whirlpool WRT511SZDB02: Unit Parts

Evaporator drip pan that collects defrost water and directs it to the drain, helping prevent leaks and puddles under the appliance. Restores proper drainage for reliable operation. What it does:

• Catches and channels defrost/condensate water away from the evaporator to prevent leaks beneath the unit.
• Helps stop water pooling or dripping from the bottom of the appliance.
• Reduces the risk of moisture-related odors or mildew by keeping drainage contained.
• Works with the refrigerator's drain system to promote normal defrost water flow.

• Disconnect power to the appliance before beginning any service.
• Access may require removing the toe grille or pulling the appliance out; follow the OEM service instructions for your model.
• Inspect and clear the drain tube and drain outlet while replacing the pan to ensure proper flow.
• Handle the pan carefully during installation and ensure it is seated so water flows into the drain as intended.

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

This wire assembly routes power and control signals within the appliance using XL double-insulated conductors to protect circuits and reduce wear. It replaces damaged or brittle internal wiring to restore reliable electrical connections. What it does:

• Replaces an internal wire harness used for power and signal routing
• Double-insulated conductors help prevent shorting and reduce chafing risk
• Commonly used when wiring shows burn, breaks, or loss of continuity
• Helps stop intermittent operation caused by damaged internal wires

• One wire assembly

• Disconnect power before inspecting or replacing wiring to avoid shock
• Secure wiring away from sharp edges and moving parts to prevent damage

This compressor grommet is the rubber isolator that cushions the refrigerator's compressor at its mounting points. Replacing a worn grommet helps quiet vibration and rattling and reduces stress on refrigerant tubing for smoother, safer operation.

• Isolates the compressor from the base to damp vibration and humming
• Helps prevent metal-to-metal contact and rattling at the mounts
• Supports proper compressor alignment to reduce stress on tubing
• Helps with symptoms like loud buzzing/rattling or cracked/flattened rubber at the compressor feet

• Unplug the appliance and remove the rear access cover to reach the compressor area
• Support the compressor while removing hardware; replace the grommet in the same orientation
• Avoid kinking or stressing refrigerant lines; no sealed-system opening is required
• Tighten mount fasteners evenly and ensure the compressor sits level and isolated

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine replacement screw secures appliance components for reliable fit and function, helping restore proper assembly and reduce rattling or loose panels. Use it to replace a stripped or missing fastener during repairs. What it does:

• Fastens panels, brackets, or components to maintain structural stability
• Prevents movement that can cause noise, vibration, or misalignment
• Replaces stripped, corroded, or missing screws to restore secure assembly
• Compatible where the OEM mounting screw is required for safe operation

• Turn off and unplug the appliance before performing any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Do not overtighten; snug until secure to prevent damage to parts
• If other fasteners show wear, inspect and replace as needed for safe operation

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This Drier Tube is an OEM part for Whirlpool Refrigerators. It plays a role in filtering and drying the refrigerant. Wear, leaks, or clogs can cause issues with this part.

What Causes a Bad Refrigerator Drier Tube:
Wear, leaks, or clogs within the tube can affect the refrigeration process or cause leaks.

Symptoms of a Bad Refrigerator Drier Tube:

• Insufficient cooling or freezing
• Refrigerant leaks or hissing sounds
• Excessive moisture around the tube area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1/2 inch.

Replacement fan blade that moves air across the evaporator and through the cabinet to help maintain even temperatures. Restores proper airflow and reduces noise and vibration caused by cracked, bent, or worn blades. What it does:

• Circulates cold air from the evaporator throughout the refrigerator/freezer compartments
• Helps maintain consistent temperatures and reduce hot spots
• Reduces noise and vibration when replacing damaged or unbalanced blades
• Works with the evaporator/air-movement motor to support normal defrost and cooling cycles

• Disconnect power before accessing the evaporator/fan area to avoid electric shock.
• Remove shelves, panels, and the evaporator cover as needed to reach the fan assembly.
• Handle the blade carefully — edges and nearby sheet metal can be sharp.
• Inspect the fan motor shaft and mounting hardware; replace any worn or damaged components for best results.

This drain tube directs defrost/condensate water from the appliance's drain outlet into the drain pan, helping prevent water from pooling inside the cabinet or leaking onto the floor for reliable, mess-free operation. What it does:

• Channels defrost/condensate water from the drain outlet to the pan
• Helps prevent interior leaks, puddles beneath the unit, and ice at the drain
• Restores proper drainage when the original tube is cracked, misshapen, or clogged
• Addresses symptoms like water under drawers/shelves or musty odors from standing water

• 1 drain tube

• Disconnect power and pull the unit forward for rear access; turn off water supply if applicable
• Remove the old tube and clear any debris/ice from the drain opening
• Fully seat the new tube on the drain outlet and position the outlet over the pan, following original routing
• Test by pouring a small amount of warm water into the drain to ensure proper flow and no leaks

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.
