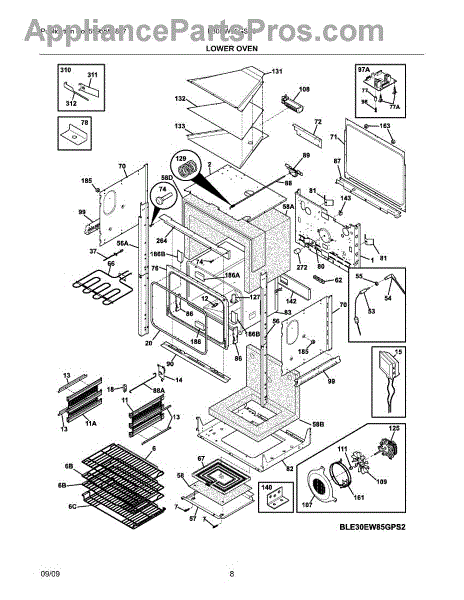

Parts for Electrolux E30EW85GSS3: 07 - Lower Oven Parts

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Oven Temperature Probe is an OEM part for Frigidaire ovens. This part monitors the oven's internal temperature, ensuring that it accurately reflects the set temperature on the oven's control. By measuring the heat inside the oven, the temperature probe helps in maintaining consistent cooking results, preventing undercooking or overcooking of food.

Over time, the oven temperature probe can fail or become inaccurate due to wear and tear, exposure to extreme temperatures, or damage from cleaning and handling. This can lead to uneven cooking results, with food being overcooked or undercooked, despite setting the oven to the correct temperature.

Symptoms of a bad Oven Temperature Probe include:

• Oven not reaching the set temperature
• Oven temperature fluctuating more than usual
• Food not cooking evenly or within expected time frames
• Error codes displayed on the oven indicating a temperature sensor issue

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Oven Meat Probe is an OEM replacement part for Frigidaire ovens and ranges. It is used to accurately monitor the internal temperature of meat and other food items as they cook inside the oven.

Causes of a bad oven meat probe include damage to the temperature sensor or wiring over time from repeated high heat exposure during cooking. The wiring can fatigue and become brittle or the connector can corrode from steam and debris inside the hot oven area.

Symptoms of a bad oven meat probe include:

• Temperature readings that do not correspond to the food's actual doneness
• Inaccurate or inconsistent readings on the controller display
• The controller does not recognize that the probe is connected
• Physically damaged probe components like a cracked sensor tip

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore ranges.

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This radiant surface element restores heat to a smooth-top cooking zone on glass-ceramic ranges. Replace a failed element to bring back consistent, controllable heat for everyday simmering, sautéing, and boiling.

• Provides radiant heat beneath the glass cooktop for one burner zone
• Typical symptoms: burner won't heat, heats only partially, or shows visible hot spots/burn marks
• Helps correct slow-to-heat or uneven cooking performance from a failed element
• Often tests open (no continuity) when the internal coil is burned out

• Disconnect power at the breaker before servicing; elements operate on high voltage
• Lift and support the glass cooktop carefully to avoid cracking the glass
• Note and transfer wires one at a time to the new element; match terminals precisely
• Ensure the element sits level in its brackets and that wires aren't pinched before reassembly

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This evaporator/fan motor circulates air inside the refrigerator/freezer compartment to maintain even cooling and proper frost control. Replacing a failed motor restores airflow for consistent temperatures and helps prevent compressor overwork. What it does:

• Spins the evaporator/fan blade to move cold air through the cabinet and freezer coils.
• Helps maintain uniform interior temperature and supports efficient cooling.
• Commonly linked to symptoms like weak or no airflow, unusual humming or grinding noises, and uneven cooling.
• Stops frost buildup on the evaporator by keeping air moving across the coils.

• Disconnect power before starting any repair to avoid electrical shock.
• Basic hand tools typically required; mounting hardware may be reused if undamaged.
• Handle the motor and wiring harness carefully to avoid damage to connectors or fan blade.

This electronic control board regulates the refrigerator's functions and user interface, restoring reliable operation when the original board fails. Replacing a faulty board can stop erratic behavior and restore normal temperature and display control. What it does:

• Manages compressor, fan, defrost and other timed cycles to maintain proper cooling
• Processes user inputs and controls the display/LEDs
• Can stop erratic cycling, unresponsive controls, or incorrect temperature behavior
• Helps resume normal operation when the original board is damaged by power surges or component failure

• Disconnect power to the appliance before starting any work
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Confirm connectors match and seat fully; do not force plugs

This access panel cover secures and protects internal components behind an appliance opening, keeping parts safe from dust and preventing accidental contact. It restores the appliance's finished appearance and helps maintain proper airflow around covered areas. What it does:

• Shields wiring and components from dirt, dust and accidental contact
• Helps prevent small items from entering service areas
• Restores a clean, finished look to the appliance exterior or interior
• Supports safe airflow patterns when installed as intended

• One replacement cover

• Disconnect power before servicing; follow all safety guidelines for your appliance
• Typically secures with screws or clips—retain original fasteners or use OEM replacements
• Align cover to mounting points and fasten evenly to avoid gaps or stress

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

The Convection Fan Motor Kit is an OEM replacement part for Frigidaire ovens. This kit includes the motor responsible for driving the convection fan, which circulates hot air within the oven cavity to ensure even cooking and consistent temperatures during convection baking or roasting.

Over time, causes of a bad convection fan motor can include electrical wear, overheating due to heavy use, or damage from grease or debris buildup. Additionally, worn-out bearings in the motor can impair its performance.

Symptoms of a bad convection fan motor include:

• The fan not spinning or operating inconsistently
• Uneven cooking results in convection mode
• Strange noises such as rattling or grinding during operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: Convection fan motor 5304467898 replaces earlier fan motors with a cooling blade. The fan motor doesn't include the cooling blade as it is no longer required.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

This replacement mounting bracket secures internal components or panels to the appliance frame for proper alignment and stable operation. It restores a solid attachment point to reduce movement and prevent noise or part misalignment. What it does:

• Provides a secure mount for internal assemblies or trim panels.
• Keeps components aligned to prevent rubbing, rattling or vibration.
• Restores proper fit where a bent, broken or missing bracket caused loose parts.
• Helps maintain safe operation by keeping wiring and piping routed away from moving parts.

• One mounting bracket.

• Disconnect power to the appliance before beginning any repair.
• Basic hand tools commonly required; handle edges carefully to avoid cuts.
• Inspect surrounding fasteners and replaced parts; reuse original screws only if in good condition.

Note: Quantity is one tool (right side)

Left side tool is part # AP3778569

Right side tool part # AP3778556

Specs: 8 x 0.750

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw
