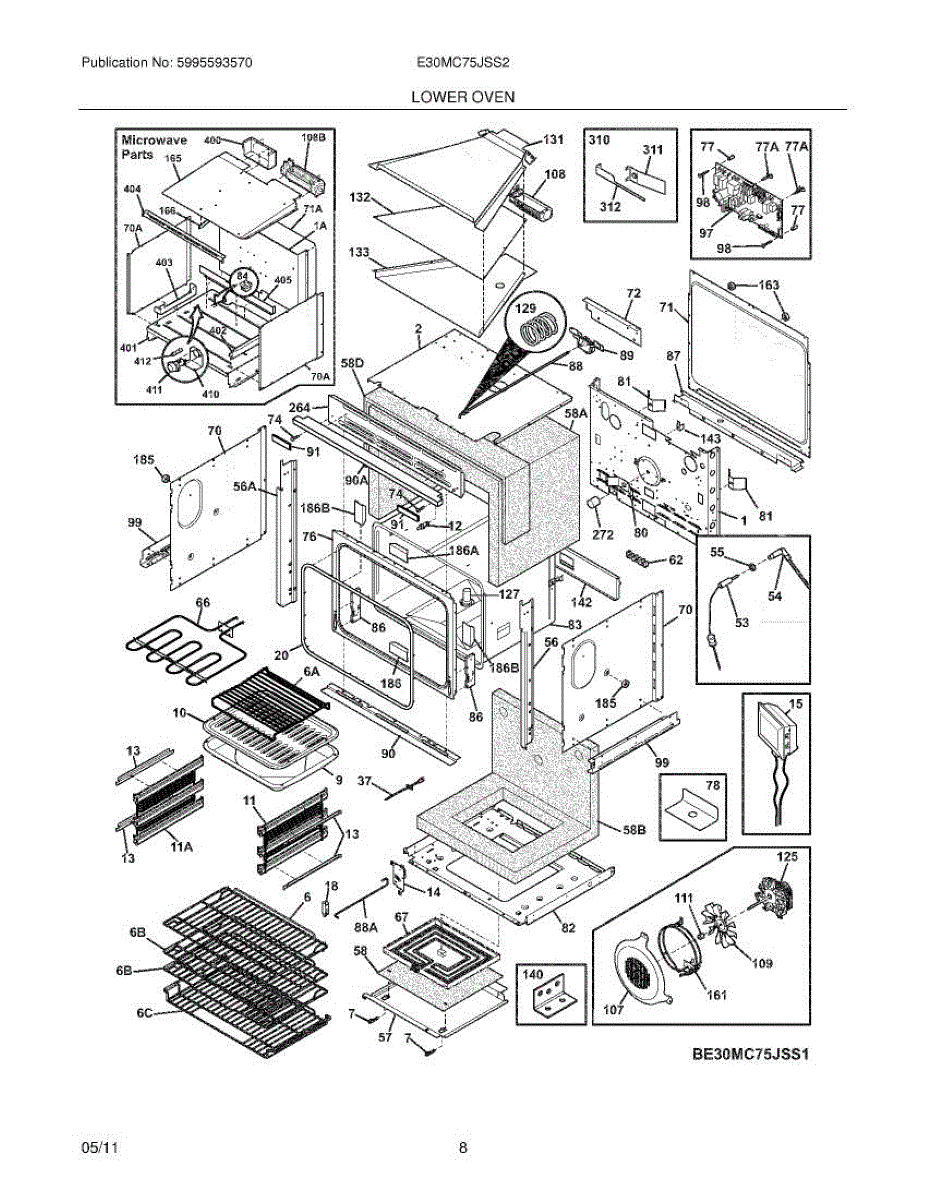

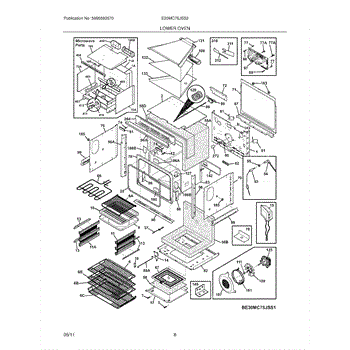

Parts for Electrolux E30MC75JSS2: 07 - Lower Oven Parts

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Oven Meat Probe is an OEM replacement part for Frigidaire ovens and ranges. It is used to accurately monitor the internal temperature of meat and other food items as they cook inside the oven.

Causes of a bad oven meat probe include damage to the temperature sensor or wiring over time from repeated high heat exposure during cooking. The wiring can fatigue and become brittle or the connector can corrode from steam and debris inside the hot oven area.

Symptoms of a bad oven meat probe include:

• Temperature readings that do not correspond to the food's actual doneness
• Inaccurate or inconsistent readings on the controller display
• The controller does not recognize that the probe is connected
• Physically damaged probe components like a cracked sensor tip

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore ranges.

This control mounting hex nut secures the burner or oven control to the control panel, keeping the shaft stable so the knob turns smoothly and the switch stays properly aligned.

• Threads onto the control/infinite switch or thermostat bushing to fasten it to the panel
• Prevents the control from rotating or shifting when the knob is turned
• Replace if the original nut is missing, stripped, rounded, or corroded
• Common signs: loose or wobbly knob, switch spins in the panel, or misaligned knob indexing

• Disconnect power; for gas appliances, also shut off gas before servicing
• Pull off the knob and any trim; support the control body from behind the panel while removing/installing the nut
• Start the new nut by hand to avoid cross-threading; tighten snugly with the correct-size wrench—do not overtighten
• The control sits square in the panel and the knob operates smoothly before restoring power

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This radiant surface element restores heat to a smooth-top cooking zone on glass-ceramic ranges. Replace a failed element to bring back consistent, controllable heat for everyday simmering, sautéing, and boiling.

• Provides radiant heat beneath the glass cooktop for one burner zone
• Typical symptoms: burner won't heat, heats only partially, or shows visible hot spots/burn marks
• Helps correct slow-to-heat or uneven cooking performance from a failed element
• Often tests open (no continuity) when the internal coil is burned out

• Disconnect power at the breaker before servicing; elements operate on high voltage
• Lift and support the glass cooktop carefully to avoid cracking the glass
• Note and transfer wires one at a time to the new element; match terminals precisely
• Ensure the element sits level in its brackets and that wires aren't pinched before reassembly

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

This replacement outlet restores a secure power connection inside compatible Frigidaire appliances, helping re-establish reliable electrical contact for the unit. Designed to replace a worn, cracked, or damaged internal receptacle. What it does:

• Provides a secure connection point for the appliance power cord or internal wiring.
• Replaces outlets that cause intermittent power, arcing, burning smell, or visible damage.
• Ensures proper seating of wires or plug blades to prevent loose connections and overheating.
• Restores safe electrical contact when the original receptacle is cracked, melted, or corroded.

• One outlet

• Disconnect power at the breaker or unplug the appliance before starting work.
• Secure all wire connections tightly.
• Use appropriate tools and avoid damaging surrounding wiring or insulation.

This evaporator/fan motor circulates air inside the refrigerator/freezer compartment to maintain even cooling and proper frost control. Replacing a failed motor restores airflow for consistent temperatures and helps prevent compressor overwork. What it does:

• Spins the evaporator/fan blade to move cold air through the cabinet and freezer coils.
• Helps maintain uniform interior temperature and supports efficient cooling.
• Commonly linked to symptoms like weak or no airflow, unusual humming or grinding noises, and uneven cooling.
• Stops frost buildup on the evaporator by keeping air moving across the coils.

• Disconnect power before starting any repair to avoid electrical shock.
• Basic hand tools typically required; mounting hardware may be reused if undamaged.
• Handle the motor and wiring harness carefully to avoid damage to connectors or fan blade.

This access panel cover secures and protects internal components behind an appliance opening, keeping parts safe from dust and preventing accidental contact. It restores the appliance's finished appearance and helps maintain proper airflow around covered areas. What it does:

• Shields wiring and components from dirt, dust and accidental contact
• Helps prevent small items from entering service areas
• Restores a clean, finished look to the appliance exterior or interior
• Supports safe airflow patterns when installed as intended

• One replacement cover

• Disconnect power before servicing; follow all safety guidelines for your appliance
• Typically secures with screws or clips—retain original fasteners or use OEM replacements
• Align cover to mounting points and fasten evenly to avoid gaps or stress

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

This replacement shield is a protective cover that helps protect internal refrigerator components from debris and accidental contact, keeping parts stable and reducing the chance of rubbing or shorting. Fits in the component area it mounts to. What it does:

• Covers and protects wiring or small components from debris and damage
• Keeps parts secured to reduce noise from rubbing or vibration
• Helps prevent accidental contact that could cause shorts or component wear
• Maintains proper clearance for nearby parts to avoid interference

• Always unplug the appliance before starting any repair to avoid shock or injury
• Use proper tools; retain any screws or fasteners removed during disassembly
• Handle edges carefully—metal or molded parts may have sharp edges
• Refer to OEM instructions for correct placement and mounting

This deflector directs cold air inside the refrigerator to help maintain even temperature and proper airflow in affected compartments. It replaces a damaged or missing airflow guide to restore consistent cooling performance. What it does

• Guides and directs internal airflow to reduce hot or cold spots
• Helps prevent localized frost or moisture buildup by ensuring proper circulation
• Restores designed cooling patterns after the original deflector is cracked, warped, or missing
• Works with existing vents and ducting to maintain appliance efficiency

• Disconnect power to the appliance before starting any repair
• Replaceable with basic hand tools; some models may require removing shelves or interior panels
• Handle carefully to avoid cracking plastic; align tabs/slots before snapping into place

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

This replacement mounting bracket secures internal components or panels to the appliance frame for proper alignment and stable operation. It restores a solid attachment point to reduce movement and prevent noise or part misalignment. What it does:

• Provides a secure mount for internal assemblies or trim panels.
• Keeps components aligned to prevent rubbing, rattling or vibration.
• Restores proper fit where a bent, broken or missing bracket caused loose parts.
• Helps maintain safe operation by keeping wiring and piping routed away from moving parts.

• One mounting bracket.

• Disconnect power to the appliance before beginning any repair.
• Basic hand tools commonly required; handle edges carefully to avoid cuts.
• Inspect surrounding fasteners and replaced parts; reuse original screws only if in good condition.

Note: Quantity is one tool (right side)

Left side tool is part # AP3778569

Right side tool part # AP3778556

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

This fuse and fuse holder assembly replaces the appliance's inline protective fuse and its mounting holder to restore proper overcurrent protection and reliable electrical connection. Use this part when a blown fuse or damaged holder interrupts power. What it does

• Protects appliance circuits by interrupting power when a fault or surge occurs
• Provides a secure, replaceable mounting point for the protective fuse
• Commonly associated with symptoms like no power, intermittent power loss, or an appliance that won't start
• Restores a safe electrical path when the original fuse or holder is damaged or corroded

• One fuse and one matching fuse holder

• Disconnect power to the appliance before inspecting or replacing the fuse and holder
• Verify the replacement matches the original fuse type and holder configuration before installation
• Inspect wiring and connectors for heat damage; replace damaged wiring or connectors as needed

Specs: 8 x 0.750

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This adhesive seal tape is a replacement sealing strip used to restore a tight seal on appliance doors and panels, helping reduce air leaks and improve temperature control. It's a simple repair for worn or damaged seal edges. What it does:

• Provides a flexible, adhesive sealing surface to close gaps between door/panel and cabinet
• Helps reduce air or moisture leakage that can cause temperature loss or inefficient operation
• Restores worn or deteriorated sealing surfaces without replacing the entire gasket
• Compatible with applications where a narrow adhesive sealing strip is required

• Clean and dry the mounting surface thoroughly before applying for best adhesion
• Measure and trim the tape to fit; press firmly along the full length to ensure contact
• Allow adhesive to set per ambient conditions before closing the door or returning to service

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

This control mounting lock secures the washer control or door latch area so the machine runs safely and reliably. It replaces a worn or broken mounting lock to restore proper control-panel or latch stability during cycles. What it does:

• Holds the washer control or latch assembly firmly in place to prevent movement and intermittent connections
• Helps maintain reliable electronic or mechanical engagement during start and spin cycles
• Common symptom: control panel or door area feels loose, intermittently unseated, or causes error codes related to a loose latch/control
• Prevents excess vibration or shifting of the control/latch that can lead to premature wear

• One control mounting lock

• Disconnect power and water before servicing to avoid shock or injury
• Access may require removing the cabinet or control panel; follow for safe disassembly
• Inspect surrounding clips and connectors; replace any damaged fasteners for a secure fit

This harness assembly is the appliance wiring connector bundle that carries power and signals between controls and components, restoring proper electrical connections for normal operation. What it does:

• Routes power and control signals between the control board and key components
• Replaces damaged, burned, or loose wiring that can cause intermittent operation
• Helps resolve symptoms like unresponsive controls, failure to start, or component loss of power
• Restores factory wiring layout and connector fit for reliable connections

• Disconnect power before starting; confirm power is off at the breaker
• Compare connectors and wire colors to the old harness before removal
• Route and secure harness to avoid heat or pinch points; use existing clips/mounts

This oven light bulb illuminates the interior of your range or wall oven. Replace a burned-out bulb to restore clear visibility while cooking, checking doneness through the window, and cleaning.

• Provides interior illumination when the oven light is activated
• Common fix for no oven light, dim or flickering light, or a failed bulb
• Helps you monitor food without opening the door

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely to avoid burns
• Remove the lens/cover if present; replace the bulb per your model's socket; do not overtighten
• Restore power and test; if the light still doesn't work, inspect the socket and switch

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
