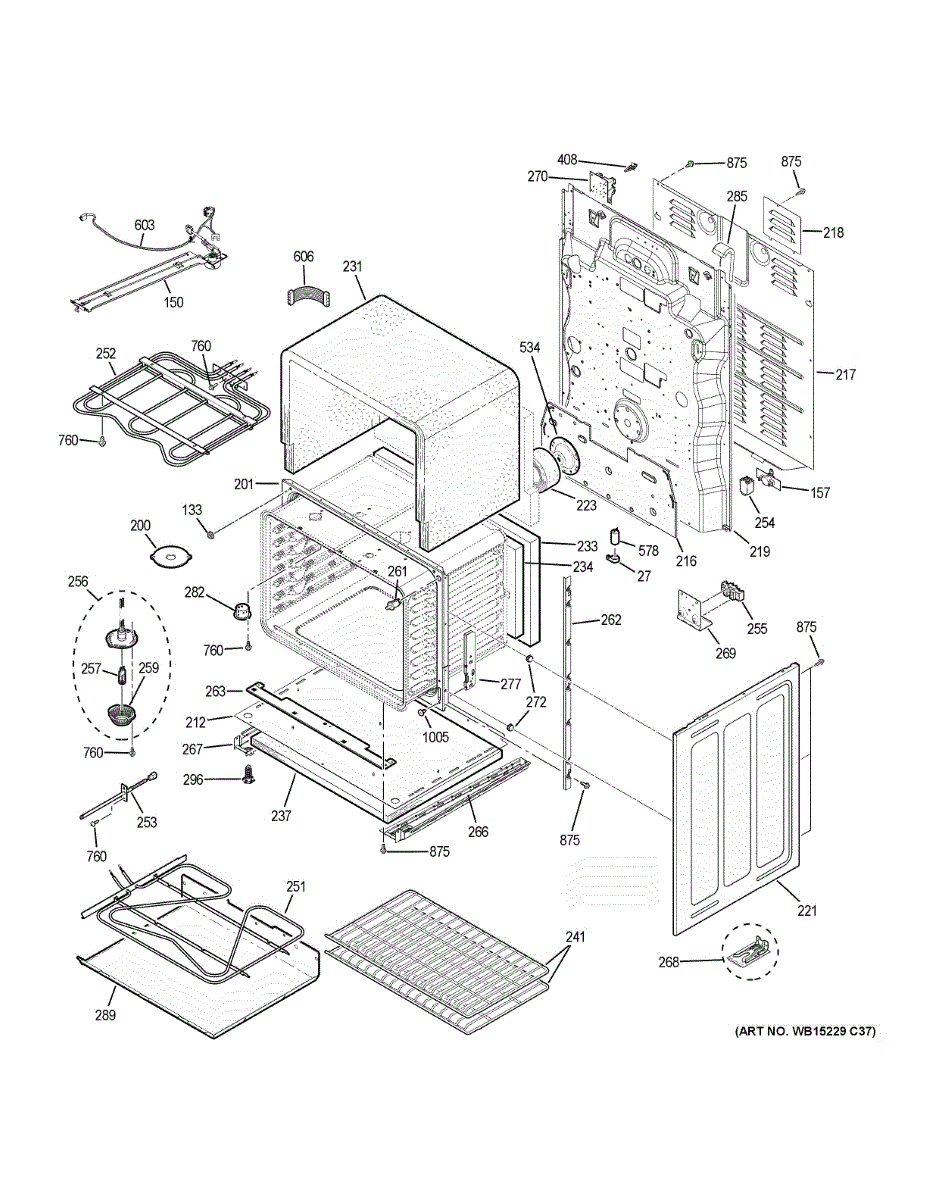

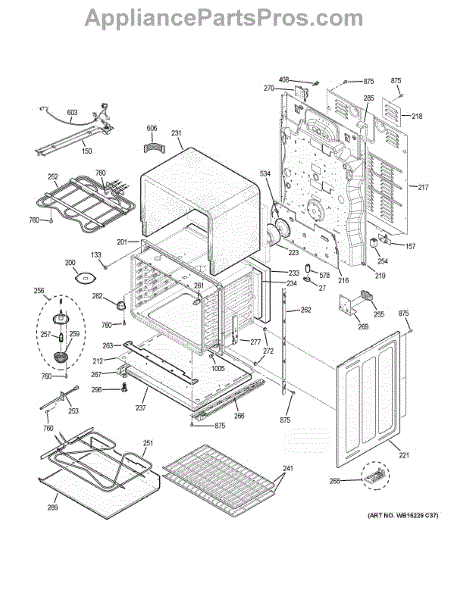

Parts for Ge PB960SJ8SS: Lower Oven Parts

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off after preheating? This thermal cutoff fuse opens the heating circuit when temperatures exceed safe limits. Direct fit part.

Back heat shield panel for electric ranges. Protects rear components from oven heat. Replace if cracked, warped, or missing to restore proper insulation.

Wire cover for electric ranges. Protects and conceals main wiring connections. Replace if cracked, broken, or missing to restore proper coverage.

This cover terminal block protects the appliance's power connection area by covering the terminal block where the power cord attaches. It keeps wiring secure and helps reduce risk of accidental contact and shorting. What it does:

• Covers and protects the power cord terminal block from dust, moisture and accidental contact
• Prevents exposed terminal ends that can cause arcing or shorts
• Helps keep wiring routed and secured at the power connection
• Common replacement when the original cover is cracked, melted or missing

• One cover terminal block

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the cover
• Remove any mounting screws and lift off the old cover to access terminals; document wire locations before disconnecting
• Reinstall cover after confirming tight, correct terminal connections and that no bare conductors are exposed
• If terminals or wiring show damage (burning, melting, corrosion), replace or repair those parts before reinstalling the cover and restore power only when safe

Replace a cracked, dented, or missing side panel on your electric range. This structural cover panel installs on the exterior side of your appliance.

Gray removable oven rack that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore stable support and proper positioning.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

This is an electrical relay used in ranges and ovens to control power to specific components such as heating elements or fans. It switches circuits on and off in response to signals from the control board. Replace this relay if a burner or oven element fails to heat, heats intermittently, or if the relay is visibly burned or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

The Lamp Halogen Assembly is an OEM part for GE ranges. It is the internal light bulb that illuminates the oven cavity.

Symptoms of a bad lamp halogen assembly include:

• Dim or flickering oven light
• Stuck-on or unresponsive oven light functionality
• Burned out or blackened bulb

Causes can be normal life cycle burnout after extended use or damage from excess vibration.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models. U

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

This is a high-amp SPDT (single pole, double throw) switch used in the oven door mechanism. It detects whether the oven door is open or closed and signals the control to enable or disable certain functions such as the oven light or broil element. Replace this switch if the oven light does not turn on or off when the door is opened or closed, or if the oven does not operate correctly in relation to door position.

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Strain relief bracket secures and protects the power cord connection on your range. Replace if damaged, cracked, or missing to ensure safe installation.

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hidden bake harness is the wiring assembly that connects the oven's hidden bake element to the control and power, restoring reliable heater power and oven bake function. Designed for direct replacement where this OEM-style harness is used. What it does:

• Routes power from the oven control/power source to the hidden bake (lower) heating element.
• Replaces damaged, burned, or corroded wires and connectors that can cause no-heat or intermittent heating during bake.
• Ensures secure connector fit to maintain consistent electrical contact and oven performance.
• Helps resolve common symptoms like no bake heat, erratic heating, or visible wire damage near the element area.

• One hidden bake wire harness

• Disconnect all power at the breaker or appliance plug before servicing to avoid electric shock.
• Handle sharp sheet-metal edges inside the oven cavity; wear gloves and eye protection.
• Verify connector orientation and secure routing away from moving parts and high-heat surfaces; replace any mounting clips if needed.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Black. 8-18 AB HXW 3/8

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
