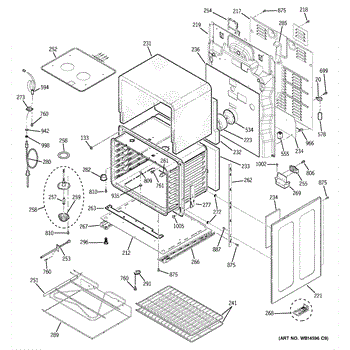

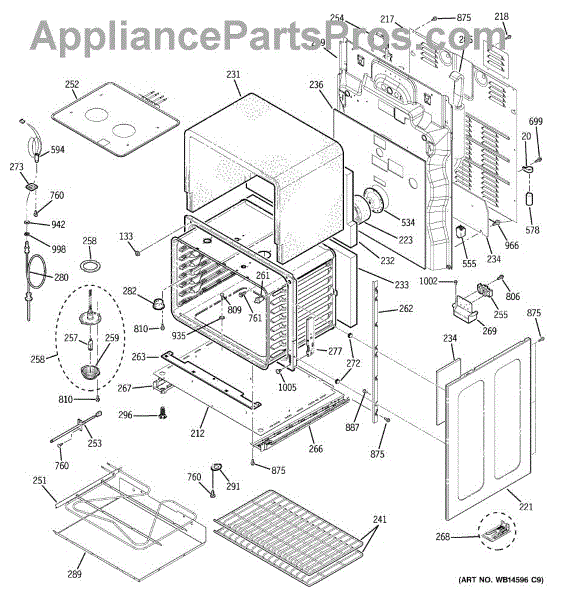

Parts for Ge PB975BM2BB: 04 - Lower Oven Parts

Mounting bracket that secures the capacitor to your range frame. Replace if bent, broken, or missing to properly support and position the capacitor.

Secures the clear lens on your range's control panel. Replace if cracked, broken, or missing to keep the lens properly seated and prevent shifting or rattling.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

A replacement cover that protects and organizes the oven/range terminal block wiring, helping prevent accidental contact and short circuits. Fits over the terminal connections to keep wiring secure and insulated for safer operation. What it does

• Shields live terminal connections to reduce the risk of accidental contact and electrical shorts
• Helps keep wiring neatly routed and positioned at the appliance rear or junction area
• Protects terminals from debris and incidental snagging during use or service
• Supports conventional terminal block layouts used on many ranges and ovens

• One cover terminal block

• Disconnect power at the breaker or unplug the appliance before starting work
• Install over the terminal block so all terminals are fully covered; secure per the appliance's factory routing
• Use only the OEM cover and do not modify the part or wiring

Black side panel for slide-in electric ranges. Replaces cracked, chipped, or missing exterior side panels. Restores finished appearance on range.

White side panel for electric ranges. Replaces cracked, scratched, or rusted exterior panels. Restores cabinet appearance and protects internal parts.

Gray removable oven rack that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore stable support and proper positioning.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Replace your oven's halogen bulb when the interior light burns out or dims. Illuminates the oven cavity so you can monitor cooking without opening the door.

This SPDT high-amp switch controls high-current circuits by switching one input between two outputs, restoring proper electrical control in affected appliance functions. Built for high-load switching where reliable on/off selection is required. What it does:

• Directs high-current power from a single input to one of two outputs (single-pole, double-throw action)
• Replaces worn or failed selector/limit-style switches that cause intermittent or no power to a circuit
• Commonly used where a high-amp, durable switching contact is required to complete a function
• Helps stop symptoms like intermittent operation, failure to switch between states, or no power to the controlled circuit

• One SPDT high-amp switch (WB24T10160)

• Disconnect power to the appliance before inspecting or replacing the switch
• Verify wiring locations and take a photo before removal for correct reconnection
• Use proper tools and avoid touching energized contacts;

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Oven cavity support plate mounts inside the oven chamber to provide structural support. Replace if plate is cracked, bent, warped, or missing.

This compressor start relay helps the refrigerator compressor receive the initial jolt it needs to start running, restoring normal cooling when a worn relay prevents compressor startup. It's a direct-fit replacement specified by the manufacturer. What it does:

• Provides the momentary boost the compressor needs to start under load
• Helps prevent repeated hard-start attempts that can overheat or damage the compressor
• Commonly used when a refrigerator hums but the compressor won't start
• Works with the compressor's start device circuitry to control start winding engagement

• One replacement compressor start relay

• Disconnect power to the appliance before servicing to avoid shock
• Access and replace the relay per the appliance's service instructions; avoid bending terminals
• Inspect the compressor and wiring for additional damage before reassembly

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Wire harness for oven temperature probe. Connects probe sensor to control board. Replace if wires are frayed, connectors are damaged, or harness is broken.

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

8-18 AB IHW 5/8 S

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Mounting screw secures range components and panels. Replace if screw is stripped, missing, or damaged during appliance repair or maintenance work.

Black. 8-18 AB HXW 3/8

Black trim screw secures exterior trim and panels on ovens and ranges. Replace missing, stripped, or corroded screws to restore proper fit and finish.

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
