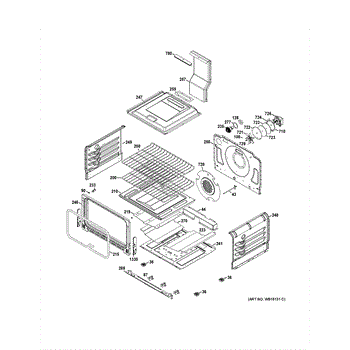

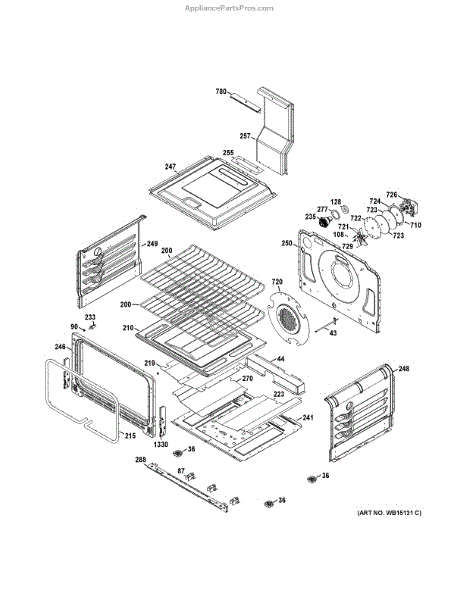

Parts for Ge JGB870DET3BB: Lower Oven Parts

The Temperature Sensor is an OEM part for GE ovens and ranges, accurately measures and controls the temperature within the oven cavity. This part ensures your oven heats to the desired temperature and maintains it throughout the cooking process, providing consistent and reliable cooking results.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, physical damage, or wear and tear over time that affects its accuracy.

Symptoms of a bad Temperature Sensor include:

• The oven not reaching the set temperature or displaying an error code related to temperature regulation.
• Unpredictable oven temperatures, leading to inconsistent cooking results.
• The oven taking longer than usual to preheat, or not heating at all, indicating that the sensor is not properly gauging and adjusting the temperature.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small replacement bumper cushions and protects the appliance frame/trim where panels meet, helping reduce vibration, chipping and rattles for a cleaner, quieter fit. Ideal when the original bumper is worn, cracked or missing. What it does:

• Cushions contact between the frame/trim and adjacent panels to reduce noise and prevent damage
• Helps maintain proper panel alignment and sealing where the trim meets the cabinet
• Reduces rattling or vibration caused by loose or degraded trim pads
• Restores protective spacing that prevents chips or scratches to finished surfaces

• One frame front bumper

• Disconnect power to the appliance before starting work and follow all safety precautions
• Usually installs by pressing into a slot or onto a mounting surface after removing the trim piece; some trim removal may be required
• Inspect mating surfaces for damage or debris and clean before installing the new bumper
• Replace with the exact part number only; do not force or modify the bumper to fit

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This replacement oven rack restores a sturdy, level surface for cookware. Replace a bent, rusted, or missing rack to safely position dishes at the proper height for baking and broiling. What it does:

• Supports pans and dishes on a stable, level surface during baking or broiling
• Slides along the oven's side supports to adjust rack positions
• Helps maintain correct spacing from the heat source for recipes
• Replaces racks that are bent, rusted, missing, or have broken welds/stops

• Allow the oven to cool completely and switch off power at the breaker for safety
• Pull the old rack forward to the stop, lift the front to clear the stop tabs, and remove
• Align the new rack with the side rails (stop notches toward the rear if present) and slide it in fully
• Follow your user manual for self-cleaning; many models require removing racks to protect the finish

The Bottom Oven and Deflector Assembly is an OEM part for GE ranges. This assembly features both the bottom oven cavity and heat shield deflector above it. It allows for simultaneous cooking on two racks while protecting cabinets from excessive heat.

The deflector assembly works to direct warm air out from the bottom oven opening. It distributes heat evenly and prevents issues caused by concentrated airflow. Over time, cooking residue buildup may occur on these parts or cracks could form due to repeated heating.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive cabinet warming from bottom oven use
• Uneven cooking results within the bottom oven cavity
• Difficult air circulation or hot spots occurring

This authentic GE replacement restores like-new cooking performance. Featuring durable manufacturing and a premium fit, it maintains oven functionality for more efficient meal preparation.


The Bottom Oven and Deflector Assembly is an OEM replacement part for GE wall ovens/ranges. It contains both the lower cooking cavity and heat deflector plate.

Causes of needing replacement can include damage from accidental drops or spills inside the lower oven, failure of the sealed door gasket allowing moisture, or accumulation of baked-on grease harming reflectivity.

Symptoms of issues with the bottom oven assembly include:

• Inefficient or uneven cooking/baking in the lower cavity
• Improper heat distribution and browning on foods
• Difficulty maintaining set oven temperatures
• Visible cracks or gaps in the oven cavity walls or door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven deflector is a stamped heat shield that helps direct oven heat away from sensitive components for more even cooking and to protect the back wall and wiring. Fits in the oven cavity where heat needs to be redirected. What it does:

• Directs and diffuses heat away from the rear oven wall and internal components
• Helps promote more even temperature distribution during baking or broiling
• Protects wiring, sensors, and insulation from excessive radiant heat
• Commonly replaced when warped, damaged, or missing

• Disconnect power to the appliance before any service to avoid shock hazard
• Typically installs with screws or clips at the back of the oven cavity; retain hardware for re-use unless new fasteners are provided
• Inspect surrounding insulation and wiring while replacing; replace if damaged

This plunger switch is the push-style electrical switch that completes a circuit when an actuator is depressed, restoring reliable on/off signaling. Use it to replace a worn or broken plunger switch that causes intermittent or non-responsive operation. What it does:

• Closes an electrical circuit when the plunger is pushed, sending a signal to the appliance control.
• Commonly used where a door, lever or dispenser actuator must register a position or user input.
• Can correct symptoms like intermittent operation, a dispenser or mechanism that won't activate, or a stuck/unresponsive actuator.
• Acts as a direct mechanical-to-electrical interface—no electronics required.

• Disconnect power (unplug or turn off breaker) before servicing to avoid shock.
• Remove the access panel or housing to reach the switch; note actuator orientation before removal.
• Disconnect terminals or harness, then swap the old switch for the new one; reconnect terminals securely.
• Test the plunger action and appliance function before reinstalling panels.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This frame weld assembly is the welded structural frame that supports and aligns the appliance's front components, helping restore proper fit and stability for panels and doors. Replaces a damaged or bent frame to improve alignment and reduce rattling. What it does:

• Provides structural support for the appliance front, keeping panels and doors aligned
• Restores correct fit when the frame is bent, warped, or damaged
• Reduces vibration, rattling, and visible gaps caused by a compromised frame
• Helps ensure panels and doors operate smoothly and seat properly

• Disconnect power and fuel before starting any repairs
• Removal and replacement may require basic hand tools and panel/trim removal
• Handle with care to avoid damage to painted surfaces and adjacent components

This oven back is the factory replacement rear wall panel that restores the oven cavity's interior surface and helps protect internal components from heat and debris. It's a direct-fit repair for ovens that have a damaged, warped, or burned back panel. What it does

• Replaces the oven's rear interior wall to restore proper enclosure and protect wiring and components
• Helps maintain even heat distribution by restoring the oven cavity surface
• Use when the back panel is dented, warped, burned, or has holes that allow heat or debris to escape
• Can stop contact-related arcing or chafing if the original panel was damaged

• One oven back (rear wall panel) as shown

• Disconnect power to the appliance before starting any repair
• Handle sharp sheet-metal edges with care and wear gloves
• May require removing oven racks, broil element, or internal screws for access—refer to model-specific service instructions
• If wiring or insulation behind the panel is compromised, inspect and replace damaged parts as needed

This oven deflector is a replacement heat shield that helps protect the oven cavity and nearby components by directing heat away from sensitive areas for more consistent cooking and safer operation. What it does

• Shields the oven cavity and components from direct heat and radiant exposure.
• Helps promote more even cooking by guiding heat flow away from specific areas.
• Prevents direct contact between food/drippings and heating elements.
• Replace if the deflector is bent, cracked, missing, or shows signs of burning or warping.

• Disconnect power to the range before servicing to avoid electrical shock.
• Allow the oven to cool completely before beginning work.
• Basic hand tools are typically required; follow OEM instructions for proper fastener torque and placement.
• If mounting hardware is damaged or missing, replace with OEM-specified fasteners.

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

Back

This motor drives the oven's convection fan to circulate hot air for even, consistent baking and roasting. Replace a noisy or stalled motor to restore proper airflow and uniform temperatures throughout the cavity.

• Spins the convection fan to move heated air across all racks
• Helps reduce hot and cold spots for more even cooking results
• Failure signs include the fan not running, running slowly, or making loud humming/grinding/squealing noises
• Symptoms can include uneven baking/roasting, longer preheat times, and poor browning

• Disconnect power at the breaker before servicing
• Access varies by model; remove appropriate panels to reach the motor and fan
• Transfer the existing fan blade and any reusable mounting hardware if your model uses separate parts
• After installation, ensure the blade spins freely and clears the shroud before restoring power

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spindle to turn and move the air around inside the oven. The fan helps the food to cook more evenly and reduces areas in the oven that are not cool enough or hot enough. If the fan is not working, the convection oven will not cook correctly.Convection ovens are different from regular ovens, and the fan is part of the reason. Convection ovens use the fan and an exhaust system to move the heat around inside the oven to cook food more evenly and faster. Many convection ovens have a setting that allows the oven to be used as a regular oven. If the nut is missing and the fan is inoperable, the oven can be used for regular cooking if it has this feature. Otherwise, the convection oven should not be used until the nut is replaced.This nut is a silver metal replacement part that is sold individually. It is designed for use in convection ovens made by GE and Kenmore.

This receiver hinge is the metal bracket that secures a refrigerator or freezer door hinge pin and helps the door open and close smoothly. It replaces worn or damaged receiver brackets to restore proper door alignment and operation. What it does:

• Secures the hinge pin to the cabinet so the door pivots correctly
• Supports door weight to reduce sagging and misalignment
• Restores smooth opening and closing when the original bracket is cracked or worn
• Helps maintain an effective door seal by keeping the door properly aligned

• One receiver hinge bracket

• Disconnect power to the appliance before beginning any repair
• Typically installed at the cabinet hinge location; basic hand tools required
• Support the door while removing/installing the hinge to prevent injury or damage
