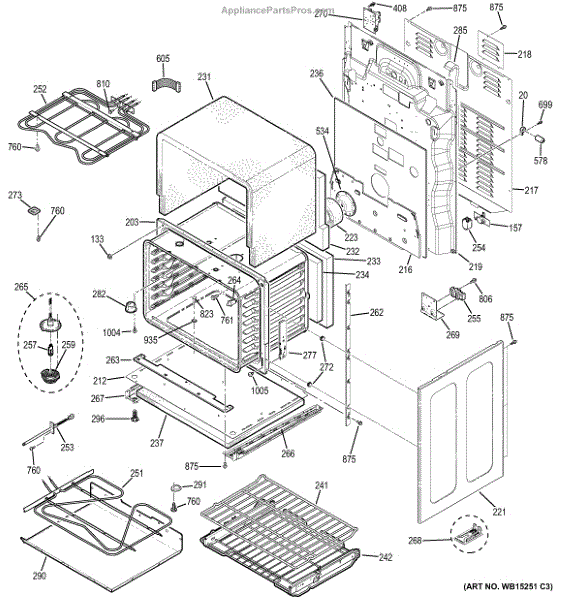

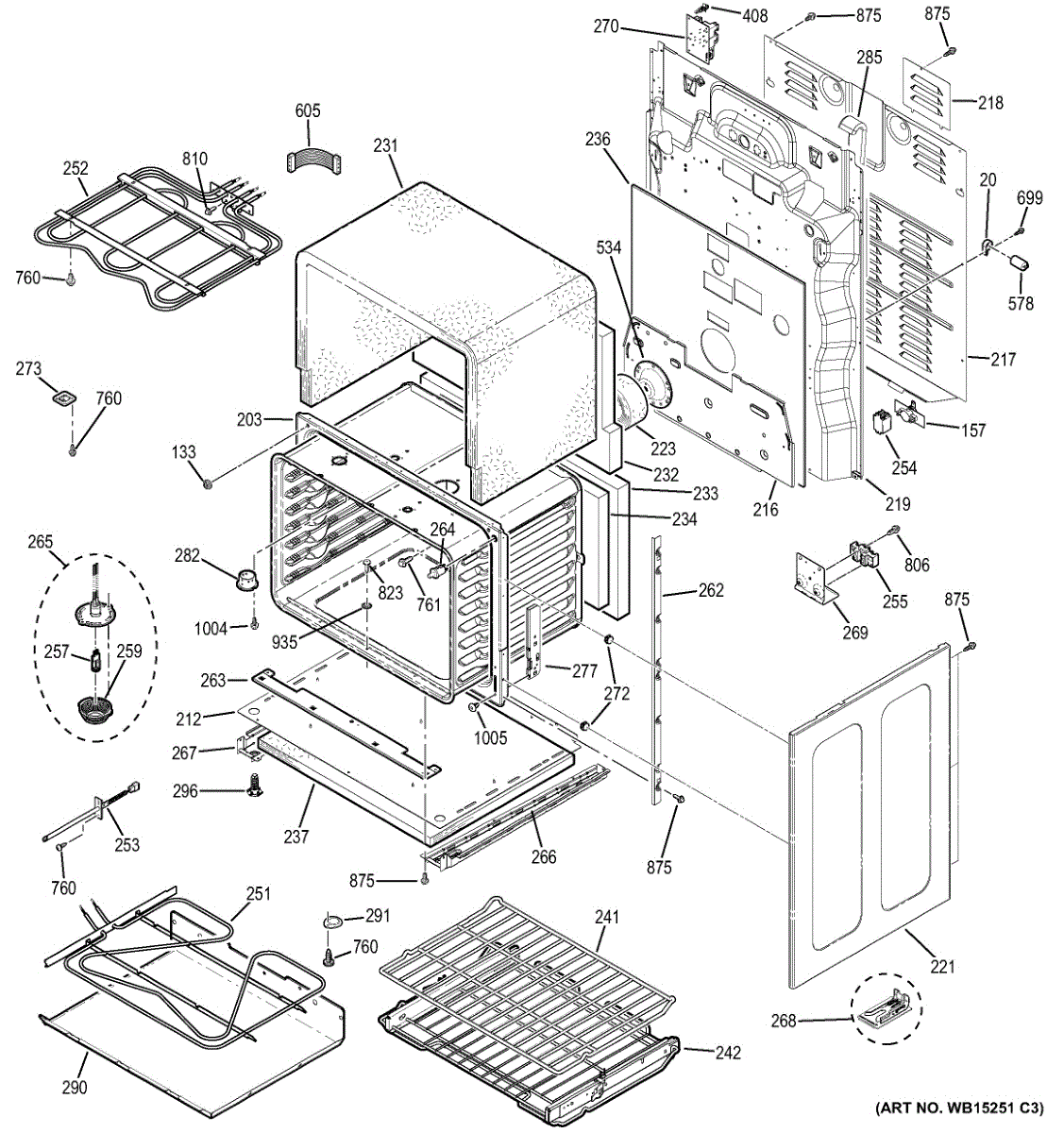

Parts for Ge PB950SF1SS: Lower Oven Parts

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Oven won't heat or shuts off after preheating? This thermal cutoff fuse opens the heating circuit when temperatures exceed safe limits. Direct fit part.

Back heat shield panel for electric ranges. Protects rear components from oven heat. Replace if cracked, warped, or missing to restore proper insulation.

Wire cover for electric ranges. Protects and conceals main wiring connections. Replace if cracked, broken, or missing to restore proper coverage.

This cover terminal block protects the appliance's power connection area by covering the terminal block where the power cord attaches. It keeps wiring secure and helps reduce risk of accidental contact and shorting. What it does:

• Covers and protects the power cord terminal block from dust, moisture and accidental contact
• Prevents exposed terminal ends that can cause arcing or shorts
• Helps keep wiring routed and secured at the power connection
• Common replacement when the original cover is cracked, melted or missing

• One cover terminal block

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the cover
• Remove any mounting screws and lift off the old cover to access terminals; document wire locations before disconnecting
• Reinstall cover after confirming tight, correct terminal connections and that no bare conductors are exposed
• If terminals or wiring show damage (burning, melting, corrosion), replace or repair those parts before reinstalling the cover and restore power only when safe

Gray removable oven rack that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore stable support and proper positioning.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

This is an electrical relay used in ranges and ovens to control power to specific components such as heating elements or fans. It switches circuits on and off in response to signals from the control board. Replace this relay if a burner or oven element fails to heat, heats intermittently, or if the relay is visibly burned or damaged.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

This SPDT high-amp switch controls high-current circuits by switching one input between two outputs, restoring proper electrical control in affected appliance functions. Built for high-load switching where reliable on/off selection is required. What it does:

• Directs high-current power from a single input to one of two outputs (single-pole, double-throw action)
• Replaces worn or failed selector/limit-style switches that cause intermittent or no power to a circuit
• Commonly used where a high-amp, durable switching contact is required to complete a function
• Helps stop symptoms like intermittent operation, failure to switch between states, or no power to the controlled circuit

• One SPDT high-amp switch (WB24T10160)

• Disconnect power to the appliance before inspecting or replacing the switch
• Verify wiring locations and take a photo before removal for correct reconnection
• Use proper tools and avoid touching energized contacts;

Replace your range oven interior light bulb assembly to restore bright illumination for checking cooking progress. Fits specific GE range models.

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire harness connects electrical components inside your range. Replace if wires are frayed, damaged, burnt, or connections are loose or corroded.

ST10-16 X 7/16"

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Truss head screw for fastening oven panels, trim, and brackets. Replace if missing, stripped, or corroded to secure loose components and panels.

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Replace your missing, worn, or damaged range washer. This small metal component secures parts and assemblies throughout your oven, ensuring proper fit.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.
