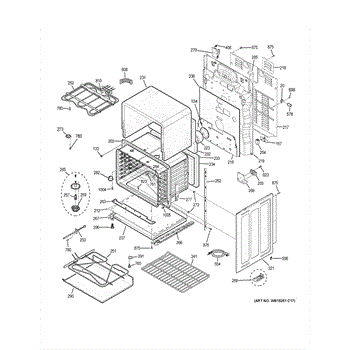

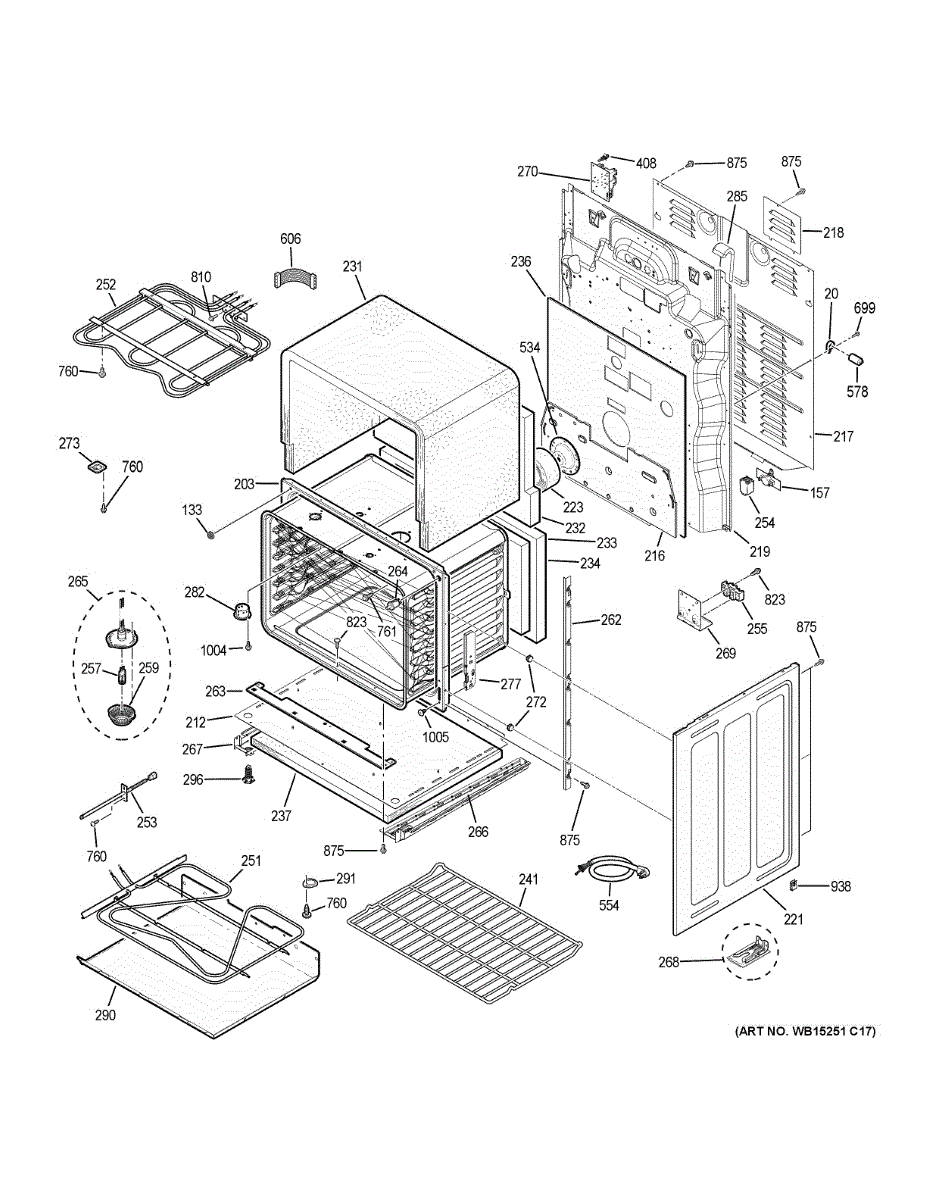

Parts for Ge PCB980SJ3SS: Lower Oven Parts

Oven won't heat or shuts off after preheating? This thermal cutoff fuse opens the heating circuit when temperatures exceed safe limits. Direct fit part.

Back heat shield panel for electric ranges. Protects rear components from oven heat. Replace if cracked, warped, or missing to restore proper insulation.

Wire cover for electric ranges. Protects and conceals main wiring connections. Replace if cracked, broken, or missing to restore proper coverage.

Covers the power terminal block where the cord connects. Protects wiring from dust and accidental contact. Direct-fit part for electric ranges.

Gray removable oven rack that supports cookware inside your oven. Replace a bent, rusted, or missing rack to restore stable support and proper positioning.

Oven not heating or baking unevenly? The hidden bake element often fails and needs replacement. Advanced repair requiring panel removal—2-3 hours.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Fix burners that won't heat or cycle properly with this infinite switch. Controls surface element temperature by regulating power flow. Easy DIY fix.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Restores bright interior lighting in your oven or range. Replace when bulb burns out to clearly see food and monitor cooking progress. Verify G9 base fit.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Halogen light bulb assembly that illuminates your oven cavity. Replace if light is dim, flickering, or unresponsive. Verify fit with model number.

Base rail for electric ranges. Structural support component that mounts at the bottom of the range chassis. Replace if cracked, bent, or damaged.

Strain relief bracket secures and protects the power cord connection on your range. Replace if damaged, cracked, or missing to ensure safe installation.

Oven light not working or relay not clicking? This relay daughter board controls lighting circuits. Plugs into main control board for quick repair.

Secures and aligns the side panel of your range cabinet. Replace if the original bracket is broken, missing, or no longer holds the panel firmly in place.

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

Vent tube that channels hot air from your electric range oven to the exhaust path. Replace if cracked, warped, or missing to restore proper ventilation.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Plastic standoff that secures and spaces the control board from the chassis. Replace if broken, missing, or worn to restore proper board mounting and insulation.

Replace your electric range's power cord if damaged, frayed, or missing. This cord connects your range to the wall outlet for electrical power.

Convection fan won't run or oven bakes unevenly? This wall oven fan motor circulates hot air for even cooking. Moderate DIY repair, 1-2 hours.

This 14-gauge green lead wire provides a factory-style electrical connection or grounding path for compatible appliances. It restores reliable power/grounding when the original wire is damaged or corroded. What it does:

• Carries electrical current or provides a grounding conductor for internal appliance circuits
• Replaces cracked, frayed or burnt wiring that can cause intermittent operation
• Helps prevent arcing and poor connections that can lead to component failure
• Common symptom: component won't power on or connection shows visible wire damage

• Disconnect all power before servicing the appliance to avoid shock or injury
• Use proper connectors and secure clamps; ensure tight, corrosion-free terminations

This hidden-bake harness connects the oven's control wiring to the concealed bake element, restoring reliable power transfer for consistent oven heating. It replaces damaged or worn oven element wiring to help resolve intermittent or no-heat bake issues. What it does:

• Provides the wire connection between the control/terminal block and the hidden bake element
• Restores continuity when frayed, burnt, or broken wiring prevents the bake element from heating
• Helps stop intermittent heating or complete loss of bake function caused by damaged harnesses
• Reduces risk of arcing from loose or corroded connector ends when installed correctly

• Disconnect power at the breaker or unplug the appliance before starting any work.
• Access may require removing the oven back panel or lower access panel; follow the model's service instructions.
• Match connector ends and routing; avoid pinching or exposing wires to sharp edges or direct heat.
• If soldered or crimped joints are present, use proper connectors; inspect adjacent components for heat damage.

Hex head mounting screw for ranges and ovens. Secures elements, panels, and internal components. Replace if stripped, missing, or damaged during repairs.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

Package of 12
