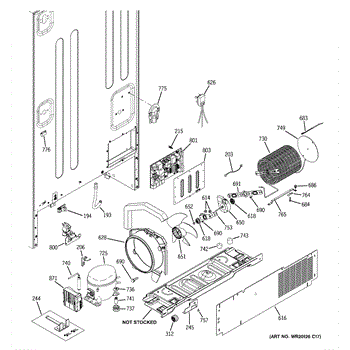

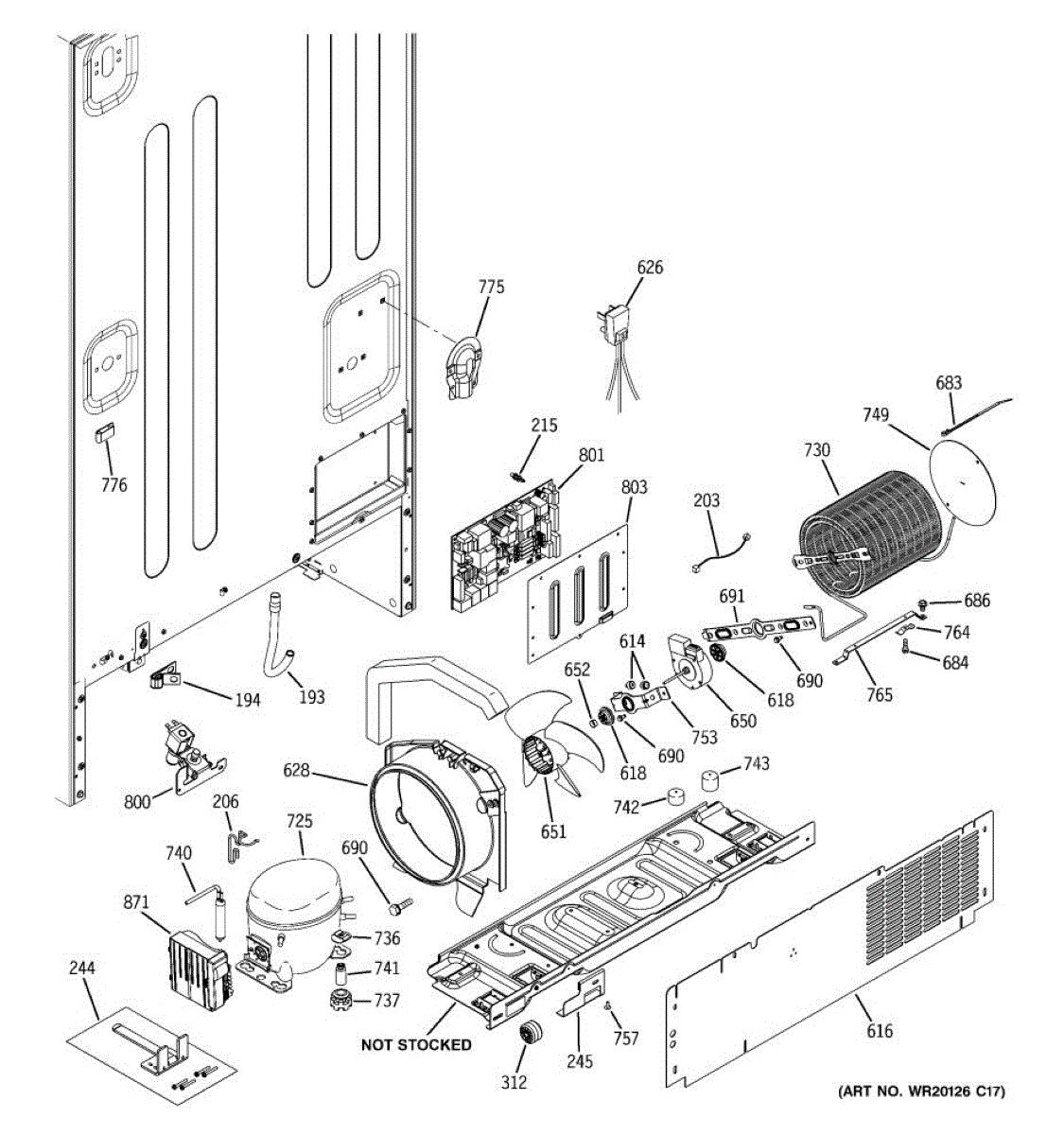

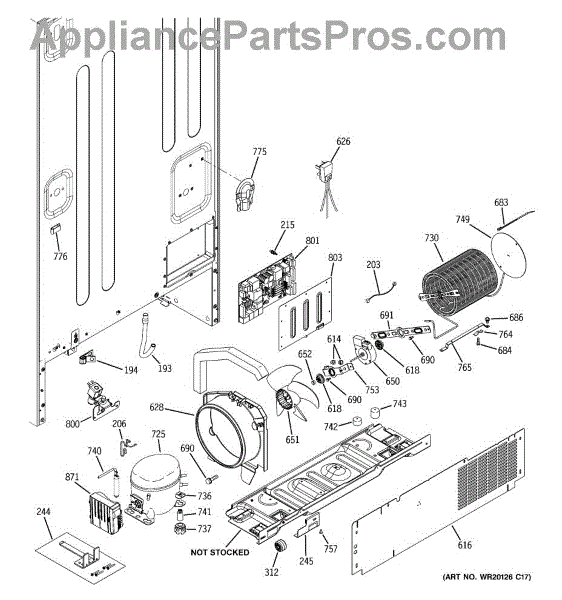

Parts for Ge PFCS1NFWASS: 07 - Machine Compartment Parts

The GE refrigerator water filter is an OEM replacement part responsible for ensuring the quality of the water dispensed on GE Profile top and bottom freezer refrigerators. It is responsible for purifying the water before it reaches your glass or ice maker, providing you with clean and safe drinking water directly from your refrigerator. To maintain optimal water quality and ensure the filter's effectiveness, it is recommended to replace the filter every 6 months or when the rated capacity of 750 gallons is reached.

Over time, the water filter can become clogged with sediment, reducing its effectiveness. Regular use and the accumulation of minerals and contaminants can lead to the need for replacement.

Symptoms of a bad water filter include:

• Reduced water flow from the dispenser
• Ice cubes with an unusual taste or odor
• The filter indicator light staying on
• Visible particles in the water or ice

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. For the best performance, it is recommended to replace the water filter every six months or as indicated by the filter change light on your refrigerator.

The Drain Tube is an OEM part for GE refrigerators. It is responsible for directing defrost water to the drain pan located beneath the appliance, where it can evaporate safely.

Causes of a bad drain tube can include blockages from debris or ice, physical damage such as cracks or splits that allow water leakage, or a disconnection from its fitting points due to improper installation or material fatigue.

Symptoms of a bad Drain Tube include:

• Water pooling at the bottom of the refrigerator compartment
• Ice accumulation in or around the freezer area
• Leakage of water onto the kitchen floor beneath the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ground wire harness connects an appliance's metal chassis to its electrical ground to help maintain a safe, stable ground path and reduce risk of electrical faults. It's a direct-replacement harness used where the original ground lead is damaged or corroded. What it does

• Provides a dedicated grounding path between the appliance chassis and the household ground to help prevent electrical leakage and reduce shock risk.
• Restores proper chassis grounding when the original harness is broken, frayed, or shows corroded terminals.
• Can resolve intermittent electrical faults or nuisance tripping caused by a poor ground connection.
• Matches OEM connector types and routing points for a like-for-like replacement.

• One ground wire harness assembly

• Always disconnect power (unplug appliance or shut off circuit breaker) before inspecting or replacing grounding components.
• Verify correct routing and secure all terminal fasteners to the chassis; do not rely on paint or rusted surfaces for a good ground.
• Replace any corroded screws or mounting hardware; use manufacturer-specified fasteners where required.

A small retaining clip that secures the refrigerator drain tube to the cabinet or drain assembly to keep the tube in place and help direct defrost water to the drain pan. Simple replacement for loose or broken clips. What it does:

• Holds the drain tube or drain hose in the correct position to prevent kinks or dislodging
• Helps maintain proper water flow from the defrost/drain channel to the drain pan
• Commonly used when water pools inside the fridge, leaks onto the floor, or drips from the cabinet
• Prevents tube movement that can lead to freeze-ups or overflow at the drain inlet

• One drain tube retaining clip

• Disconnect power to the appliance before beginning any service
• Access the clip by removing the rear or interior access panel as required by your model
• Snap the clip over the drain tube and into the cabinet or mounting boss until it seats securely
• Inspect the tube and surrounding area for blockages or damage while replacing the clip

This stand off is a small mounting spacer that secures and spaces internal components, restoring proper alignment and reducing panel movement or vibration for quieter, more reliable operation. What it does:

• Provides a solid mounting point to hold panels, brackets or wiring harnesses in place.
• Replaces broken, cracked or missing standoffs that allow components to shift or rub.
• Helps stop rattling, buzzing or misalignment caused by loose mounting points.
• Keeps proper clearance between parts to prevent wear or chafing over time.

• Disconnect power to the appliance before starting any repair.
• Remove the affected panel or access cover to reach the damaged standoff.
• Replace the old standoff with the new part; retain and reuse any existing screws or fasteners unless damaged.
• Hand-tighten mounting hardware and test the appliance; avoid overtightening plastic standoffs.

This mobility wheel kit replaces worn or damaged roller wheels to restore smooth cabinet movement and positioning. Built to match OEM fit, it helps appliances roll easily for cleaning or service access. What it does:

• Replaces worn mobility/roller wheels that make rolling difficult or noisy
• Restores smooth, stable movement when moving the appliance for cleaning or service
• Helps prevent scratching or binding caused by damaged rollers
• Fits into existing cabinet wheel mounts for straightforward replacement

• Mobility wheel kit

• Turn off power and disconnect appliance before servicing
• Remove access panels as needed to reach wheel mounts; keep hardware organized
• Replace only the damaged wheels; verify secure fit and smooth rotation before returning appliance to service

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This power cord assembly supplies electrical power from the wall outlet to your refrigerator. Replace a cut, frayed, or overheated cord to restore safe, reliable operation and eliminate intermittent power loss caused by a damaged cord. What it does:

• Provides the electrical connection between the household outlet and the refrigerator's wiring
• Helps resolve no-power or intermittent power when the cord is moved
• Addresses visible damage such as cuts, cracks, fraying, or a melted/discolored plug
• Mitigates arcing, sparking, or a burning odor originating from the cord or plug area

• One power cord assembly

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Pull the refrigerator forward for access; note the original cord routing and connections
• Install the new cord along the same path and secure any built-in strain relief; ensure the ground connection is properly seated
• Restore power and verify operation

This condenser fan shroud directs cooling airflow across the condenser and keeps the condenser fan and motor securely positioned for reliable cooling performance. It helps maintain proper condenser airflow and protects fan components from contact. What it does:

• Guides airflow from the condenser fan to improve heat dissipation
• Holds the condenser fan motor and blade in the correct position
• Reduces the risk of fan-to-coil contact and related noise or damage
• Can help address symptoms like noisy fan operation, increased run time, or reduced cooling when damaged or missing

• Disconnect power to the appliance before beginning any work
• Handle carefully — edges and nearby sheet metal can be sharp
• Basic hand tools are typically required; follow OEM instructions for removal/installation

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

The Condenser Fan Blade is an OEM part for GE refrigerators. It is responsible for moving air across the condenser coils to help dissipate heat, allowing the refrigerator to maintain the proper cooling temperature. This fan blade ensures efficient operation of the cooling system by facilitating proper airflow.

You should replace this condenser fan blade if it becomes damaged, warped, or fails to move air effectively. Common causes of a bad fan blade include physical damage from debris, wear and tear over time, or warping due to prolonged exposure to heat.

Symptoms of a bad condenser fan blade include:

• Refrigerator not cooling properly
• Increased noise from the refrigerator
• Overheating of the condenser coils
• Reduced airflow around the condenser area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This is a 10-32 machine-thread screw used to secure appliance panels, trim, and components. It replaces missing or damaged fasteners so parts fit tightly and operate without rattles or misalignment. What it does:

• Fastens panels, brackets, or assemblies that use a 10-32 machine screw
• Restores secure mounting where a stripped, missing, or corroded screw causes looseness
• Helps eliminate vibration noise or gaps caused by loose hardware
• Matches OEM thread size and length for correct fit in designated mounting holes

• One 10-32 x 5/16 machine screw

• Disconnect power and remove power source or batteries before servicing appliances
• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread carefully; do not force or overtighten to prevent thread damage
• Replace any damaged mating hardware or clipped inserts for a secure repair

This replacement machine screw fastens small appliance components and trim, restoring secure fit and preventing rattles or loose panels. Ideal for reattaching brackets, panels, and internal assemblies that use 8-32 fasteners. What it does:

• Secures panels, brackets, and internal components that use an 8-32 thread.
• Stops vibration and rattling caused by missing or loose screws.
• Restores proper alignment for removable trim or access panels.
• Matches the common hex washer-head style for a wide range of appliance mounting points.

• Use the correct 8-32 driver or hex socket to avoid stripping the head.
• Tighten firmly but do not overtighten; overtightening can strip threads or crack plastic.
• Disconnect power and remove any panels as needed before working on electrical components.
• If replacing multiple fasteners, replace all matching screws for even fit and alignment.

This condenser assembly is the condenser coil used in compatible refrigerators to release heat from the refrigerant so the appliance can cool efficiently. Replacing a damaged coil helps restore proper cooling performance and energy use. What it does:

• Circulates refrigerant through the condenser coil to dissipate heat from the refrigeration system
• Supports normal compressor cycling and helps maintain steady internal temperatures
• Common symptom fixes: reduces long run times, improves inadequate or uneven cooling, and addresses overheating or noisy compressor operation
• Works with the condenser fan and other sealed-system components to complete the heat-exchange process

• Disconnect power to the refrigerator before servicing to avoid electric shock
• Access commonly from the rear lower panel or front grille; may require removal of kick plate or back cover
• Avoid damaging the coil fins; handle carefully and use fin comb if needed

This is a grommet and it is intended for use on refrigerators and freezers. This is a genuine replacement part made by General Electric. A new grommet might be needed if the current one is visibly worn out or damaged in any way. If there are noises from vibration coming from the lower back area of the fridge there might be need for a new grommet. This is an OEM part sourced directly from the manufacturer, and it is sold individually. It is compatible with refrigerators and freezers, or units with a compressor and is made by General Electric.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This condenser fan mounting bracket secures the condenser fan motor and blade in the correct position to move air across the coils. Replacing a cracked or bent bracket restores stable mounting, reduces vibration, and helps maintain proper condenser airflow.

• Holds the condenser fan motor/blade assembly in alignment for proper airflow through the condenser
• Maintains clearance to prevent the fan blade from rubbing or contacting nearby components
• Helps reduce rattling, vibration, or scraping noises from the rear of the refrigerator
• Damage or misalignment can contribute to restricted condenser airflow and warmer temperatures

• Disconnect power and pull the refrigerator away from the wall to access the rear service area
• Remove the rear lower access panel; note wiring and hardware locations
• Support the fan motor/blade while removing the old bracket; transfer motor, blade, grommets, and screws to the new bracket
• The fan spins freely with proper clearance and correct airflow direction before reassembly

This 10-32 x 1/2 machine screw secures appliance components where a standard 10-32 fastener is required. It restores proper mounting and reduces vibration or loose panels for reliable, quiet operation. What it does:

• Secures panels, brackets, or components that use a 10-32 threaded hole
• Prevents rattling, misalignment, and intermittent contact caused by loose fasteners
• Maintains electrical or mechanical connections when used as the OEM-specified screw
• Helps restore fit and finish after repair or disassembly

• Use the correct 10-32 driver (Phillips or slotted depending on head) and hand-start the screw to avoid cross-threading
• Tighten until snug; avoid over-tightening to prevent stripping threads or cracking plastic parts
• Replace only with the same size and thread spec to ensure proper fit
• Disconnect power if working near energized components or wiring

This self-adhesive foam strip provides a flexible seal and buffer for appliance gaps, helping reduce drafts, rattling, and moisture intrusion. Designed for easy stick-on replacement where foam padding or sealing is needed. What it does

• Seals small gaps between components to help reduce air leaks and temperature loss
• Cushions panels and doors to minimize noise and vibration
• Helps block moisture and dust from entering sensitive areas
• Self-adhesive backing allows for quick placement without extra glue

• One self-adhesive foam strip

• Surface must be clean and dry; wipe with isopropyl alcohol for best adhesion
• Measure and trim the foam strip to fit—use scissors or a utility knife
• Press firmly along the length to ensure full contact; allow adhesive to set before closing doors or panels
• For safety, disconnect power to the appliance before working in internal areas

The Water Valve is an OEM replacement part for GE side-by-side refrigerators. As part of the internal plumbing system, the valve controls the supply of water into the refrigerator for ice and water dispensing functions. It opens and closes precisely based on electronic signals from the control board.

Causes of a bad water valve can include mineral buildup disrupting water flow, seal deterioration from repeated use, or damage due to freezing temperatures.

Symptoms of a bad water valve include:

• Slow fill times for the ice maker or water dispenser
• Odd sounds coming from the valve area
• Water leaks at the valve inlet/outlet ports
• Failures of the ice/water dispenser to function normally

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Main Control Board is an OEM replacement part for GE refrigerators. This critical component manages and coordinates all of the refrigerator's operations, including temperature regulation, defrost cycles, and the functioning of the compressor and fans. It ensures that the refrigerator maintains the desired temperatures and operates efficiently.

Over time, the main control board can fail due to electrical surges, wear and tear on its electronic components, or exposure to moisture. Manufacturing defects or issues within the refrigerator’s electrical system can also lead to malfunctions, impacting the overall performance of the appliance.

Symptoms of a bad main control board include:

• The refrigerator not cooling or freezing properly
• Unusual or erratic temperature fluctuations
• The refrigerator not responding to control settings
• The compressor or fans not running
• Error codes or lights flashing on the display panel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Inverter Board is an OEM part for GE refrigerators, designed to control the compressor's speed. This sophisticated electronic component adjusts the compressor's power based on the cooling demand, enhancing the refrigerator's efficiency and overall performance. By modulating the compressor's operation, the inverter board plays a critical role in maintaining the desired temperature within the fridge and freezer compartments, ensuring your food is preserved under optimal conditions.

Causes for a Refrigerator Inverter Board to fail can include electrical surges that damage the board's components, wear and tear over time affecting its functionality, or issues with the refrigerator's cooling system that put additional strain on the inverter board.

Symptoms of a bad Refrigerator Inverter Board include:

• The refrigerator fails to cool properly
• Unusual noises coming from the refrigerator
• The fridge experiences frequent temperature fluctuations

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
