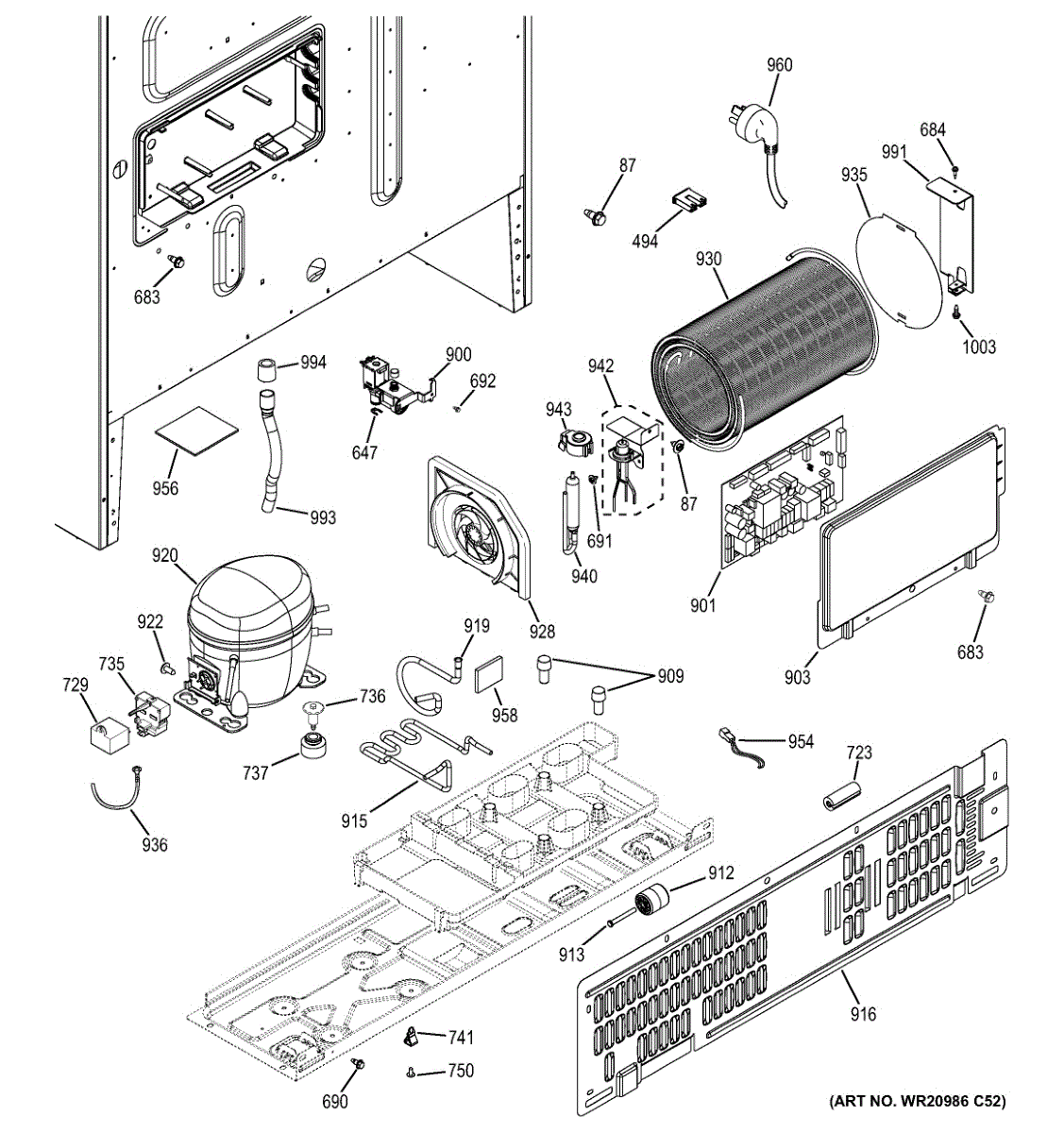

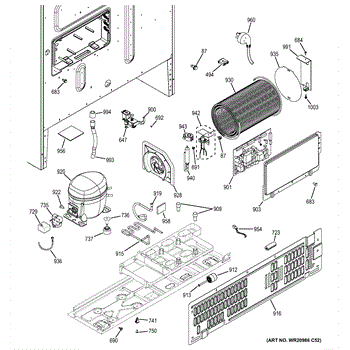

Parts for Ge CYE22TSHFSS: Machine Compartment Parts

Removes contaminants from your refrigerator's water and ice. Replace every 6 months or when the filter indicator activates. Confirm fit with your model.

Sheet metal screw secures refrigerator panels, trim, and brackets. Replace missing, stripped, or corroded screws to restore proper fit and assembly.

Dishwasher not powering on or experiencing electrical issues? This terminal block housing insulator protects wire connections. Simple repair part.

Water leaking from connections? This locking clip secures 1/4-inch tubing in push-to-connect fittings on refrigerator water and ice systems.

Hex washer head screw secures panels, brackets, and small assemblies inside refrigerators and ranges. Replace stripped, missing, or damaged screws.

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Replace missing or stripped mounting screws in your washer dryer combo. This 12-pack secures panels, components, and internal parts during assembly or repair.

Rubber grommet that cushions and protects refrigerant or water tubing where it passes through sheet metal. Replace if cracked, worn, or missing.

Fix a refrigerator that won't cool or clicks but doesn't start. This compressor start relay and overload protects against electrical issues. DIY-friendly.

This 10-32 hex washer head screw secures panels and components on appliances, providing a reliable fastener that helps keep parts aligned and vibration-free. Use it when a matching machine screw is missing or damaged. What it does

• Fastens appliance panels, brackets, and small components using a 10-32 machine thread
• Hex washer head spreads load and resists pull-through on thin sheet metal
• Replaces missing or stripped screws that cause loose panels, rattling, or misaligned parts
• Compact size for tight mounting locations where a machine screw is required

• One 10-32 hex washer head screw, 1/2 inch length

• Disconnect power and follow appliance safety procedures before servicing
• Use the correct 10-32 driver (hex/Socket or nut driver) to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage or panel distortion
• Replace with identical size and thread to ensure proper fit and function

A replacement rubber mounting cushion that isolates and secures the refrigerator compressor to reduce vibration and noise. Restores proper compressor seating to help lower vibration transfer and prevent premature wear. What it does:

• Cushions the compressor to absorb vibration and reduce noise during operation
• Helps keep the compressor properly aligned and secured to the mounting bracket
• Can reduce rattling or buzzing that indicates worn or missing mounts
• Protects mounting hardware and body panels from metal-on-metal contact

• One compressor grommet

• Turn off power to the appliance and unplug before servicing
• Inspect surrounding mounts and hardware; replace any damaged fasteners
• Grommet installs between compressor and mounting bracket; reuse OEM orientation

This compressor mounting stud secures the compressor to the refrigerator chassis, keeping the unit stable and reducing vibration and noise. It's a durable replacement part for worn, bent, or missing compressor mounting hardware. What it does:

• Provides a secure attachment point between the compressor and cabinet/frame
• Helps reduce compressor vibration and operational noise when correctly installed
• Prevents compressor movement that can stress refrigerant lines or electrical connections
• Commonly replaced when the original stud is corroded, damaged, or missing

• Disconnect power to the appliance before beginning any repair.
• Support the compressor while removing/installing mounting hardware to avoid strain on lines and fittings.
• Replace any associated nuts, washers, or insulators if worn or damaged; use correct hardware orientation.

Replacement mounting screw for securing panels, trim, and internal components in appliances. Needed when original screws are stripped, lost, or damaged.

No water from dispenser or ice maker? The water inlet valve controls water flow to both. DIY-friendly repair takes about 2 minutes with basic tools.

Fridge completely dead with no lights or display? Main control board manages temperature, defrost cycles, and fan operation. Most DIYers complete in 10 min.

Replace a cracked or missing control board cover to protect electronics from moisture and dust. Simple snap-on installation takes 10-15 minutes.

This condenser support is the replacement mounting bracket that holds the refrigerator condenser or condenser coil securely in place, helping maintain proper clearance and airflow for reliable cooling performance. What it does:

• Secures the condenser or condenser coil to the cabinet to prevent movement or vibration
• Maintains correct condenser positioning to support consistent airflow and heat dissipation
• Helps reduce rattling or noise caused by a loose condenser assembly
• Supports overall cooling reliability by keeping components aligned

• One condenser support bracket

• Installation requires basic hand tools; disconnect power before beginning any repair
• Handle sharp sheet-metal edges carefully to avoid cuts
• Reinstall any removed panels or fasteners to restore proper airflow paths

Roller wheel for bottom-mount refrigerators. Mounts to the base to allow smooth rolling movement. Replace if cracked, broken, or causing uneven gliding.

Fix compressor electrical faults with this discharge jumper. Restores secure connection between compressor circuit and wiring harness. Direct-fit part.

Suction tube jumper connects refrigeration lines in your refrigerator's cooling system. Replace if damaged, cracked, or leaking to restore proper fit.

Fix a fridge that won't cool or makes loud humming noises with this compressor kit. Pressurizes refrigerant through the cooling system. Advanced repair.

Replace missing or damaged trim panel screws to secure exterior parts and maintain a clean appearance. Confirm fit with your refrigerator model number.

Refrigerator not cooling properly? A worn fan gasket disrupts airflow and temperature control. This assembly seals the circulation fan compartment.

Fix a refrigerator that won't cool properly or runs constantly with this condenser coil assembly. Restores heat dissipation and cooling efficiency.

This ground harness is a factory-style wire assembly that provides a safe electrical return path to reduce shock and interference risks. It restores proper grounding for affected appliance circuits and helps maintain safe operation. What it does:

• Connects appliance metal chassis/components to the ground system to prevent stray voltage and reduce shock risk
• Provides the ground path for control boards and other electrical components to function correctly
• Common symptom: appliance shows electrical faults, intermittent operation, or visible arcing at connection points
• Used when original ground wire is damaged, corroded, or has a failed connector

• One ground harness (wire assembly) as pictured

• Always unplug the appliance or disconnect power at the breaker before starting work
• Match connector types and routing to the original harness; secure all fasteners and strain reliefs
• Inspect mounting points and mating terminals for corrosion; replace fasteners if damaged

Filter drier for refrigerator sealed systems. Removes moisture and contaminants from refrigerant. Replace if frozen, iced over, cracked, or restricted.

Leaking water at the back of your fridge? A failed valve body disrupts water flow to the dispenser and ice maker. Professional repair recommended.

Leaking water at the back of your fridge? A failed valve body disrupts water flow to the dispenser and ice maker. Professional repair recommended.

This pad mastic is an adhesive sealant used to secure foam pads and insulation inside the appliance, helping keep components in place and reducing vibration and air gaps for more consistent performance. What it does:

• Bonds foam pads, insulation and other non-structural components to appliance cabinet surfaces
• Helps reduce vibration and noise by holding pads firmly in place
• Seals small gaps to limit air movement and moisture around insulation
• Commonly used during panel, liner, or insulation repairs and reassembly

• Unplug the appliance or shut off power before starting any repair
• Clean and dry mounting surfaces; remove old adhesive and debris for best adhesion
• Press pad into place and hold as needed; allow adhesive to set per OEM recommendations
• Wear gloves and avoid skin/eye contact; ventilate area when working with adhesives

Reduces refrigerator vibration noise by damping component and panel contact. Replace deteriorated mastic to eliminate rattles and buzzing. Confirm fit.

Refrigerator won't power on or loses power intermittently? This power cord harness restores a secure electrical connection from wall outlet to appliance.

Water leaking under your refrigerator? A clogged or cracked drain tube and valve causes leaks and ice buildup. Easy DIY fix—simply pull off and push on.

Water leaking under your refrigerator? A clogged or cracked drain tube and valve causes leaks and ice buildup. Easy DIY fix—simply pull off and push on.

Mounting screw fastens panels, brackets, and trim in refrigerators, dishwashers, and ranges. Replace missing, stripped, or rusty screws to secure parts.
