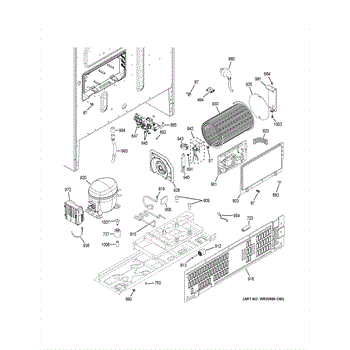

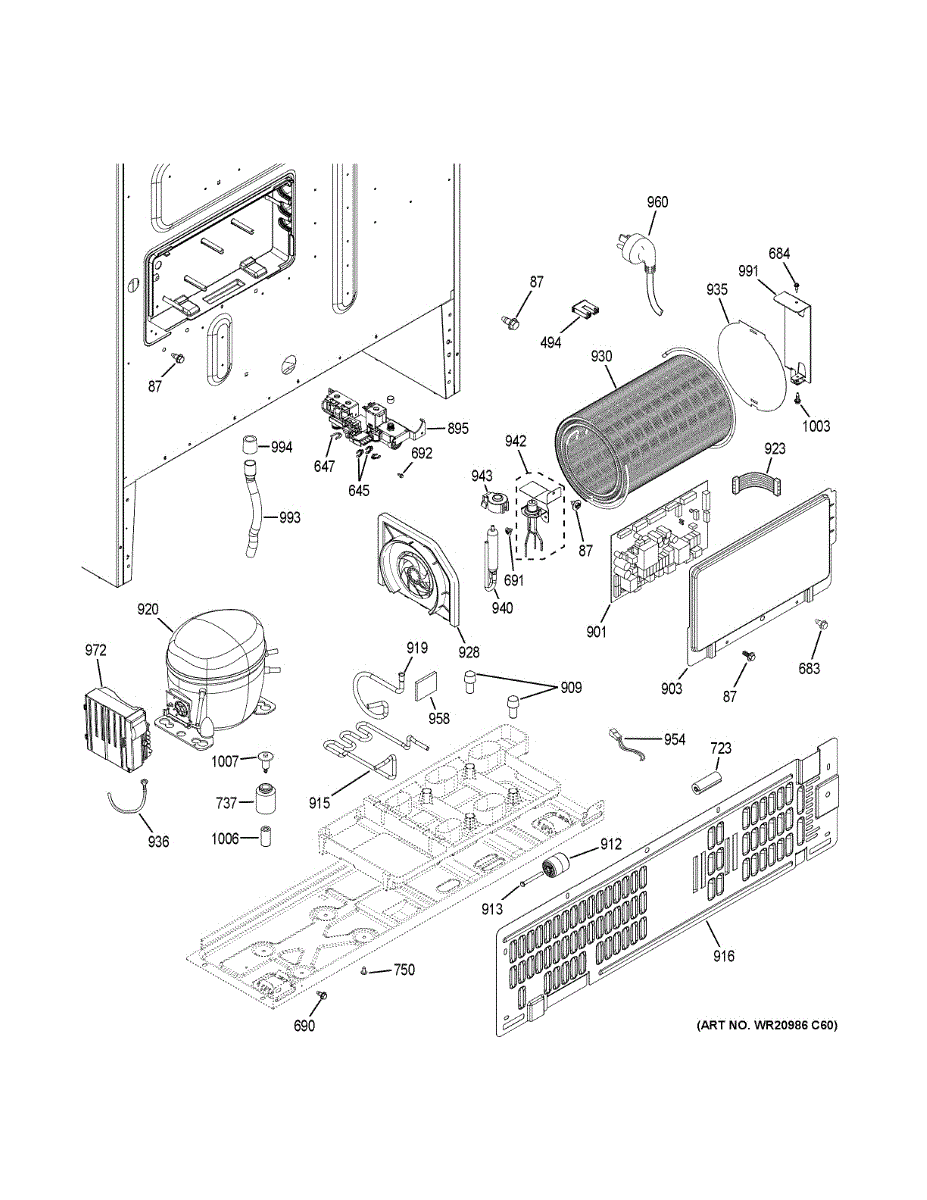

Parts for Ge PWE23KMDHES: Machine Compartment Parts

Filter Material: Carbon Block. Micron Rating: 0.5. Flow Rate: 0.5 gpm. Operating Pressure: 120 psi. Approximate dimensions: 10" x 1-3/4"

The GE Refrigerator Water Filter RPWFE is an OEM part for GE refrigerators. This advanced water filter is crucial for removing contaminants and impurities from your refrigerator's water supply, ensuring you have access to clean, fresh-tasting drinking water and ice. Utilizing a state-of-the-art filtration process, the RPWFE filter is capable of reducing various contaminants, including lead, chlorine, and five pharmaceuticals, providing peace of mind about the quality of your water.

Over time, water filters can become clogged with particles and contaminants, leading to a decrease in water flow and a reduction in the effectiveness of filtration. It's important to replace your refrigerator water filter as recommended by the manufacturer, typically every six months, to ensure optimal performance and maintain the quality of your water.

Symptoms of a filter needing replacement include:

• Reduced water flow from the dispenser.
• Unpleasant taste or odor in the water or ice.
• The refrigerator's water filter indicator light turns on

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

2 wire insulator.

This quick-connect clip secures 5/16-inch water tubing in push-to-connect fittings to prevent accidental release and leaks at the joint. Restore a reliable hold on dispenser and icemaker lines when the original clip is missing or damaged. What it does:

• Locks the release ring (collet) on a 5/16-inch quick-connect fitting to retain tubing
• Helps prevent water drips or leaks at the connector
• Keeps tubing from slipping out, supporting steady water flow to dispenser/ice maker
• Common symptoms: leak at fitting, loose/disconnected tubing, no/low water or ice

• 1 quick-connect clip (5/16)

• Unplug the appliance and shut off the water supply; dispense water to relieve line pressure
• Ensure the tubing end is cut square; push it fully into the fitting until seated
• Insert the clip beneath the fitting's collet to lock; tug gently to verify retention
• Restore water and power, then check all connections for leaks

• Designed for 5/16-inch OD water tubing quick-connect fittings

This 1/4-inch quick-connect locking clip secures water tubing in push-to-connect fittings on your refrigerator's water and ice system. It locks the tube in place to help prevent leaks and accidental disconnection at the fitting. What it does:

• Locks 1/4-inch OD tubing into compatible push-to-connect fittings
• Helps maintain a secure seal to reduce drips at water line connections
• Replaces a missing, cracked, or loose clip on filter heads, inlet valves, or inline couplers
• Symptoms include leaks at a fitting or a tube that won't stay seated

• One 1/4-inch quick-connect locking clip

• Disconnect power and shut off the water supply before servicing; dispense water to relieve pressure
• Remove the old clip; ensure the tubing end is clean and cut square
• Fully insert the tube into the fitting until it bottoms out, tug lightly to seat, then install the clip in the collet groove
• Restore water and check all connections for leaks

• Designed for fittings that use 1/4-inch OD tubing. It will not fit 5/16-inch or 3/8-inch quick-connect fittings.

A short 8-32 x 3/8 hex washer head screw used to secure small appliance panels and components. Simple replacement for stripped or missing fasteners to restore proper fit and prevent rattles or loose parts. What it does:

• Secures panels, brackets, and small assemblies in place
• Helps eliminate vibration-related noise from loose parts
• Replaces missing, damaged, or corroded screws to restore proper alignment
• Fits standard 8-32 threaded holes requiring a 3/8" length screw

• One 8-32 x 3/8 hex washer head screw

• Use the correct 8-32 driver to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage
• Disconnect power and follow appliance safety procedures before accessing internal components
• Replace only like-for-like fasteners in load-bearing or safety-critical locations

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

Includes 12 screws.

A rubber tubing grommet that fits a factory hole to protect and cushion refrigerant/water tubing and help prevent chafing or leaks. Simple, durable replacement that restores a sealed pass-through for tubing. What it does:

• Cushions and protects tubing where it passes through sheet metal or plastic openings
• Helps prevent chafing, rubbing and premature tubing wear
• Provides a cleaner, more secure tubing pass-through to reduce leak risk
• Commonly used on water lines, refrigerant lines or small-diameter tubing in appliances

• One tubing grommet

• Disconnect power and water supply before servicing the appliance
• Remove access panels as needed to reach the tubing hole; press-fit the grommet into the opening and route tubing through the slit
• Replace grommet if cracked, torn or excessively worn; ensure tubing is properly seated in the grommet
• Do not use sharp tools that could damage the grommet or tubing during installation

A replacement rubber mounting cushion that isolates and secures the refrigerator compressor to reduce vibration and noise. Restores proper compressor seating to help lower vibration transfer and prevent premature wear. What it does:

• Cushions the compressor to absorb vibration and reduce noise during operation
• Helps keep the compressor properly aligned and secured to the mounting bracket
• Can reduce rattling or buzzing that indicates worn or missing mounts
• Protects mounting hardware and body panels from metal-on-metal contact

• One compressor grommet

• Turn off power to the appliance and unplug before servicing
• Inspect surrounding mounts and hardware; replace any damaged fasteners
• Grommet installs between compressor and mounting bracket; reuse OEM orientation

This is a replacement screw used to secure appliance components and panels so parts stay properly attached for safe operation. It's a direct-fit fastener matching OEM form and function. What it does

• Secures panels, trim, or internal components to prevent rattling or gaps
• Restores factory attachment where a screw is missing or stripped
• Helps maintain proper alignment of housing and service access
• Suitable when repair requires original-fit fasteners

• Disconnect power or unplug the appliance before servicing to avoid shock
• Use the matching screwdriver or bit to avoid stripping the head
• Thread carefully and avoid overtightening to prevent damage to threads or plastic parts
• Keep removed screws organized; replace only the screws that match the original locations

A double water inlet valve assembly that controls water flow to the refrigerator's ice maker and dispenser, restoring proper filling and preventing intermittent supply issues when the original valve fails. Fits systems using a dual-solenoid inlet valve. What it does:

• Regulates water delivery to the ice maker and to the dispenser by opening and closing the two solenoid ports.
• Replaces a worn or stuck valve that can cause the ice maker not to fill or the dispenser to stop dispensing.
• Stops unwanted continuous flow or slow filling caused by a leaking or clogged inlet valve.
• Helps eliminate water pooling or inconsistent ice production linked to valve failure.

• Disconnect power and shut off the water supply before beginning service to avoid shock or flooding.
• Inspect inlet hoses and fittings for damage; replace any worn lines before installing the new valve.
• Tighten connections and restore water, then check carefully for leaks and proper ice maker and dispenser operation.

The Main Control Board (Reflashed) is an OEM replacement part for GE refrigerators. This board serves as the central hub for managing key refrigerator functions, including temperature regulation, defrost cycles, and operation of fans and compressors. The "reflashed" designation indicates that the board is pre-programmed with the latest firmware specific to your appliance model, ensuring optimal performance.

Over time, control boards can fail due to power surges, electrical component wear, or environmental factors such as moisture. A faulty board can disrupt the refrigerator’s functionality, leading to inefficient cooling and other operational issues.

Symptoms of a bad main control board include:

• Inconsistent or incorrect temperatures in the refrigerator or freezer
• Unresponsive controls or display malfunctions
• The refrigerator not cooling, or cycling excessively
• Error codes or unusual noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Protective plastic cover that shields the appliance main control board from dust, moisture and accidental contact. Keeps the control electronics enclosed for safer operation and easier servicing without touching the board. What it does:

• Protects the main control board from spills, dust and physical contact that can cause shorts or damage
• Helps prevent accidental contact with live terminals during use or maintenance
• Keeps wiring and connectors secured and routed away from moving parts
• Restores the original enclosure for a proper OEM fit and finish
• Useful when the existing cover is cracked, warped or missing

• Always disconnect power to the appliance before servicing electrical components
• Remove interior panels or shelves as needed for access; retain mounting screws for reinstallation
• Align cover tabs and screw holes carefully to avoid stressing the board or connectors
• If the control board shows signs of damage, inspect or replace the board before reassembly

This condenser support is the replacement mounting bracket that holds the refrigerator condenser or condenser coil securely in place, helping maintain proper clearance and airflow for reliable cooling performance. What it does:

• Secures the condenser or condenser coil to the cabinet to prevent movement or vibration
• Maintains correct condenser positioning to support consistent airflow and heat dissipation
• Helps reduce rattling or noise caused by a loose condenser assembly
• Supports overall cooling reliability by keeping components aligned

• One condenser support bracket

• Installation requires basic hand tools; disconnect power before beginning any repair
• Handle sharp sheet-metal edges carefully to avoid cuts
• Reinstall any removed panels or fasteners to restore proper airflow paths

This discharge jumper connects the compressor discharge circuit to the refrigerator's wiring harness, restoring a secure electrical path for proper compressor operation. It replaces damaged or corroded discharge jumpers to help resolve related electrical faults. What it does:

• Provides a reliable electrical connection at the compressor discharge terminal
• Restores continuity when the original jumper is cracked, corroded, or broken
• Helps address symptoms such as compressor failing to start, intermittent cooling, or electrical arcing at the terminal
• Protects the compressor wiring from loose connections that can cause overheating

• Disconnect power to the appliance before accessing the compressor or wiring
• Access typically requires removing the rear service panel; avoid contact with refrigerant lines
• Ensure terminals are clean and securely fastened to the compressor before finalizing installation

The Fan Gasket Assembly is an OEM component for GE side-by-side refrigerators. It holds an interior circulation fan bordered by a compressible sealing gasket. Proper ventilation maintains optimal temperature control and moisture prevention within compartments.

Symptoms of a bad fan gasket assembly include:

• Fluctuating temperatures causing food spoilage
• Condensation or frost buildup inside fridge surfaces
• Louder sounds from an imbalanced or loose interior fan
• Error notifications regarding cooling, air flow, or sensors

Causes of a compromised assembly involve dried-out seal compression over extended use. Captured dust could obstruct the fan’s operation. Mechanical or electrical faults may disable the fan component as well.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ground harness is a factory-style wire assembly that provides a safe electrical return path to reduce shock and interference risks. It restores proper grounding for affected appliance circuits and helps maintain safe operation. What it does:

• Connects appliance metal chassis/components to the ground system to prevent stray voltage and reduce shock risk
• Provides the ground path for control boards and other electrical components to function correctly
• Common symptom: appliance shows electrical faults, intermittent operation, or visible arcing at connection points
• Used when original ground wire is damaged, corroded, or has a failed connector

• One ground harness (wire assembly) as pictured

• Always unplug the appliance or disconnect power at the breaker before starting work
• Match connector types and routing to the original harness; secure all fasteners and strain reliefs
• Inspect mounting points and mating terminals for corrosion; replace fasteners if damaged

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This valve body assembly routes and supports the refrigerator's water flow for the dispenser and ice maker. Replacing a cracked or leaking body restores proper water delivery and helps prevent leaks at the rear of the unit.

• Directs incoming water to the dispenser and/or ice maker
• Maintains sealed connections for water lines and valve components
• Helps resolve leaks around the rear valve area
• Symptoms can include no/slow dispenser flow or an ice maker not filling

• Unplug the refrigerator and shut off the household water supply
• Relieve line pressure; place a towel or container to catch residual water
• Note tubing and wire positions; transfer to the new assembly and ensure every connection is fully seated
• Restore water and power, then check all joints for leaks while dispensing and during an ice maker fill

This sound-deadening mastic helps quiet refrigerator operation by damping vibration on components and panels. Replace deteriorated or missing mastic to reduce rattles, buzzing, and metal-to-metal contact for smoother, quieter performance. What it does:

• Damps vibration between sealed-system tubing, compressor mounts, and cabinet surfaces
• Helps reduce humming, rattling, or buzzing noises from the rear/bottom of the unit
• Replaces hardened, cracked, or fallen-off mastic
• Helps prevent metal-to-metal contact that can amplify noise

• Sound-deadening mastic

• Unplug the appliance before accessing the rear compartment
• Remove old material and clean surfaces; ensure they are dry before applying the mastic
• Press firmly to secure; do not obstruct fans, vents, or moving parts
• Avoid stressing or puncturing sealed-system tubing;

This replacement power cord harness connects the appliance's incoming mains power to its internal wiring, restoring a secure electrical path. Use it to replace damaged or worn harnesses to help resolve power loss or intermittent operation. What it does:

• Routes mains power from the inlet to the control board and internal components
• Replaces frayed, cut, or heat-damaged wiring that can cause intermittent power or complete power failure
• Restores secure connector and terminal connections to reduce arcing or loose-contact symptoms
• Maintains factory routing and strain relief when installed correctly

• Disconnect power at the breaker or unplug the appliance before starting any repair
• Replace with the same connector orientation and routing as the original harness to ensure correct fit and strain relief
• Inspect related terminals and wire insulation; if you see melted terminals or heavy corrosion,

The Compressor Inverter Board is an OEM part for GE refrigerators. It controls the operation of the compressor, adjusting its speed to optimize cooling efficiency and energy consumption. This component is crucial for maintaining consistent temperatures inside the refrigerator and ensuring smooth, reliable performance.

Causes of a bad compressor inverter board can include electrical surges, overheating, or component failure due to wear and tear. When the inverter board malfunctions, it can lead to inadequate cooling and increased energy usage.

Symptoms of a bad Compressor Inverter Board include:

• Refrigerator not cooling properly
• Unusual noises coming from the compressor
• The compressor running continuously or not running at all
• Error codes or flashing lights on the control panel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This refrigerator drain tube and valve assembly channels defrost water to the drain pan, while the valve helps block warm air from entering the drain. Replace a cracked or clogged assembly to address leaks and recurring ice buildup. What it does:

• Routes defrost water from the evaporator to the drain pan beneath the unit
• Integrated valve helps prevent warm air backflow that can lead to frost and drain clogs
• A damaged or obstructed tube/valve may cause water inside the compartments or on the floor
• Visual cracks, deformation, or blockage indicate the assembly should be replaced

• One drain tube and valve assembly

• Disconnect power and wear cut-resistant gloves before servicing
• Pull the refrigerator forward and remove the rear lower access panel
• Locate the drain outlet above the drain pan; remove the old tube/valve and clear any debris from the drain
• Seat the new assembly fully and ensure proper routing into the drain pan before restoring power

This refrigerator drain tube and valve assembly channels defrost water to the drain pan, while the valve helps block warm air from entering the drain. Replace a cracked or clogged assembly to address leaks and recurring ice buildup. What it does:

• Routes defrost water from the evaporator to the drain pan beneath the unit
• Integrated valve helps prevent warm air backflow that can lead to frost and drain clogs
• A damaged or obstructed tube/valve may cause water inside the compartments or on the floor
• Visual cracks, deformation, or blockage indicate the assembly should be replaced

• One drain tube and valve assembly

• Disconnect power and wear cut-resistant gloves before servicing
• Pull the refrigerator forward and remove the rear lower access panel
• Locate the drain outlet above the drain pan; remove the old tube/valve and clear any debris from the drain
• Seat the new assembly fully and ensure proper routing into the drain pan before restoring power

This screw fastens appliance panels, brackets, and trim so parts stay secure and aligned. Replace a missing, stripped, or rusty screw to stop rattles and restore a tight, factory fit.

• Secures covers, brackets, and trim to the appliance cabinet or liner
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration noise and loose or misaligned parts
• Maintains proper fit of guards, kickplates, or internal panels

• Disconnect power; turn off water supply if working near water lines
• Match to the original fastener to size and thread
• Start threads by hand to avoid cross-threading; tighten snugly, not excessively
• If threading into plastic, avoid overtightening to prevent damage

This compressor mounting stud secures the compressor to the refrigerator chassis, keeping the unit stable and reducing vibration and noise. It's a durable replacement part for worn, bent, or missing compressor mounting hardware. What it does:

• Provides a secure attachment point between the compressor and cabinet/frame
• Helps reduce compressor vibration and operational noise when correctly installed
• Prevents compressor movement that can stress refrigerant lines or electrical connections
• Commonly replaced when the original stud is corroded, damaged, or missing

• Disconnect power to the appliance before beginning any repair.
• Support the compressor while removing/installing mounting hardware to avoid strain on lines and fittings.
• Replace any associated nuts, washers, or insulators if worn or damaged; use correct hardware orientation.

This 10-32 hex washer head screw secures panels and components on appliances, providing a reliable fastener that helps keep parts aligned and vibration-free. Use it when a matching machine screw is missing or damaged. What it does

• Fastens appliance panels, brackets, and small components using a 10-32 machine thread
• Hex washer head spreads load and resists pull-through on thin sheet metal
• Replaces missing or stripped screws that cause loose panels, rattling, or misaligned parts
• Compact size for tight mounting locations where a machine screw is required

• One 10-32 hex washer head screw, 1/2 inch length

• Disconnect power and follow appliance safety procedures before servicing
• Use the correct 10-32 driver (hex/Socket or nut driver) to avoid stripping the head
• Tighten snugly but avoid over-torquing to prevent thread damage or panel distortion
• Replace with identical size and thread to ensure proper fit and function
