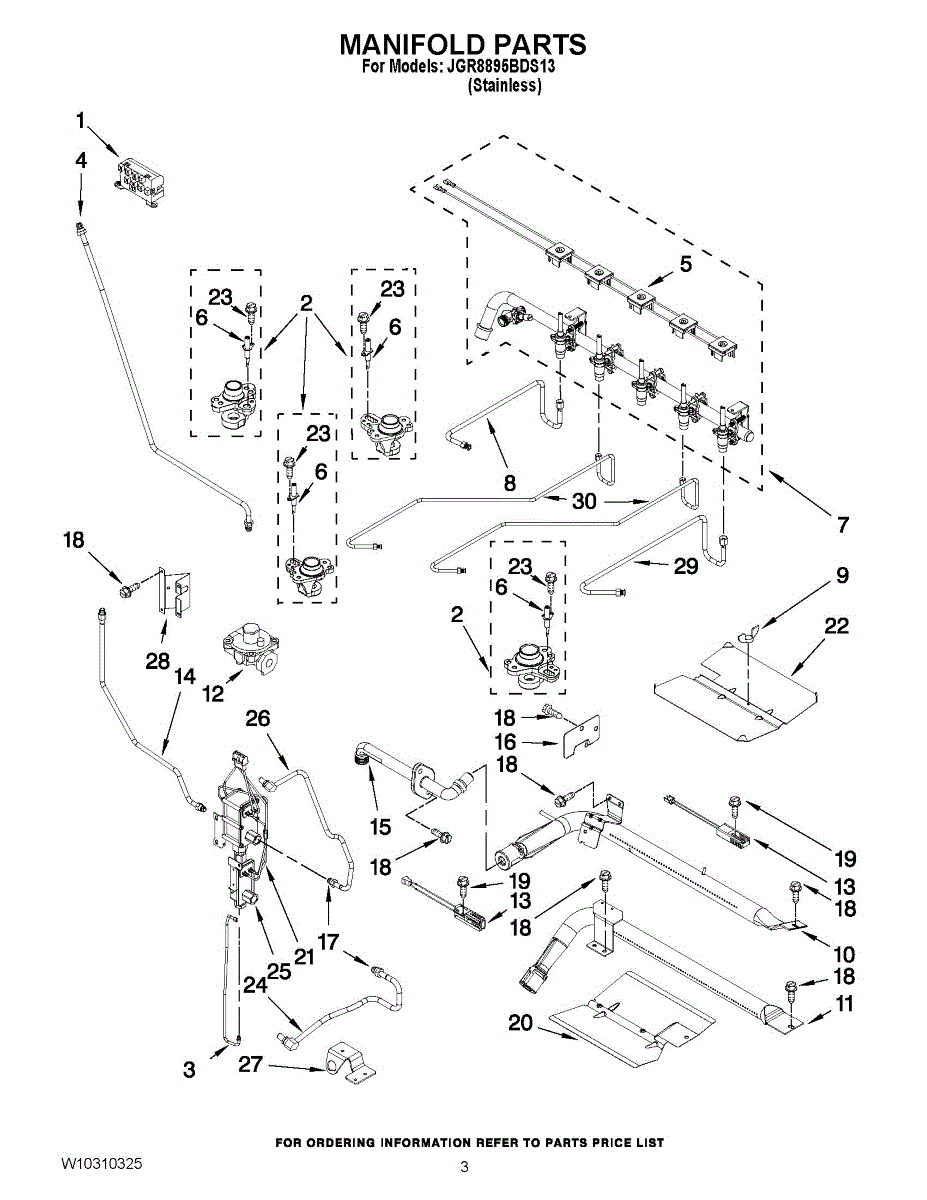

Parts for Maytag JGR8895BDS13: 03 - Manifold Parts

This orifice holder secures the center burner orifice on gas ranges, keeping the orifice aligned so the burner lights and burns properly. Replaces a worn or damaged holder to restore consistent pilot/flame position and performance. What it does:

• Holds the center burner orifice in the correct position for proper gas flow
• Helps maintain an even, reliable flame at the center burner
• Can address symptoms like a center burner that won't light or has an uneven/weak flame
• Works as the mounting piece for the matched orifice insert

• Turn off the appliance and shut off the gas supply before servicing
• Only install the exact replacement part for your model; check the appliance parts diagram
• Use basic hand tools; avoid overtightening to protect threads and seals

The Orifice Holder is an OEM part for Whirlpool gas ranges. It includes the spark electrode and the 9.2k orifice, which are essential components for proper ignition and gas flow in the burner assembly.

Causes of a faulty orifice holder can include wear and tear over time, damage from corrosion or debris, or improper adjustment.

Symptoms of a bad orifice holder may include:

• Weak or no ignition spark
• An uneven or weak flame
• Difficulty in adjusting the burner flame
• Gas odor or leakage

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This orifice holder supports and aligns the 16K burner orifice, channeling gas from the valve to the burner for a steady flame and dependable ignition. It mounts under the cooktop and secures the high-output burner assembly.

• Aligns and supports the 16K burner's orifice and burner base beneath the cooktop
• Directs gas from the valve to the burner for correct flame pattern
• Can help restore consistent ignition and heat at the designated 16K burner location
• Typical signs to check: burner won't ignite, weak or uneven flame, or stripped/damaged mounting threads

• Shut off gas supply and disconnect power before servicing
• Remove grates and burner parts; lift the cooktop as required to access the holder
• Transfer the existing orifice to the new holder and ensure proper alignment before tightening
• After reassembly, leak-check gas connections per manufacturer instructions and verify flame performance

This main wire harness connects the washer's control and power circuits so components receive reliable electrical signals. Replacing a damaged harness restores proper circuit connections and helps resolve intermittent or complete electrical failures. What it does:

• Routes power and signal connections between the control board, motor, valves, and sensors
• Helps prevent shorts and opens that cause machines to stop working or behave intermittently
• Common replacement when wiring is burnt, frayed, pinched, or terminals are corroded
• Restores reliable electrical continuity to affected components after failure

• One factory-style main wire harness

• Disconnect power before accessing or replacing the harness to avoid shock or damage
• Inspect connectors and routing path; replace if insulation, terminals, or clips are damaged
• Secure harness away from heat sources and moving parts per OEM routing

The Surface Burner Spark Electrode is an OEM part for Whirlpool gas ranges. This electrode is responsible for generating the spark that ignites the gas burner, allowing the burner to produce a flame for cooking.

Over time, the spark electrode can become faulty due to exposure to high temperatures, grease, and general wear and tear. This can lead to unreliable ignition or complete failure to ignite the burner.

Symptoms of a bad surface burner spark electrode include:

• The burner not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Burner flame going out soon after ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This broil burner ignitor lights the broil flame in your oven for fast, even broiling. Replacing a weak or failed ignitor restores reliable ignition and consistent high-heat performance when starting broil. What it does

• Provides the ignition source for the oven's broil burner
• Works with the range's ignition system to light the broil flame
• Typical symptoms include the broiler not igniting or heating, intermittent lighting, or repeated ignition attempts without flame
• Visual clues of failure can include a cracked ceramic insulator, damaged tip, or burnt/frayed lead

• 1 broil burner ignitor assembly

• Disconnect power and shut off gas; allow the appliance to cool completely before service
• Access the broil burner at the top of the oven; remove any shields/panels and note the ignitor's original position and bracket orientation
• Handle the ceramic/tip carefully; avoid impact, route the lead away from hot surfaces, and make secure electrical connections
• Restore gas and power, then test broil to verify prompt ignition and a steady flame

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven heating process. This igniter is crucial for ensuring that the oven reaches and maintains the desired temperature for baking and cooking.

Over time, the igniter can suffer from wear and tear, leading to inefficient ignition or complete failure. Causes of a bad igniter can include repeated heating cycles, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter include:

• The oven not heating up or taking too long to preheat
• A noticeable gas smell due to incomplete ignition
•  The igniter glowing without igniting the gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

This burner baffle directs heat and flame away from sensitive components to help maintain even cooking and protect the range's internal parts. It's a direct-replacement trim piece used on compatible gas ranges and cooktops. What it does:

• Shields and redirects burner flame to reduce hot spots and protect nearby components
• Helps maintain more consistent surface temperatures during use
• Prevents flame impingement on adjacent parts that can cause discoloration or premature wear
• Supports proper burner operation by holding components in correct alignment

• One burner baffle

• Disconnect power and shut off the gas supply before starting work; allow all components to cool
• Basic hand tools are typically required; handle the baffle carefully to avoid bending or scratching
• Verify correct fit and orientation from the parts diagram before final reassembly

This bake and broil valve controls gas flow to the oven's bake and broil burners so the oven heats when a temperature or function is selected. Replaces a failing valve to restore reliable oven heating. What it does:

• Directs gas to the bake and broil burners when the oven calls for heat
• Helps the oven reach and maintain set cooking temperatures
• Commonly replaced for no-heat, weak heat, or burner not igniting during bake/broil cycles
• Works as the primary safety/control valve for oven burner operation

• Turn off gas supply and power at the household shutoffs before servicing
• Minor disassembly of the oven front or manifold may be required; follow OEM service instructions
• Replace only with correct part number and check all gas line fittings for leaks after installation

This replacement right-side top burner tubing routes gas to the burner assembly and restores proper fuel flow for even ignition. Designed to match OEM fit, it helps resolve burner fuel delivery issues safely and reliably. What it does

• Replaces damaged or corroded right-side top burner tubing that can cause weak flame or failed ignition
• Restores a sealed gas path to prevent leaks and maintain consistent burner performance
• Helps eliminate clicking or delayed ignition caused by interrupted fuel flow
• Matches OEM routing and connection points for a direct replacement

• Two right-side top burner tubing pieces

• Install only if this tubing is specified for your model; verify orientation before starting
• Work with the gas supply turned off and follow local codes
• Check all fittings for tightness and test for leaks with a soap solution after installation
• Do not rig or modify tubing; use only approved replacement parts for gas connections
