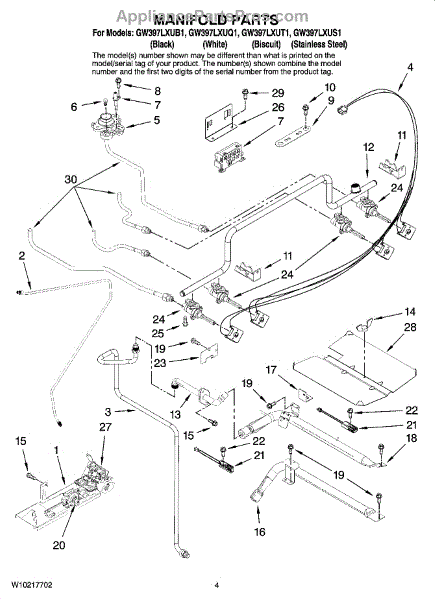

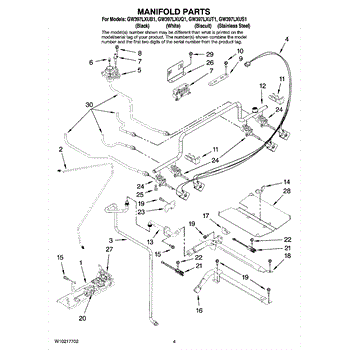

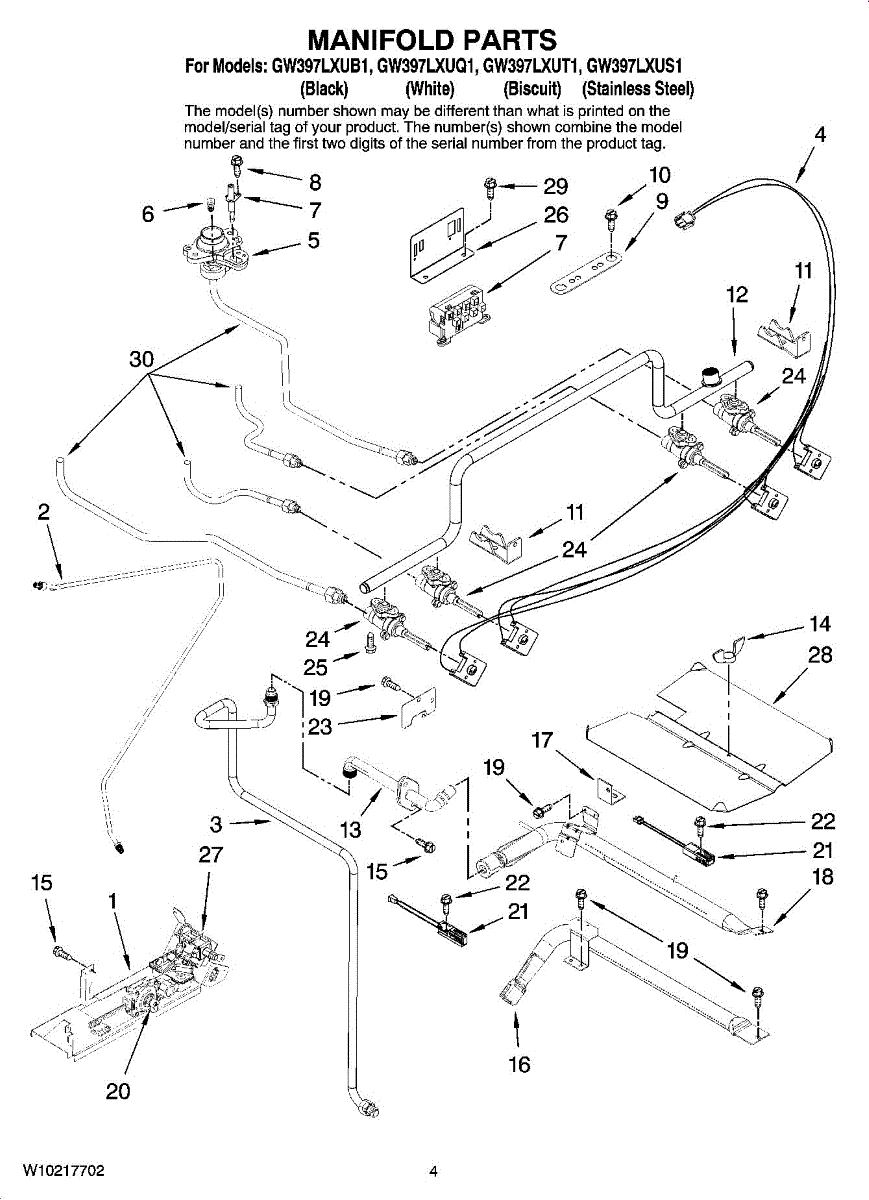

Parts for Whirlpool GW397LXUS1: 03 - Manifold Parts

If your gas range burner won't ignite or has weak, uneven flames, the orifice holder may be damaged. This part secures the gas nozzle for proper fuel delivery.

Burner won't light or flame is uneven? The orifice holder secures the gas orifice for proper alignment and reliable ignition. Easy DIY repair in under 30 minutes.

Gas burner orifice for your range. Installs in the burner assembly to regulate gas flow. Replace if worn, damaged, or causing uneven flames.

Fix burners that won't spark or cross-spark when other knobs turn. This 4-spark ignition module restores reliable gas ignition on cooktops and ranges.

Burner won't spark or light? This range top burner igniter creates the spark to ignite gas burners. Easy 15-minute DIY fix for cracked igniters.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

Weak or uneven flames? This gas pressure regulator controls gas flow to your range burners for stable, consistent heating and proper ignition.

If your oven won't heat or igniter glows but gas won't light, the igniter is likely weak. This is a common DIY repair taking 15-30 minutes.

Oven won't heat or takes too long to preheat? A weak or failed igniter is the most common cause. Easy DIY repair, typically completed in under 15 minutes.

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

This surface burner valve regulates gas flow to the 16K burner on your gas range or cooktop, providing smooth flame control from low to high. Replacing a worn valve helps restore proper ignition and precise heat at that high-output position.

• Regulates gas flow to the 16K surface burner through the control knob
• Helps fix issues such as no flame, weak flame, or flame that won't adjust properly
• Replace if the stem is seized, leaking, or will not shut off completely
• Intended for the 16K/high-output burner position—match the valve to its location per the product diagram

• Disconnect electrical power and shut off the gas supply before servicing
• Work in a well-ventilated area; keep open flames and ignition sources away
• Note the valve orientation and tubing connections; install in the correct 16K burner location
• After reassembly, leak-test all gas connections with an approved leak-detection solution before restoring service

Burner won't light or flame won't adjust? This gas range burner valve controls flame height and shutoff. Moderate DIY repair restores safe operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Oven won't heat or reach temperature? This gas valve controls gas flow to your range's oven burner, restoring proper ignition and reliable heat.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Replace a cracked or damaged burner tube in your range. This fitting connects the gas valve to the burner assembly. Essential for worn or broken tubes.
