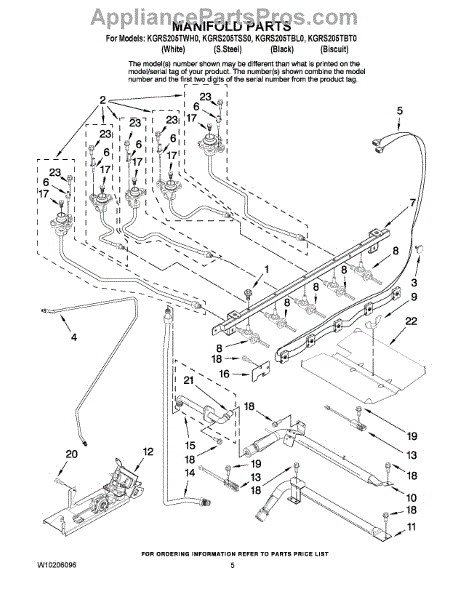

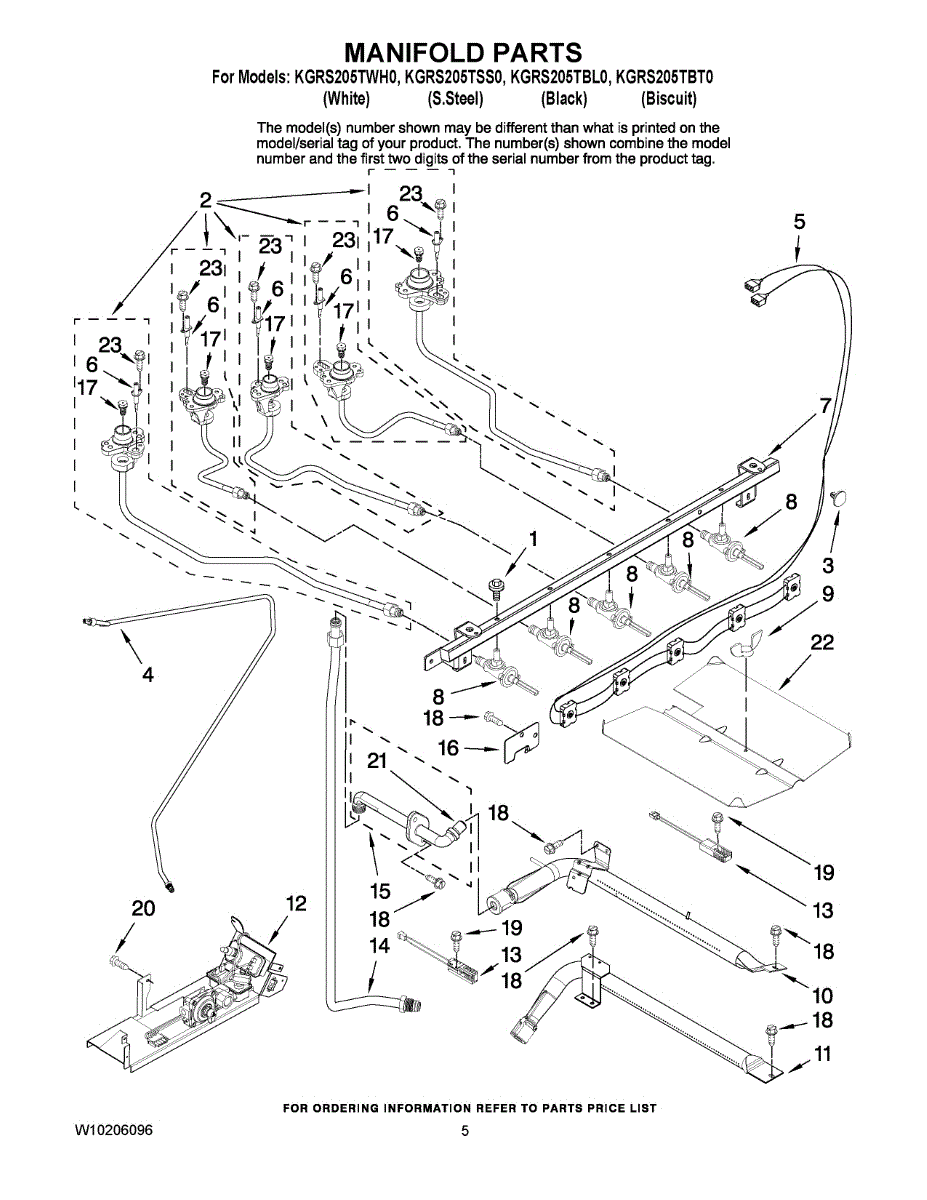

Parts for Kitchenaid KGRS205TBL0: 04 - Manifold Parts

Parts for Kitchenaid KGRS205TBL0: 04 - Manifold Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Whirlpool
Part Number: W10491986
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: 7527P101-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
By: Whirlpool
Part Number: 7527P125-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo
By: Whirlpool
Part Number: W10154209

Secures the burner orifice to the gas manifold on your range. Replace if the holder is cracked, broken, or missing to keep burner components aligned.

More
$77.66

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
Product photo
By: Whirlpool
Part Number: 7527P097-60

Orifice holder tube assembly for gas ranges. Secures and positions the burner orifice. Replace if cracked, damaged, or missing to restore proper fit.

More
$50.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP74009099

Burner orifice holder tube for gas ranges. Mounts to the burner assembly and holds the gas orifice in place. Replace if cracked, broken, or missing.

More
$89.25

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Whirlpool
Part Number: 74008761

Snap-in spacer for range installation. Provides proper spacing and alignment between components. Replace if cracked, broken, or missing to restore fit.

More
$5.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
By: Whirlpool
Part Number: 12002421

Gas supply tube kit for ranges. Replace if you notice gas leaks, damaged tubing, or during range installation. Verify fit with your model number.

More
$95.53

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP74010753

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

  • Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
  • Failure can cause no click/spark on one or more surface burners
  • Stuck or shorted switches may cause constant clicking even with knobs off
  • Intermittent ignition or burners lighting only when the knob is positioned just right
  • Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires
What's included: 1 switch harness assembly Install notes:
  • Disconnect power and shut off gas supply before servicing
  • Remove grates and knobs; lift the cooktop or top panel to access the valve switches
  • Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
  • Restore power and test each burner for proper spark before reassembly

More
$105.36

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP74009958

Burner won't spark or light? This range top burner igniter creates the spark to ignite gas burners. Easy 15-minute DIY fix for cracked igniters.

More
$27.37

IN STOCK
Ships Today Guaranteed
Add to Cart
7
By: Whirlpool
Part Number: 7513P499-60

A direct-replacement manifold pipe that routes gas from the valve assembly to the burners, restoring proper fuel delivery for safe, consistent ignition and cooking performance. What it does

  • Channels gas from the control valve to individual burners so they can ignite.
  • Helps maintain steady burner flames for even heating.
  • Failsafe symptoms: burners not lighting, weak/uneven flames, or persistent gas odor near the range.
  • Works with the range's valve and burner assembly to support normal operation.
What's included
  • One manifold pipe
Install notes
  • Turn off the gas supply and electrical power before starting work.
  • Use appropriate fittings and thread sealant rated for gas; tighten to manufacturer torque specs.
  • After installation, check all connections for leaks with a soap solution or a gas leak detector.

More
$32.84

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
8
Product photo
By: Whirlpool
Part Number: WP7502P499-60

Fixes burner that won't ignite or adjust properly. This valve controls gas flow to restore flame control from low to high heat for safe cooking.

More
$173.95

IN STOCK
Ships Today Guaranteed
Add to Cart
8
Product photo
By: Whirlpool
Part Number: WP7502P500-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

8
Product photo
By: Whirlpool
Part Number: 74010751

Fixes burner that won't light or clicks but doesn't ignite. This valve controls gas flow to restore reliable ignition and heat control on your range.

More
$145.70

IN STOCK
Ships Today Guaranteed
Add to Cart
9
5.0 (1)
By: Whirlpool
Part Number: 7103P030-60

Hand-tighten wing nut secures panels, brackets, and components in ranges and ovens for tool-free adjustment. Replace when lost, stripped, or broken.

More
$11.57

IN STOCK
Ships Today Guaranteed
Add to Cart
10
By: Whirlpool
Part Number: 74008820
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

11
Product photo
By: Whirlpool
Part Number: 7505P331-60
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

12
Product photo
5.0 (3)
By: Whirlpool
Part Number: 12002604
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Best Seller
Product photo
4.9 (115)
By: Whirlpool
Part Number: WP7432P136-60

If your oven won't heat or igniter glows but gas won't light, the igniter is likely weak. This is a common DIY repair taking 15-30 minutes.

More
$63.65

IN STOCK
Ships Today Guaranteed
Add to Cart
13
Best Seller
Product photo
4.9 (258)
By: Whirlpool
Part Number: 74007498

Oven won't heat or takes too long to preheat? A weak or failed igniter is the most common cause. Easy DIY repair, typically completed in under 15 minutes.

More
$55.30

IN STOCK
Ships Today Guaranteed
Add to Cart
14
By: Whirlpool
Part Number: 74008830

Broil burner tube routes gas to your range's broil element. Replace if tube is rusted, cracked, or damaged to restore proper gas flow and broiling function.

More
$55.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
15
By: Whirlpool
Part Number: 74008818

Connects the gas supply line to your range's broil burner. Replace this fitting if it's cracked, corroded, stripped, or causing gas connection issues.

More
$50.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
By: Whirlpool
Part Number: 4005F421-45
$15.92

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
By: Whirlpool
Part Number: 7509P123-60
$31.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
Product photo
By: Whirlpool
Part Number: W10156136
$49.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
17
By: Whirlpool
Part Number: W10156137
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
By: Whirlpool
Part Number: W10156836

Gas burner orifice for your range. Installs in the burner assembly to regulate gas flow. Replace if worn, damaged, or causing uneven flames.

More
$49.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Product photo
4.9 (18)
By: Whirlpool
Part Number: W11233072

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

  • Fastens panels, brackets, covers, or internal parts to the chassis or frame
  • Helps maintain alignment and support, reducing rattle, vibration, or looseness
  • Replaces missing or damaged screws that have backed out, broken, or stripped
  • Restores secure mounting after service when original hardware is lost
What's included: 1 screw Install notes:
  • Disconnect power; shut off water or gas supplies before servicing
  • Use the correct driver; start threads by hand to avoid cross-threading
  • Match length and thread to the original location; do not substitute with longer hardware
  • Tighten snugly; do not overtighten into plastic or thin metal

More
$21.46

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP4159193

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
20
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP4159193

Fastening screw for securing components inside appliances. Replaces lost, stripped, or damaged screws during repairs or part installations.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
21
Product photo
5.0 (1)
By: Whirlpool
Part Number: 74008834

Brass orifice spud that controls gas flow to the broiler burner in your range. Replace if damaged, corroded, or when converting between natural gas and LP.

More
$38.58

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
22
By: Whirlpool
Part Number: 3601P336-45
$132.30

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
Best Seller
Product photo
4.8 (8)
By: Whirlpool
Part Number: WP8273062

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
By: Whirlpool
Part Number: WP74008871

Converting your range from natural gas to propane? This LP orifice kit provides the jets needed to safely switch fuel types on your gas range.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI
By: Whirlpool
Part Number: WP74008871

Converting your range from natural gas to propane? This LP orifice kit provides the jets needed to safely switch fuel types on your gas range.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
