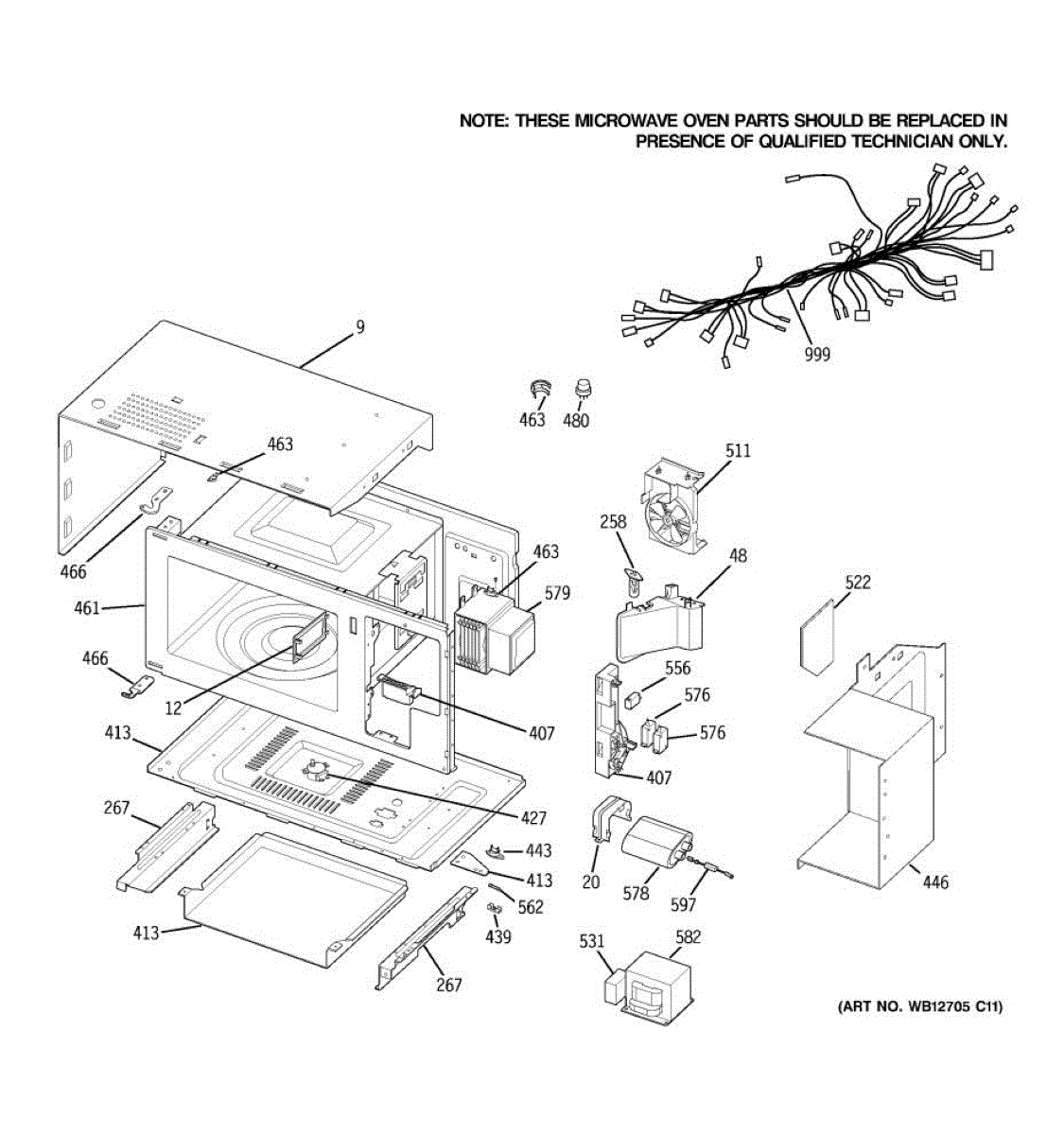

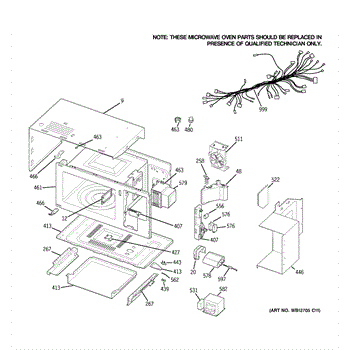

Parts for Ge JTP86BF2BB: 02 - Microwave Body Parts

This H.V. bracket secures specific high-voltage or control assemblies to the appliance chassis, keeping components stable and properly aligned so wiring and parts stay protected during normal operation. Durable stamped metal design for reliable support. What it does:

• Holds and positions high-voltage/control assemblies or related components to the appliance frame
• Stabilizes wiring and connectors to reduce strain and prevent intermittent electrical contact
• Helps maintain correct clearance and alignment for safe, consistent operation
• Can address symptoms like loose components, rattling near the control area, or intermittent electrical connections when the bracket is damaged or missing

• One H.V. bracket

• Turn off power to the appliance before attempting any service to avoid risk of shock
• Install in the original mounting location using the factory screws or hardware; do not force into place
• Inspect related wires, connectors, and fasteners while replacing the bracket and replace any damaged items

Fix a microwave turntable that won't rotate, stalls, or makes grinding noises. This motor spins the glass tray for even heating. DIY repair in 10 minutes.

This duct assembly directs airflow from the appliance's blower to the exhaust port, restoring proper venting and helping the unit clear moisture and combustion gases. Designed to match OEM fit and airflow path. What it does:

• Channels exhaust air from the blower housing to the appliance vent
• Helps maintain proper airflow for drying, venting, or combustion exhaust
• Can reduce overheating and poor venting symptoms like long dry times, moisture buildup, or unusual odors when defective
• Replaces damaged, cracked, or disconnected ducts that cause airflow loss

• One duct assembly as shown

• Inspect surrounding seals and fasteners; replace any damaged clips or gaskets for a secure fit
• Disconnect power to the appliance before starting any repair to avoid electric shock
• Handle gently to avoid bending or cracking the duct; align and secure all mounting tabs per OEM guidance
• Verify external venting is clear after installation

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a cer

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with t

Microwave not heating but runs? Replace the magnetron to restore cooking power. Intermediate DIY repair taking 1-2 hours with proper safety steps.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.
