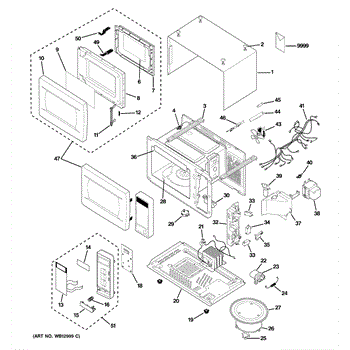

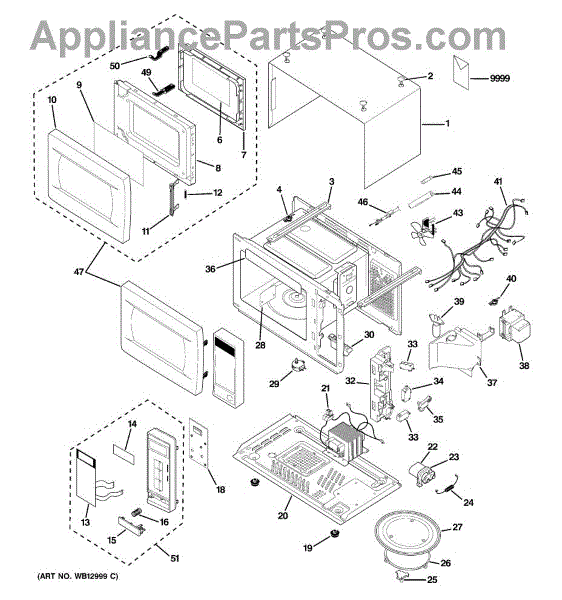

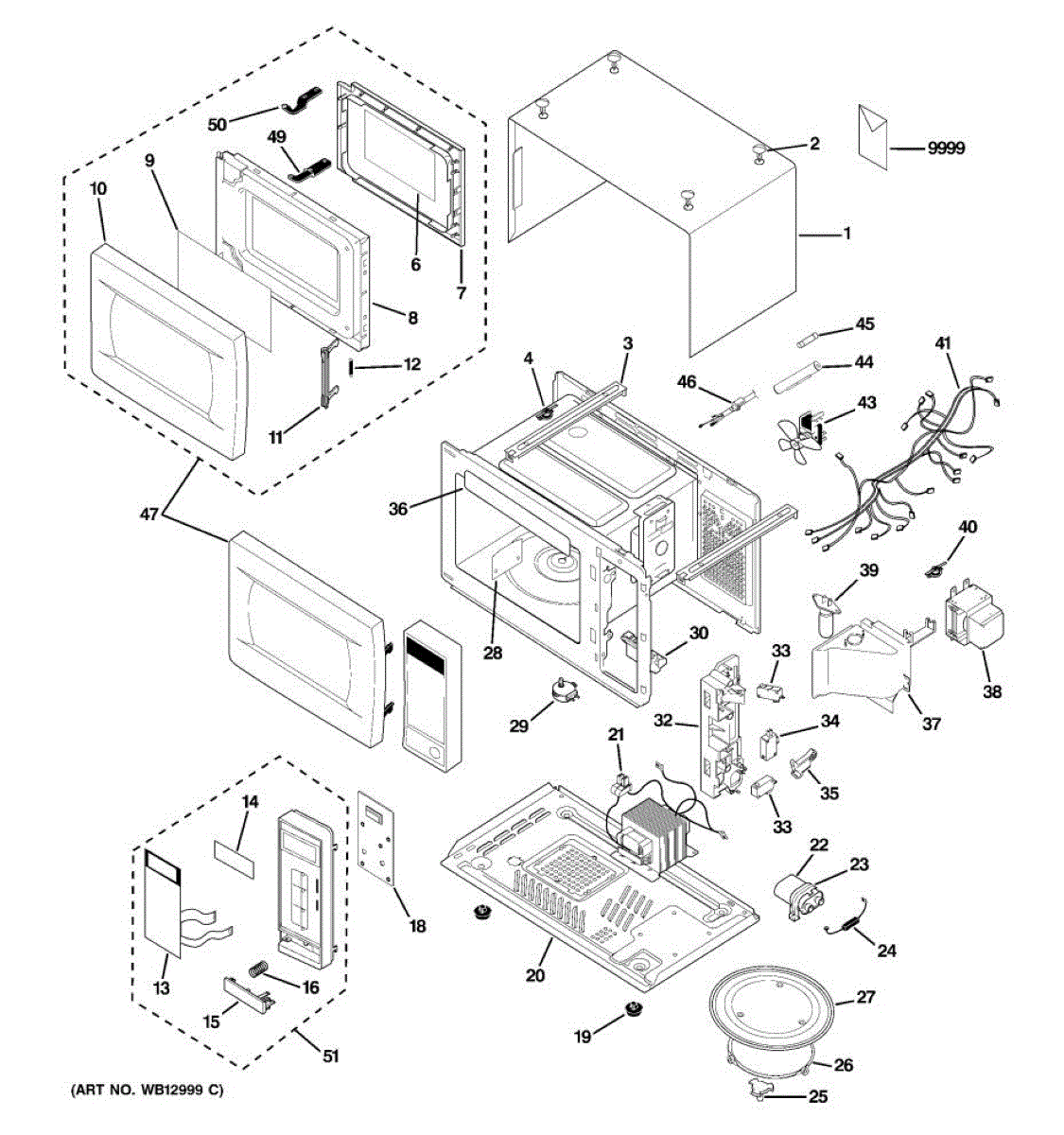

Parts for Ge JE740BH01: 01 - Microwave Parts

This microwave thermostat monitors the internal temperature and automatically shuts off the microwave when it reaches 105 degrees Celsius to prevent overheating. It protects your microwave from damage caused by excessive heat buildup. Replace this part if your microwave shuts off unexpectedly during normal operation or if it overheats frequently.

Replacement door screen for your microwave. Installs behind the door glass to shield against microwaves. Order a new screen if yours is cracked or damaged.

Door A (black) is a factory-style replacement door panel that restores the appliance's exterior look and lets the door open, close and seal as intended. It replaces a damaged, cracked or cosmetically worn door surface. What it does

• Replaces a broken, cracked or cosmetically damaged outer door panel to restore appearance
• Provides the proper mating surface for the door latch and seal to help the appliance close fully
• Helps keep contents secure and insulated by restoring the door's fit and alignment
• Useful when the original door has chips, deep scratches or impact damage

• One Door A (black) door panel

• High-level replacement; basic hand tools typically required
• Handle and trim may need to be transferred from the old door
• Disconnect power and empty the compartment before replacing the door for safety

Black plastic foot that supports and stabilizes your microwave. Installs on the bottom corners. Replace if cracked, broken, or missing for proper leveling.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Color: brown. Measures about 8 inches in diameter.

This cooking tray is the oven broiler/drip pan that catches drips and holds food while broiling, helping keep the oven interior cleaner and making broiling tasks easier. It provides a stable surface for broiling and roasting. What it does:

• Catches grease, juices and food debris to help prevent spills and reduce smoking
• Supports pans or food under the broiler for even browning and crisping
• Helps contain messes for easier cleanup after cooking
• Restores proper fit and function when the original tray is damaged or warped

• One cooking tray

• Install on the broiler rack or designated support slots; ensure tray sits flat and secure before use
• Allow the oven to fully cool before removing or installing the tray to avoid burns
• Clean with warm, soapy water and avoid abrasive cleaners that can damage the finish
• Inspect regularly for heavy warping or damage; replace if it no longer fits securely

Microwave turntable stopped spinning or rotating? This turntable motor drives the glass tray for even heating. DIY-friendly replacement restores rotation.

The microwave switch lever is a small plastic arm inside the door latch assembly that activates the door interlock switches when the door is closed. These switches signal the microwave that the door is securely shut before allowing it to operate. Replace this part if the microwave won't start, runs with the door open, or the door doesn't latch and release properly.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

This plastic air cover directs cold air from the evaporator into the fresh food compartment to help maintain even temperatures and protect internal airflow components. Fits behind shelves near the evaporator outlet. What it does:

• Directs and diffuses cold air into the refrigerator cabinet for more even cooling
• Shields evaporator/air channel openings from debris and internal contact
• Helps prevent abnormal airflow noise when intact
• A damaged or missing cover can lead to uneven cooling or frost buildup near the evaporator

• Disconnect power before servicing to avoid electrical shock
• Remove shelves/panels as needed to access the cover; handle plastic tabs gently to avoid breakage
• Secure with OEM screws or clips; do not overtighten plastic fasteners

Microwave not heating but lights and fan work? Buzzing noise when running? The magnetron generates microwaves to cook food. Moderate DIY repair difficulty.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

Replacement power cord assembly for your microwave. Connects the appliance to your wall outlet. Order a new cord if yours is frayed, damaged, or missing.

This lower door hinge secures and pivots the appliance door, restoring smooth opening and proper door alignment. Replaces a worn or damaged hinge to stop sagging, rubbing, or uneven door closing for improved seal and performance. What it does:

• Supports the bottom of the door and provides a pivot point for opening and closing
• Restores correct door alignment to help maintain an even seal
• Reduces door sag, scraping, or resistance when opening/closing
• Works with existing hinge pin and mounting hardware on compatible models

• Disconnect power to the appliance before starting work to reduce shock risk.
• Remove door per manufacturer instructions; support door weight during hinge replacement.
• Use proper tools and keep original fasteners; tighten securely but avoid overtightening.
