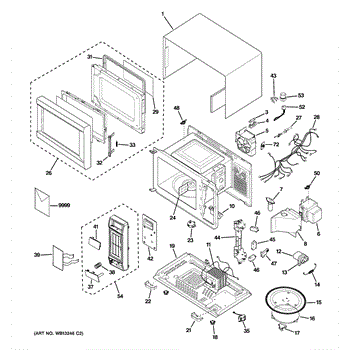

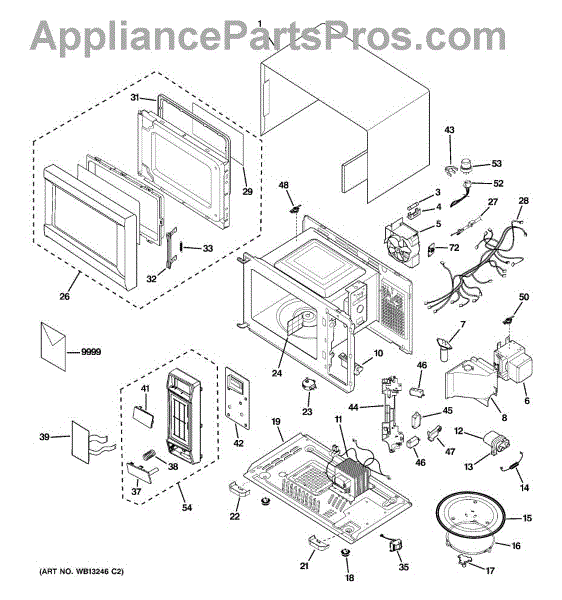

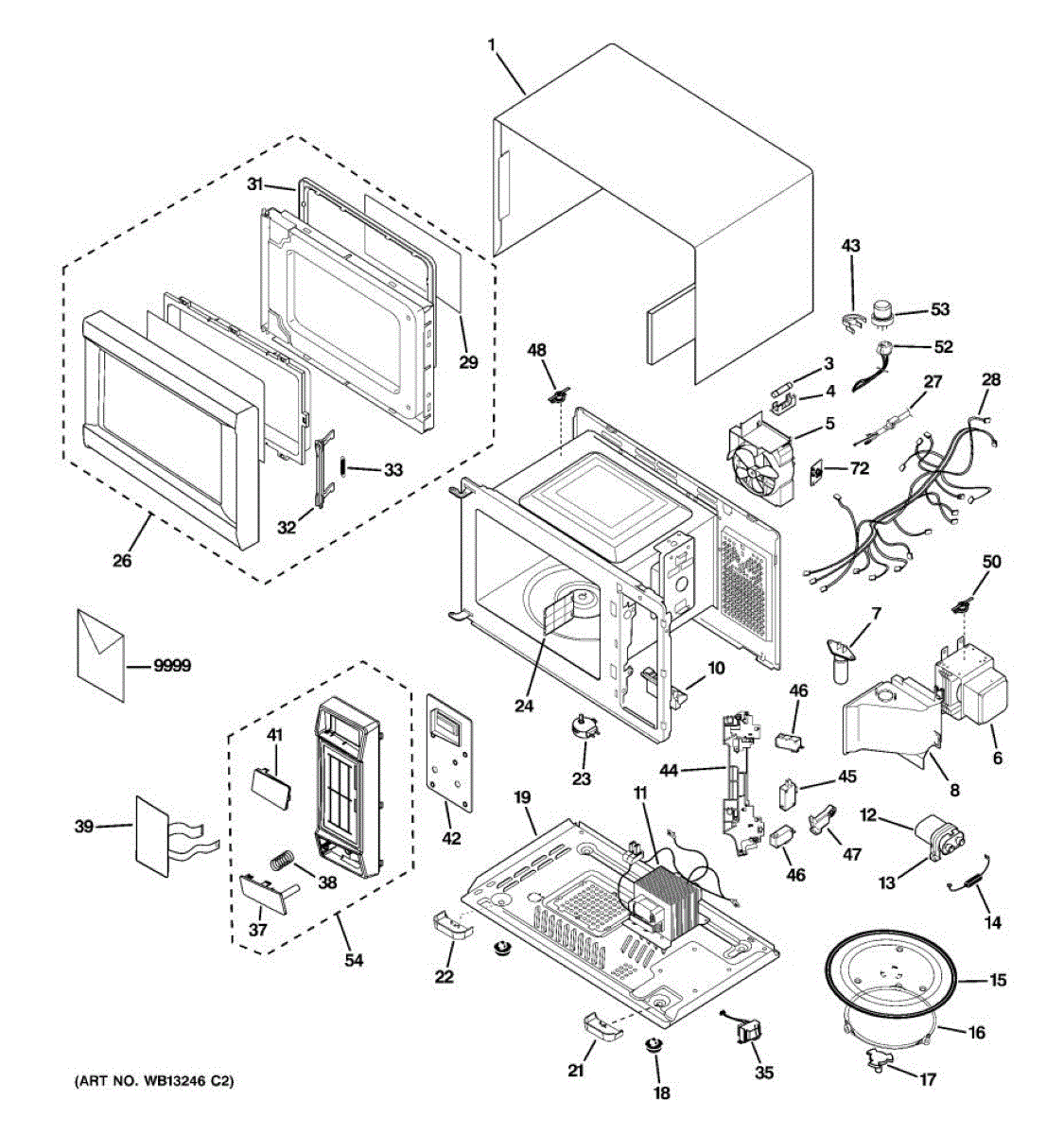

Parts for Ge JES1456BJ02: 01 - Microwave Parts

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This air cover directs oven/exhaust airflow and protects internal components from debris. It restores proper venting and helps maintain consistent cooking performance when the original cover is damaged or missing. What it does:

• Channels oven or vent air away from sensitive components to prevent overheating
• Protects internal wiring and sensors from dust, grease, and debris
• Helps maintain even temperature distribution and reliable vent operation
• Can reduce abnormal noises caused by a broken or loose vent cover

• Disconnect power to the appliance before beginning any service
• Typically secures with a few screws; check alignment with surrounding parts before tightening
• Handle carefully to avoid scratching painted surfaces or damaging clips

The High Voltage Diode is an OEM part for GE microwaves. This high-voltage diode is crucial for converting alternating current (AC) to direct current (DC), enabling the magnetron to generate the microwave energy needed for cooking. Measuring approximately 3-1/2" in length, this diode features a banded side with a #8 ring terminal and a non-banded side with a 1/4" female quick connect.

You should replace the diode-H.V assembly if it becomes faulty due to electrical issues, wear and tear, or physical damage. Continuous exposure to high voltage can cause the diode to deteriorate over time, leading to malfunction.

Symptoms of a bad diode-H.V assembly include:

• The microwave not heating food
• A burning smell or unusual noises during operation
• The microwave shutting off unexpectedly
• Visible damage or burn marks on the diode

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooking Tray is an OEM part for GE microwaves. This glass tray rotates to ensure even cooking and heating of food. It is designed to fit perfectly in the microwave, providing a stable platform for cookware and dishes.

Over time, the cooking tray can become damaged or worn out due to regular use, accidental drops, or exposure to extreme heat. Replacing a damaged cooking tray is essential to maintaining the microwave’s functionality and ensuring food is heated evenly.

Symptoms of a bad cooking tray include:

• Cracks or chips in the glass
• Difficulty in rotating or wobbling during operation
• Uneven cooking or heating of food
• The tray not fitting properly in the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Guide roller assembly that restores smooth, stable movement for a sliding rack or appliance drawer. Replaces worn or broken rollers to reduce sticking, grinding, or misalignment during use. What it does:

• Guides a sliding rack/drawer so it opens and closes evenly without binding
• Helps stop noisy or jerky movement caused by damaged or worn rollers
• Restores proper alignment to prevent racks from slipping or dropping
• Used where a roller rides along a track or guide to support smooth travel

• Disconnect power (and gas, if applicable) and remove any loose items from the appliance before beginning.
• Remove the affected rack/drawer or access panel to reach the guide; keep mounting hardware for reuse unless damaged.
• Align the guide and reinstall hardware securely; test the rack/drawer movement before completing reassembly.
• If mounting clips or brackets are broken, replace those parts as needed for a secure fit.

This turntable motor rotates the microwave's glass tray during cooking. Replacing a worn or seized motor restores smooth, consistent tray movement to help ensure even heating and reliable performance.

• Drives the turntable shaft/coupler to rotate the glass tray during cook cycles
• Helps promote more even cooking and defrosting
• Common symptoms of failure: tray doesn't turn, intermittent or jerky rotation, loud humming/grinding from beneath the cavity

• Disconnect power before servicing; microwaves contain high-voltage components—use caution
• Access is typically from the bottom of the unit; remove the tray and coupler, then the motor's mounting screws, and transfer the wire connections
• Align the motor shaft with the coupler and ensure the tray spins freely before reassembly
• Test with a microwave-safe cup of water to ensure smooth rotation

This door film is a thin decorative replacement covering that restores the exterior appearance of the appliance door and protects the finished surface from light wear and stains. Easy cosmetic repair for scratched or discolored doors. What it does:

• Replaces worn or damaged exterior door covering to improve appearance
• Covers scratches, scuffs, stains and surface discoloration
• Provides a protective decorative layer to reduce further cosmetic wear
• Fits over the existing door surface to restore a uniform finish

• Clean and dry the door surface thoroughly before installing to ensure proper adhesion
• Align film carefully, then smooth from center outward to remove bubbles and wrinkles
• Use caution with sharp tools or heat during removal of old adhesive to avoid damaging the door

This push button restores a tactile, responsive control on the appliance's front control panel so you can select settings and start cycles reliably. Designed to replace a cracked, stuck, or missing button and return normal button operation. What it does:

• Replaces a damaged or worn control-panel push button used to select functions or settings
• Restores tactile feedback and reliable electrical contact when pressed
• Helps resolve symptoms like a button that sticks, feels loose, is cracked, or doesn't depress properly
• Designed for use on the corresponding OEM control panel assembly

• One push button

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove the control panel or trim per your model's service instructions to access the button
• Replace the button by removing the retaining clip or bezel and snapping the new button into place
• If the button is part of a sealed membrane or switch assembly, replace the full assembly as needed

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This gas sensor monitors moisture levels during sensor-cook cycles so the control can adjust time and power for consistent results. Replacing a failed sensor restores reliable sensor-cook performance. What it does:

• Detects steam/vapor inside the cavity and sends feedback to the control board
• Helps the appliance automatically set or adjust cooking time on sensor settings
• Failure symptoms can include sensor-cook not starting, stopping early, or running too long
• May trigger "Sensor" or general error messages related to sensor-cook functions

• Disconnect power before servicing; if working on a microwave, discharge the high-voltage capacitor
• Access is typically behind the control panel or air channel; avoid touching/contaminating the sensing surface
• Transfer any mounting clips/brackets and ensure the wiring connector is fully seated
• After installation, run a simple sensor-cook test to confirm operation
