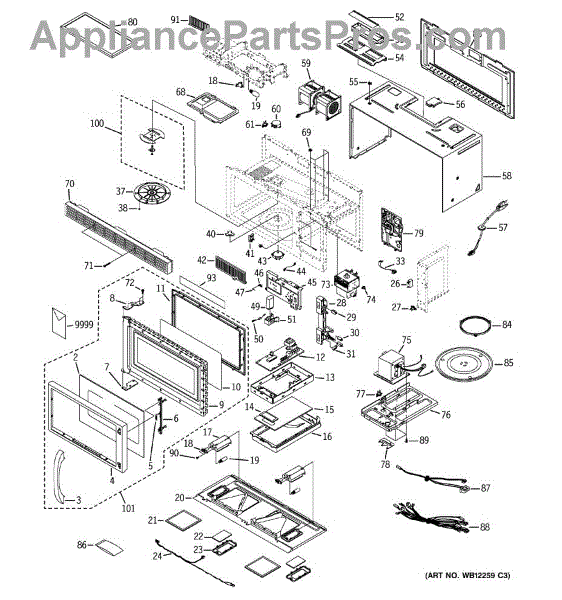

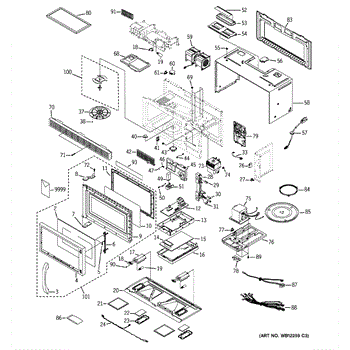

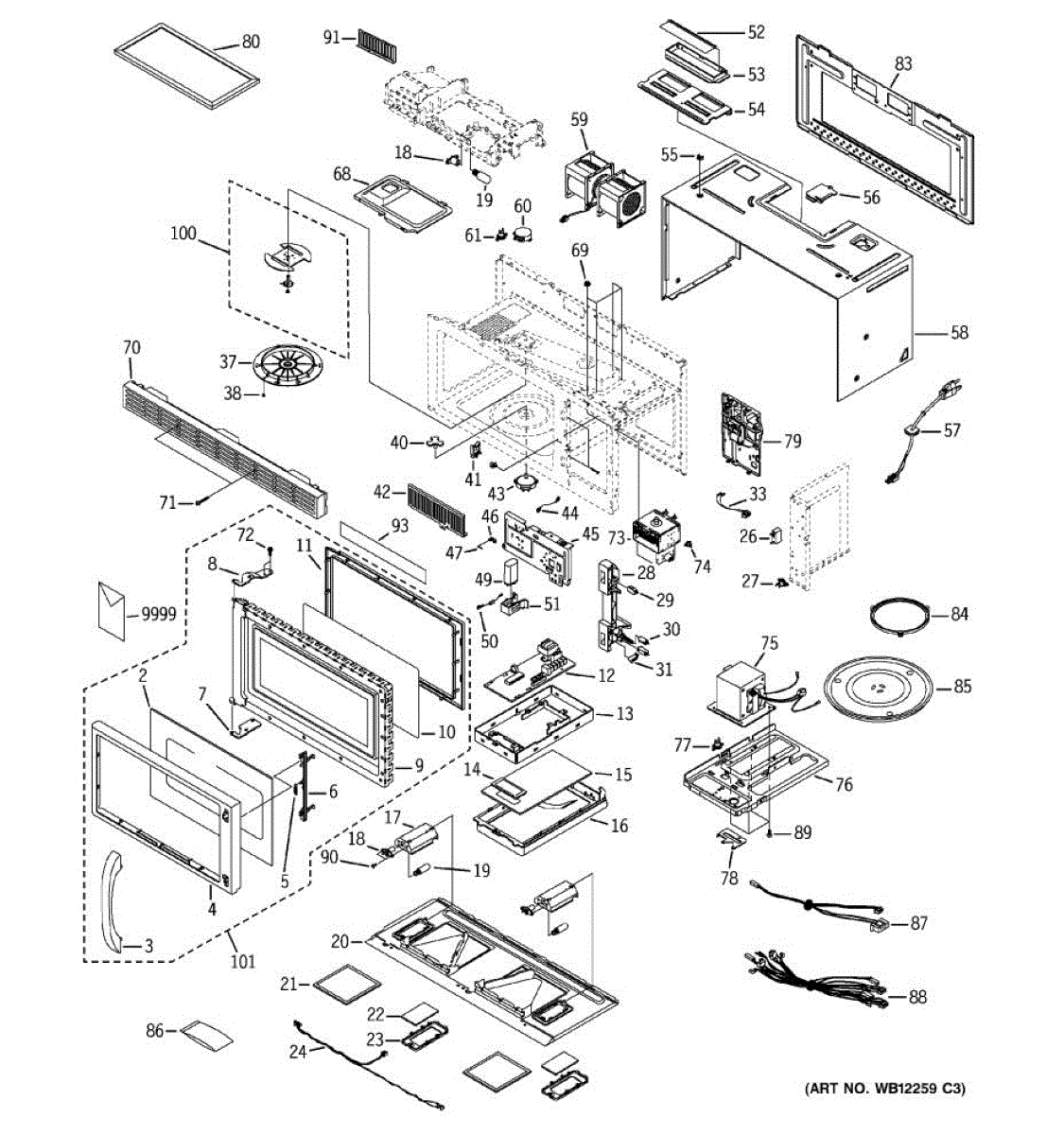

Parts for Ge JVM1430WD001: 01 - Microwave Parts

Replacement door handle for microwave ovens. Installs on the exterior door panel. Needed when original handle is broken, cracked, or snapped off.

Upper door hinge for microwaves. Secures the door at the top mounting point. Replace if cracked, broken, or worn to restore proper door alignment.

Replaces the door liner and choke assembly on your microwave. Needed when the original liner is cracked, broken, or missing to restore proper door seal.

This is the transparent display window that covers the control panel readout on the range. It protects the digital display behind it while allowing you to clearly see temperature settings, timer information, and other readouts. Replace this window if it is cracked, clouded, or scratched to the point where the display is difficult to read.

Replacement touch pad for your microwave control panel. Installs on the front interface to restore button functionality. Order when original is cracked or worn.

This is the outer frame that surrounds and supports the microwave's front control panel, housing the touchpad and display components. It provides structural support and a finished appearance for the user interface area. Replace this frame if it is cracked, warped, discolored, or if the control panel no longer sits securely in place.

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 7-3/4" x 9-1/16" x 3/32" (7.75 x 9.0625 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

Replacement glass lens cover for microwave interior or cooktop lights. Protects bulb from food splatters. Needed when cracked, broken, or shattered.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures and organizes internal wiring in your microwave. Replace if wires are loose, rattling, or damaged clip causes arcing. Verify fit with your model number.

Turntable stopped turning or making grinding noise? This motor rotates the glass plate for even cooking. Easy 5-10 minute DIY fix with basic tools.

Replacement wire lead for microwaves. Connects internal electrical components. Order a new lead if yours is damaged, frayed, burned, or corroded.

Secures the microwave air guide or duct in proper position. Replace if your bracket is cracked, broken, or missing to restore stable internal airflow.

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

This mounting bracket secures the H.V.C. assembly or cover in place to keep high-voltage components stable and properly aligned. Replacing a damaged or bent bracket restores correct support and reduces movement-related issues. What it does:

• Secures the high-voltage cover/assembly to the appliance chassis to prevent shifting.
• Maintains correct clearance and alignment for high-voltage components.
• Helps reduce noise or arcing caused by a loose cover or bracket.
• Supports safe, reliable operation by keeping wiring and insulating parts in position.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle high-voltage components and insulating parts carefully; avoid contact with charged parts.
• Use the OEM part number to fit and orientation before installation.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Secures the power cord to your microwave's chassis. Replace this bracket if it's cracked, broken, or missing to properly mount and support the cord.

This outer oven door panel replaces a damaged or dented exterior door surface to restore appearance and protect internal components. It provides a clean, finished look and helps keep heat and debris away from the door structure. What it does:

• Replaces the oven's exterior door panel to restore cosmetic appearance after dents, scratches, or paint loss
• Protects internal door layers and components from physical damage and debris
• Helps maintain the oven door's thermal barrier by keeping the exterior intact
• Addresses visible cosmetic wear that may affect kitchen aesthetics

• Disconnect power to the appliance before starting any repair; for gas ranges, shut off gas supply as required
• Handle panels carefully—edges and attached glass may be sharp or fragile; use gloves and eye protection
• Removing and reinstalling the door typically requires supporting the door assembly and removing hinge/trim screws; keep track of fasteners and trim pieces

Fixes loud grinding or coffee grinder noise from microwave. Simple DIY repair with 2 screws and wire connectors. Located on top, typically takes under 30 minutes.

Microwave shuts down during use? This thermal cutoff thermostat prevents overheating by interrupting power when temperatures exceed safe limits.

Upper duct assembly for microwave ventilation systems. Mounts inside the cabinet to direct air flow. Replace if cracked, damaged, or missing components.

Color: White

Microwave not heating? The magnetron generates microwave energy for cooking. Common repair when unit runs but won't heat food. Moderate DIY difficulty.

Replace your cracked or broken microwave base plate. This structural component installs at the bottom of the cavity to support the turntable and cookware.

This thermal fuse is a safety device designed to cut off power to the microwave if internal temperatures exceed safe limits. It is a small, inline fuse typically mounted near the magnetron or cavity. Replace this part if the microwave has completely stopped working with no display or response, especially after an overheating event.

Color: silver. Measures about 11-1/8" x 6-1/4". For matching aluminum filter, use: WB6X486.

Supports and guides the glass turntable in your microwave. Replace if the roller ring is cracked, broken, wheels are worn or missing, or the tray wobbles.

Replace your cracked, broken, or missing microwave glass cooking tray. This rotating turntable supports food for even heating in your microwave cavity.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

Replace your microwave's filter mounting bracket if it's cracked, broken, or missing. This bracket secures the grease filter in place during operation.
