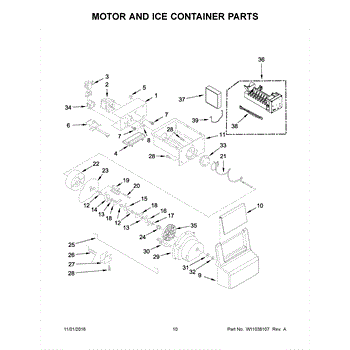

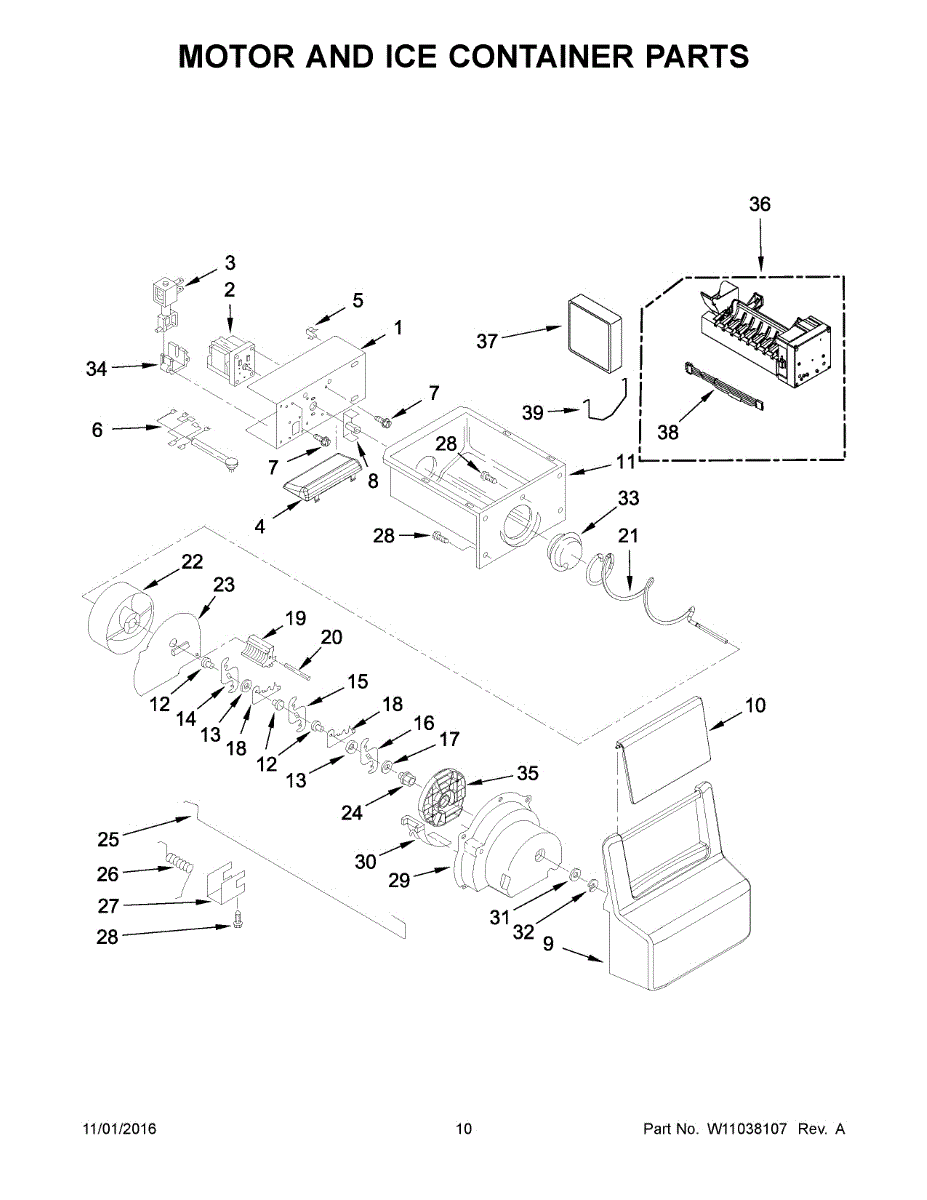

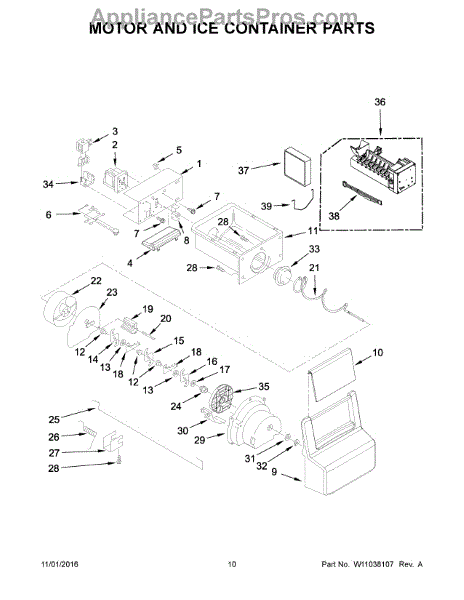

Parts for Whirlpool WRS331FDDB02: 06 - Motor And Ice Container Parts

Ice dispenser not working or only dispensing sometimes? The auger motor powers ice ejection from the storage bin. DIY-friendly repair in under an hour.

Ice won't switch between crushed and cubed? The dispenser solenoid controls the crusher mechanism. Most DIYers replace it in 25-30 minutes with basic tools.

Replace your refrigerator's LED light assembly when lights flicker, strobe, or stop working. Restores bright, energy-efficient interior lighting. Confirm fit.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order when original clip is broken, cracked, or missing.

This electrical connection provides power to LED lights that illuminate the ice dispenser area for better visibility. Located behind the dispenser assembly in the refrigerator door, replace it if dispenser lights flicker, dim, or fail to illuminate.

Size: 8-32 x .312 inch.

Ice dispenser not working or coupling spins freely? This motor coupling connects the dispenser motor to the auger. 10-minute fix with channel lock pliers.

Access panel cover for refrigerators. Protects internal components from dust and debris. Replace if cracked, broken, or missing to maintain safety.

Ice won't dispense or keeps jamming? This dispenser door flap opens and closes to allow ice through while sealing the chute when not in use.

Ice dropping into freezer or not dispensing? A cracked ice container is often the cause. This storage bin replacement takes 15-30 minutes with a screwdriver.

Step spacer for refrigerators. Installs between components to maintain proper alignment and spacing. Replace if cracked, broken, or missing.

Replacement spacer for refrigerators. This small structural component maintains proper spacing between parts. Order a new spacer if yours is missing.

Fix ice that won't crush or dispense with this refrigerator crusher blade. Solves bent or damaged blades preventing ice from dispensing. Easy DIY repair.

Fix ice not dispensing properly with this ice crusher blade. Replaces free-wheeling or worn blades on the auger assembly. DIY-friendly repair.

Ice crusher not working or producing inconsistent crushed ice? This rotating crusher blade restores proper ice crushing when worn, bent, or cracked.

Flat plain washer that distributes load and spaces hardware on appliance assemblies. Replace if worn, missing, or needed for secure fastening.

Secures rotating shafts and levers in your refrigerator's ice dispenser mechanism. Replace if pin is sheared, worn, or missing to restore alignment.

Ice not dispensing or auger broken? This refrigerator ice crusher auger transfers ice from bucket to dispenser. Moderate DIY repair in 30 minutes.

Ice dispenser jammed or grinding? A cracked baffle prevents smooth ice flow. This support aligns the auger inside the bin. Moderate DIY with video guide.

This bearing nut secures a bearing and related rotating components on the shaft, keeping the assembly tight and aligned for smooth, dependable operation. Replacing a worn or stripped nut helps stop wobble, noise, and drive slippage.

• Locks the bearing/stack onto the shaft to prevent loosening
• Maintains alignment for smooth rotation and reduced vibration
• Helps restore consistent drive in shaft-driven assemblies
• Typical symptoms: loose or non-turning drive, rattling/grinding, or visible thread damage

• Disconnect power before servicing; shut off water if working near dispenser components
• Remove the related assembly to access the shaft; note part order for reassembly
• Hand-start the nut to avoid cross-threading; verify thread direction against the original
• Tighten securely; inspect the bearing, washers/spacers, and shaft for wear

Ice maker not cycling or shutting off? This control arm extension restores proper movement to the ice maker mechanism. Simple snap-in replacement.

Return spring provides tension for ice maker levers, door latches, or control rods. Replace if broken, stretched, or missing to restore proper snap-back.

Secures support rods or shafts to keep moving parts aligned in your refrigerator. Replace if the clip is broken, worn, or missing to prevent rattling.

Size; 8-18 x 1/2 inch.

Ice not dispensing properly or spilling? This crusher housing secures ice-crushing components and guides crushed ice to the chute. Fixes cracked housings.

This ice deflector guides ice cubes from the icemaker into the ice bin to help keep ice delivery consistent and reduce cube jams or spills. It's a simple replacement that restores proper ice routing in compatible refrigerators. What it does:

• Directs ice cubes from the icemaker into the ice bin for orderly dispensing
• Helps prevent ice clumping and blockages that can stop ice flow
• Keeps ice moving away from the icemaker assembly and into the bin
• Restores proper alignment and function after a cracked or missing deflector

• Disconnect power to the refrigerator before servicing to avoid electrical or mechanical injury
• Remove the ice bin or access panel per your model's service instructions to reach the deflector
• Part typically snaps or slides into place; reuse existing fasteners unless new hardware is supplied
• After installation, reconnect power and run the icemaker through a cycle; discard any ice made during the repair if contamination is suspected

Flat plain washer that distributes load and spaces hardware on appliance assemblies. Replace if worn, missing, or needed for secure fastening.

Secures components to prevent axial movement and rattling. Replace worn rings to restore quiet, stable operation. Confirm fit with your model number.

This is a mounting bracket or guide used in the ice dispenser area of a refrigerator. It supports and positions the dispenser solenoid or related components to ensure proper alignment and operation. Replace this part if the ice dispenser is not functioning correctly, the solenoid is loose or misaligned, or if the bracket is cracked or broken.

This automatic ice maker assembly produces, harvests, and dispenses ice cubes in your refrigerator's freezer compartment. It connects to your home's water supply and cycles through filling, freezing, and ejecting ice into the storage bin. Replace this unit if your refrigerator isn't making ice, produces hollow or malformed cubes, or if the ice maker has stopped cycling completely.

Cracked or missing ice maker cover exposing internal components? This protective cover shields the ice maker assembly. Simple DIY install in minutes.

This replacement wire harness routes electrical power and control signals between components in your appliance. Replacing a damaged harness helps restore reliable operation and prevents intermittent electrical issues caused by broken or overheated wiring. What it does:

• Distributes power and signals between the control, motors, sensors, and other components
• Helps resolve issues like components not running, intermittent operation, or features losing power
• Addresses visible damage such as burnt, melted, pinched, or frayed wires/connectors
• Helps when diagnostics indicate open/shorted circuits in the wiring

• One wire harness assembly

• Disconnect power to the appliance before servicing; shut off water or gas if applicable
• Photograph/label each connection and follow the original routing to avoid pinch points or heat sources
• Release locking tabs and pull on connector housings—do not pull on the wires
• After installation, ensure all connectors are fully seated and wires are secured away from moving or hot parts

Ice bin overflowing or ice maker won't stop making ice? The shut off arm signals when to stop production. Simple install in under an hour.

Ice not dispensing or leaking from bottom? This ice bucket and auger assembly stores ice and moves it to the dispenser. Moderate DIY repair with video.
