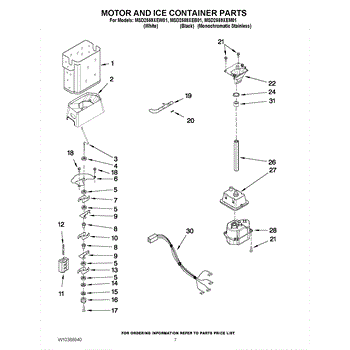

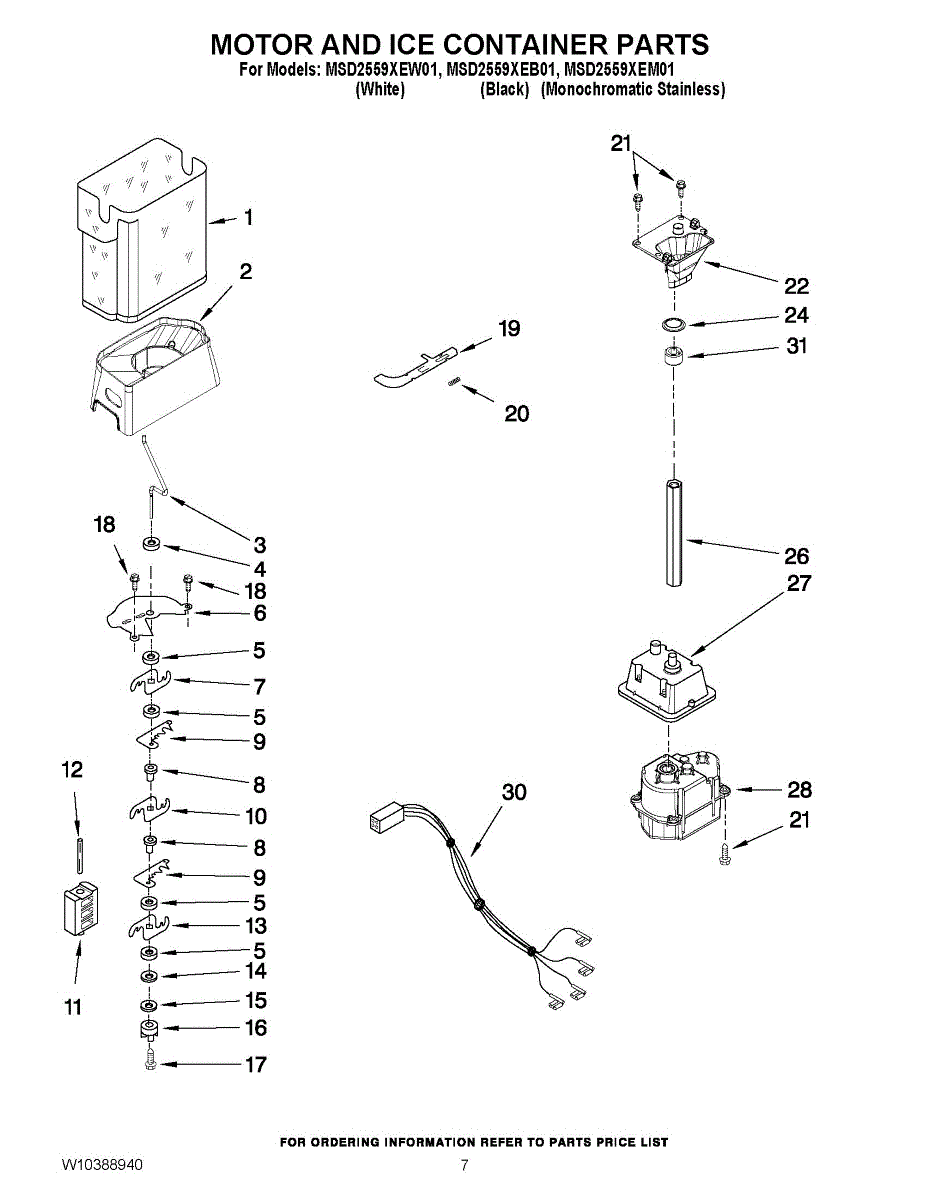

Parts for Maytag MSD2559XEM01: 05 - Motor And Ice Container Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This replacement washer is a small hardware spacer used in appliance assemblies. It provides a smooth bearing surface under a bolt or nut to distribute load and maintain proper spacing so components stay secure, aligned, and quiet.

• Distributes clamp load to protect mating parts and prevent loosening
• Maintains proper spacing/clearance for correct alignment
• Helps reduce wobble, scraping, or vibration when the original washer is worn or missing
• Visual signs include distortion, cracks, corrosion, or a fastener that no longer tightens securely

• Disconnect power before servicing; for laundry or dishwashing products, also shut off the water supply
• Note the original hardware stack-up and orientation; install the new washer in the same position
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware and tighten per manufacturer guidance
• After reassembly, run a brief test and check for unusual noise or movement

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

This top coupling links two drive components in select washers to transfer rotation smoothly. Replacing a worn or stripped coupling restores consistent agitation/spin and can reduce slipping, rattling, or grinding noises from the drive area. What it does:

• Connects mating shafts/components so power is transmitted through the drive system
• Helps maintain alignment and cushions minor shock to protect other parts
• Failure symptoms may include no or weak agitation/spin, intermittent drive, or clicking/grinding sounds
• Visual clues can include cracks, rounded/stripped splines, or excessive play

• One top coupling

• Disconnect power; turn off water supply if moving the appliance
• Access location varies by model; cabinet/top or front panel removal may be required
• Note orientation of flats/splines and seat the coupling fully—do not hammer into place
• Inspect the mating hub/shaft; replace worn companion parts to prevent rapid re-wear

The Ice Bucket Coupling is an OEM part for Whirlpool refrigerators. This coupling connects the ice bucket to the auger motor, allowing the motor to rotate the auger and dispense ice through the dispenser chute. It plays a crucial role in the proper functioning of the ice dispensing system by ensuring a secure and effective transfer of motion from the motor to the ice bucket's auger.

Symptoms of a failing Ice Bucket Coupling include:

• The ice dispenser not dispensing ice or dispensing it inconsistently
• The auger not rotating when the dispenser lever is pressed
• Unusual noises, such as grinding or clicking, coming from the ice bucket area
• Visible wear, cracks, or damage to the coupling

Causes of a bad ice bucket coupling can include regular wear and tear from frequent use, physical damage from ice jams or blockages, and degradation of the coupling material over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightly and function as intended. Whether it's securing panels, attaching components, or facilitating repairs, this screw is engineered to meet the specifications of Whirlpool appliances, offering durability and reliability.

Causes of screw issues can include normal wear and tear, over-tightening, which may strip the threads, or corrosion that weakens the screw's hold.

Symptoms of a bad or missing Screw include:

• Loose components or panels within the appliance
• Unusual noises due to parts not being securely fastened
• Difficulty in assembling or disassembling parts for repairs or maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

The Whirlpool latch spring is an OEM replacement part responsible for securing the ice container or bin in place on a refrigerator. Its main function is to provide tension and support to the ice container latch, allowing it to engage and disengage properly. When the ice container is inserted into the refrigerator's ice compartment, the latch spring ensures that it securely locks in place, preventing accidental spillage of ice.

Causes of a bad latch spring can include metal fatigue from repeated use, rust or corrosion from exposure to moisture, or physical damage from accidental impacts.

Symptoms of a bad latch spring include:

• The ice container not staying in place and sliding out of position
• Difficulty in properly attaching or detaching the ice container from the refrigerator
• The ice container feeling loose or wobbly when inside the ice compartment
• The ice container not aligning correctly with the ice dispenser or auger

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Auger Drive Motor is an OEM part for Whirlpool refrigerators. It is responsible for powering the auger mechanism that dispenses ice from the ice maker into the ice bucket or directly through the door dispenser. This motor ensures that ice is delivered smoothly and efficiently whenever needed.

Over time, the auger drive motor can wear out or fail due to constant use or electrical issues. Causes of a bad auger drive motor can include motor burnout, electrical malfunctions, or damage from ice buildup.

Symptoms of a bad auger drive motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice maker area
• The auger not turning or moving slowly
• Intermittent operation of the ice dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
