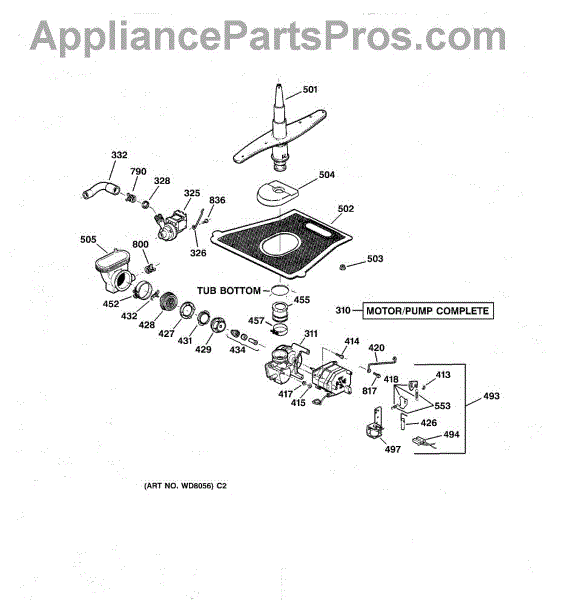

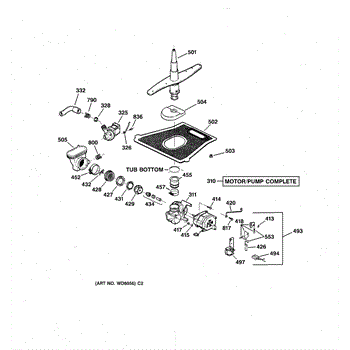

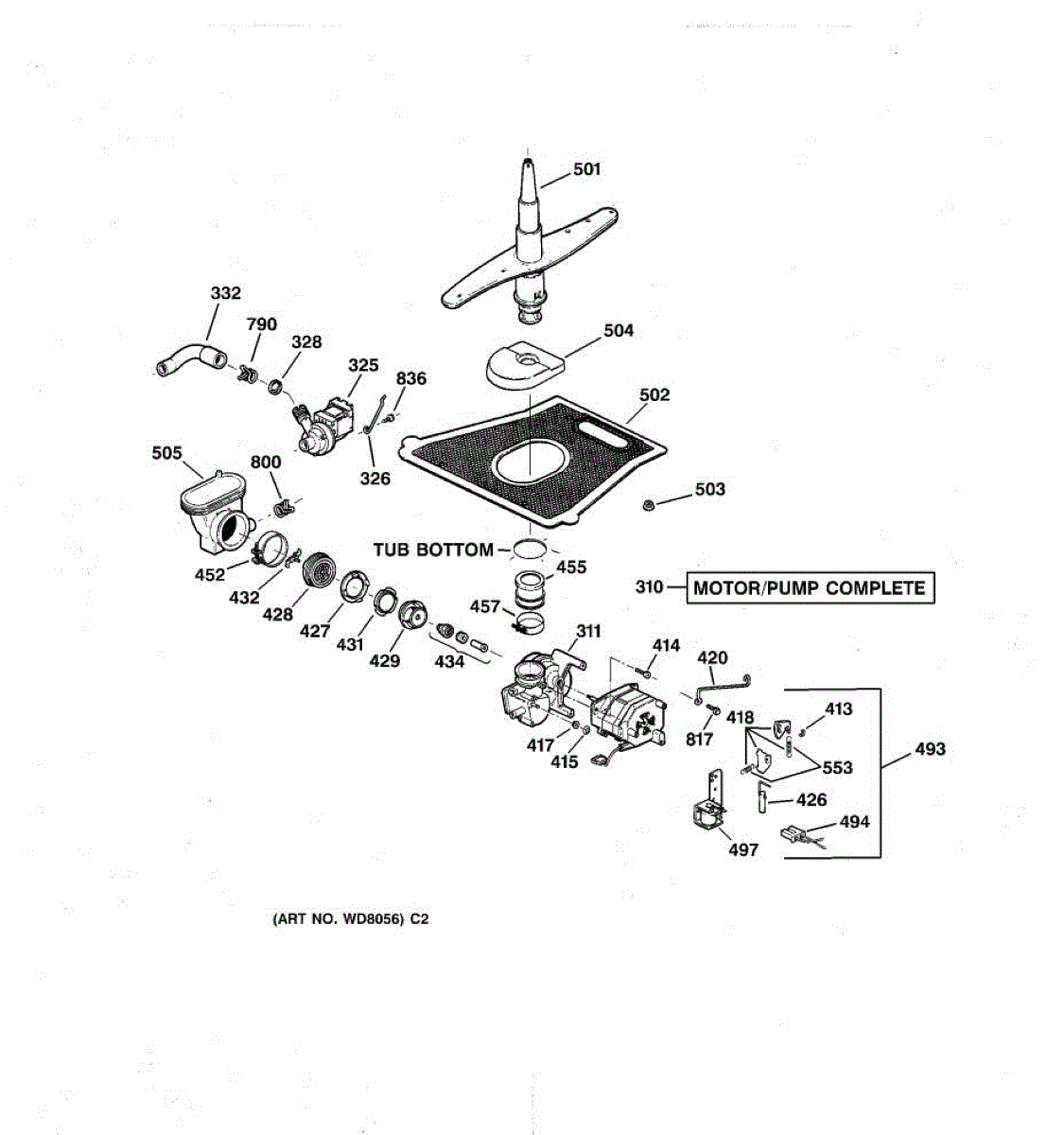

Parts for Ge EDW2020F00BB: 03 - Motor-Pump Mechanism Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishwasher not draining or leaving water in the bottom? This pump and motor assembly circulates and drains water. 2-hour DIY repair with video guide.

This part has been discontinued by the manufacturer and is no longer available.

This kit fits both D style and T style shafts.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

This kit is used to repair a leaking pump on GE made dishwashers. For a complete pump/motor assembly get WD26X10013.

Fix dishwasher leaks from cracks or tears in the pump connector. Requires removing dishwasher and pump access. Video guide available for DIY repair.

Note: This is the complete solenoid assembly kit. For armature & linkage assembly only, use WD1X1316.

The Solenoid Assembly is an OEM part for GE dishwashers. It plays a crucial role in controlling the flow of water into the dishwasher by activating or deactivating the drain valve. This assembly is essential for ensuring that the dishwasher fills and drains at the correct times during the wash cycle, which is pivotal for the overall efficiency and effectiveness of the appliance.

Common causes for a Solenoid Assembly to fail include wear and tear over time, mineral buildup from hard water, or electrical failures that prevent the solenoid from operating as intended.

Symptoms of a bad Solenoid Assembly include:

• Failure of the dishwasher to drain properly, leading to water accumulation at the bottom.
• The dishwasher not filling with water as it should, affecting the cleaning process.
• Unusual noises coming from the dishwasher, which may indicate the solenoid is failing to engage or disengage correctly.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Solenoid and Bracket Assembly is an OEM replacement part for GE dishwashers. This component plays a role in controlling the flow of water during the dishwashing cycles, allowing for proper water distribution and efficient cleaning.

Symptoms that may indicate the need to replace the solenoid and bracket assembly include:

• Issues with water not filling or draining properly
• Inconsistent or incomplete water circulation during cycles
• Visible leaks or water damage around the solenoid area

Causes of a faulty solenoid and bracket assembly can include normal wear and tear over time, electrical malfunctions, mineral buildup or debris obstructing the solenoid, or physical damage to the component.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

Replacement lower spray arm assembly for dishwashers. Installs at the bottom of the tub. Needed when the spray arm is cracked, broken, or tabs damaged.

The Filter & Gasket Assembly is an OEM part for GE dishwashers. This part traps food particles and debris during the wash cycle, preventing them from redepositing on dishes or clogging the drain system.

Causes of a bad Filter & Gasket Assembly can include wear and tear from regular use, accumulation of hard water minerals or detergents affecting the gasket's seal, and damage to the filter mesh that allows larger particles to pass through or clog the assembly.

Symptoms of a bad Filter & Gasket Assembly include:

• Poor cleaning performance, with food particles left on dishes after a cycle
• Water leakage around the dishwasher's base, indicating a compromised gasket
• Unpleasant odors from trapped food particles that are not properly filtered out

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Dishwasher service dome coarse filter traps food debris during wash cycles. Replace if leaking, cracked, or worn to prevent water leaks. Verify fit by model.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Mounting screw for washer components. Secures drain hose clamps, panels, and internal parts. Replace if missing, stripped, or lost during repair.
