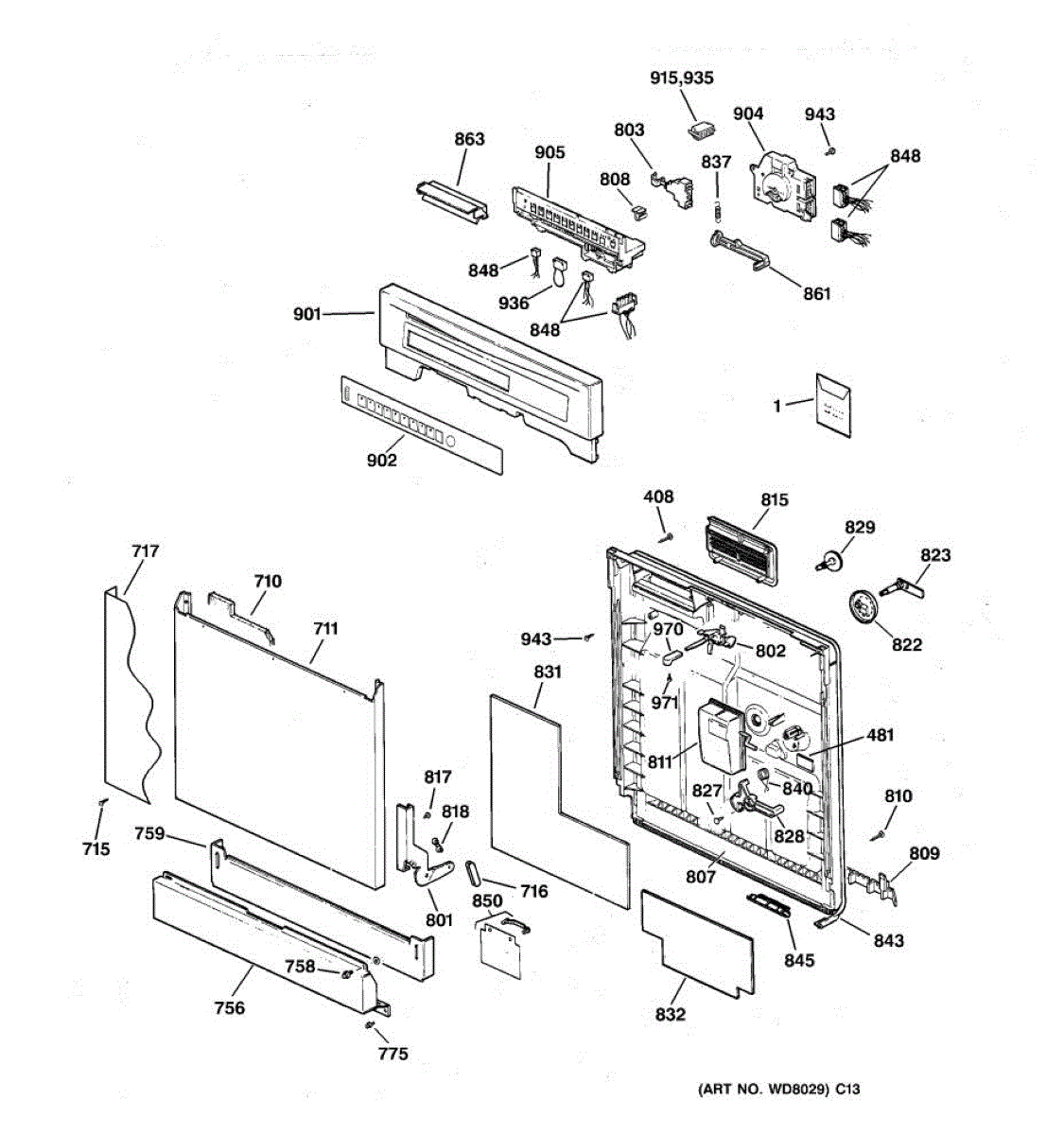

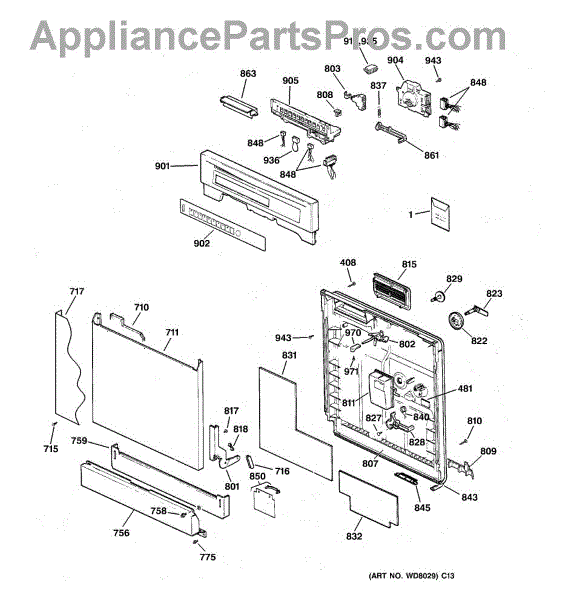

Parts for Ge EDW2020F00BB: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Color: Black

The Hinge Arm Link is an OEM part for GE dishwashers. This component functions as a connection point between the dishwasher door and the hinge mechanism, allowing the door to open and close smoothly. The hinge arm link ensures that the door can bear the weight of itself, often laden with a mounted dish rack when fully loaded, without straining the hinges or misaligning.

Causes of damage to the hinge arm link often involve regular wear and tear from the constant motion of opening and closing the dishwasher door.

Symptoms of a bad Hinge Arm Link include:

• Difficulty opening or closing the dishwasher door
• A door that won't stay closed or opens unexpectedly
• Visible wear or damage to the hinge arm link, such as bending, breaking, or severe wear marks

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This finished access panel mounts at the lower front of the dishwasher to cover the service opening. It restores a clean, factory appearance while helping shield internal components from debris and incidental contact. What it does:

• Covers the lower front service opening at the base of the dishwasher
• Helps protect wiring, pump area, and insulation from debris and accidental contact
• Contributes to overall noise containment and proper ventilation as designed
• Replaces a panel that is dented, bent, rusted, rattling, or missing

• 1 finished access panel

• Disconnect power (and water, if necessary) before servicing the appliance.
• Remove mounting screws securing the existing panel and set the old panel aside.
• Position the new panel and secure it with the original hardware; ensure it sits flush and doesn't interfere with door operation.
• Restore power and check for proper fit and vibration-free operation.

This is the complete left side hinge assembly. For right side use WD14X10008.

This is the complete right side hinge assembly. For left side use WD14X10007.

The Door Latch Assembly is an OEM part for GE dishwashers. This part ensures the door of your dishwasher shut and locks securely. This part is integral for the safe and efficient operation of your appliance, as it helps to prevent water from leaking during cycles and ensures the dishwasher only runs when the door is properly closed.

Causes for door latch issues typically involve regular wear and tear, accidental damage from forceful use, or degradation of the latch's mechanical or electrical components.

Symptoms of a malfunctioning Door Latch Assembly include:

• Difficulty in closing or locking the dishwasher door
• The dishwasher not starting, indicating the door isn't recognized as securely latched
• Water leakage around the door, suggesting an incomplete seal
• Noticeable damage to the latch itself, impairing its function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Inner door panel replaces the interior face of the appliance door, restoring a clean surface and proper support for door components so the door can close and seal as intended. Ideal when the door liner is cracked, dented, or visibly worn. What it does:

• Serves as the interior surface of the door and supports the inner glass or window.
• Provides a mounting surface for latches, seals, and related hardware to help maintain a proper door closure.
• Reduces rattling, visible damage, or interior door gaps that can affect operation.
• Protects internal door components from debris and normal wear.

• Disconnect power and unplug the appliance before starting any repair.
• Use basic hand tools to remove door trim or screws; keep all fasteners for reassembly.
• Handle inner glass and sharp edges carefully—wear gloves and eye protection.
• Refer to the appliance's service manual or OEM instructions for model-specific removal and reinstallation steps.

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

This replacement door vent directs humid air out of the dishwasher during the dry cycle. Restoring a damaged or missing vent helps maintain proper airflow and reduce unwanted moisture around the door area. What it does:

• Vents steam from the tub to help manage moisture during drying
• Routes airflow away from the door and control area
• Helps limit condensation and odor buildup inside the door
• Common signs of failure: visible cracks or broken louvers, steam/moisture escaping at the door top, water spots near the vent, or a loose/rattling vent

• 1 door vent

• Disconnect power at the breaker before servicing
• Open the door; remove screws or release tabs to remove the old vent (varies by model)
• Note orientation, seat the new vent fully, and secure without overtightening
• Reassemble and run a short cycle to check for proper sealing and airflow

The Detergent cup cover is an OEM component for GE dishwashers. It serves to protect the detergent cup assembly while allowing for easy access. Made of durable plastic, the cover clicks securely into place during operation to prevent accidental opening.

Causes of a bad detergent cup cover include cracks or breaks from heavy use over time.

Symptoms of a bad detergent cup cover can include:

• Difficulty opening or closing the detergent cup cover properly
• Portions of the cover assembly no longer intact or missing
• Leaks developing around the perimeter of the cover

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Soap Dispenser Lever is an OEM part for GE dishwashers. It operates the soap dispenser door, releasing detergent into the dishwasher at the appropriate time during the wash cycle. This lever ensures that detergent is dispensed efficiently for optimal cleaning performance.

Causes of a bad soap dispenser lever can include wear and tear over time, accumulation of detergent residue, or damage due to accidental mishandling or impact. When the lever malfunctions, the detergent might not be released properly, leading to poor cleaning results.

Symptoms of a bad soap dispenser lever include:

• The detergent not being dispensed during the wash cycle
• The dispenser door not opening or closing correctly
• Residual detergent left in the dispenser after the cycle

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Detergent Cup Latch is an OEM part for GE dishwashers, specifically designed for certain models. It is located on the detergent dispenser assembly. When the detergent cup is loaded with detergent, the latch holds it in place and prevents it from accidentally opening or spilling during the wash cycle.

Causes of a faulty or damaged detergent cup latch can include regular wear and tear, misalignment, or breakage. These factors can result in issues such as the detergent cup not staying closed, detergent not being dispensed properly, or leaks from the detergent compartment.

Symptoms of a bad detergent cup latch may include:

• The detergent cup not staying closed during the wash cycle
• Detergent not being released or dispensed into the dishwasher
• Leaks or spills from the detergent cup area

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Fill Cap Assembly is an OEM part for GE dishwashers. This assembly includes the cap that covers the opening where rinse aid or other additives are poured into the dishwasher. It ensures that the additives are securely contained and properly dispensed during the wash cycles, contributing to effective cleaning and drying.

Over time, the fill cap assembly can become damaged due to regular use, exposure to cleaning agents, or accidental mishandling. A compromised fill cap can lead to leaks or improper dispensing of rinse aid, affecting the dishwasher's performance.

Symptoms of a bad fill cap assembly include:

• Rinse aid or additives leaking from the dispenser
• The cap not securing properly or coming off easily
• Improper dispensing of rinse aid
• Visible cracks or damage to the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes 12 screws.

Includes 12 screws.
