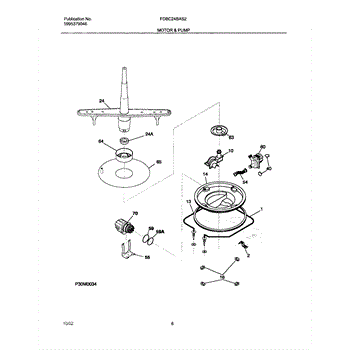

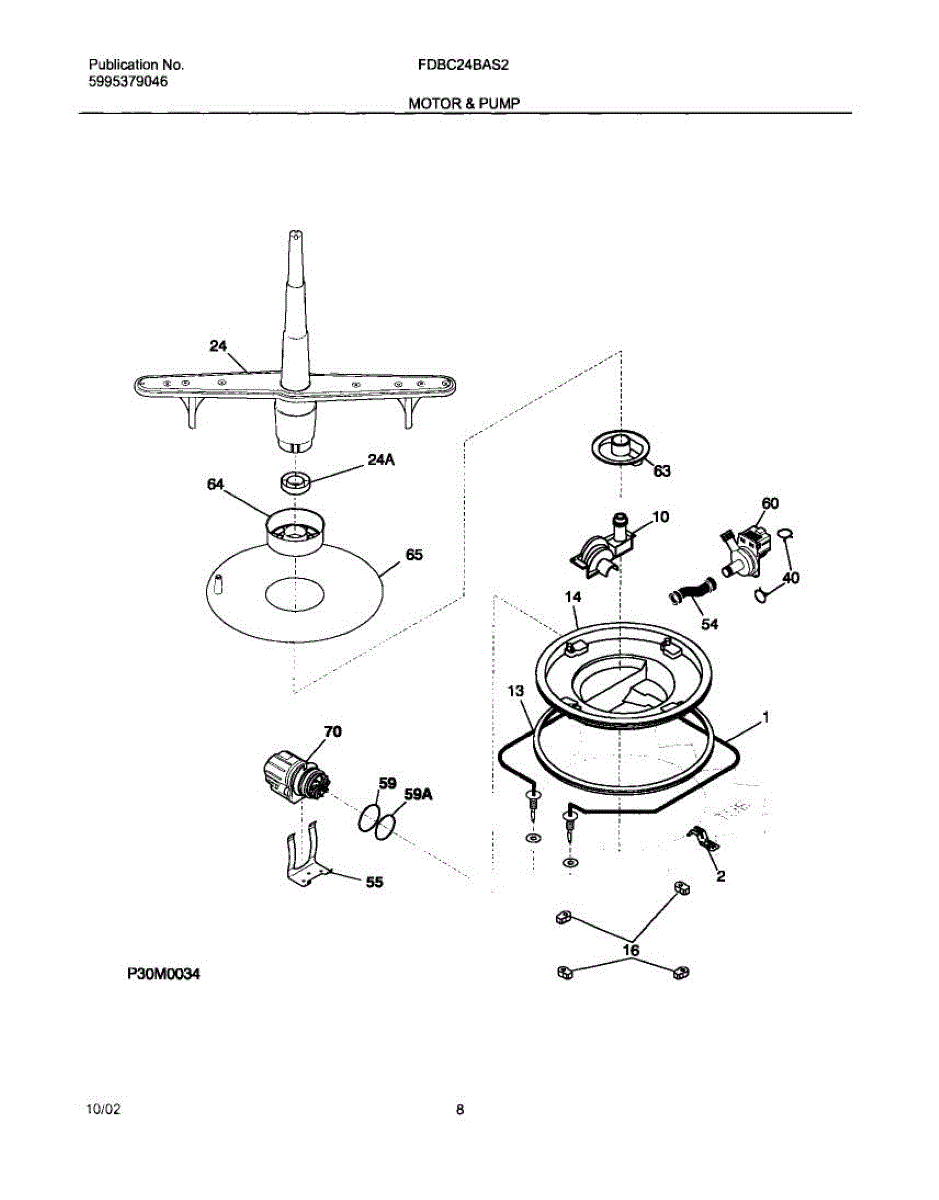

Parts for Frigidaire FDBC24BAS2: 09 - Motor & Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Heating Element is an OEM part for Frigidaire dishwashers. This element is responsible for heating the water during the wash cycle and ensuring the dishes are properly cleaned and sanitized. Additionally, it helps to dry the dishes by heating the air inside the dishwasher during the drying cycle.

Causes of a bad heating element can include regular wear and tear, mineral buildup from hard water, electrical failures, or damage from improper loading of dishes. A faulty heating element can lead to inadequate water temperature and poor drying performance.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Water not heating up during the wash cycle
• The dishwasher not completing cycles
• Error codes related to heating issues

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This sump gasket seals the connection between the dishwasher tub and the sump/pump assembly. Replacing a flattened or cracked gasket restores a watertight barrier to help stop leaks from the base and protect floors and cabinetry.

• Creates a seal between the tub and sump to contain wash water
• Helps prevent leaks during fill, wash, and drain cycles
• Replace if the gasket is cracked, brittle, deformed, or compressed
• Common symptoms: water under the dishwasher, dripping from the base, moisture around the toe-kick

• Disconnect power and shut off the water supply; pull the dishwasher out if needed for access
• Access the sump area (often by removing the lower rack, spray arm, and filters); note gasket orientation
• Clean mating surfaces; seat the gasket evenly without twists. Do not use sealants unless specified by the manufacturer
• Reassemble and run a short test cycle while inspecting for leaks

This sump retainer secures the appliance sump assembly and helps keep the pump seal and surrounding components properly positioned to reduce leaks and maintain correct water flow. It's a small replacement part used during sump or pump repairs. What it does:

• Holds the sump housing or pump assembly in place to maintain a reliable seal
• Helps prevent water leaks from the pump/sump area when installed correctly
• Keeps internal components aligned for proper water circulation and drainage
• Commonly replaced when sump hardware is cracked, warped, or no longer secures the pump

• One sump retainer

• Power off and unplug the appliance before starting any repair
• Verify you have full access to the sump/pump area; removal of panels or racks may be required
• Inspect surrounding seals and gaskets; replace if damaged to ensure a watertight fit

This OEM Replacement Part is a designed nut to secure the Frigidaire dishwasher's spray arm. With dimensions of 2.0" x 2.0" x 0.6", this nut ensures a snug fit between the lower spray arm and the filter. It helps maintain the stability of the spray arm and enhances the overall performance of the dishwasher. The nut plays a role in preventing leakages at the bottom of the spray arm. If such a leak occurs, it may be indicative of a faulty nut. A timely replacement of this nut can ensure the proper functioning of the dishwasher. This part is compatible with select Frigidaire brand models including Crosley, Kenmore, Tappan, White Westinghouse.

This Dishwasher Lower Spray Arm with Heat Shield is an OEM replacement part designed for Frigidaire dishwashers. This component ensures water distribution throughout the dishwasher during cycles, reaching all dishes for a thorough clean. The added heat shield protects the spray arm from the high temperatures during drying cycles, prolonging its lifespan and maintaining its efficiency.

Symptoms of a bad Frigidaire Spray Arm, Lower, with Heat Shield include:

• Dishes not being cleaned properly
• Water not being distributed evenly during cycles
• Noticeable damage or warping to the spray arm

Over time, the spray arm can become clogged with food particles or mineral deposits, or it can become damaged from normal wear and tear. A compromised spray arm can result in poor cleaning performance and inefficient water distribution.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Red

This short connector hose links internal dishwasher plumbing to move water securely between components. Replacing a worn or cracked hose helps prevent leaks and keeps cycles running reliably. What it does:

• Routes water between two internal connection points during the wash cycle
• Helps maintain a watertight seal when properly clamped
• Common symptoms: water leaking beneath the unit, dampness around hose joints, visible cracks/hardening, or a loose fit
• Aging hoses can stiffen and drip at barbed fittings

• 1 connector hose

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick and pull the dishwasher forward as needed to access the hose
• Expect a small amount of residual water; have towels or a shallow pan ready
• Fully seat the hose on fittings, secure with appropriate clamps, then run a brief cycle and check for leaks

This replacement bracket secures a component to the appliance frame, keeping it aligned and stable during operation. Install it to replace a bent, cracked, or missing bracket and restore a solid, rattle-free mount.

• Provides a rigid mounting point to hold the specified part in place
• Helps maintain alignment to reduce vibration, rubbing, or noise
• Replaces damaged or corroded hardware to restore a secure fit
• Common symptoms: loose or sagging component, unusual vibration/noise, or part shifting out of position

• Disconnect power before servicing; shut off water supply if working near water lines
• Note original orientation and fastener locations; take a reference photo
• Transfer and reuse existing screws/clips as needed; tighten fasteners evenly without over-torquing
• Verify alignment and test operation before final reassembly

The Rear O-Ring is an OEM part for Frigidaire dishwashers. This small but crucial component ensures a watertight seal within the dishwasher's internal systems, preventing leaks by sealing connections between various parts, such as the pump or valve assemblies. The front O-ring is part number AP2109102

Causes of a bad rear O-ring can include regular wear and tear, drying out or cracking due to age, and damage from chemical exposure or improper installation. A compromised O-ring can lead to water leaks and reduced efficiency of the dishwasher.

Symptoms of a bad rear O-ring include:

• Water leaking from the dishwasher
• Puddles forming underneath the appliance
• Reduced washing performance due to water pressure loss
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Front O-Ring is an OEM part for Frigidaire dishwashers. This component is essential for maintaining a watertight seal in the front areas of the dishwasher's internal systems, such as around the pump or valve connections. It prevents water leaks and ensures the efficient operation of the dishwasher. The rear O-ring is part number AP2109101

Causes of a bad front O-ring can include regular wear and tear, exposure to high temperatures, and chemical degradation from detergents and rinse aids. Over time, the O-ring may dry out, crack, or become deformed, leading to leaks and decreased performance.

Symptoms of a bad front O-ring include:

• Water leaking from the front of the dishwasher
• Puddles forming under the appliance
• Reduced cleaning performance due to water pressure issues
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

This is a circulation pump motor for dishwashers. It controls the main pump of the appliance.The pump is directly responsible for removing extra water from the dishwasher after use. When a dishwasher's circulation pump motor goes bad, the main indicator is usually leaking from the appliance. There will be a noticeable amount of water emerging from the bottom of the machine whenever the cycle is engaged. Unplug the dishwasher from its main power source and water hookup. Remove the dishwasher from its space in the counter. Remove all necessary entry plates to access the interior of the dishwasher. There is a metal bracket holding the current motor in. Unscrew the two screws that secure the bracket and remove this component. Remember which way the motor is oriented before removing it. Unplug the power cable connecting the motor to the dishwasher. Put the two new sealing rings on the new pump motor. Repeat these instructions in reverse to install the new part.This Frigidaire dishwasher circulation pump motor is a genuine OEM replacement part sourced directly from Frigidaire. The pump motor is sold individually. This part is compatible with Frigidaire, Kenmore, Westinghouse, and Gibson appliances.

NO.8 - .625 Truss

The Side Mount Kit is an OEM replacement part for Frigidaire dishwashers. It contains mounting brackets, screws, and other hardware required to securely install the dishwasher against cabinetry in a side-by-side configuration. Proper attachment is necessary for stability and safety during operation.

Symptoms of damaged or missing mounting hardware include:

• Excessive movement or rocking of the dishwasher body
• Potential detachment from cabinets
• Screws pulling loose from repeated vibrations
• Improper door alignment causing difficulty closing fully

Causes related to normal wear over extended use periods. Damage may occur if weight is applied during improper lifting or installation attempts.

Compatible models include Electrolux, Gibson, and select Kenmore units.

The Heating Element Nut is an OEM part for Frigidaire dishwashers. It plays a crucial role in securing the heating element in place, ensuring it functions effectively to heat water during the wash cycle. This component ensures the stability and proper operation of the dishwasher's heating element, contributing to the machine's overall efficiency and performance.

Causes of a bad part can include physical damage during maintenance or installation, corrosion over time due to exposure to water and detergents, or general wear and tear that affects its ability to securely hold the heating element in place.

Symptoms of a bad Heating Element Nut include:

• Loose heating element, leading to inefficient heating or water not heating at all
• Water leakage from the heating element area, potentially caused by a poor seal
• Unusual noises during the dishwasher cycle

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.
