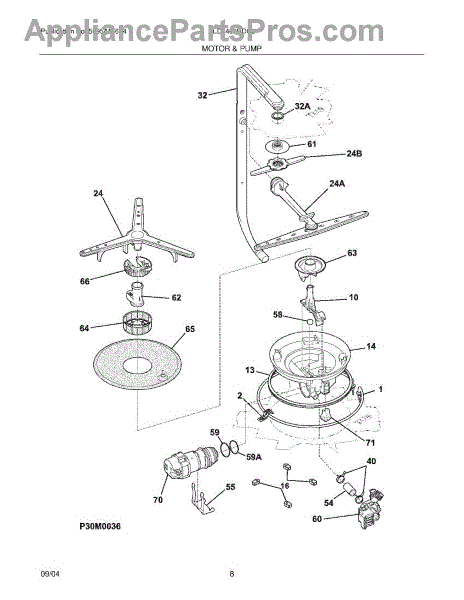

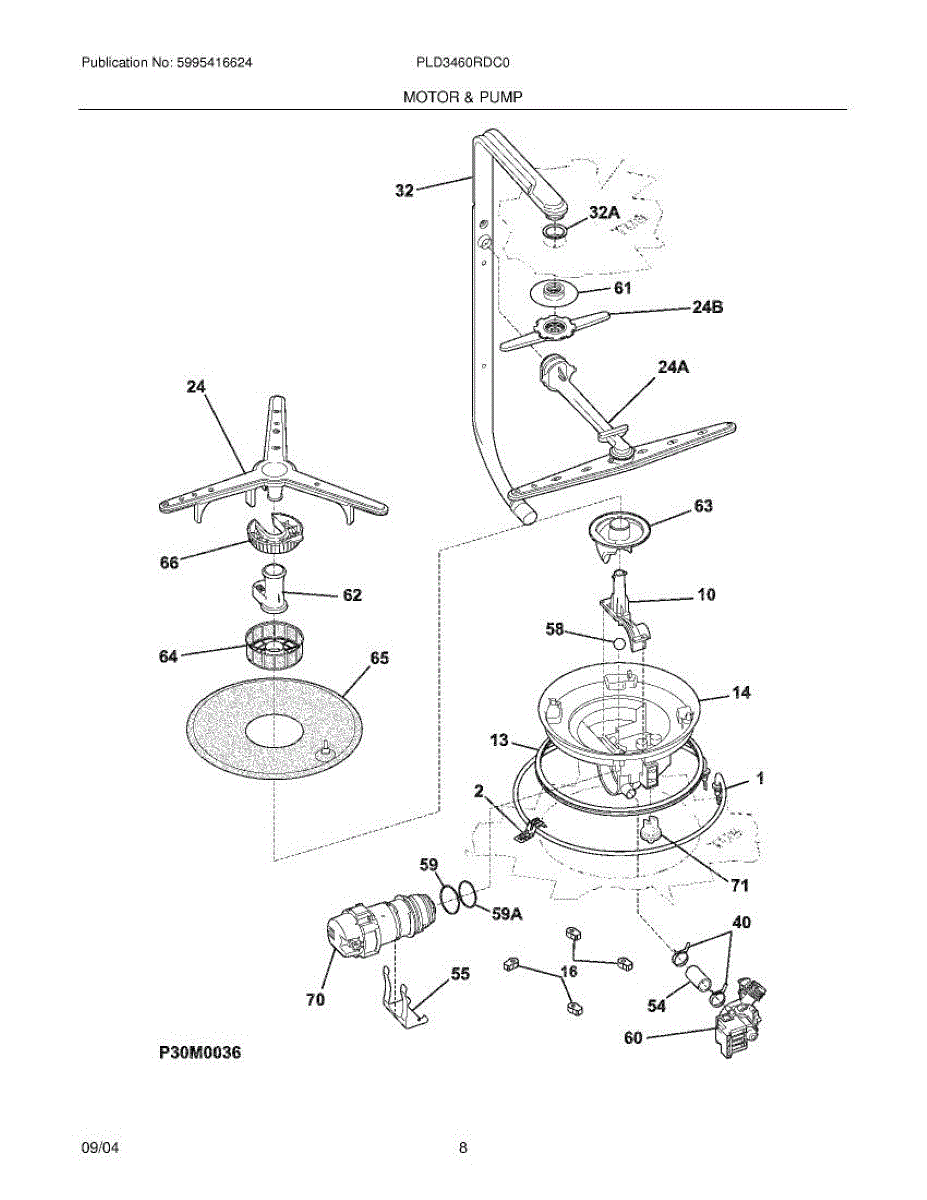

Parts for Frigidaire PLD3460RDC0: 09 - Motor & Pump Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Dishes still wet after cycle or water not heating? The heating element heats water for cleaning and promotes drying. DIY repair in under 30 minutes.

Secures components and panels inside your dishwasher. Replace if cracked, broken, or missing to restore proper alignment and prevent rattling or shifting.

Secures the lower spray arm in place. Replace if tabs are broken, worn, or missing, causing the spray arm to detach or not lock down properly. Installs under filter.

Seals the connection between the dishwasher tub and sump assembly. Replace if water leaks from the base or the gasket appears cracked or flattened.

Secures the sump assembly and pump seal to prevent leaks and maintain proper water flow. Replace if damaged or during sump repairs. Confirm fit with model.

Lower spray arm for dishwashers. Installs at the bottom of the tub. Replace if broken, cracked, or missing to restore proper water distribution.

Replacement upper rack assembly for dishwashers. Holds dishes and glasses in the upper section. Needed when rack is cracked, broken, or wheels are worn.

Replacement upper spray arm for dishwashers. Installs in the top rack area to distribute water during wash cycles. Needed when original is cracked or broken.

Seals the upper spray arm delivery tube connection in your dishwasher. Replace if water leaks from the spray arm mount or arm becomes loose. Verify fit.

This tube delivers incoming water from the inlet valve to the wash system inside the dishwasher. It connects the water inlet to the tub or spray arm assembly to ensure proper water flow during fill cycles. Replace this feed tube if you notice leaks beneath the dishwasher, reduced water flow into the tub, or visible cracks and damage to the tube.

Red

Red

Replaces cracked, split, or rodent-damaged connector hoses that route water between internal dishwasher components. Essential when the original hose leaks.

This metal mounting bracket secures the circulation pump motor inside the dishwasher. It holds the pump assembly firmly in place to prevent vibration and ensure proper alignment with the wash system. Replace this bracket if it is cracked, bent, or corroded, which can cause excessive noise, vibration, or misalignment of the pump during wash cycles.

This small check ball sits inside the dishwasher's drain pump or water inlet valve and acts as a one-way valve to prevent water from flowing backward through the system. It ensures water moves in the correct direction during wash and drain cycles. Replace this part if you notice water draining back into the tub after a cycle completes, the dishwasher isn't draining properly, or water is leaking from the pump area.

Noticeable wear, cracks, or deformation on the O-ring This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Seals the rear of your dishwasher's circulation pump to prevent leaks. Replace if you notice water pooling or dripping from the motor area.

Dishwasher not draining or water left in tub? The drain pump assembly removes wastewater during cycles. DIY repair typically takes about 1 hour.

A rubber mounting grommet that cushions and positions components to reduce vibration and wear, helping parts seat securely for reliable operation. What it does:

• Cushions and isolates parts to reduce noise and vibration.
• Protects metal components and wiring from abrasion where they pass through openings.
• Helps maintain proper alignment and fit of the mounted component.
• Prevents premature wear by absorbing movement and impacts.

• Disconnect power to the appliance before servicing.
• Press-fit into place; ensure proper orientation and full seating.
• Inspect surrounding parts for damage and replace if worn.
• Use manufacturer-recommended replacement; do not use solvents or adhesives unless specified.

Mounting bracket that secures the lower spray arm to the dishwasher sump. Replace if cracked, broken, or missing to prevent spray arm detachment or tilting.

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

Filters food particles from wash water to prevent pump damage. Replace if overflow nozzle breaks, parts separate, or drainage issues occur. Confirm fit.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This trap is a molded drain fitting used in select Frigidaire-built appliances. It helps keep water flowing in the correct direction while limiting backflow of air and debris, supporting proper drainage and reducing leaks or odors when the original fails. What it does

• Creates a water seal in the drain path to reduce backflow and odors
• Guides condensate or wash water toward the drain pan/outlet for proper removal
• Helps protect internal components by limiting debris entry into the drain path
• Common symptoms of a bad trap: slow or no draining, water pooling/leaks, unpleasant odors, or visible cracks/warping

• 1 trap

• Disconnect power and, if applicable, shut off the water supply before servicing
• Access the drain area per your model's service/owner documentation; place towels to catch residual water
• Note hose routing and trap orientation; transfer and securely reinstall any clamps or seals
• After reassembly, run a small amount of water through the system to check for leaks

Fix a dishwasher that won't drain, makes clicking sounds, or leaks underneath. This pump and motor assembly typically takes 20-60 minutes to install.

Secures dishwasher hoses to prevent leaks and water damage. Replace if loose, cracked, or leaking. Verify fit with your model number before ordering.

NO.8 - .625 Truss

Replacement mounting screw for dishwasher panels, brackets, and trim. Secures loose components caused by missing, stripped, or damaged fasteners.

No.10 - 16 x 3/8

No.10 - 16 x 3/8

Secures dishwasher hoses to prevent leaks and water damage. Replace if loose, cracked, or leaking. Verify fit with your model number before ordering.

NO.8 - .625 Truss

Replacement mounting screw for dishwasher panels, brackets, and trim. Secures loose components caused by missing, stripped, or damaged fasteners.

Secures water or drain hoses to fittings, preventing leaks and loose connections. Replace when hoses slip or drip to restore a tight seal.

Secures water or drain hoses to fittings, preventing leaks and loose connections. Replace when hoses slip or drip to restore a tight seal.

Replacement mounting screw for dishwashers. Secures internal components, panels, and brackets. Order when original screw is stripped, missing, or broken.

Replacement mounting screw for dishwashers. Secures internal components, panels, and brackets. Order when original screw is stripped, missing, or broken.

Replacement mounting screw for dishwasher panels and components. Secures loose panels, brackets, and trim. Needed when original fasteners are missing, stripped, or worn.

Replacement mounting screw for dishwasher panels and components. Secures loose panels, brackets, and trim. Needed when original fasteners are missing, stripped, or worn.

This side mounting bracket kit includes the hardware needed to secure a dishwasher to the adjacent cabinetry from the sides rather than from the countertop. It is commonly used in kitchens with granite, stone, or other countertops where top-mounting screws cannot be used. Replace this kit if the original brackets are bent, broken, or missing, causing the dishwasher to shift or slide during operation.

Brass nut that secures the heating element to the dishwasher tub. Replace if cracked, split, or causing leaks around the element mounting area.

Brass nut that secures the heating element to the dishwasher tub. Replace if cracked, split, or causing leaks around the element mounting area.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
