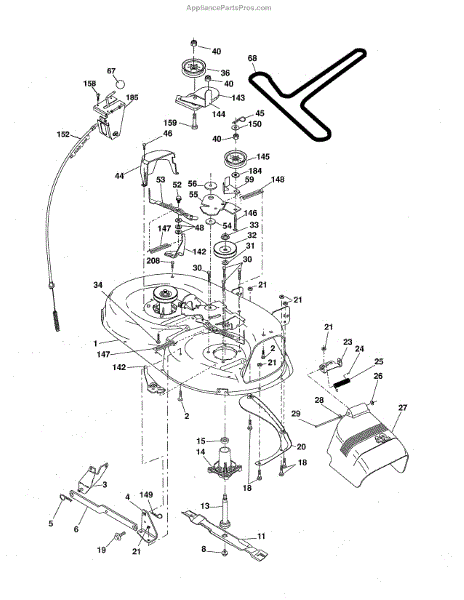

Parts for Ariens 936060: Mower Deck Parts

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This genuine Husqvarna bolt and washer replacement part is specifically engineered to hold and secure the lawnmower blade in place. The bolt is threaded while the washer has a curved or rounded headed. A washer is needed for even load distribution of the threaded bolt. Fastening the bolt without the fastener may cause stress to the material it's driven into. One of the warning signs that the bolt and washer are broken is if the lawnmower blade doesn't rotate properly. Instead of moving in one circular motion, it turns erratically and goes up and down. In some cases, it will make a loud grinding noise during cutting. The lawnmower blade may even fly out from its normal position. Replacing the worn-down bolt and washer is fast and straightforward. First, shut down the engine and let it cool. Then, take out the spark plug and turn the mower on its side. Use a socket to remove the old bolt and washer. Then, grab the replacement and insert it through the blade's hole. Tighten it using the socket. This original Husqvarna bolt and washer is only suitable for lawnmowers made by Husqvarna, Craftsman, and Weed Eater. It is also compatible with some Dixon and Poulan lawnmowers. This bolt and washer replacement is sold individually.

This type of lawnmower blade is characterized by deeper curves on the ends, which create enough suction to circulate and expel the grass clippings into a bagger. It is designed to improve the way clippings are ejected out of the discharge chute. It also has larger wind wings that increase airflow. This helps prevent clogging when mowing wet or tall grass. Without a bagger, these blades put excess load on the engine and don't expel clippings as efficiently as low lift blades.  The wear and tear on a high lift blade are considerable, so there's a risk of using a dull blade without regular replacement. Blade erosion can happen over time due to debris, and the mower may offer noticeably less efficient performance when cutting grass. It is time to replace the blade if it has nicks and dents. For the average homeowner, a good rule of thumb is to replace the mower blades annually.  This part is compatible with specific models from Ariens, Craftsman, Husqvarna, Poulan, and Murray. It is an OEM part sourced directly from the manufacturer and is sold individually.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This no grease mandrel assembly is the part that houses the shaft where the mower blade attaches. It is mounted to the deck of the mower by three bolts, which are sold separately. The mounting holes on the mandrel housing are not threaded, but the bolts used to secure the mandrel to the deck are self-tapping. If the lawnmower is no longer providing an even cut, there may be a problem with the mandrel assembly. A broken or damaged mandrel assembly can severely reduce the mower's cutting performance. Replace it as soon as possible. The mandrel shaft goes through the deck, and the pulleys are attached to them, then the belt that drives the mandrels is placed in the pulleys. A spacer must be installed under the pulley. Failing to use a spacer or installing it on top of the pulley will result in damage to the shaft and pulley. This mandrel assembly is compatible with Ariens, Craftsman, Husqvarna, Poulan, and Weed Eater lawn mower models. It is an OEM part sourced directly from the manufacturer and is sold individually. The mandrel assembly includes a housing, shaft assembly, bearing, and nut only; the pulley/washer and blade bolt/washers are not included.

This replacement deflector shield is a genuine OEM part intended for use on lawn mowers and tractors. It attaches to the side of the mower and directs grass clippings away from the blade as it mows. This serves to keep grass from bunching up in the blade, which could cause it to stall out. The direction of the deflector shield also blows grass clippings behind the mower to keep any potentially hazardous debris from flying up at the mower. Deflector shields can become dried out and brittle over time and can snap off if the mower drives too close to a wall, tree, or other hard object. Deflector shields usually only need replacing if they break. This would cause grass clippings and debris to fly in all directions, which could be dangerous for the user. Replacing the deflector shield is an easy repair and only requires a socket wrench set. This part is compatible with a wide variety of Husqvarna and Craftsman lawn mowers and tractors and is sourced from the original manufacturer. This product ships individually.

This is the replacement washer head screw for a lawnmower or lawn tractor. It is black in color and is roughly 1.5 inches in length. With its hexagonal head and washer face, it is usually used as a fastener in outdoor power tools. It is self-tapping, meaning it can tap its own threads when screwed into either plastic, wood, or metal. When used with lawn tractors and lawnmowers, this screw is commonly employed for securing the mandrel housing to the mower deck. Replace the washer head screw if the old screw is damaged or missing. First, a pilot hole should be made that's slightly smaller than the diameter of this screw before driving it with a screwdriver. This is also a thread-forming type of self-tapping screw, and it does not have a pointed tip. It is compatible with specific products from major brands like Ariens, Craftsman, Husqvarna, Murray, Poulan, Ryobi, and Weed Eater. This part is sold individually and is a genuine OEM part sourced directly from the manufacturer.

This part is a genuine OEM replacement mandrel spacer washer usually used to line up drive pulleys on lawn tractors or riding mower engines. The drive pulley is an integral part of the transmission. As a type of washer, a mandrel spacer helps to distribute weight and pressure so that the link does not crack or bend. Compared to standard washers, though, mandrel spacers are quite thick, so they can take more of a load. The best time to replace a mandrel spacer washer is when making repairs to the drive pulleys. These parts take a lot of wear and tear and can corrode the connection over time. To prevent this from happening, replace the mandrel spacer washer as soon as it starts to look worn out or when conducting regular maintenance. This mandrel spacer washer is a top of the line replacement part for Ryobi, Jonsered, Weed Eater, Poulan, and Husqvarna engines. As such, this part comes sourced directly from its original manufacturer. This spacer washer does not ship with any additional hardware.

This top lock flange nut is a genuine Husqvarna part, sold individually. This top lock flange nut can be used as a replacement part for lawn mowers. The purpose of a top lock flange nut is to provide a fastening component, in conjunction with a bolt, through which two parts can be affixed to one another through clamping and rotation.The top lock flange nut is a small fastening component that can be easily lost and misplaced. If components come loose as a result of a lost top lock flange nut, the component should be replaced by this genuine OEM replacement part. Additionally, over time, a top lock flange nut can be stripped or eroded beyond functionality, in which case the component should be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This top lock flange nut is compatible with the following outdoor appliance brands: Husqvarna, Craftsman, Weed Eater, Dixon, Poulan, and Aries.

This genuine OEM part is a replacement brake arm assembly for a riding lawn mower or tractor. It is possible to disengage the blades on a riding mower or tractor so that the operator can continue driving without mowing any more grass. However, if left unchecked, the blades would continue to spin. To prevent this, manufacturers install a brake arm to apply pressure on the pulley system and keep the blades from turning. If an operator rides over something heavy enough to drag on the blades, the force could tear the brake arm and cause it to stop working. Should this happen, the blade may not start properly and could even be damaged. Be sure to check the other parts involved. To replace a broken arm brake assembly, use a set of sockets, screwdrivers, and a pair of pliers. This job is fairly straightforward although it does require lowering and removing the blade housing. This part is compatible with Ryobi, Husqvarna, Poulan, Jonsered, and Weed Eater mowers, and as a high-quality replacement part, it is sourced from its original manufacturer. This part does not include any additional hardware.

This washer is a genuine Husqvarna part manufactured for use with lawnmowers. It is also compatible with lawn tractors, garden tractors, riding tractors, and other similar equipment. It is a hardened flat washer that is rather large compared to other washers. This washer is often used to attach the mower deck to the mower itself. Removing it is often part of a larger repair, and a screwdriver or socket wrench may be required to make this replacement. It is not unusual for washers and other hardware to experience wear and tear, especially if the mower gets heavy use. It may also need to be replaced if it becomes damaged while making other repairs.This washer is a genuine OEM part sourced directly from the manufacturer. It is sold individually, so be sure to check how many are needed and order accordingly. It is compatible with equipment manufactured by Ariens, Craftsman, Dixon, Husqvarna, Murray, and Craftsman.

This is a genuine OEM 42-inch mower idler arm sourced directly from the manufacturer; it is used on various lawnmowers and garden tractors to pivot the idler pulley, which applies tension to the blade drive belt and allows the belt to turn. The deck belt is part of the pulley system that turns the blades. If the idler arm bends or breaks, the belt will not stay in place, and the blades will not turn. Regular inspection of the idler arm will help catch any damage due to wear and tear. The idler arm can also be damaged by rocks and other large objects in the machine's path. A wrench set is needed to remove and reinstall the idler arm. The idler arm is located on the idler pulley set on the deck of the mower. Before starting, remove the fuel from the fuel tank and remove the spark plug for safety. Remove the deck to make access easier. After removing and replacing the idler arm, inspect the other deck parts while the deck off the mower. This 42-inch mower arm idler is made of heavy-duty metal and sold as an individual unit. It is compatible with push lawn mowers and riding lawn mowers manufactured by Husqvarna, Ryobi, Poulan, Weed Eater, and Jonsered.

A V-belt is responsible for transmitting energy. It is made from a thick and sturdy rubber material. It features grooves for improved traction and measures ½ x 95-1/2. A worn-down v-belt can lead to inefficient energy loss, and therefore poor performance. Installing this v-belt requires pliers and a wrench. First, the spark plug wire needs to be removed. Then, position the mower deck to the lowest possible level. Move the machine's blade engagement level to OFF. Remove the belt found from the engine pulley. Don't forget to take out the bow-tie pins and blade engagement cable as well. Remove the bolt from the pulley cover and loosen the nuts found at the idler pulley. Put the new belt and then tighten the nuts on the idler pulleys. The deck can now be re-assembled to its original position. This Husqvarna 532144959 V-Belt OEM Replacement can help keep a lawnmower in top condition. This genuine Husqvarna made V-belt is specifically for driving the blades on a lawnmower. It is compatible with Ariens, Craftsman, Poulan Pro, Dixon, and Husqvarna mowers. This V-belt is sold individually.

This replacement part is a bolt. It is a genuine replacement part made by Husqvarna. Bolts are very common in different machines and appliances. These small parts are important in holding other parts in place and secure so that the user is able to operate the appliance properly. A new bolt might be needed if the user notices that other parts are becoming loose or falling off. It is possible for bolts to become stripped over time and will need to be replaced. The repair should be fairly simple and will require a screwdriver or pliers if the previous bolt is stuck.This bolt is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part. Be sure to purchase the correct amount as many appliances require more than one bolt.

This replacement extension spring is a vital part of the lawn tractor's blade system that helps to activate the blade break. This is useful when the operator wants to continue driving their lawn tractor but doesn't need the blade to continue rotating. Many lawn tractors include this as a safety precaution and require the operator to break the blade before they can drive in reverse. Extension springs are built to last a long time and very rarely break, but the coils may begin to separate from prolonged use. When this happens, the spring will no longer work as well and the operator will feel it start to give. Replacing the extension spring is fairly straightforward but will require you to remove the lower deck. Using a wrench to remove the spring can help but may not be necessary. This OEM extension spring is a high-quality replacement part sourced from its original manufacturer and is compatible with Ryobi, Jonsered, Husqvarna, Poulan, and Weed Eater lawn tractors. It ships individually.

This genuine OEM replacement idler return spring is located in the lower deck of a lawn mower or lawn tractor and helps to secure the idler pulley in place. While a lawn mower is in motion, the parts of the lower deck can shift with inertia. To keep the idler pulleys securely positioned to the belt that drives the blade, manufacturers connect the pulley to the outer frame of the deck with an idler return spring. Springs slowly lose tension over time, and if the spring becomes too loose, the pulleys can become unsecured from their place on the lower deck. Replacing an idler return spring is an easy fix and should only take a few minutes. Simply lower and remove the deck, take out the worn-out spring, and replace it with the new. We recommend wearing gloves and using caution as the old spring may still have enough tension to flex back on your hands. This replacement idler return spring will work with lawn mowers from Ryobi, Jonesred, Husqvarna, Poulan and Weed Eater. It is a high-quality part sourced from its original manufacturer and ships individually.

This clutch cable kit is an authentic OEM replacement part for a riding lawn mower or tractor. The clutch cable connects to the idler arm located in the lower deck of a mower and allows the operator to manually engage or disengage the blades. The clutch cable runs up through the steering block and into the front display so that the operator can easily access the clutch. If a clutch cable becomes jammed or tenses up, it will be difficult to depress. If the operator tries to depress the clutch cable without realizing that it is jammed, the clutch cable will snap. The most obvious sign of a snapped clutch cable is that the clutch gives little resistance and the blade cannot be engaged. To change a clutch cable, use a socket set to remove the fuel tank and gain access to the cable. A pair of needle nose pliers is also recommended. This replacement part is compatible with Weed Eater, Husqvarna, Ryobi, and Poulan appliances and comes sourced from its original manufacturer. This part includes a clutch cable and a zip tie.
