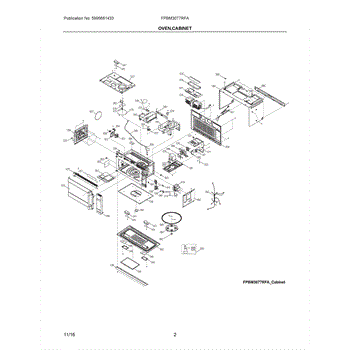

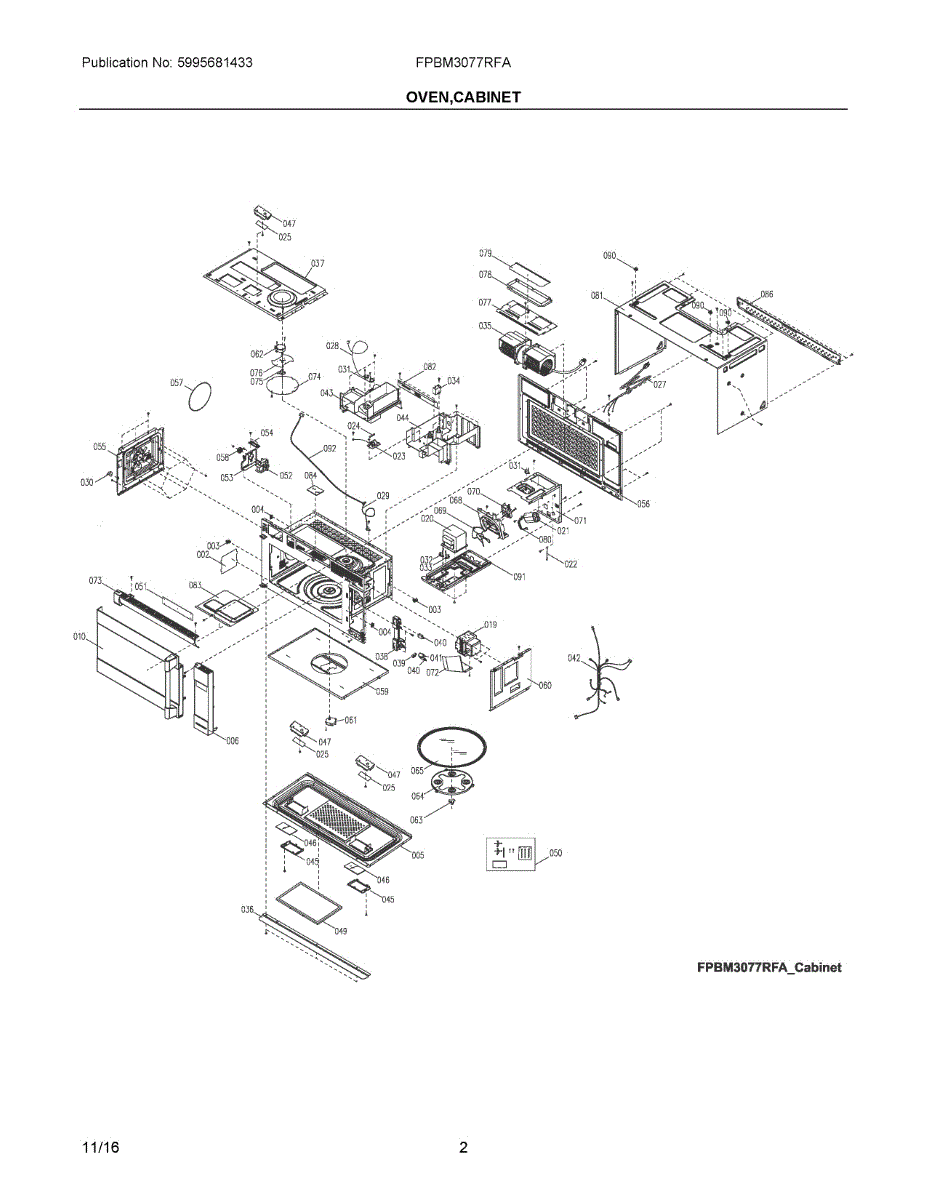

Parts for Electrolux FPBM3077RFA: 02 - Oven, Cabinet Parts

Replaces cracked, burned, or missing waveguide cover in your microwave. Protects the magnetron opening from food splatter and moisture damage.

Support bracket for microwaves. Mounts inside the cavity to secure components or hold parts in place. Replace if cracked, bent, or missing hardware.

Replacement support bracket for microwave ovens. Mounts inside the cavity to secure internal components. Order if your original bracket is cracked or broken.

Fix unresponsive buttons or blank displays on your microwave. This control panel assembly restores touchpad and display function. Moderate DIY repair.

Replacement microwave door that seals the appliance for safe heating. Replace if door won't close properly or latch is damaged. Verify fit with model number.

Microwave not heating food? A failed magnetron is the likely cause. This tube generates the microwave energy needed for cooking. Moderate DIY repair.

Microwave not heating or running weak? The capacitor stores electrical energy to power the magnetron. Common failure causes no heat or sparking issues.

Microwave not heating? This diode directs current flow to the magnetron and protects control circuits. Quick install restores heating when failed.

Charcoal filter removes odors and recirculates air in over-the-range microwaves. Replace every 6-12 months for optimal performance. Verify fit with model number.

Microwave won't start or is completely dead? This fuse protects against electrical overload. Requires disassembly to access. Often replace with switches.

This is a humidity sensor that detects moisture levels inside the microwave cavity during cooking. It works with the control board to automatically adjust cook times and power levels when using sensor-based cooking modes. Replace this sensor if the microwave overcooks or undercooks food on auto-sensor settings, or if you receive a sensor error code on the display.

Fix a microwave that won't heat properly or overheats with this thermistor. This temperature sensor monitors oven heat levels for safe operation.

This thermostat is the refrigerator temperature control that senses cabinet temperature and cycles cooling to help maintain set temperatures. It replaces a failed control to restore reliable temperature regulation. What it does:

• Senses refrigerator temperature and opens/closes the cooling circuit to maintain the set temperature
• Stops continuous compressor run when the cabinet reaches the set point
• Can cause warm or fluctuating temperatures, or a compressor that won't cycle when faulty
• Works with the control knob/selector to adjust interior temperature

• One thermostat

• Disconnect power before attempting service to avoid shock or compressor damage
• Handle the sensing bulb/capillary gently; avoid kinks or sharp bends
• Installation usually requires access to the control housing inside the cabinet and basic hand tools

Microwave won't start or stopped working during use? A failed thermostat often causes complete shutdown. This temperature switch is replaceable DIY.

Fix a microwave fan that won't shut off or overheating issues with this thermostat. Monitors temperature to prevent damage. Moderate DIY repair.

This is a thermal cut-off thermostat used in the ventilation system of an over-the-range microwave. It monitors the temperature near the exhaust and opens the circuit to shut down the microwave if overheating is detected, protecting internal components from heat damage. Replace this thermostat if your microwave shuts off unexpectedly during use or fails to power on due to a tripped thermal fuse.

Fix an air conditioner that won't start or runs poorly. This compressor start/run capacitor restores motor operation and improves cooling performance.

This evaporator fan assembly circulates cold air through the freezer and refrigerator compartments to help maintain even temperatures and proper cooling. Replaces a worn or failed fan to restore airflow. What it does:

• Spins to move cold air across the evaporator coil and into the appliance interior
• Commonly linked to symptoms like unusual noise, weak cooling, or no airflow in compartments
• Helps prevent frost build-up by maintaining steady airflow over the coil
• Works with the appliance's evaporator motor circuit and fan housing

• One evaporator fan assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing interior panels or the evaporator cover; follow your model's service instructions
• Handle the fan blades and motor carefully to avoid damage; avoid contact with sharp sheet metal and edges
• Test the fan operation after reassembly and restore all panels and fasteners

This Shield is a protective cover that helps block heat and debris from reaching internal appliance components, restoring proper clearance and protecting wiring or sensors. It's a simple replacement to help maintain safe operation. What it does

• Shields internal parts from radiant heat and hot airflow that can cause premature wear
• Prevents debris and grease from contacting sensitive components
• Helps reduce the chance of wiring damage, shorts, or sensor interference caused by heat exposure
• Often used when visible warping, burn marks, or component overheating are present

• One replacement shield

• Disconnect appliance power before accessing internal panels or removing screws
• Handle with care — edges may be sharp; wear gloves and eye protection
• Verify match to the removed shield and secure all fasteners; ensure proper clearance around wiring/sensors

Replacement panel for microwave ovens. Restores the exterior appearance when the original panel becomes cracked, dented, discolored, or damaged.

The Latch Hook is an OEM replacement part for Frigidaire microwaves. It is an internal component that helps securely latch and lock the microwave door during operation. The latch hook works with the door handle mechanism to ensure the door is properly fastened to prevent leaks of microwave energy and for safety.

Causes of a bad latch hook can include wear and tear over time, damage from repeated use of the door latch, or issues with the latch hook spring or connecting components.

Symptoms of a bad latch hook include:

• The microwave door not closing or latching securely
• Difficulty closing or popping open the door during a cycle
• Leaks of microwave energy from around the door seals
• Error codes related to door-latching problems

This OEM Frigidaire replacement part is also compatible with Electrolux, Westinghouse, and Kelvinator microwaves.

This door release lever connects the push-button to the latch assembly inside the microwave. Replacing a worn lever restores smooth, reliable door opening so the button works on the first press.

• Transfers motion from the door-open button to the latch hooks to release the door
• Helps resolve a door that won't open when the button is pressed
• Addresses a button that feels loose, sticks, or lacks resistance
• Replaces a cracked or broken lever causing intermittent door operation

• Unplug the microwave and discharge the high-voltage capacitor before servicing
• Remove the grille and control panel to access the interlock/latch area
• Note spring and pivot orientation and transfer any reusable hardware
• Test door release action before completing reassembly

Microwave tripping breaker or won't start? A faulty door switch is often the cause. This safety switch detects door position. Moderate DIY repair.

Microwave tripping breaker or won't start? A faulty door switch is often the cause. This safety switch ensures your microwave only runs when the door is closed.

Restores the finished edge and structural support for your microwave door. Replace this trim frame if cracked, dented, or damaged to maintain alignment.

Protects and shields your microwave oven light bulb from food and debris while ensuring clear interior illumination. Replace when cracked or discolored.

This is a grease filter designed for an over-the-range microwave. It catches grease and cooking vapors drawn up from the cooktop below, preventing them from entering the microwave's ventilation system. Replace this filter if it is visibly coated with grease buildup, discolored, or if you notice reduced ventilation performance or unpleasant odors during cooking.

Mounting bracket kit for microwaves. Secures appliance components with brackets and hardware. Replace if brackets are broken, bent, or missing.

This is a charcoal filter designed for over-the-range microwaves that recirculate air rather than venting outside. It absorbs odors and smoke generated during cooking. Replace this filter if you notice lingering cooking smells, reduced air quality, or if the filter has not been changed in six months or more.

This motor drives the convection fan inside a microwave oven, circulating hot air to provide even cooking during convection mode. It ensures consistent heat distribution so food cooks thoroughly and browns properly. Replace this motor if the convection fan is not spinning, makes unusual noises, or if the microwave is not heating evenly during convection cooking.

Mounting bracket for microwave ovens. Installs to secure the microwave chassis to the wall or cabinet. Replace if bent, cracked, or missing.

This genuine connector restores a secure electrical link in your appliance's wiring harness to help re-establish reliable power or signal transfer. It replaces a damaged or corroded connector for safer, more consistent operation. What it does

• Joins wiring within the appliance harness to maintain electrical continuity
• Restores power or control signals to the attached component when a faulty connector causes loss of function
• Helps prevent intermittent connections, arcing, and heat build-up from loose or corroded terminals
• Works where a direct plug-in or crimp-style connection is required by the OEM

• One connector as shown

• Always disconnect power (unplug or shut off breaker) before inspecting or replacing electrical parts
• Verify connector orientation and terminal type match the wiring harness before installation
• Use proper crimping tools or OEM-recommended connector methods; avoid twisting or soldering unless specified by the manufacturer
• If wiring is damaged, repair or replace the harness section per OEM guidance

Microwave won't heat or turntable not spinning? A worn drive belt may be the cause. This replacement belt connects the motor to the turntable mechanism.

If your microwave turntable won't rotate or makes grinding noises, this pulley connects the motor to the turntable tray. Easy 15-minute DIY fix.

This Turntable Motor is an OEM part for Frigidaire microwaves. Responsible for the rotation of the microwave's turntable, which ensures even cooking and heating of food. This motor ensures that the turntable operates smoothly and reliably, maintaining the efficiency of your microwave.

A malfunctioning motor can lead to uneven heating or cooking of food, as the turntable is integral to the microwave's ability to distribute heat uniformly.

Symptoms of a faulty turntable motor include:

• The turntable does not rotate when the microwave is in use.
• Intermittent or erratic movement of the turntable.
• Unusual noises coming from the turntable area during operation.
• Food is unevenly cooked or heated, indicating inconsistent turntable motion.
• The microwave operates normally except for the turntable function.

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.


Microwave turntable not rotating? This motor drives the turntable rotation. Common fix for plates that won't spin. Takes 15-30 minutes to install.

If your microwave turntable won't spin or wobbles during operation, this coupler connects the glass tray to the motor shaft. Simple 5-minute fix.

Glass tray not rotating or uneven heating? This rotating ring supports and spins the turntable for consistent cooking. Simple snap-in installation.

Replacement glass turntable tray for microwaves. Installs as the rotating plate where food sits during cooking. Replace if cracked, chipped, or broken.

This fan blade mounts to the refrigerator fan motor to move air through the appliance for proper cooling and temperature circulation. Replaces a worn or damaged blade to restore airflow and improve cooling efficiency. What it does:

• Spins on the fan motor to circulate air across the evaporator or condenser coils
• Restores proper airflow when a cracked or broken blade causes reduced cooling
• Helps stop vibration or rattling caused by bent or missing blades
• Can reduce motor strain from an imbalanced or damaged blade

• Disconnect power to the appliance before starting any repair
• Remove access panels and fan shroud to reach the blade; keep track of mounting hardware
• Replace carefully to avoid bending the blade; ensure correct orientation on the motor shaft

Microwave not venting or fan not spinning? This fan motor replacement restores proper airflow and ventilation. Direct fit for multiple microwave models.

Deflector for microwaves and microwave hood combos. Directs airflow inside the cavity. Replace if cracked, broken, or missing to restore proper operation.

Decorative front grill that covers the ventilation area on your microwave. Replace if cracked, broken, or discolored to restore appearance and airflow.

Protective cover panel for microwave ovens. Replaces damaged, cracked, or missing covers. Restores clean appearance and proper housing protection.

Microwave won't rotate evenly or makes grinding noises? This rotating shaft restores smooth turntable motion when worn or stripped. Simple DIY fix.

This fan blade circulates cold air across the evaporator to help maintain even refrigerator/freezer temperatures and efficient cooling. Replacing a damaged or warped blade restores proper airflow and reduces unusual noise. What it does:

• Moves air across the evaporator coil so the appliance can cool evenly
• Helps prevent hot spots and frost buildup caused by poor airflow
• Can cause loud noise, reduced cooling, or a warm compartment when worn or broken
• Works with the evaporator/fan motor assembly to keep temperatures stable

• One fan blade

• Disconnect power before accessing evaporator compartment or fan assembly
• Handle blade carefully to avoid bending the fins; a bent blade causes vibration and noise
• May require removing evaporator cover or fan shroud; keep track of any screws or clips
• If motor is noisy or blade clearance is tight, inspect/replace motor or mounting hardware as needed

Replacement cover panel for your microwave. Installs on the exterior housing. Order a new cover if yours is cracked, broken, or missing.

Controls airflow through your microwave's ventilation system. Installs at exhaust opening to prevent air backflow. Replace if cracked, missing, or damaged.

This is a vent damper door used in the microwave's exhaust system. It opens to allow steam and cooking fumes to vent outside and closes to prevent outside air from flowing back in. Replace this part if the damper is stuck open or closed, if you hear rattling from the vent area, or if you notice poor ventilation or backdrafts during cooking.

This is the outer metal casing that forms the external shell of the microwave. It encloses and protects the internal components while providing structural support for the appliance. Replace this cabinet if it is dented, rusted through, or damaged in a way that compromises the microwave's shielding or structural integrity.

Interior shield for microwaves and microwave/hood combos. Replaces cracked, damaged, or missing shields that protect internal components.

Rear wall mounting bracket that securely attaches your microwave to the wall or cabinetry. Replace if your original bracket is missing, cracked, or damaged.

This mounting nut kit secures a threaded connection or component inside your appliance, keeping it tight and stable during operation. Replacing a worn or stripped nut restores a solid hold and helps prevent leaks, rattling, and poor performance. What it does:

• Fastens a component or fitting to its mating surface, maintaining proper alignment
• Restores grip when original threads are stripped, cracked, or worn
• Helps prevent vibration-related loosening during cycles
• Can resolve symptoms such as a loose/wobbly assembly, rattling noises, seepage at the joint, or visible thread damage

• One mounting nut kit

• Disconnect power; shut off water supply if the joint carries water
• Support the mating component while installing to avoid strain on plastic parts
• Start threads by hand to prevent cross-threading; tighten only until snug—do not overtighten
• Inspect any related gasket/O-ring and replace if worn or damaged

Wire harness for microwave control panel or component connections. Replace if wires are frayed, damaged, or connectors are broken or melted. (154 chars)

Microwave won't power on or functions intermittently? This wire harness restores electrical connectivity between internal components. Moderate DIY repair.

Assortment of fasteners for securing microwave panels and components. Use to replace missing, stripped, or corroded screws that hold parts in place.
