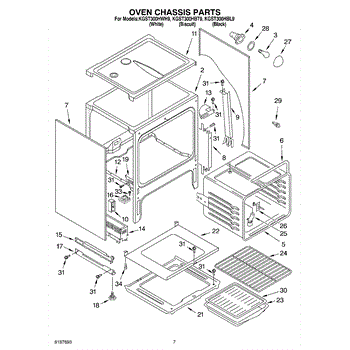

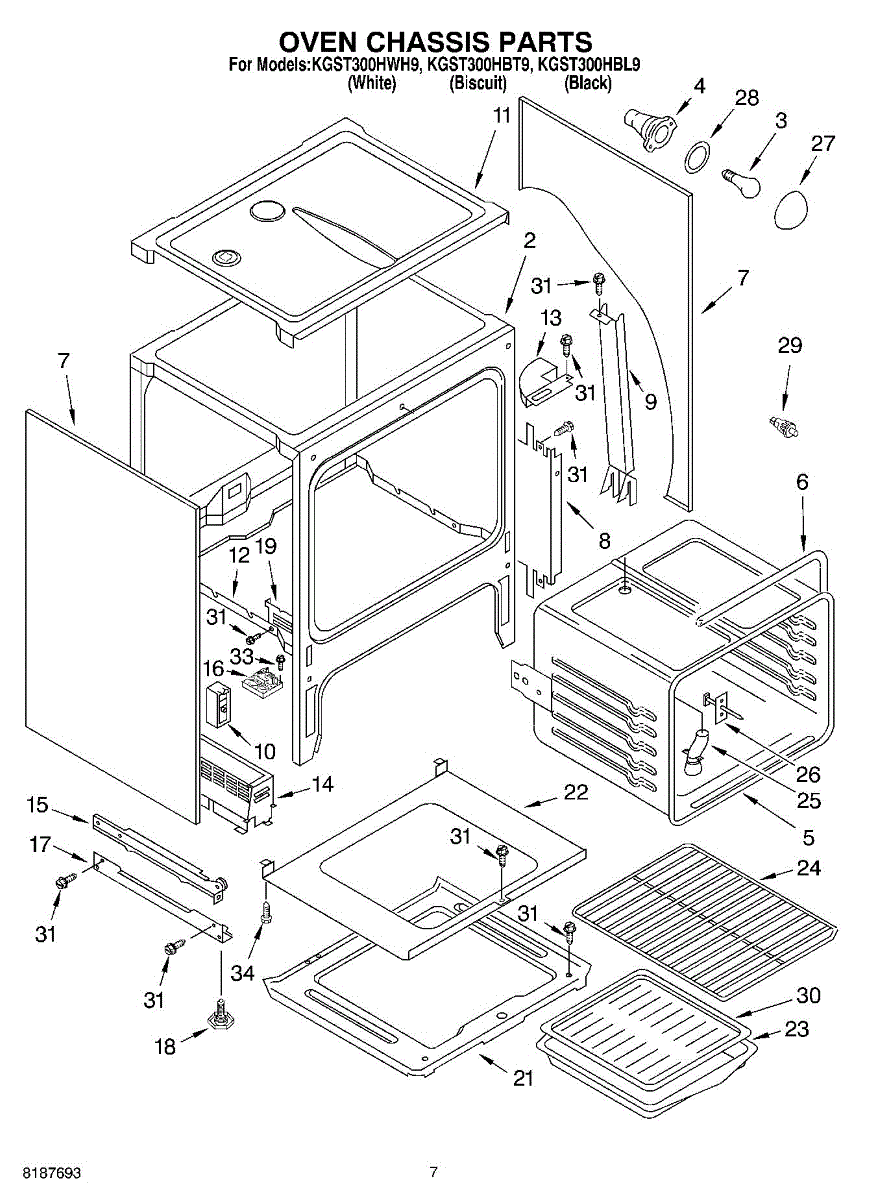

Parts for Kitchenaid KGST300HBL9: 06 - Oven Chassis Parts

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Light Socket Assembly is an OEM part for Whirlpool ranges and wall ovens. This part houses the oven light bulb, providing the necessary electrical connections to illuminate the oven's interior. It ensures that you can monitor the cooking process without opening the oven door, thereby maintaining a consistent temperature and energy efficiency.

Causes of damage to the light socket assembly often include excessive heat, electrical surges, or physical damage during cleaning or maintenance.

A malfunctioning light socket assembly can lead to several issues, including:

• The inability to turn the oven light on
• Flickering or inconsistent lighting caused by loose connections or damage to the socket
• Complete failure of the light feature, due to wear and tear or electrical faults

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White.

Color: Black.

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is the left side drawer rail. For right side use 9750224.

This is the right side drawer rail. For left side use 9750223.

60hz. 120v.

The Leveling Leg is an OEM part for Whirlpool ranges. It's designed to ensure your range is perfectly balanced and stable on uneven floors. By adjusting the height of the leveling legs, you can prevent wobbling and ensure that your cooking surface is perfectly horizontal, which is critical for even cooking and baking.

Causes of a malfunctioning Leveling Leg can stem from physical impact damage, corrosion in humid conditions affecting integrity and adjustability, and wear over time, particularly if frequently adjusted or cleaned aggressively.

Symptoms of a bad Leveling Leg include:

• The range tilts or wobbles, making cooking uneven.
• Difficulty sliding pots and pans across the cooking surface due to the appliance not being level.
• Increased strain on other components of the range, which could lead to premature wear or failure.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Works for both left and right sides.

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: Approx 6 inches in length from the sensor tip to the mounting bracket.

Color: clear. Measures about 3 inches in diameter.

This oven light lens gasket seals the lens to the oven liner, helping keep heat, steam, and grease out of the light housing. It maintains a secure fit for the lens and protects the bulb and wiring.

• Creates a heat-resistant seal between the light lens and oven cavity
• Helps block heat, steam, and grease from entering the light assembly
• Stabilizes the lens/retainer so the lens sits flush and secure
• Common signs of failure: torn/brittle gasket, lens feels loose, condensation or grease inside the lens, or scorching around the light opening

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove the lens retainer and lens to access the gasket; note orientation before removal
• Seat the new gasket evenly around the opening, then reinstall the lens and retainer without overtightening
• The lens sits flush and the seal is even after reassembly

The Broil Pan Set is an OEM part for Whirlpool ovens. This set includes a broil pan and an insert, designed to catch drippings and ensure even heat distribution during broiling, allowing for perfectly cooked and crisp results.

Causes of a bad broil pan set can include prolonged exposure to high temperatures, which may lead to warping or distortion of the pan. Additionally, frequent use without proper cleaning can result in rusting, chipping, or buildup of residues that compromise the pan's functionality and safety.

Symptoms of a bad broil pan set include:

• Warping or bending of the pan
• Presence of rust or corrosion
• Surface chipping or flaking
• Difficulty in achieving even cooking results

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10-16 x 3/8 inch.

Size: 8-18 x 1 inch.
