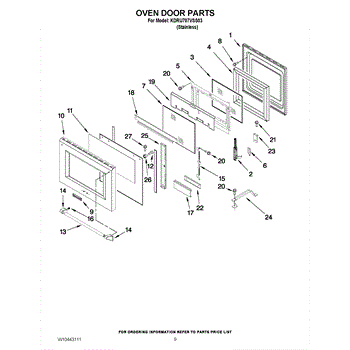

Parts for Kitchenaid KDRU707VSS03: 06 - Oven Door Parts

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This right-side door hinge supports and pivots the appliance door for smooth, aligned operation. Replacing a bent or worn hinge helps the door close properly, reducing sagging, rubbing, and poor sealing.

• Supports and pivots the door on the right side
• Helps maintain alignment so the door closes flush and seals correctly
• Replace if hinge is bent, cracked, seized, or has excessive play
• Symptoms can include door sagging, misalignment, rubbing/squeaking, or not closing fully

• Disconnect power; turn off gas and water supplies
• Support the door while removing/installing hinge fasteners to prevent damage
• Transfer any screws, covers, or bushings from the original hinge if required
• After installation, check door alignment and operation; adjust as needed

This left-hand door hinge restores smooth, controlled door movement and alignment. Replacing a worn hinge helps the door close securely and seal properly, improving safety and performance while preventing sagging or rubbing.

• Supports and pivots the door on the left side for consistent operation
• Helps maintain proper door alignment and sealing with the cabinet
• Reduces binding, rubbing, or uneven gaps during opening and closing
• Common failure signs: door won't close fully, sags, pops open, or feels rough/stiff

• Disconnect power; shut off gas. Allow the appliance to cool completely.
• Support the door and follow the service manual to remove the door/hinge safely.
• Keep hinge tension controlled; use any locking features or recommended fixtures if equipped.
• After installation, check door alignment and gasket contact; adjust as needed per model instructions.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This inner oven door glass panel restores the heat-resistant barrier between the oven cavity and the door. Replacing damaged glass helps the oven hold temperature, improves safety, and keeps the viewing window clear and easy to clean.

• Forms the interior heat barrier of the door window to contain heat inside the oven
• Lets you monitor cooking without opening the door
• Supports stable temperatures and consistent baking performance
• Common symptoms: visible cracks, chips, or shattered glass; rattling pieces in the door; missing or visibly damaged inner pane

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Remove the door per your model's instructions and place it face-down on a padded, protected surface
• Wear cut-resistant gloves and eye protection; handle glass carefully and avoid stressing the edges
• Reassemble in the original order, ensuring brackets/seals are seated correctly; tighten fasteners snugly without overtightening

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

This replacement name plate is the exterior label that displays model/serial and branding information and restores the appliance's original appearance. It's a simple cosmetic part used when the original label is damaged, faded, or missing. What it does

• Replaces a worn or missing appliance identification label to restore readable model/serial and specification text
• Helps make service and parts identification easier by restoring the visible product information
• Improves exterior appearance when the factory name plate is peeling, scratched, or faded
• Provides the OEM-correct label fit and layout for a factory look

• One replacement name plate

• Surface must be clean, dry, and free of grease—use isopropyl alcohol or a mild cleaner before applying
• Peel backing and align carefully; press firmly to ensure full contact and adhesion
• Wear gloves to avoid fingerprints and handle the adhesive surface minimally
• No special tools required; remove original adhesive residue with a plastic scraper before installing

This end cap fits onto a refrigerator or freezer door handle to protect the handle end and provide a finished look. It restores secure handle alignment and appearance after damage or wear. What it does:

• Covers and protects the exposed end of a door handle for a clean, finished appearance
• Helps keep the handle seated and prevents snagging or sharp edges
• Commonly replaced when cracked, worn, or broken during normal use or accidental impact
• Matches original fit and mounting points for straightforward replacement

• One end cap

• Install with the door open and handle supported to avoid strain on the mounting hardware
• May require removal of the handle or a few fasteners depending on model
• Use proper tools and avoid overtightening to prevent cracking the new end cap
• Disconnect power to any nearby powered components before working

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
