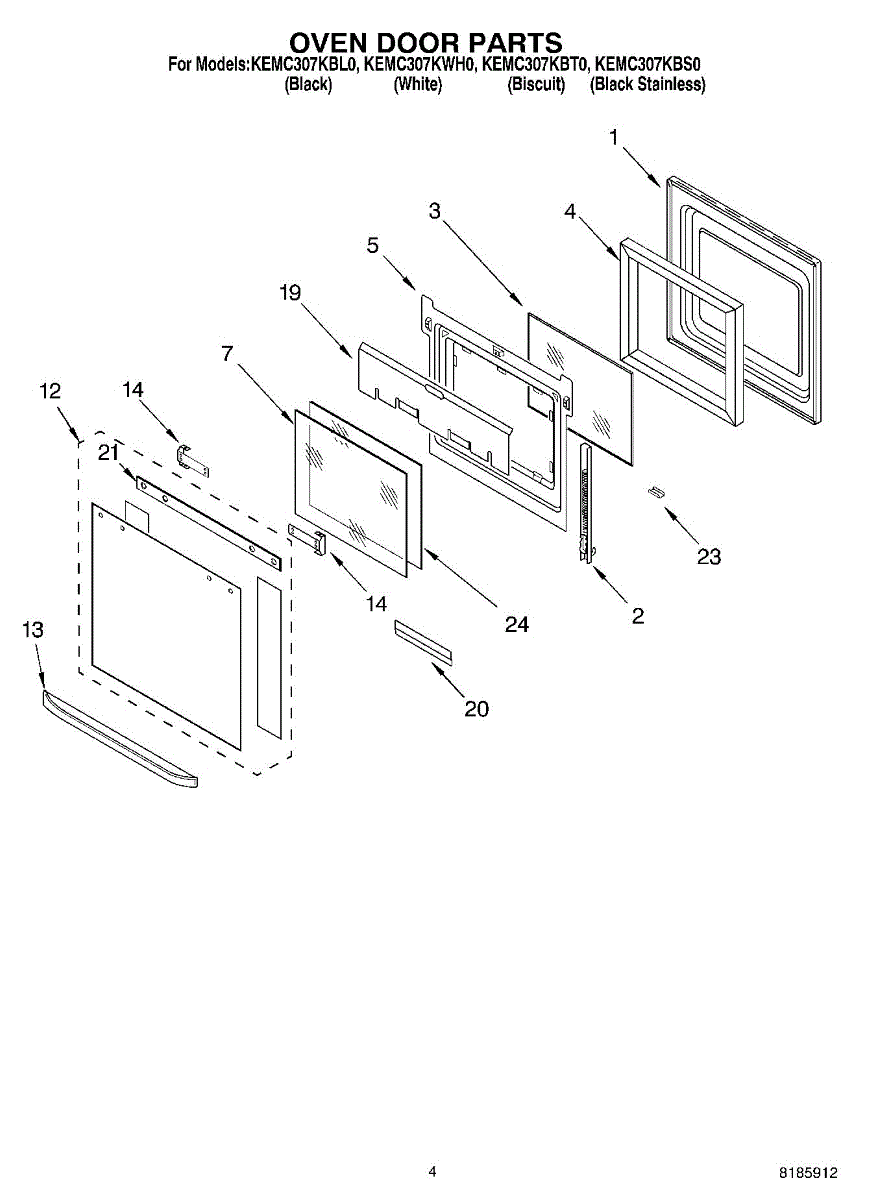

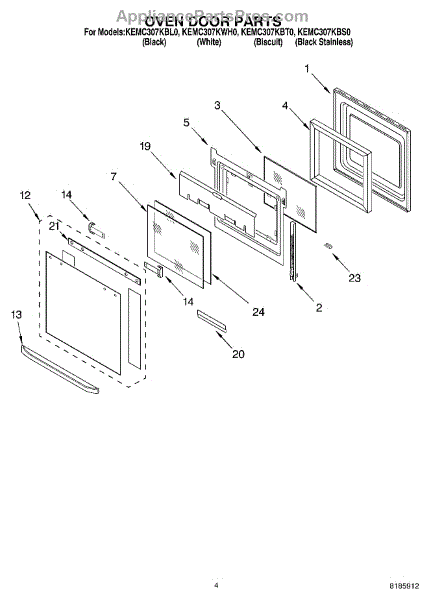

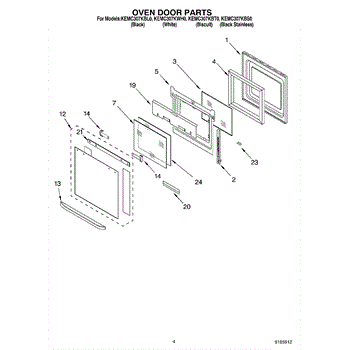

Parts for Kitchenaid KEMC307KBS0: 03 - Oven Door Parts

This is the 30-inch door panel for select ovens/ranges. It restores the door's appearance and provides the structural skin that supports the handle, glass, and trim for a solid, properly aligned door assembly. What it does:

• Forms the primary outer skin of the door assembly and supports handle/trim
• Provides a mounting surface for door glass and nameplate/emblems
• Helps maintain proper door alignment and a tight, rattle-free fit
• Common reasons to replace: dents, bends, scratches, discoloration, or stripped mounting holes

• 1 door panel

• Disconnect power and allow the appliance to cool completely before servicing
• Remove the door assembly and place it on a protected surface; wear cut-resistant gloves
• Transfer handle, screws, glass, and trim from the old panel to the new one; note screw lengths/locations
• Align carefully and avoid overtightening to prevent damaging threads or cracking glass

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

Left hinge for Colored/Clear Doors.

Right hinge for Colored/Clear Doors.

The Rear Oven Door Glass is an OEM part for Whirlpool ovens. This glass panel is installed on the inside of the oven door and is essential for providing a heat-resistant viewing window, allowing users to monitor the cooking process without opening the door. Measuring about 20 inches by 10 inches, this quality glass keeps heat in the oven and provides a clear view for easy baking.

Symptoms of a bad Rear Oven Door Glass include:

• Cracks or chips in the glass,
• Visible streaks or fogging between glass layers that can't be cleaned,
• A loose fit that may cause heat to escape or the glass to rattle during oven use.

Causes of rear oven door glass damage typically include thermal stress from high heat, impact from closing the door too forcefully, or accidental bumps with pots or pans.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Insulation is an OEM part for Whirlpool ranges and wall ovens. This part provides thermal insulation for the oven door, helping to maintain the internal temperature and improve energy efficiency. It also protects the exterior surfaces of the oven door from becoming excessively hot during operation.

Causes of bad door insulation can include general wear and tear over time, degradation from repeated exposure to high temperatures, or physical damage.

Symptoms of bad door insulation include:

• Oven taking longer to heat up
• Heat escaping from the oven door
• Outer door surfaces becoming too hot to touch
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

The Oven Door Glass is an OEM part for Whirlpool ovens. This part is integral to the oven door, allowing users to view the interior of the oven without opening the door, thereby maintaining consistent oven temperatures and energy efficiency. The glass is engineered to withstand high temperatures, resisting cracking and breaking under the thermal stresses of regular oven use.

Causes of a bad Oven Door Glass can include thermal stress from high temperatures, impact damage from accidental knocks or items being dropped on the door, and wear and tear over time.

Symptoms of a bad Oven Door Glass include:

• Visible cracks or chips in the glass
• A shattered or broken glass panel
• Difficulty in maintaining oven temperatures due to compromised insulation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White

Color: Bisque

Color: Black

The Outer Door Glass is an OEM part for Whirlpool ovens, crafted to fit and complement the aesthetic of your appliance. This component serves as the front panel of the oven door, allowing you to view the contents inside while maintaining consistent temperature control during cooking or baking. Beyond its functional role in insulating and retaining heat, the outer door glass also contributes to the overall look of the oven, making it a critical element for both performance and design.

The causes behind these issues typically stem from accidental impacts, temperature stress fractures, or deterioration over time. A damaged outer door glass can lead to inefficient oven operation, heat loss, and even pose safety risks due to the potential for glass breakage.

Symptoms of a failing Outer Door Glass include:

• Cracks or breaks in the glass, compromising the oven's insulation properties
• Scratches or discoloration that detract from the appliance's appearance
• Loose glass paneling, indicating a potential safety hazard

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the left side handle bracket. For right side use 4455803.

This is the right side handle bracket. For left side use 4455804.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This is the top seal for the door.

Color: Black

Color: White.

Screw for side trim.
