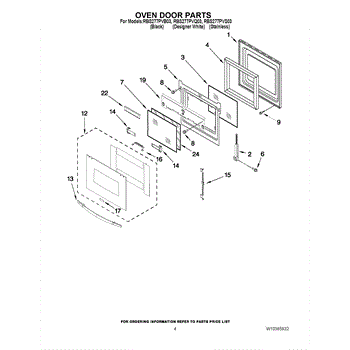

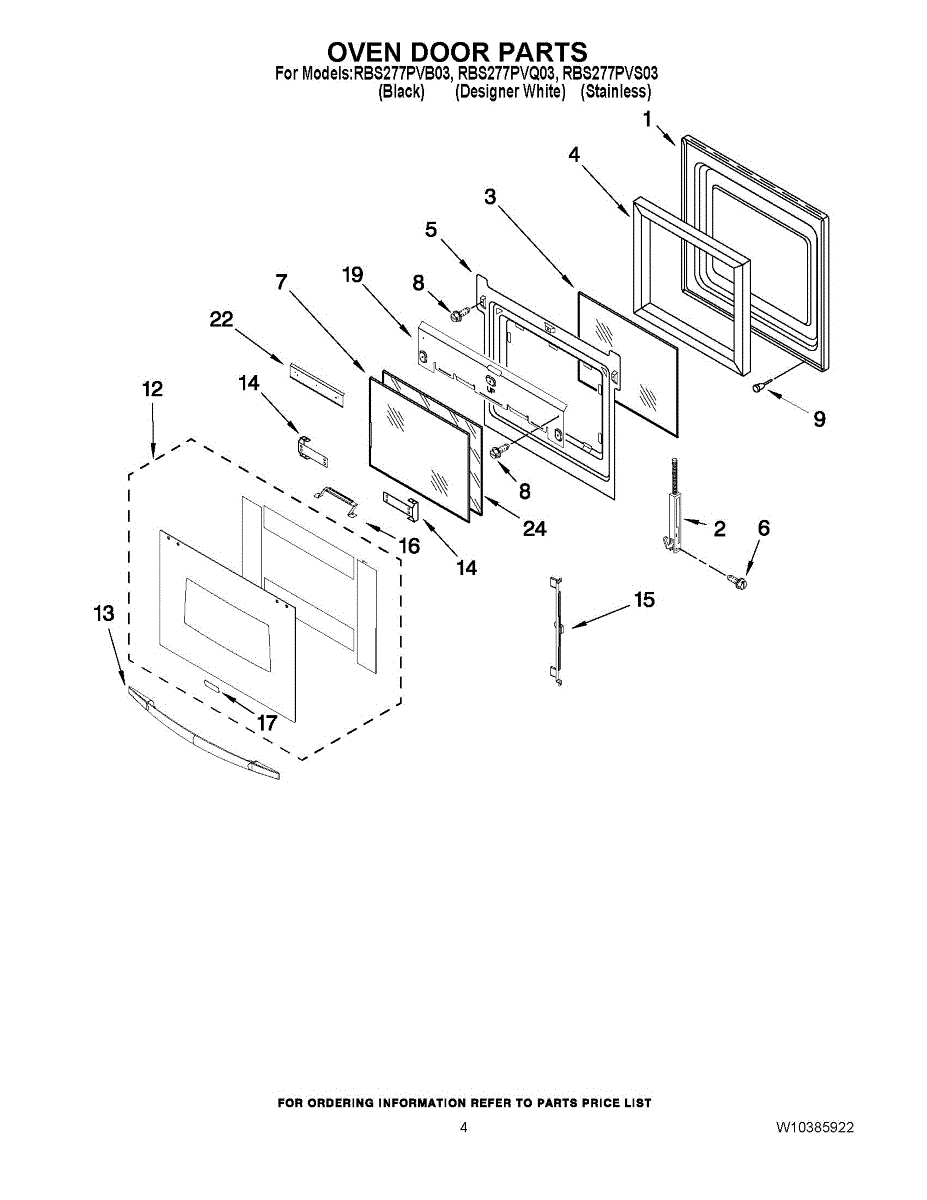

Parts for Whirlpool RBS277PVB03: 03 - Oven Door Parts

Replacement right-hand oven door hinge that provides the pivot point and spring tension for smooth opening and closing. Install when bent or worn.

Replace your oven's left-hand door hinge to restore smooth opening and a proper seal. Fixes doors that won't close, sag, or have weak springs. Confirm fit.

Door hinge for electric wall ovens. Mounts to the oven frame to support the door. Replace if hinge is broken, cracked, or door is hard to open and close.

Replacement hinge for wall oven doors. Installs on left or right side to support door operation. Needed when hinge is broken, cracked, or worn.

The Inner Oven Door Glass is an OEM part for Whirlpool ovens. It is a crucial component of the oven door assembly, providing an interior glass layer that helps to insulate the oven and keep the heat inside during cooking. The glass measures approximately 17 inches x 10 inches.

Over time, the inner oven door glass can become damaged due to exposure to high temperatures, impacts, or general wear and tear. Causes of a bad inner oven door glass include cracks or shattering from accidental impacts, thermal stress from frequent temperature changes, or degradation over time.

Symptoms of a bad inner oven door glass include:

• Visible cracks or shattered glass
• Heat escaping from the oven during use
• Difficulty maintaining the desired oven temperature
• Unusual odors from burnt food debris trapped between glass layers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This rubber door bumper cushions and aligns the appliance door to prevent slamming and reduce vibration, helping doors close smoothly and protecting cabinet and door finishes from wear. What it does:

• Acts as a cushion between the door and cabinet, absorbing impact during closing
• Helps keep the door aligned and reduces rattling or vibration during use
• Prevents metal-to-metal contact that can cause chipping, scratching, or noise
• Commonly replaced when worn, flattened, cracked, or missing

• One rubber door bumper

• Remove power to the appliance before accessing the door area or hinges
• Usually presses into a hole or snaps into a mount on the door or cabinet; no special tools required for many models
• Inspect surrounding mounting boss for damage; replace if cracked or deformed

This is the left side handle bracket. For right side use 4455803.

Right side handle bracket for oven doors. Secures the door handle to the frame. Replace if cracked, broken, or missing. Stainless steel construction.

Mounting bracket for wall ovens. Secures the oven to the cabinet cutout. Replace if bent, rusted, or damaged during installation or service work.

Replacement inner door glass panel for electric wall ovens. Installs between the outer and inner door frames. Order if your glass is cracked or broken.
