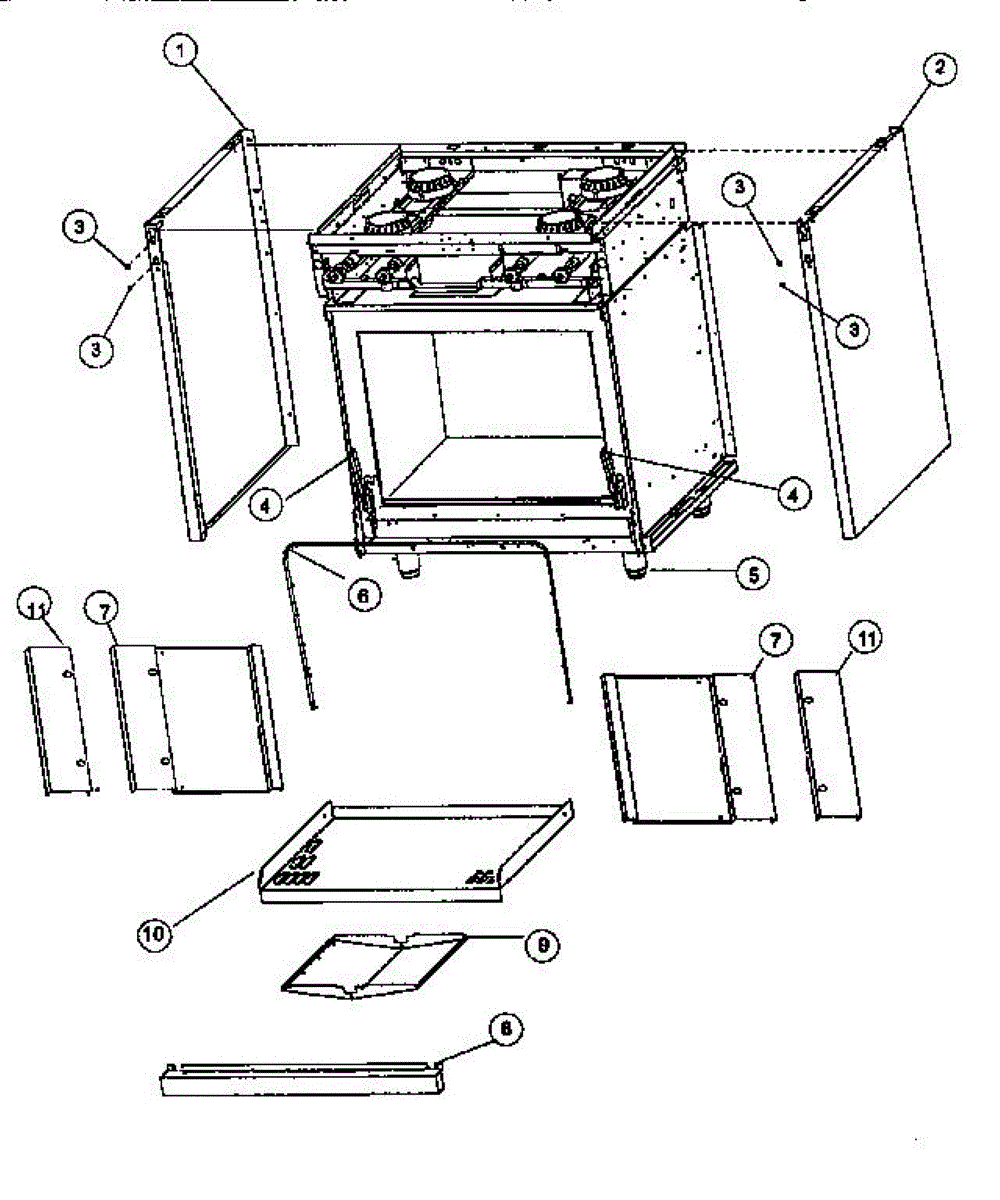

Parts for Viking Range VGSS36: Panel / Oven Assembly Parts

Restore smooth, controlled movement to your appliance door or lid with this hinge assembly. Replacing a worn hinge corrects sagging, binding, and poor closure so the door aligns and closes properly for reliable everyday use.

• Provides the pivot and support for the door or lid
• Controls opening/closing motion for smooth, consistent operation
• Helps maintain alignment so the door closes flush with the frame
• Common symptoms of a failing hinge: sagging, binding, squeaking/popping, or a door that won't close fully or evenly

• Disconnect power and, shut off gas/water before servicing
• Support the door; mark hinge positions; remove mounting screws carefully
• Transfer any brackets or covers from the original hinge if needed
• After installation, check alignment and closure; adjust per the service manual

Note: The factory recommends ordering 2 new screws, part# PD020033 when replacing the hinge.

This replacement oven door gasket seals the oven cavity to retain heat for better cooking performance and lower energy loss. Designed for 30" and 36" ovens, it restores the door seal to reduce heat escape and uneven baking. What it does

• Creates a tight door seal to help keep oven heat inside the cavity
• Reduces heat loss that can cause long preheat times and uneven cooking
• Helps prevent excessive surface heat around the door and nearby cabinetry
• Replaces cracked, flattened, or worn gasket material that no longer seals

• One oven door gasket

• Allow the oven to cool and disconnect power before starting any work
• Remove the old gasket first; most gaskets press or tuck into a channel around the door
• Press the new gasket into the retainer channel evenly, working around the door until fully seated
• Avoid sharp tools that can damage the gasket; check the seal after installing by closing the door and inspecting for gaps

This lower access panel replaces a damaged or missing lower front panel to restore the appliance's appearance and protect components behind the kick/vent area. It provides a finished look and shields wiring and components from debris. What it does:

• Covers and protects the lower front opening of the appliance cabinet
• Restores cosmetic appearance after dents, rust, or missing panel damage
• Helps keep dust, debris and small objects out of the service cavity
• Supports proper airflow routing around lower components when installed correctly

• 1 lower access panel

• Disconnect power to the appliance before beginning any work
• Remove the toe kick or existing panel screws to access the mount points
• Handle edges carefully; wear gloves to avoid cuts from sheet metal
• Use the OEM fasteners and align panel to existing mounting holes for proper fit

This metal heat shield protects the lower oven cavity and components from excessive heat, helping maintain safe operation and appliance longevity. Fits behind the oven floor to block heat and direct airflow. What it does:

• Shields oven base and insulation from direct heat to prevent damage and excessive wear
• Helps maintain more consistent internal oven temperatures by directing heat flow
• Reduces risk of heat transfer to surrounding components and cabinetry
• Common symptom: visible scorch marks, warped panels, or burned insulation under the oven

• One oven bottom heat shield

• Disconnect power (and gas if applicable) before servicing the appliance
• Remove oven racks and any access panels to reach the lower cavity
• Use basic hand tools; support the shield during removal/installation to avoid dropping
• Handle edges carefully — metal parts can be sharp

This listing is for a Viking oven bottom pan assembly. The oven bottom pan sits above the flames in the bottom section on specific models of Viking gas ovens. Their intended use is for stopping grease and other food byproducts from stoking the fire from the gas igniter. This model of Viking gas seems to have a few specific indicators that could signal a damaged bottom pan. There could be a possible gas smell coming from the oven and a sound of popping flames. This is because the pan is moving, allowing more gas fumes to exit the appliance. The flames popping are most likely from liquid spilling onto the igniter area. Always unplug the range from any electrical outlet and gas sources before beginning repairs. Wear gloves when working around the range area and look out for sharp edges.This is a genuine OEM part and is sourced individually from the original manufacturer. This part is compatible with Viking, KitchenAid, and Whirlpool appliances.

This bottom pan assembly forms the floor of the oven cavity and shields the compartment beneath it. Replacing a damaged panel restores a stable interior floor and helps protect hidden components from drips and debris.

• Covers and protects components beneath the oven floor from spills and food debris
• Creates the oven-cavity floor and supports proper rack positioning
• Helps channel heat and airflow within the cavity
• Typical replacement reasons: panel is warped, rusted, burned-through, missing, or rattles/doesn't seat properly

• Disconnect power and shut off gas if applicable; allow the oven to cool completely
• Remove oven racks to access the panel
• Lift the front edge of the old panel and slide it out; align and seat the new panel on the rear supports, then lower the front into place
• Wear cut-resistant gloves; edges can be sharp

This 1/2" x 1/4" rubber bumper cushions contact points to reduce noise and prevent damage on appliance doors, drawers, and panels. It restores proper cushioning for smoother, quieter operation and helps maintain a snug fit. What it does:

• Absorbs shock where panels or doors meet to reduce rattling and clapping noises
• Prevents metal-to-metal contact that can cause chipping, scratching, or wear
• Helps doors and drawers close more evenly by restoring original spacing
• Commonly used where small, press-fit bumpers have worn, flattened, or fallen off

• One 1/2" x 1/4" rubber bumper

• Press-fit replacement; remove old bumper and press new bumper into the same hole until flush
• No special tools required; use a flat pick or small screwdriver to remove old bumper if needed
• Avoid installing on hot surfaces or near heating elements; let appliance cool before service
• Replace matching bumpers in the same area if others show wear for even performance

The Spark Module Wire is an OEM part for Viking ranges and cooktops. It is responsible for transmitting the electrical signal from the spark module to the burner igniters, enabling the burners to ignite when the control knob is turned on. This wire is crucial for the proper functioning of the ignition system, ensuring that the gas ignites quickly and efficiently.

Over time, the spark module wire can become worn or damaged due to heat exposure, accidental pinching during maintenance, or normal wear and tear. When the wire is compromised, it can lead to issues with the burner ignition process, affecting the overall performance of the appliance.

Symptoms of a bad spark module wire include:

• Burners not igniting or taking longer to ignite
• Intermittent sparking or no sparking at all
• Clicking sound without ignition

This OEM part is specifically designed for Viking appliances, ensuring compatibility and reliable performance.
