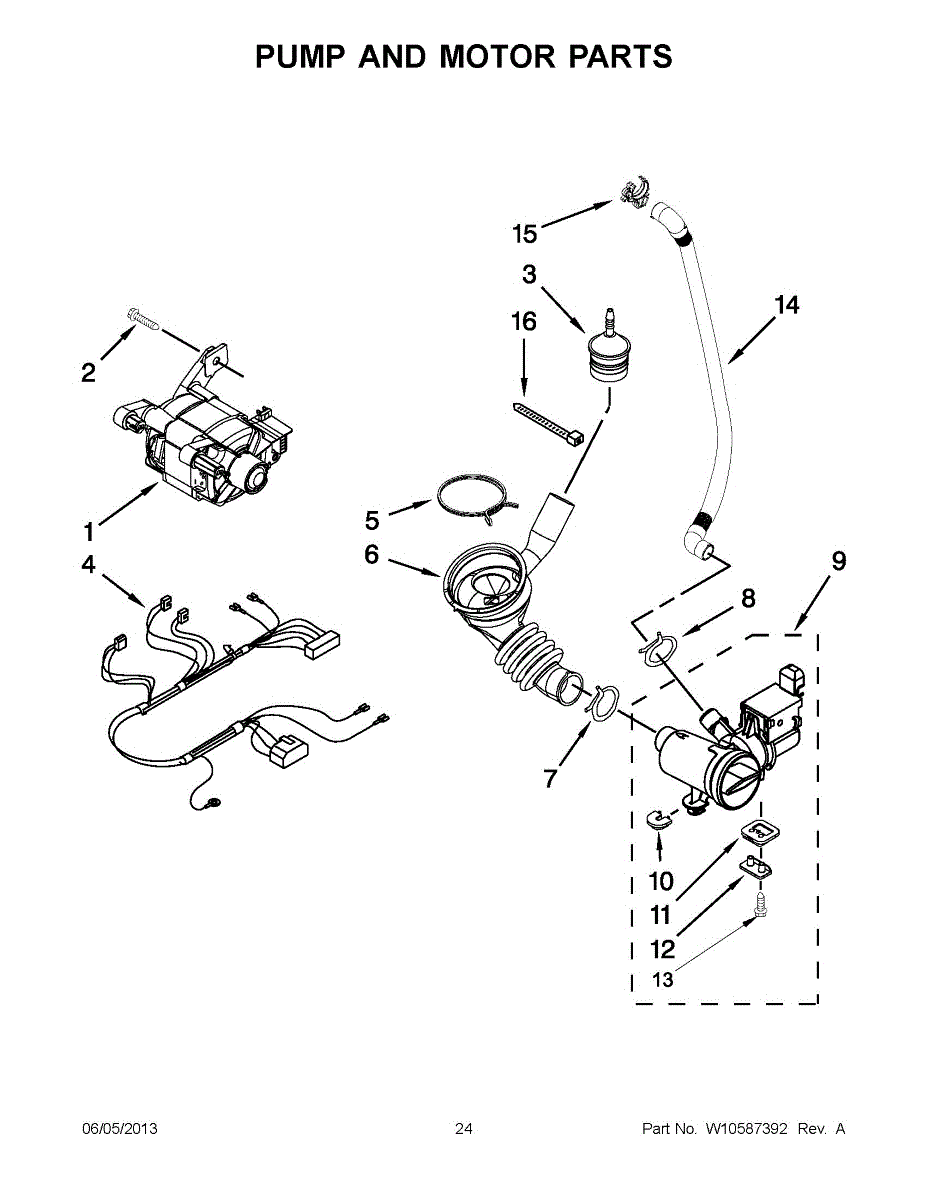

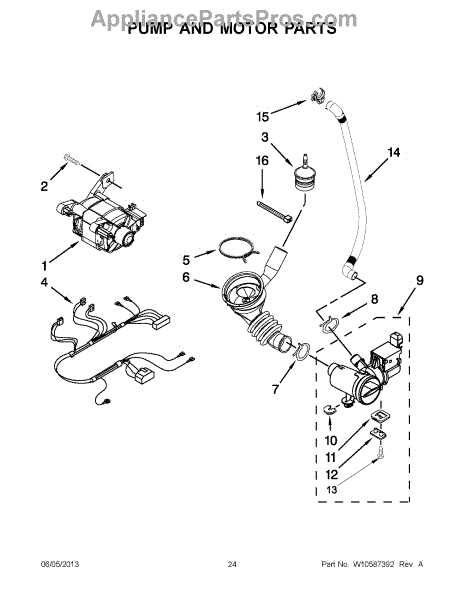

Parts for Maytag MLE20PDBGW2: 12 - Pump And Motor Parts

The Drive Motor is an OEM part for Whirlpool washers. It drives the agitator or drum, allowing the washer to perform its function of cleaning and spinning clothes. It provides the necessary rotational force to agitate the clothes during the wash cycle and spin them dry during the spin cycle.

A faulty or worn-out drive motor can occur due to various reasons, such as electrical issues, mechanical failure, or excessive wear over time. If you notice symptoms such as the washer not agitating or spinning, a burning smell coming from the motor, or unusual noises during operation, it may be time to replace the drive motor.

Symptoms of a bad drive motor include:

• Washer not agitating or spinning
• Burning smell coming from the motor
• Unusual noises during operation

Restore the efficient performance of your Whirlpool washer by replacing the faulty or worn-out drive motor with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement screw secures appliance panels and trim so components stay properly aligned and vibration is reduced. Use it to replace missing or damaged fasteners and restore a secure fit for safe operation. What it does:

• Fastens control panels, trim pieces, or access panels to the appliance frame
• Prevents panel movement, rattling, or gaps that can form from loose or missing screws
• Restores proper alignment after service or part replacement
• Helps maintain safe, stable operation by keeping panels secured

• Disconnect power (and gas if applicable) before servicing the appliance
• Use the correct driver bit and thread engagement; hand-start threads to avoid cross-threading
• Do not overtighten — snug until secure to avoid stripping or damaging panel threads
• Keep removed hardware organized to ensure correct locations during reassembly

Air chamber for water level pressure switch hose.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. This hose serves as a conduit, allowing water to flow from the tub to the pump, and facilitating the drainage process after a wash or rinse cycle.

Causes for a malfunctioning Tub to Pump Hose can include blockages from lint, small clothing items, or other debris, cracks or wear in the hose material, or loosening of the clamps or connectors that secure it in place.

Symptoms of a bad Tub to Pump Hose include:

• Water leaking from the base of the washing machine
• Slow or incomplete drainage after a cycle
• Unusual sounds, such as gurgling or splashing, during the drain phase
• Error messages related to water drainage or pump issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This spring-style hose clamp secures flexible water hoses to fittings to help prevent leaks and keep connections tight. It's a simple replacement that restores a proper seal at the hose connection. What it does:

• Compresses around a hose to hold it firmly on a tailpiece or barb
• Helps stop leaks or drips caused by loose or worn clamps
• Restores proper clamping force when original clamp is corroded or stretched
• Common symptom: visible water at the hose connection or water pooling under the appliance

• One spring-style hose clamp

• Disconnect power and shut off the water supply before servicing
• Slide clamp onto hose, push hose fully onto the fitting, then position clamp over the barb
• Use pliers to expand the clamp, seat it, and release to lock; avoid over-compressing the hose
• Replace any damaged hoses or fittings and test for leaks after restoring water and power

The Spring Tension Hose Clamp is an OEM part for Whirlpool washing machines. It is designed to secure hoses in place, preventing leaks by maintaining consistent tension on the hose connections.

Over time, spring tension hose clamps can lose their effectiveness due to metal fatigue, corrosion, or damage from frequent tightening and loosening. This can lead to leaks and improper hose connections.

Symptoms of a bad spring tension hose clamp include:

• Water leaks around hose connections
• Loose or disconnected hoses
• Unusual noises or vibrations during operation
• Water pressure issues within the washing machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This inner outlet hose routes water from the unit's internal pump/sump to the discharge path. Replacing a cracked, kinked, or clogged hose restores proper water flow and helps prevent leaks or cycle interruptions.

• Directs water from the internal pump/sump to the outlet within the machine
• Maintains a watertight path when secured with clamps
• Wear, heat, or mineral buildup can cause cracks, kinks, or blockages
• Common symptoms: leaks inside/under the unit, slow or no draining, restricted flow, or drain-related error messages

• Disconnect power and turn off the water supply before servicing
• Expect residual water; place towels or a pan to catch spills
• Note hose routing and clamp positions; transfer existing clamps or install new ones
• Seat the hose fully on fittings, tighten clamps evenly, and perform a short test run to check for leaks

Drain hose retainer keeps the appliance's drain hose securely fastened to the cabinet or pump, helping prevent the hose from slipping loose. Replacing a broken retainer reduces leaks and improper draining caused by a detached hose. What it does:

• Secures the drain hose to the cabinet, pump outlet, or drain connection to maintain correct hose positioning.
• Helps prevent water leaks and hose disconnection during drain cycles.
• Common symptoms of a failed retainer: visible hose movement, water at the rear or floor, or intermittent draining issues.
• Replaces worn or broken retainers that no longer hold the hose firmly.

• Always disconnect power and turn off water before servicing the appliance.
• Access may require moving the appliance or removing a rear/access panel to reach the hose retainer.
• Seat the drain hose fully in its proper position, snap or clip the retainer into place, and verify the hose is secure and not kinked.
• Inspect the drain hose for cracks or wear while replacing the retainer; replace the hose if damaged.
