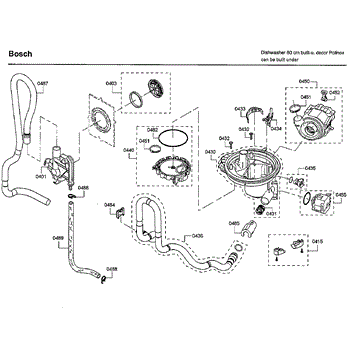

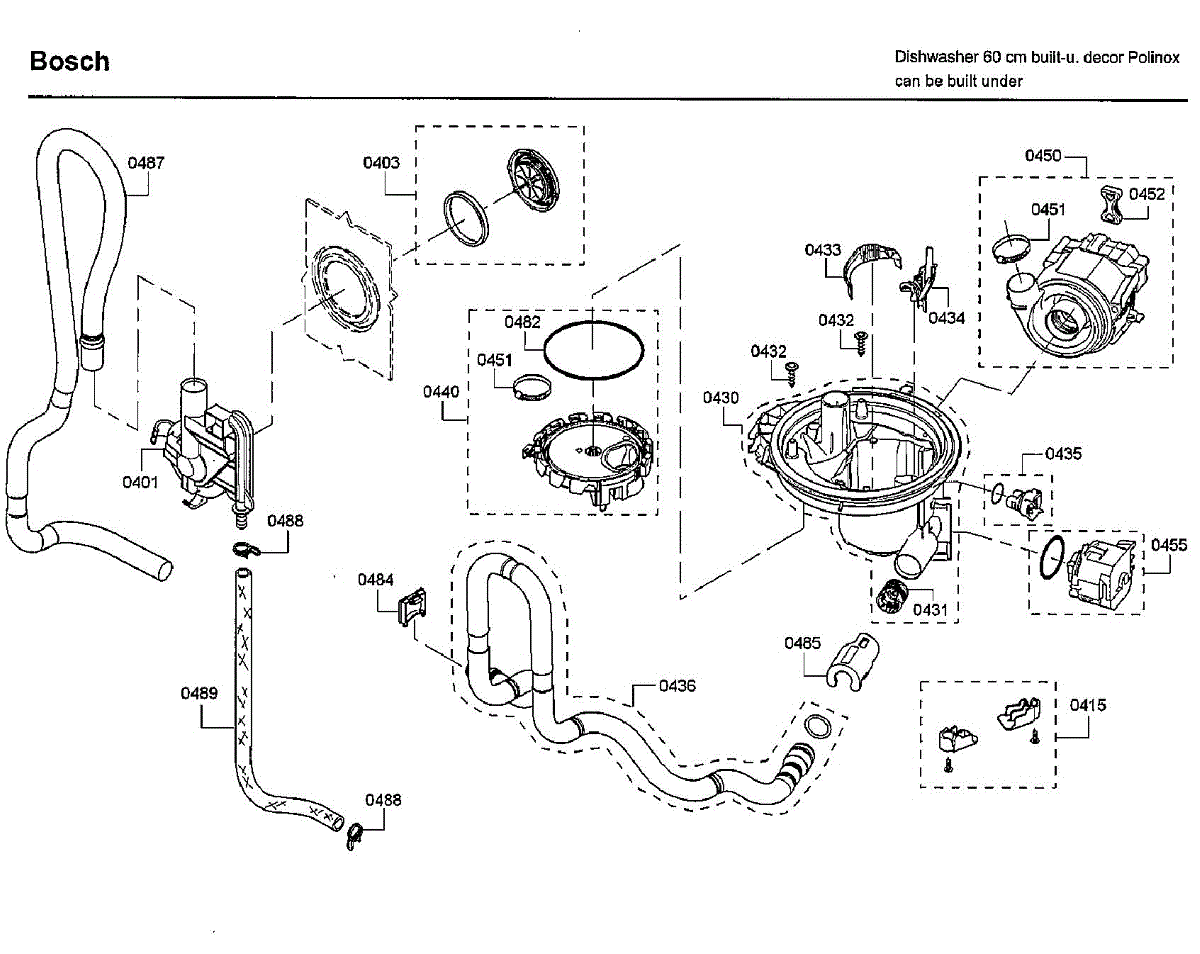

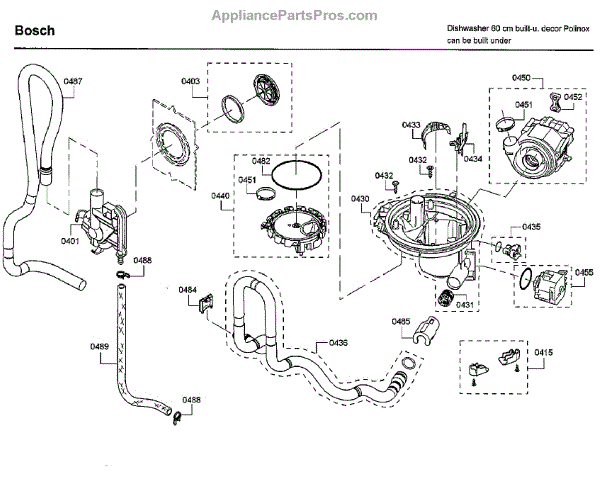

Parts for Bosch SHE3ARF5UC/22: Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Water Inlet Housing is an OEM component specifically designed for Bosch dishwashers. It provides the connection point for water to enter the appliance and is responsible for metering the proper amount of water into the spray arms and sump during each cycle. Working with the electronic control module, the water inlet housing facilitates precise water distribution.

Causes of a bad water inlet housing can include mineral buildup affecting water flow, worn or damaged valve components preventing proper metering, and failure of electronic components interfacing with the housing.

Symptoms of a bad water inlet housing include:

• Incomplete or inefficient washing
• Abnormal noises coming from water components
• Water leaking or spraying outside of the dishwasher
• Error codes related to water issues

This Bosch water inlet housing replacement part is compatible with some Siemens, Gaggenau, Thermador, and select Kenmore models. Replacing the housing ensures optimal water usage.

This cover is a molded protective housing that replaces a cracked or missing outer piece to restore a secure fit and protect internal components from debris and damage. It helps keep wiring and small parts shielded during normal use. What it does:

• Protects internal components and wiring from dirt, moisture, and impact
• Restores proper fit and alignment where a damaged cover allowed movement or rubbing
• Reduces rattles or vibration caused by loose or broken housing pieces
• Keeps serviceable parts accessible while maintaining a finished appearance

• One cover

• Disconnect power to the appliance before starting any repair
• Remove any access panels or fasteners that obstruct the old cover
• Align the replacement cover with mounting tabs or screw holes and secure using original fasteners
• If clips or tabs are damaged, replace them before completing reassembly; inspect surrounding parts for damage

This lock clamp secures the appliance door latch assembly so the door closes and seals reliably. It replaces a worn or broken clamp to restore proper latch engagement and help prevent door misalignment or failure to stay closed. What it does

• Holds the door latch or interlock assembly in position so the door can securely close
• Helps restore normal door engagement when a loose or damaged clamp causes the door to sag or not latch
• Commonly replaced when the door makes noise, feels loose, or the latch does not align
• Works with the latch housing and nearby mounting hardware to keep the lock mechanism stable

• One lock clamp (single clamp only)

• High-level replacement: usually accessed from the door or control area; remove power before servicing
• Inspect adjacent latch, springs, and mounting screws and replace any damaged parts
• Tighten fasteners to secure the clamp without overtightening or deforming plastic parts

The Sump Assembly is an OEM part for Bosch dishwashers. It collects and channels water to the pump, ensuring proper circulation and drainage during the wash cycle.

Over time, the sump assembly can become clogged with debris, suffer damage, or wear out, leading to compromised performance. Causes of a bad sump assembly include buildup of food particles and mineral deposits, physical damage from sharp objects, or wear from continuous use.

Symptoms of a bad sump assembly include:

• Water not draining properly from the dishwasher
• Persistent leaks or pooling of water at the bottom
• Unusual noises during the wash cycle
• Dishes not being cleaned effectively due to poor water circulation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Check Valve is an OEM part for Bosch dishwashers. This component prevents dirty water from flowing back into the dishwasher from the drain hose, ensuring that the dishwasher maintains proper hygiene and efficient cleaning cycles. It is installed in the drain pump and plays a crucial role in the overall drainage system of the dishwasher.

Causes of a bad check valve can include wear and tear from regular use, accumulation of debris or mineral deposits, or damage from improper installation or handling. A faulty check valve can lead to issues with draining and water contamination within the dishwasher.

Symptoms of a bad check valve include:

• Water not draining properly from the dishwasher
• Dirty water backing up into the dishwasher
• Unusual noises during the drain cycle
• Dishwasher cycles taking longer than usual

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

The Cover is an OEM part for Bosch dishwashers. Designed to securely seal the sump area, this part prevents leaks and ensures that water is properly circulated and drained during the dishwashing cycle.

Causes of failure might include physical damage such as cracks or warping, which can compromise the seal, or the buildup of debris that prevents proper seating of the cover.

Symptoms of a failing Cover include:

• Water leaks from the bottom of the dishwasher
• Poor washing performance due to inadequate water circulation
• Unusual noises as the pump struggles to draw or expel water
• Visible damage or warping of the cover itself

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drain Pump LID is an OEM part for Bosch dishwashers, designed to securely cover and protect the drain pump assembly. This crucial component ensures that the drain pump is shielded from debris and damage, allowing it to efficiently remove used water from the dishwasher at the end of each cycle.

Causes of these symptoms can range from physical damage due to impact or wear and tear over time, leading to cracks, warping, or a degraded seal.

Symptoms of a bad Drain Pump LID include:

• Water leakage around the drain pump area, indicating a poor seal or damage to the LID
• Increased noise during the drain cycle, which could suggest debris interference due to a compromised LID
• Difficulty in draining water, potentially caused by obstructions that a damaged LID failed to prevent

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Turbidity Sensor is an OEM part for Bosch dishwashers. It is a component located inside the dishwasher that plays a key role in monitoring water quality during each wash cycle. The turbidity sensor detects small food particles and residue in the water, relaying this information to adjust water temperatures, spray pressures, and cycle times accordingly to achieve optimal cleaning results.

Causes of failure could be normal wear and tear over time, mineral buildup affecting the sensor's ability to read water quality accurately, or damage from electrical faults.

Symptoms of a bad turbidity sensor include:

• Inconsistent or inadequate cleaning performance
• Extended cycle times
• Error codes displayed related to water issues

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Drain Hose is an OEM component for Bosch dishwashers. It is a flexible plastic tube responsible for removing used wash water from the dishwasher sump to household drain plumbing located outside the appliance.

Causes of a bad drain hose include cracks developing along joints from constant bending during drainage or mineral buildup restricting water flow over time.

Symptoms of a bad drain hose involve:

• Water failing to completely drain from the bottom tub area
• Puddles or residual standing water remaining after cycles
• Drainage that is slower than usual or takes multiple attempts
• Mineral deposits left inside the hose obstructing its bore

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

The Pump Housing is an OEM part for Bosch dishwashers. It houses the circulating pump and motor assembly that circulates water throughout the dishwasher during all wash cycles. Located inside the dishwasher's sump, the pump housing plays a key role in water recirculation, pick-up, and distribution of water to spray arms for optimal cleaning performance.

Symptoms of a defective pump housing include:

• Incomplete or weak water spray from arms
• Gaps in wash or rinse coverage
• Soap residue or buildup clinging to dishes
• Sounds of grinding, rubbing, or vibration from the pump area

Causes of pump housing issues are often external damage or cracks incurred from impact or hard water mineral scale deposits built up over time. Replacing with this OEM housing restores peak water circulation for sparkling dishes.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.


The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Circulation Motor and Heater Assembly is an OEM part for Bosch dishwashers. It includes both the circulation motor, responsible for moving water through the dishwasher during the cleaning cycle, and the integrated heater, which raises the water temperature for effective cleaning and drying.

Symptoms of a bad Circulation Motor and Heater Assembly include:

• Dishwasher fails to clean dishes properly
• Water does not heat up, leading to poor drying results
• Unusual noises during the cycle

A bad part can result from several causes, such as electrical failures, mechanical wear and tear, or blockages in the system that prevent proper water circulation or heating.

If you notice any of these signs, it's time to replace the circulation motor and heater assembly. This OEM Bosch part can also be used on Thermador and Gaggenau appliances.


The Pump to Heater Hose Clamp is an OEM part for Bosch dishwashers. This clamp secures the hose that connects the pump to the heater, ensuring a tight and leak-free connection. It plays a crucial role in maintaining the integrity of the water flow within the dishwasher, preventing leaks and ensuring efficient operation.

Causes of a bad hose clamp can include wear and tear over time, loosening due to vibrations, or damage from repeated tightening and loosening. A faulty clamp can lead to water leaks, which can cause further damage to the dishwasher.

Symptoms of a bad pump to heater hose clamp include:

• Water leaking from the hose connection points
• Reduced water pressure within the dishwasher
• Visible wear, rust, or damage on the clamp
• The clamp not holding the hose securely in place

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This suspension damper stabilizes the tub/drum by absorbing movement and vibration during operation. Replacing a worn damper helps reduce shaking and noise, improving spin performance and overall machine stability. What it does:

• Absorbs and controls tub/drum movement to reduce vibration and noise
• Helps prevent banging, "walking," or out-of-balance shutdowns during spin
• Can address excessive shaking, rattling, and longer spin times
• Restores smoother, more controlled operation when the original damper is worn

• One suspension damper

• Disconnect power and turn off water supply before servicing
• Access location varies by model; support the tub/drum to relieve load before removal
• Note orientation and reuse existing mounting hardware if new fasteners aren't provided
• After installation, re-level the appliance and run a test cycle to verify stability

The Drain Pump is an OEM part for Bosch dishwashers. It is designed to remove water from the dishwasher's tub after the wash and rinse cycles, ensuring that the dishwasher drains properly. This pump expels the used water through the drain hose and into the household drainage system, maintaining the efficiency and hygiene of the appliance.

You should replace the drain pump if it becomes faulty. Causes of a bad drain pump can include wear and tear from regular use, blockages from debris or food particles, or electrical failures. A malfunctioning pump can lead to water not draining properly, which can affect the dishwasher's performance and cause water to pool inside.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Unusual noises such as humming or grinding during the drain cycle
• Error codes related to drainage issues
• Water pooling at the bottom of the dishwasher

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Diverter Valve Seal is an OEM part for Bosch dishwashers. This rubber seal sits within the diverter valve assembly to protect internal components from liquid, debris and other particles during operation.

Causes of a bad diverter valve seal can include degradation of the rubber material over time from continuous exposure to hot water and detergents. Small cracks or splits can develop and widen.

Symptoms of a bad seal include:

• Water or other leaks originating from the diverter valve area
• Loud squealing or squeaking sounds during certain wash cycles
• Incomplete fills or sprays from spray arms as water diverts incorrectly

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This stress relief is a small strain-relief clip that protects wiring where the harness passes through the cabinet, reducing pull and chafing on connections. Replacing a worn clip helps prevent loose wires and intermittent electrical issues. What it does:

• Secures the appliance wiring at an entry point to reduce strain on terminals and connectors.
• Prevents chafing and abrasion of wire insulation where harnesses pass through the cabinet or mounting openings.
• Can reduce symptoms such as intermittent power, flickering controls, or visible loose/frayed wires at the harness.
• Simple mechanical part: no electrical function but critical for long-term wiring reliability.

• Disconnect power (unplug appliance or switch off breaker) before accessing wiring; turn off gas supply where applicable.
• Remove panels as needed to access the harness entry; seat the clip fully so wires are routed through the relief, not pinched.
• Inspect surrounding wiring and replace any frayed or damaged wires; do not use the clip to conceal damaged wiring.

This lock clamp is a small retaining clip that secures a component or connection inside the appliance. It keeps parts firmly seated and aligned to help prevent loosening, misalignment, or accidental disconnection during normal operation.

• Locks and retains the associated fitting or component in place
• Maintains a secure, correctly aligned connection
• Helps resist vibration-related movement during use
• If worn, broken, or missing, you may notice a loose connection, rattling, parts separating, or leaks at the joint

• Disconnect power; shut off water supply if the repair involves a water path
• Note the clip's orientation/position before removal (take a quick photo for reference)
• Use needle-nose pliers or a small flat-blade tool to release/install; avoid over-bending
• The component is fully seated and the clip is fully engaged before reassembly

The Hose Vent is an OEM part for Bosch dishwashers. It is responsible for venting excess heat, moisture, and odors generated during the washing process, ensuring a safe and suitable internal environment. The hose vent guides steam out of the appliance, preventing damage caused by pressure buildup.

Symptoms of a bad hose vent include:

• Visible damage or cracks along its length
• Kinks or depressions restricting airflow
• Disconnections from vent ports or dishwasher interior
• Excess moisture inside the dishwasher

Causes of hose vent failure can be related to extended use over time, crushing/pinching from the installation environment, or buildup of debris affecting airflow.

This genuine Bosch replacement hose vent will restore proper moisture removal. It is compatible with some Siemens, Thermador, Gaggenau, and Kenmore models. Replace yours today for reliable venting performance.

This hose clamp secures a rubber or plastic hose to its fitting inside the appliance, helping prevent leaks at connection points. Replace a stretched, corroded, or damaged clamp to maintain a tight, reliable seal.

• Clamps the hose to a barb or fitting to keep it from slipping off
• Helps maintain a watertight connection and reduce drips at the joint
• Can help resolve leaks caused by a loose hose connection
• Common signs: moisture around a hose joint, visible rust/deformation, or a clamp that won't tighten

• Disconnect power and turn off the water supply before servicing
• Place a towel or tray to catch residual water; note hose routing and clamp position
• Use appropriate hand tools for your clamp style; fully seat the hose and tighten evenly
• After reassembly, run a brief test and inspect for leaks at the connection

The Water Inlet Fill Hose is an OEM part for Bosch dishwashers. This part is responsible for safely and efficiently connecting the dishwasher to your home's water supply, ensuring that water flows into the dishwasher at the correct pressure and volume for optimal cleaning performance.

Over time, the Water Inlet Fill Hose can become susceptible to wear and tear, leaks and blockages.

Symptoms indicating the need for a new Water Inlet Fill Hose include:

• Water pooling around the dishwasher base, pointing to a potential leak in the hose.
• The dishwasher not filling with water properly, or filling very slowly, suggesting a blockage or damage to the hose.
• A visible inspection reveals cracks, bulges, or signs of corrosion on the hose connectors.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.
