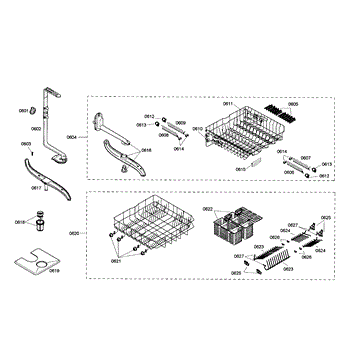

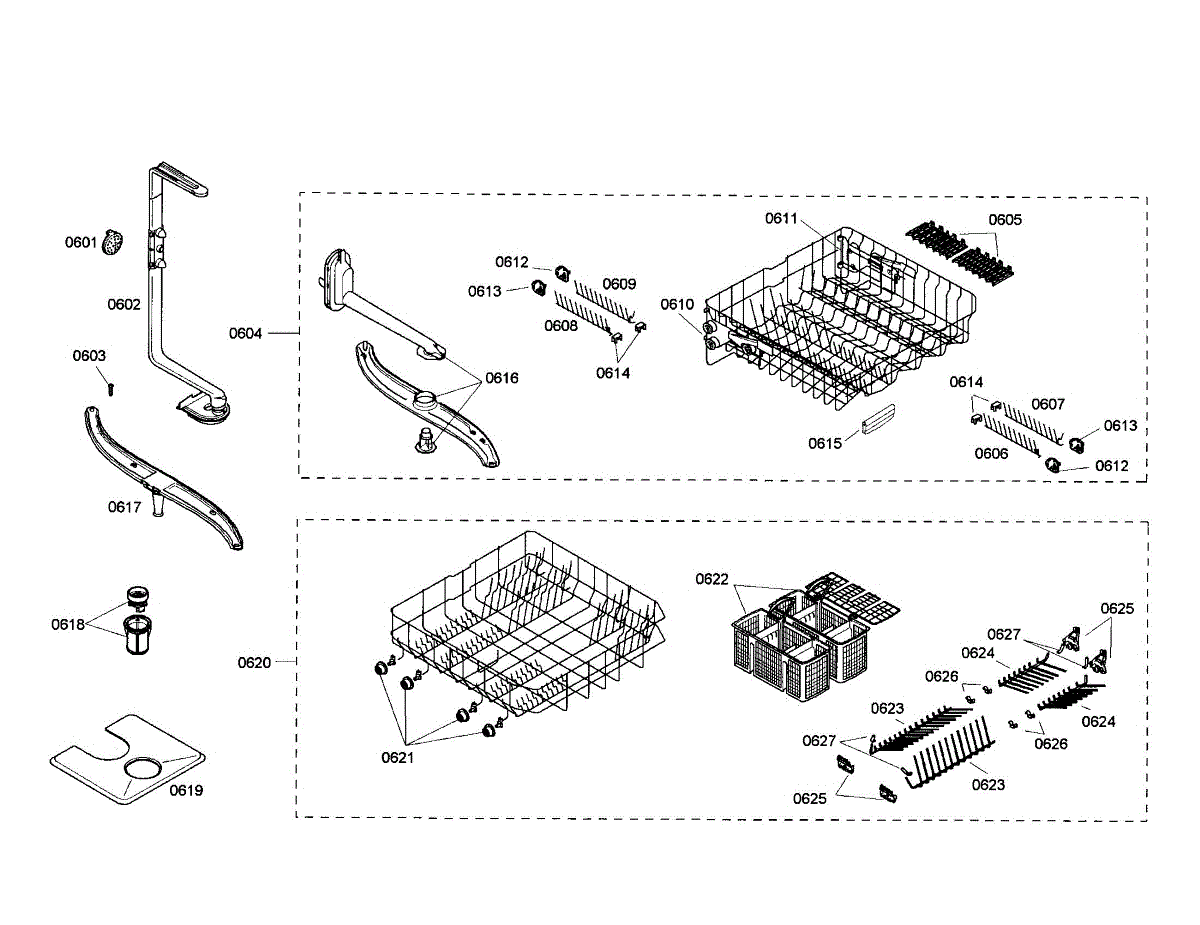

Parts for Kenmore 630.16304401 (63016304401, 630 16304401): Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Tall item spray head.
This Spray Head is an OEM part for Bosch Dishwashers. It plays a role in distributing water evenly during the dishwasher's washing cycles. Continuous exposure to hard water, debris, or mineral deposits can cause issues with this component.

What Causes a Bad Spray Head:
Hard water deposits, debris, or mineral buildup can clog or block the spray head, affecting its performance. Physical damage can also impair its functionality.

Symptoms of a Bad Spray Head:

• Inadequate cleaning of dishes
• Uneven water distribution
• Reduced water pressure during washing cycles

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.


The Upper Spray Arm Water Tube is an OEM part for Bosch dishwashers. It is a vital component of the washing mechanism responsible for spraying water across the upper rack.

Over time, mineral deposits can clog the narrow openings of the water tube, reducing water pressure and spray effectiveness. Accidental bending or cracking of the flexible water tube could also cause spray issues.

Symptoms of a bad upper spray arm and water tube include:

• Incomplete cleaning of dishes on the upper rack
• Dried food soils left behind after washing
• Noticeably weaker water spray pressure from the arm
• Possible leaks or drips around the arm connection point

Replacing with this OEM Bosch part restores full spray coverage and optimized washing for all rack levels. It is also compatible with certain Miele, Asko, and Jenn-Air professional-grade dishwashers.


This sump screw secures the dishwasher's sump or sump cover to the tub, keeping the assembly tight and leak-resistant. Replace a missing, stripped, or damaged screw to restore a proper seal and stable mounting.

• Fastens the sump or sump cover to the dishwasher tub
• Helps maintain a watertight seal to reduce leaks
• Keeps filter/sump components aligned and secure
• Replaces missing, stripped, or damaged hardware
• Helps address leaks or rattling around the sump area

• Disconnect power and turn off water supply before servicing
• Remove the lower rack and filters to access the sump area
• Ensure mating surfaces and seals are clean and properly seated
• Tighten snugly by hand; do not overtighten to avoid stripping

Includes center spray arm and tube assembly. Color: platinum.

Color: platinum gray. It measures about 2 inches wide by 2 inches high.

The Flip Tine Latch is an OEM part for Bosch dishwashers. It serves as a latching mechanism on upper dish racks that securely holds folded tines.

Made of durable plastic, the latch features offset hooks integrated along its base edge. These engage onto roll edges of individual flip up tines, pinning them neatly against the chamber to prevent unwanted movement.

Symptoms of a failed flip tine latch include:

• Sagging or unfolded flip tines potentially blocking spray jets
• Restricted water distribution due to improper rack orientation
• Scratched or misplaced dishes from unlatched tines potentially flailing
• Inefficient cleaning from lack of optimized spray coverage

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This part snaps onto the bottom of the upper dishrack. Color: gray. The spray arm is about 18 inches in diameter, and the tube measures about 11 inches.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This Spray Arm is an OEM part for Bosch Dishwashers. This part disperses water throughout the dishwasher, ensuring thorough washing of dishes and utensils.

A common issue affecting the Spray Arm is clogging or blockages caused by food particles, mineral deposits, or debris.

Symptoms of a malfunctioning Spray Arm may include:

• Incomplete cleaning of dishes
• Residue or food particles left on dishes after a wash cycle
• Unusual noises originating from the dishwasher during operation

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Micro Filter Basket Assembly is an OEM part for Bosch dishwashers. This component is essential for trapping food particles and debris during the wash cycle, preventing them from re-entering the clean water circulation. By effectively filtering out residues, the micro filter ensures that your dishes emerge spotless and free from food remnants.

Causes of a bad micro filter basket assembly include clogging from accumulated food particles, wear and tear from regular use, and damage such as cracks or warping that can compromise its filtering capability.

Symptoms of a bad micro filter basket assembly include:

• Dishes not getting thoroughly cleaned
• Visible debris remaining on dishes after washing
• Unusual noises from the dishwasher indicating struggling pumps or motors

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This Filter Screen is an OEM part for Bosch Dishwashers. This filter screen efficiently traps debris and food particles, ensuring optimal washing performance.

A common issue with a faulty Filter Screen is clogging due to accumulated debris and food residue. Over time, this can obstruct water flow, resulting in poor cleaning performance or potential drainage problems.

Symptoms of a malfunctioning Filter Screen may include:

• Dirty dishes after a complete wash cycle
• Standing water at the bottom of the dishwasher
• An unpleasant odor emanating from the dishwasher

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Lower Dishrack Assembly is an OEM part for Bosch dishwashers. This assembly holds the dishes, utensils, and other items to be cleaned on the lower level of the dishwasher. It is designed to slide in and out smoothly, providing easy access for loading and unloading.

Over time, the lower dishrack can become worn out or damaged due to frequent use, exposure to high temperatures, and the weight of the items placed on it. Causes of a bad lower dishrack include broken or missing wheels, rust, and damage to the rack's frame or coating.

Symptoms of a bad lower dishrack include:

• Difficulty sliding the rack in and out
• Rust or corrosion on the rack
• Broken or missing tines
• Items not staying in place during the wash cycle

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Dish Rack Wheel with Clip is an OEM part for Bosch dishwashers. It is essential for the smooth gliding of the dishwasher rack in and out of the unit, facilitating easy loading and unloading of dishes.

Causes of a bad Dish Rack Wheel with Clip can include physical damage from impact, wear from frequent use, or degradation of the wheel material, leading to a less smooth operation.

Symptoms of a bad Dish Rack Wheel with Clip include:

• Difficulty in sliding the rack in and out
• Unusual noises during rack movement
• The rack becoming detached or misaligned during use

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Replacement silverware basket with integral handle in dark gray. Holds forks, knives and spoons in the lower dishwasher rack to keep utensils upright for better cleaning and easier loading, removal and transport. What it does:

• Holds and separates flatware to reduce nesting and promote water flow during wash cycles.
• Integrated handle makes it easy to lift the basket in and out of the rack for loading or unloading.
• Keeps small items from falling through the rack and reduces rattling during operation.
• Replace the basket if it is cracked, broken, or if utensils no longer stay securely in place.

• Installs in the lower dishwasher rack by sliding or snapping into existing rack slots; typically requires no tools.
• Make sure the basket sits level and the handle moves freely before running the dishwasher.
• Inspect for cracks or sharp edges and replace if damaged to avoid utensil loss or interference with spray action.
• Disconnect power first; this part itself does not require electrical work.

The Tine Clip Kit is an OEM part for Bosch dishwashers. This kit includes clips that secure the tines in the dishwasher rack, ensuring that dishes stay in place during the washing cycle for optimal cleaning performance.

Causes of a bad tine clip can include wear and tear from regular use, exposure to high temperatures and detergents, or accidental damage. Faulty or broken tine clips can result in unstable tines, making it difficult to properly load and organize dishes in the dishwasher.

Symptoms of a bad Tine Clip include:

• Tines not standing upright or falling over
• Difficulty in loading or arranging dishes
• Rattling noises during the wash cycle
• Loose or missing clips

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Rack Flip Tine Clip is an OEM part for Bosch dishwashers.Its c-shaped design allows the flip tines to securely grip onto rolled edges of folding tines situated along inner walls of the dishrack. The clip maintains constant contact holding the rack firmly against potential movement.Used for the lower rack to hold one end of two flip tines. The tine clip measures just over an inch.

Causes of clip failure include breakage from repeated folding stresses or flexing over extended use. Material fatigue from long-term exposure to elevated temperatures in the wash chamber can also lead to cracking.

Symptoms of a failed rack flip tine clip include:

• Dislodged or unsteady upper racks during rotation
• Scattered dishes from lack of proper securement
• Blocked impeller wheel from sagging racks deforming wash patterns
• Scratches or damage to delicate items from rack movement

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Tine Clip Kit is an OEM part for Bosch dishwashers. This kit includes clips that secure the tines in the dishwasher rack, ensuring that dishes stay in place during the washing cycle for optimal cleaning performance.

Causes of a bad tine clip can include wear and tear from regular use, exposure to high temperatures and detergents, or accidental damage. Faulty or broken tine clips can result in unstable tines, making it difficult to properly load and organize dishes in the dishwasher.

Symptoms of a bad Tine Clip include:

• Tines not standing upright or falling over
• Difficulty in loading or arranging dishes
• Rattling noises during the wash cycle
• Loose or missing clips

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
