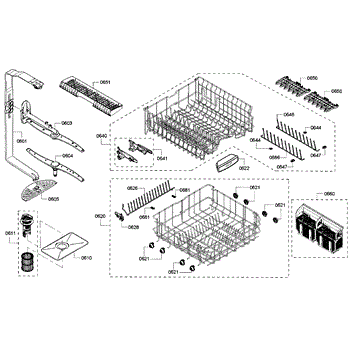

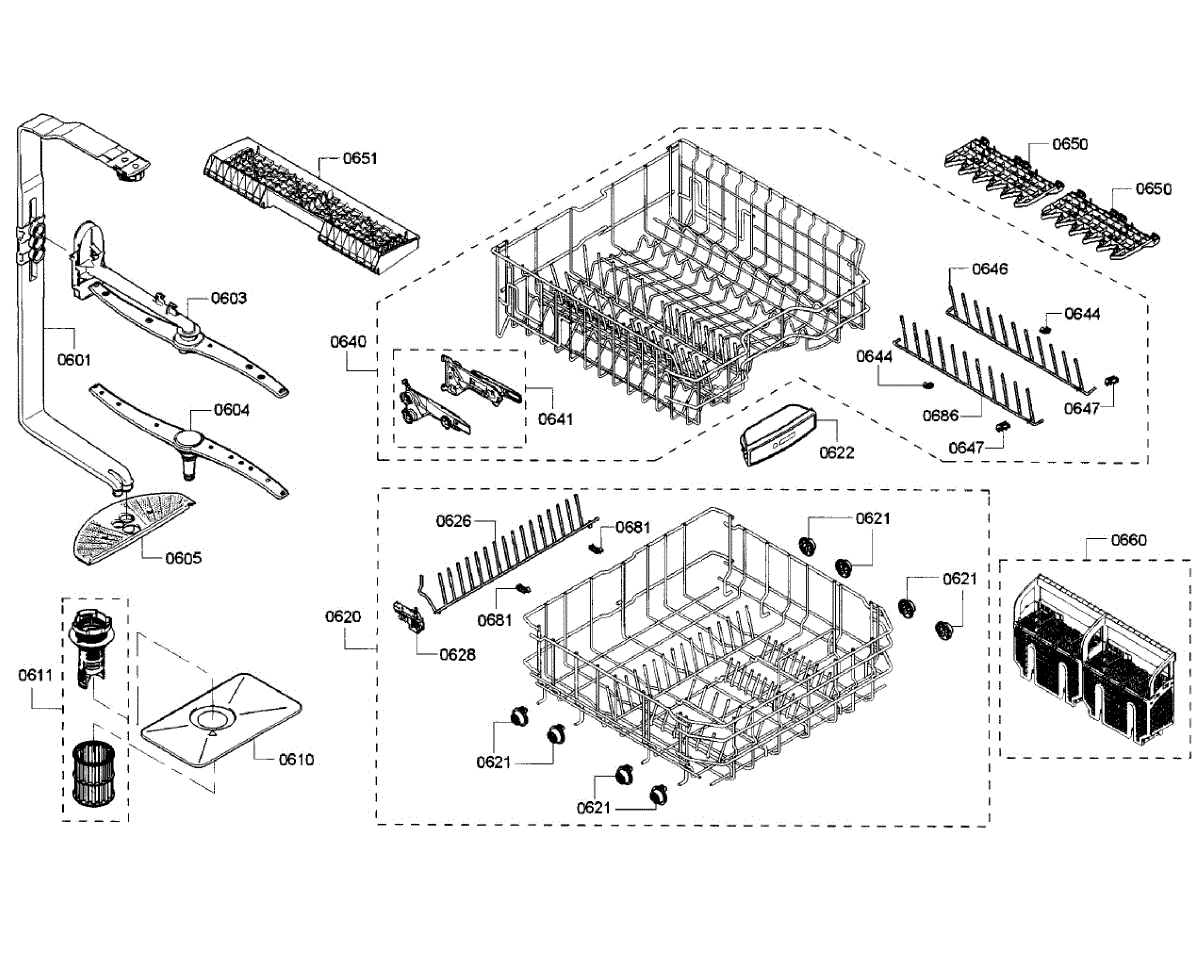

Parts for Bosch SHX5AVF5UC/22: Racks Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replacement tube for Bosch appliances that routes water or drainage between components, helping restore correct flow, reduce pooling and leaks, and maintain normal appliance performance. What it does:

• Channels water between valves, pump and drain to enable normal water movement.
• Replaces cracked, split or blocked tubing that can cause leaks or standing water.
• Helps restore proper drainage and prevent water from pooling inside or under the appliance.

• Always disconnect power and shut off the water supply before servicing the appliance.
• Inspect and replace any damaged clamps, seals or fittings when installing the tube.
• Route the tube exactly as the original to avoid kinks; secure with the factory clamps or equivalent.

Dishes not getting clean in the middle rack? This middle spray arm restores water coverage. Simple snap-in replacement takes about 3 minutes to install.

Fix dishes not cleaning properly with a new dishwasher spray arm. Replaces worn arms with broken jets or wobbly mounts. Simple DIY installation.

The Cover is an OEM part for Bosch dishwashers. It provides a protective barrier that shields internal components from damage and extends the life of the appliance.

The cover is exposed to heat, humidity, and debris during each wash cycle. Over time and repeated use, these conditions can cause cracks, warping or breakdown of the protective plastic material.

Causes of a bad cover include normal wear and tear, accidental dents or punctures, and exposure to excess heat or chemicals.

Symptoms of a cover needing replacement include:

• Visible cracks or holes that compromise the barrier
• Loose or sagging fit that allows internals to be exposed
• Warping or melting of the protective plastic shield

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Screens out small food particles from wash water to prevent debris recirculation. Replace when clogged or mineral-crusted. Confirm fit by model number.

Captures debris before it enters the pump system. Replace when clogged, calcified, or damaged to prevent E22 errors and ensure clean dishes. Verify fit.

The Dishrack Roller is an OEM replacement part for Bosch dishwashers. Located inside the tub, this roller assists with moving upper and lower dishracks in and out during operation.

Causes of failure are prolonged exposure to detergent residues combined with repeated rolling impact stresses absorbing dishrack weight for tens of thousands of cycles.

Symptoms of a worn or damaged dishrack roller include:

• Difficulty fully extending or retracting dishrack shelves
• Rack skew or tilting sideways instead of moving smoothly
• Grinding or scraping noises heard from the tub area
• Dishes not lining up properly to receive spray patterns

This genuine Bosch roller is also compatible with Thermador and Gaggenau models.

Replace cracked, broken, or missing dishwasher rack roller wheels. Snaps onto bottom or top rack to restore smooth gliding. Easy DIY installation.

Replace your dishwasher's broken or missing rack handle. This handle clips to the front of the dish rack for easy gripping when sliding racks in and out.

The Adjustable Tine Row is an OEM part for Bosch dishwashers. It is designed to hold and secure dishes, allowing for optimal placement and cleaning efficiency. The adjustable feature allows users to customize the spacing of the tines to accommodate various dish sizes and shapes.

Over time, the adjustable tine row can become damaged or worn out due to repeated use or excessive force when adjusting the tines. This can lead to difficulties in securing dishes properly and may impact the overall performance of the dishwasher.

Symptoms of a bad adjustable tine row include:

• Tines that are bent or broken
• Difficulty in adjusting the tine positions
• Dishes not staying in place during the wash cycle

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Replacement tine row holder for dishwasher upper rack. Securely holds retractable tines in place. Replace if cracked, broken, or missing from wear.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's upper rack pull-out rail assembly. Installs on top rack to enable smooth sliding. Needed when rails are cracked, broken, or wheels are worn. Includes left and right sides.

Secures tines within your dishwasher rack for proper dish organization. Replace if cracked, broken, or clips have failed causing tine rows to fall down.

Secures tine rows to your dishwasher rack. Replace if broken, cracked, or missing to keep tines upright for proper dish spacing. Clips onto rack.

Upper rack cup shelf that mounts to your dishwasher's top rack to hold cups, mugs, and stemware. Replace if broken, cracked, or missing for secure storage.

Replacement silverware basket for Bosch dishwashers. Sits in the lower rack to organize utensils during wash cycles. Order if yours is cracked or missing.

Secures the tine row assembly inside your dishwasher rack. Replace this small plastic holder if it's broken, cracked, or missing to prevent wobbly tines.

The Insert is an OEM part for Bosch dishwashers. It is a multi-functional component located inside the dishwasher tub that assists in loading, washing, and drying dishes.

Causes of a bad insert can include wear and tear of moving parts over time, mineral buildup that impairs movement, or damage to shelves or tines that prevent proper function.

Symptoms of a bad insert include:

• Dishes not getting fully clean after cycles
• Difficulty loading dishes due to jammed or stuck parts
• Missing or damaged shelves, tines, or arms

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore dishwashers.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
