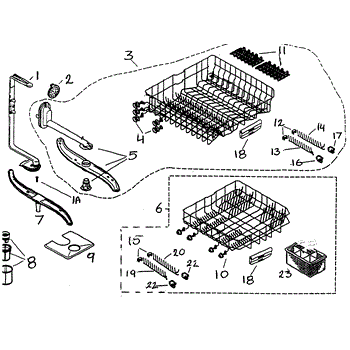

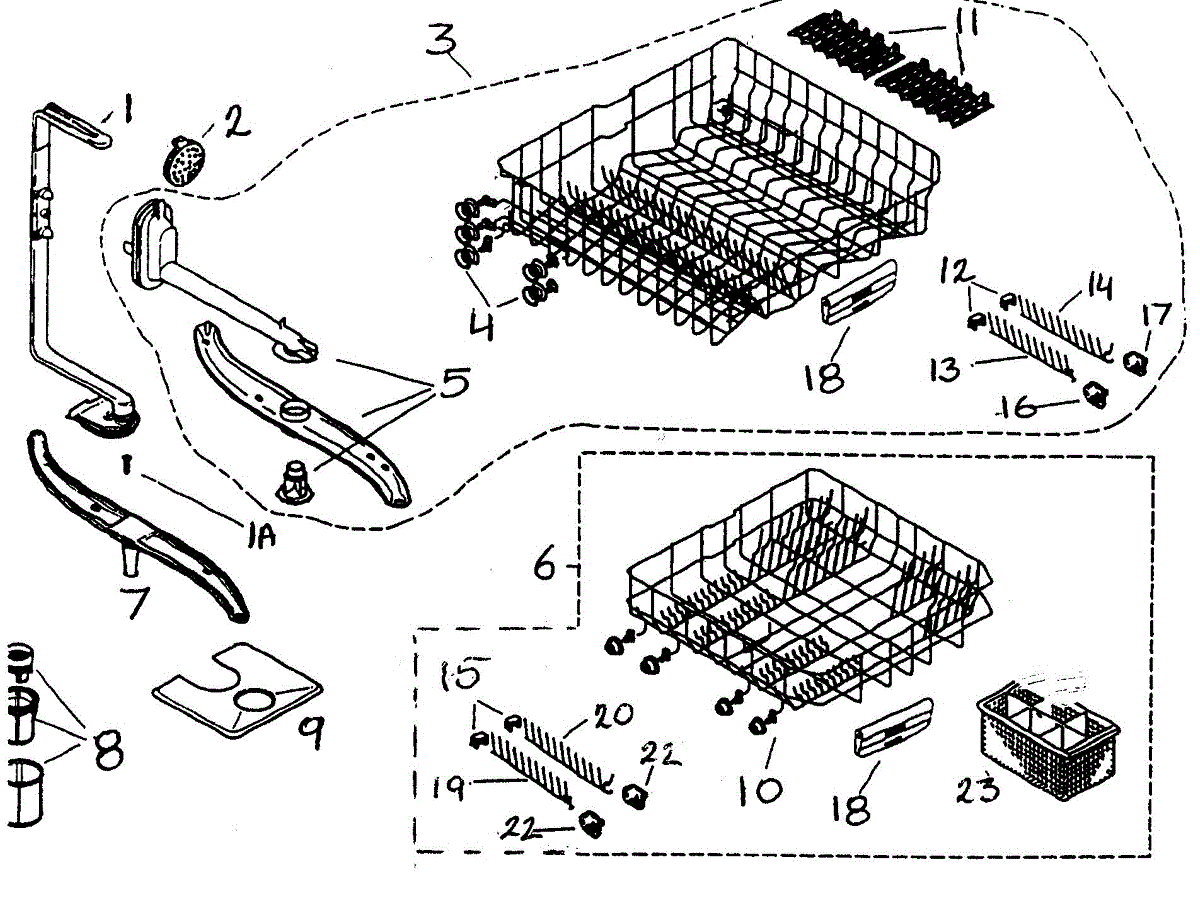

Parts for Bosch SHX99B05UC/14: Racks Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Upper Spray Arm Water Tube is an OEM part for Bosch dishwashers. It is a vital component of the washing mechanism responsible for spraying water across the upper rack.

Over time, mineral deposits can clog the narrow openings of the water tube, reducing water pressure and spray effectiveness. Accidental bending or cracking of the flexible water tube could also cause spray issues.

Symptoms of a bad upper spray arm and water tube include:

• Incomplete cleaning of dishes on the upper rack
• Dried food soils left behind after washing
• Noticeably weaker water spray pressure from the arm
• Possible leaks or drips around the arm connection point

Replacing with this OEM Bosch part restores full spray coverage and optimized washing for all rack levels. It is also compatible with certain Miele, Asko, and Jenn-Air professional-grade dishwashers.


Tall item spray head.
This Spray Head is an OEM part for Bosch Dishwashers. It plays a role in distributing water evenly during the dishwasher's washing cycles. Continuous exposure to hard water, debris, or mineral deposits can cause issues with this component.

What Causes a Bad Spray Head:
Hard water deposits, debris, or mineral buildup can clog or block the spray head, affecting its performance. Physical damage can also impair its functionality.

Symptoms of a Bad Spray Head:

• Inadequate cleaning of dishes
• Uneven water distribution
• Reduced water pressure during washing cycles

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.


The Reel is the rotating spool that winds or guides a cord, cable, or belt inside the appliance. It maintains smooth motion and proper tension so the connected mechanism operates reliably without binding, slippage, or jams.

• Guides or winds a cord, cable, or belt on a central hub
• Maintains alignment and tension for smooth, consistent operation
• Helps prevent snagging, overwind, or uneven take-up
• Wear or damage can cause noise, binding, loss of tension, or failure to retract/advance

• Disconnect power and any utilities before servicing the appliance
• Access the assembly per your service manual; note routing and orientation with photos
• If spring-loaded, release and set tension carefully to avoid injury
• Transfer any clips, fasteners, or connections from the original part and verify smooth operation before reassembly

This part snaps onto the bottom of the upper dishrack. Color: gray. The spray arm is about 18 inches in diameter, and the tube measures about 11 inches.

The Lower Spray Arm is an OEM part for Bosch dishwashers. This part is responsible for spraying water and detergent solution onto the dishes during the wash cycle, ensuring thorough cleaning.

Causes of a malfunctioning Lower Spray Arm can include clogging or obstruction from food debris, mineral buildup, or foreign objects.

Symptoms of a bad Lower Spray Arm include:

• Poor cleaning performance, with dishes coming out dirty or with food particles remaining
• Water not spraying evenly or failing to rotate during the wash cycle
• Loud grinding or knocking noises coming from the spray arm area

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The FILTER-MICRO is an OEM part for Bosch dishwashers. This micro filter is a part of the dishwasher's filtration system, designed to trap and remove small food particles and debris from the wash water during cycles. By capturing these particles, the filter prevents them from redepositing on dishes, ensuring that the water remains clean throughout the washing process for optimal cleaning performance.

Causes of damage to the FILTER-MICRO can include regular accumulation of food debris, mineral buildup from hard water, or physical damage from sharp objects.

Symptoms of a bad FILTER-MICRO include:

• Dishes not coming out as clean as they should, possibly due to food particles being recirculated.
• The dishwasher producing unusual noises, which could indicate a clogged filter affecting water circulation.
• Water not draining properly, potentially caused by a blockage in the filter.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Dish Rack Wheel with Clip is an OEM part for Bosch dishwashers. It is essential for the smooth gliding of the dishwasher rack in and out of the unit, facilitating easy loading and unloading of dishes.

Causes of a bad Dish Rack Wheel with Clip can include physical damage from impact, wear from frequent use, or degradation of the wheel material, leading to a less smooth operation.

Symptoms of a bad Dish Rack Wheel with Clip include:

• Difficulty in sliding the rack in and out
• Unusual noises during rack movement
• The rack becoming detached or misaligned during use

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Rack Flip Tine Clip is an OEM part for Bosch dishwashers.Its c-shaped design allows the flip tines to securely grip onto rolled edges of folding tines situated along inner walls of the dishrack. The clip maintains constant contact holding the rack firmly against potential movement.Used for the lower rack to hold one end of two flip tines. The tine clip measures just over an inch.

Causes of clip failure include breakage from repeated folding stresses or flexing over extended use. Material fatigue from long-term exposure to elevated temperatures in the wash chamber can also lead to cracking.

Symptoms of a failed rack flip tine clip include:

• Dislodged or unsteady upper racks during rotation
• Scattered dishes from lack of proper securement
• Blocked impeller wheel from sagging racks deforming wash patterns
• Scratches or damage to delicate items from rack movement

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Color: platinum gray. It measures about 2 inches wide by 2 inches high.

The Flip Tine Latch is an OEM part for Bosch dishwashers. It serves as a latching mechanism on upper dish racks that securely holds folded tines.

Made of durable plastic, the latch features offset hooks integrated along its base edge. These engage onto roll edges of individual flip up tines, pinning them neatly against the chamber to prevent unwanted movement.

Symptoms of a failed flip tine latch include:

• Sagging or unfolded flip tines potentially blocking spray jets
• Restricted water distribution due to improper rack orientation
• Scratched or misplaced dishes from unlatched tines potentially flailing
• Inefficient cleaning from lack of optimized spray coverage

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

Color: gray. Each clip measures about an inch and each pack includes 2 clips.

This door handle replaces a worn or broken appliance door grip to restore a secure, comfortable surface for opening and closing. Designed to match the original fit and appearance for easy cosmetic repair. What it does:

• Provides a sturdy grip for opening and closing the appliance door
• Replaces cracked, loose, or cosmetically damaged handles
• Restores proper leverage to reduce stress on the door latch and hinges
• Helps improve the look of the appliance by replacing a worn handle

• One door handle

• Refer to your appliance model's service manual for step-by-step removal and installation instructions
• Installation typically requires basic hand tools; disconnect power (and water if applicable) before servicing
• Handle may attach with screws or snap-fit clips—keep removed fasteners for re-use unless replacements are provided

The Tine Clip Kit is an OEM part for Bosch dishwashers. This kit includes clips that secure the tines in the dishwasher rack, ensuring that dishes stay in place during the washing cycle for optimal cleaning performance.

Causes of a bad tine clip can include wear and tear from regular use, exposure to high temperatures and detergents, or accidental damage. Faulty or broken tine clips can result in unstable tines, making it difficult to properly load and organize dishes in the dishwasher.

Symptoms of a bad Tine Clip include:

• Tines not standing upright or falling over
• Difficulty in loading or arranging dishes
• Rattling noises during the wash cycle
• Loose or missing clips

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Replacement silverware basket with integral handle in dark gray. Holds forks, knives and spoons in the lower dishwasher rack to keep utensils upright for better cleaning and easier loading, removal and transport. What it does:

• Holds and separates flatware to reduce nesting and promote water flow during wash cycles.
• Integrated handle makes it easy to lift the basket in and out of the rack for loading or unloading.
• Keeps small items from falling through the rack and reduces rattling during operation.
• Replace the basket if it is cracked, broken, or if utensils no longer stay securely in place.

• Installs in the lower dishwasher rack by sliding or snapping into existing rack slots; typically requires no tools.
• Make sure the basket sits level and the handle moves freely before running the dishwasher.
• Inspect for cracks or sharp edges and replace if damaged to avoid utensil loss or interference with spray action.
• Disconnect power first; this part itself does not require electrical work.

This holder secures a small appliance component in place to prevent movement and reduce noise and wear. It restores proper fit and helps keep connected lines and parts aligned for reliable operation. What it does

• Secures a hose, wire, or small assembly to the appliance frame to prevent rubbing or sagging
• Keeps components aligned to reduce vibration and rattling noises
• Helps maintain proper routing to avoid strain on connections
• Commonly replaced when loose, broken, or missing and causing movement or noise

• One holder

• Turn off power and, if applicable, water supply before starting work
• Inspect surrounding clips and fasteners; replace if damaged
• Install in the same orientation as the original; use proper fasteners if required

This retaining clip secures small appliance components in place to prevent movement and ensure reliable part alignment. It provides a simple, durable hold that keeps assemblies stable during normal use and service. What it does:

• Holds panels, covers, or wiring harnesses in position to prevent rubbing or disconnection
• Maintains alignment of moving or attached components to reduce noise and wear
• Helps prevent intermittent electrical or mechanical failures caused by loose parts
• Commonly replaced when broken, cracked, or missing after service or impact

• One retaining clip

• Basic hand tools may be required; inspect surrounding parts before reassembly
• Wear gloves and power off and unplug the appliance before servicing
• Replace only with the correct OEM-designated clip to ensure fit and function
