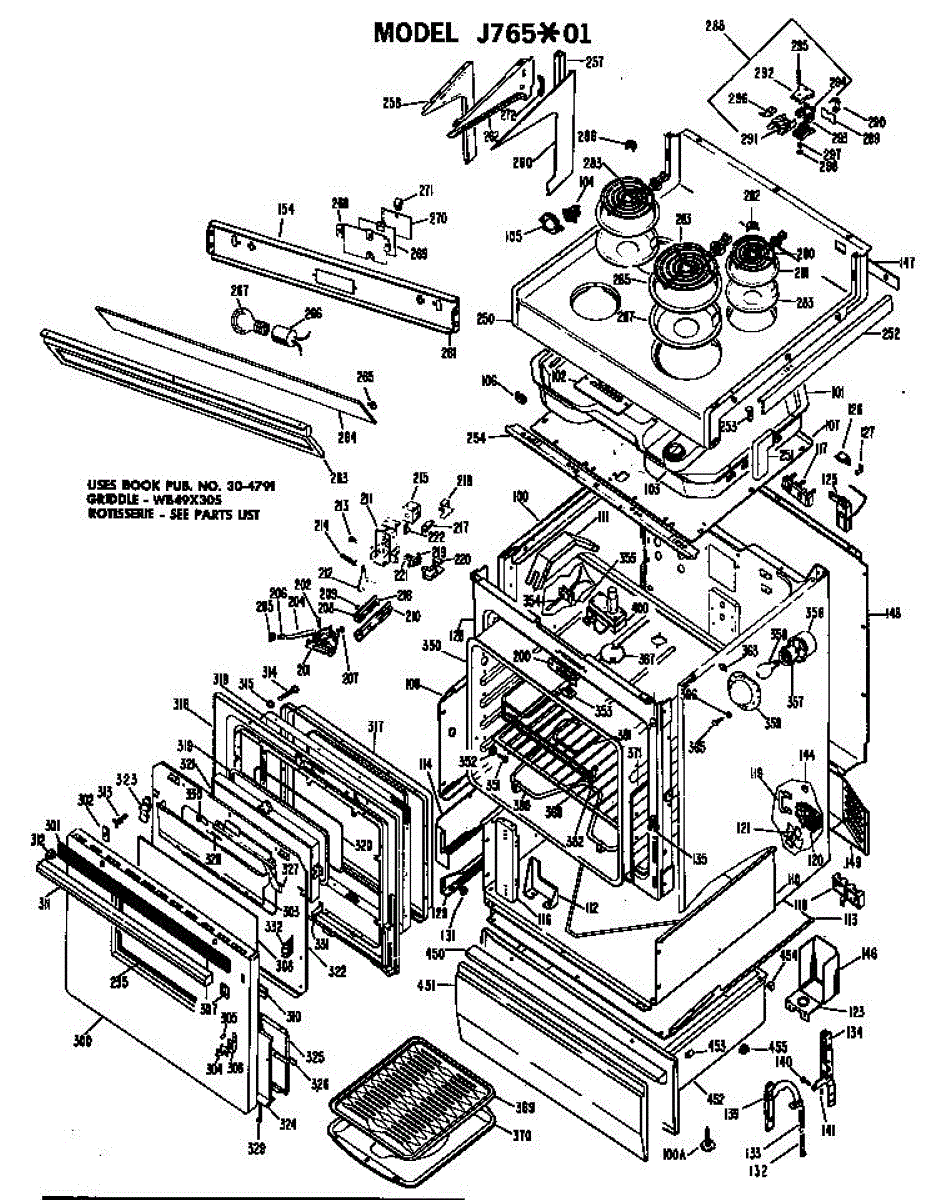

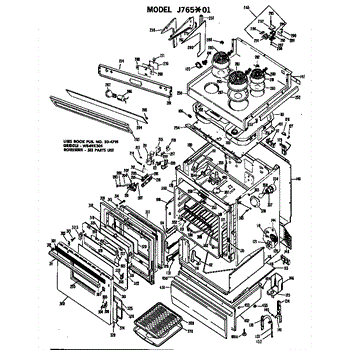

Parts for Ge J765*01: Range Assembly Parts

Package of 12

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Right hand side

Left hand side

Clip for door hinge.

Package of 12

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This 27" oven broiler pan provides a durable tray for broiling and catching drips, helping keep the oven interior cleaner and supporting even heat under foods. Fits ovens requiring a full-width broiler pan. What it does:

• Catches grease and drippings while broiling to reduce flare-ups and simplify cleanup
• Supports food close to the broiler element for even browning and searing
• Restores proper fit and function when the original broiler pan is damaged, warped, or missing
• Works with standard 27" oven broiler systems designed for full-width pans

• One 27" oven broiler pan (single pan only)

• Slide into the broiler/grate position; no special tools required for most installations
• Ensure the oven is cool and disconnected from power before handling or cleaning
• Inspect for proper fit and stable seating before use; do not use if warped or cracked
• Clean according to oven manufacturer guidelines; avoid abrasive cleaners that could damage finish

Package of 12

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners

Includes 12 screws.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 6 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the stove's burner, enhancing the appliance's aesthetic while also serving a functional purpose by catching spills and drips. This component helps keep the cooking surface clean and reduces the risk of burns or stains by containing minor spills.

Causes of a bad 6 Inch Trim Ring can include exposure to high temperatures leading to warping or discoloration, accidental damage such as dents or bending from cookware impact, and corrosion from frequent exposure to moisture and cleaning chemicals.

Symptoms of a bad 6 Inch Trim Ring include:

• Loose fit around the burner
• Noticeable rust or corrosion
• Discoloration or uneven surface
• Difficulty cleaning or removing debris from under the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Compatible 6-inch drip pan: WB32X10012. Matching 8-inch drip pan: WB32X10013 and ring: WB31X5014.

The 6 inch Drip Pan is an OEM replacement part for GE ranges and cooktops. It is a shallow, removable tray designed to catch spills, boil-overs, and other messes that may occur during cooking.

Causes of needing to replace a drip pan can include excessive wear and tear, warping due to high heat exposure, or damage from impact or scratches that can lead to discoloration or difficulty in cleaning.

Symptoms that indicate it's time to replace your drip pan include:

• Visible cracks, dents, or other physical damage
• Discoloration or staining that cannot be properly cleaned
• Difficulty fitting the pan properly into the designated area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

NOTE: Ring comes separate: WB31X5013. Matching 8 inch drip pan: WB32X10013 and ring: WB31X5014.

The 8 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the 8-inch burner elements, providing a clean, finished look while also helping to contain spills and crumbs on the stovetop.

Symptoms of a bad 8 Inch Trim Ring include:

• Misalignment or improper fit around the burner, which can affect cooking performance and cleaning.
• Visible rusting, warping, or deterioration, which can detract from the appearance of the cooktop.
• Loose fitting that may cause the ring to move or rattle during use.

Causes of a bad trim ring can include frequent exposure to high temperatures, spills of acidic or sugary substances that cause corrosion or damage, and general wear and tear from cleaning and use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If you’re looking to replace all of the trim rings and drip pans:

• 8” Drip Pan - WB32X10013
• 6” Drip Pan - WB32X10012
• 6” Trim Ring - WB31X5013

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

The ring comes separately: WB31X5014. Matching 6-inch drip pan: WB32X10012 and ring: WB31X5013.

The 8 Inch Drip Pan is an OEM part for GE ranges and stovetops. It is designed to sit underneath the burner element, catching spills, drips, and crumbs that fall during cooking. This not only helps in keeping the cooktop clean but also protects the stovetop and internal components from potential damage caused by food spillage.

Causes of a bad 8 Inch Drip Pan can include rusting due to prolonged exposure to moisture, warping from high heat, or accumulation of cooked-on spills and debris that can't be cleaned off.

Symptoms of a bad Drip Pan include:

• Noticeable rust or corrosion
• Warping or misshaping, affecting fit and function
• Difficulty in cleaning, with residue that cannot be removed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

Includes 12 washers.

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

Includes 12 washers.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

Includes 12 washers.

This is a oven rack, and it is made for ranges and ovens. This is a genuine replacement part made by General Electric. There are usually two oven racks in typical ranges or ovens. The oven rack is where dishes or sheet pans are placed so that the food is able to be cooked or baked completely. The oven racks provide a level and sturdy place for dishes.A new oven rack might be needed if the current ones are bend, dented, or broken in any way. Oven racks might become uneven or unlevel overtime and it is common that they might need replacing due to normal wear and tear. Be sure the oven is powered off and cooled down before replacing the oven rack.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges or ovens made by General Electric.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Oven Bake Element is an OEM replacement part for GE ovens. It is a critical component responsible for generating the heat necessary for baking and cooking food in the oven cavity. Measuring 18 ¼ inches wide and 14 ½ inches deep to the mounting flange. It has an element extension of approximately 2 1/4 inches past the bracket to the terminals. This element is rated at 220 volts and 2300 watts.

Causes of needing to replace the bake element can include normal wear over time, electrical malfunctions, or physical damage from impact or excessive temperature fluctuations.

Symptoms of a faulty oven bake element include:

• Uneven baking or hot/cold spots within the oven
• The oven not heating up to the desired temperature
• Visible signs of damage or burnout on the bake element itself
• Unusual smells or burning odors coming from the oven

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore oven models, ensuring a perfect fit and reliable heat generation for your specific appliance.

The Broil Element is an OEM part for GE ovens. It is designed to provide the high heat necessary for broiling food, such as meats and vegetables, allowing for a quick cooking process that seals in flavors and creates a deliciously crispy exterior.

Causes of a bad Broil Element can include failure due to internal coil damage, burnout from excessive use, or electrical issues such as short circuits or loose connections that prevent it from heating.

Symptoms of a bad Broil Element include:

• The oven not heating up to the set broil temperature.
• Uneven cooking or browning of food.
• No visible glow from the element during operation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
