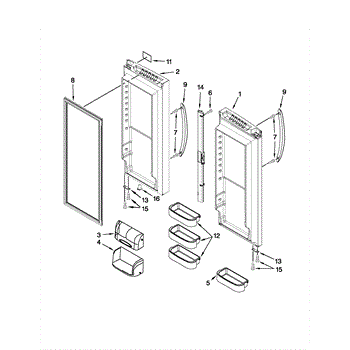

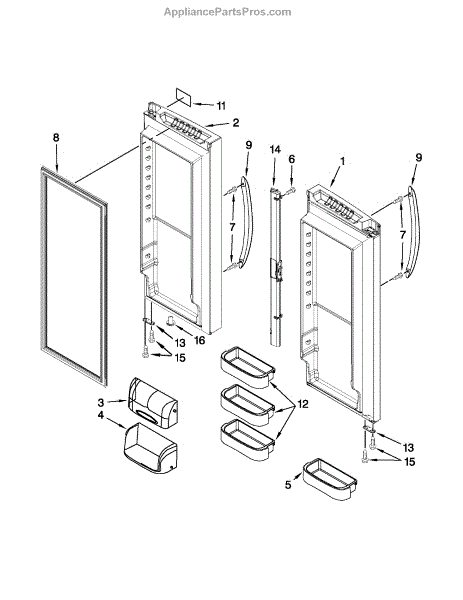

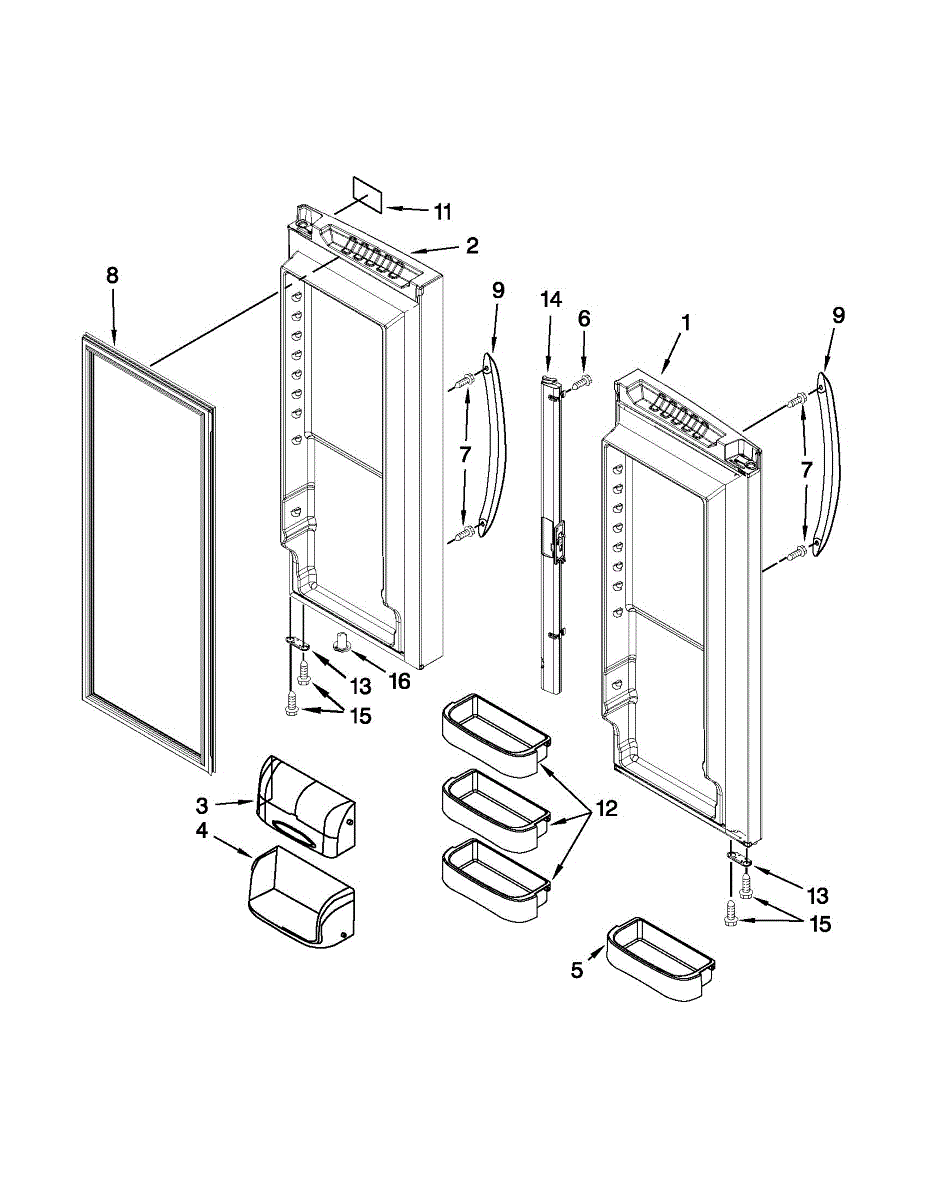

Parts for Kenmore 596.72012016 (59672012016, 596 72012016): Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: clear. Measures about 11 inches wide by 7 inches high.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This is a genuine mounting screw used to secure appliance panels and components. It provides reliable fastening to keep parts aligned and reduce vibration-related noise for safer, quieter operation. What it does:

• Secures panels, brackets, or small components to the appliance frame
• Prevents parts from loosening and causing rattling or misalignment
• Maintains proper part positioning for reliable operation
• Helps reduce vibration and noise when panels are fastened correctly

• Use the correct driver and size to avoid stripping the head
• Tighten until snug; do not overtighten which can strip threads or crack plastic
• Disconnect power before servicing electrical appliances to avoid shock
• If a screw is corroded or damaged, replace all similar fasteners in that area for best results

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Black for Right Hand Door

The Gasket-FIP (BLK) is an OEM part for Whirlpool refrigerators. This gasket is designed to create a tight seal around the refrigerator or freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering.

Causes of a bad gasket can include wear and tear over time, cracks or tears from frequent door openings and closings, and deformation due to improper cleaning or handling. A compromised gasket can lead to energy inefficiency, increased frost build-up, and higher utility bills.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost or condensation buildup
• The door not sealing properly or gaps in the seal
• Higher than usual energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For WHITE gasket, order W10830189.

Color: White
Note: For RH Door. For BLACK gasket, order W11368721.

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This part forms a seal around the refrigerator or freezer door, ensuring that cold air stays inside and warm air stays out. By maintaining a tight seal, the gasket plays a critical role in the appliance's energy efficiency, helping to keep food fresh and safe while minimizing energy consumption.

Over time, door gaskets can lose their elasticity, get torn, or wear out, leading to gaps between the gasket and the refrigerator frame.

Symptoms of a bad Refrigerator Door Gasket include:

• Visible cracks, tears, or wear in the gasket
• Condensation or frost buildup near the door edges
• The refrigerator or freezer door does not close as tightly as it should
• Increased energy consumption as the refrigerator works harder to maintain temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Bin is an OEM part for Whirlpool refrigerators. It is designed to provide additional storage space on the refrigerator door, allowing for organized and accessible storage of items like condiments, beverages, and smaller food packages. The door bin is easy to install and fits securely onto the door to enhance the overall storage capacity of the refrigerator. The bin is approximately 14 x 7 inches.

Over time, frequent use and accidental impacts can cause damage to the bin, compromising its ability to hold items securely. Damage can affect its ability to hold items securely, leading to potential spills or reduced storage efficiency.

Symptoms of a bad door bin include:

• Cracks or splits in the plastic
• Difficulty in securely attaching the bin to the door
• Items falling out or not being held properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

Color: White

The Flapper Door with Mullion Heater is an OEM part for Whirlpool refrigerators. It plays a crucial role in maintaining the proper temperature inside the fridge by sealing the gap between the doors when closed, and the mullion heater prevents condensation build-up.

Causes of a bad flapper door with mullion heater can include wear and tear over time, damage from accidental impacts, or electrical issues affecting the heater's functionality.

Symptoms of a bad flapper door with mullion heater include:

• Warm air entering the refrigerator, causing temperature fluctuations
• Excessive condensation or frost build-up around the door seal
• Increased energy consumption due to the refrigerator working harder to maintain temperature
• Difficulty in closing the refrigerator door properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Guide is an OEM part for Whirlpool refrigerators. It helps to guide and align the refrigerator door during opening and closing, ensuring a smooth and secure fit that maintains the seal and efficiency of the refrigerator.

Causes of a bad door guide can include wear and tear from regular use, physical damage from accidental impact, or misalignment due to improper handling or installation.

Symptoms of a bad door guide include:

• Difficulty in opening or closing the door
• The door not sealing properly
• Visible damage or misalignment of the door guide
• Unusual noises during door operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.
