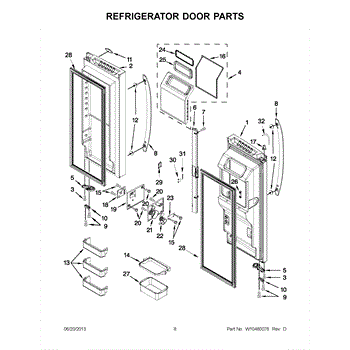

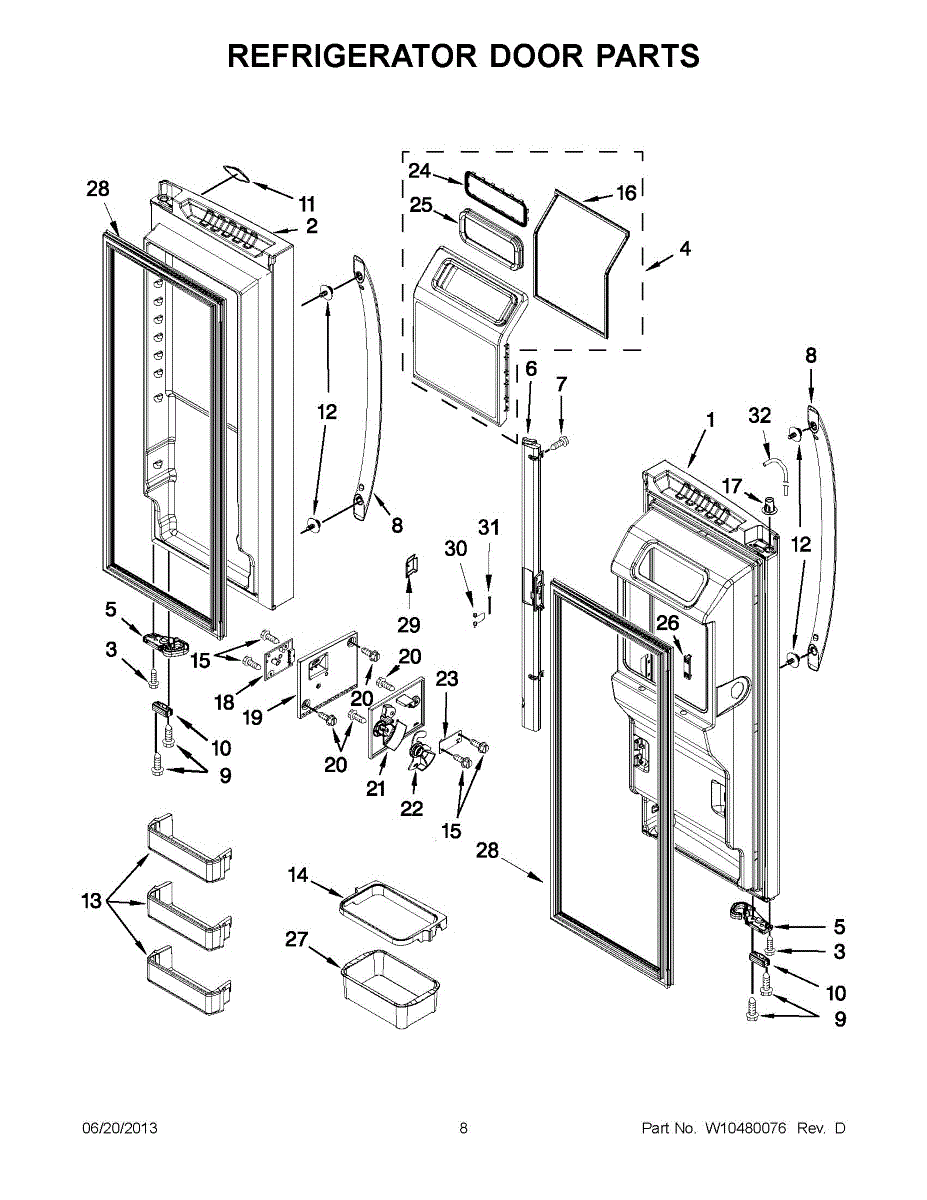

Parts for Kitchenaid KFIS29PBMS00: 04 - Refrigerator Door Parts

This is a replacement 8-18 thread screw used to secure panels and components on compatible Whirlpool appliances. It provides a simple, reliable fastener to restore proper fit and reduce rattling or loose parts. What it does:

• Fastens panels, brackets, or small components where an 8-18 thread screw is required
• Restores secure attachment to stop vibrating, loosening, or misalignment
• Works wherever the OEM 8-18 thread screw is specified in the appliance
• Small, durable fastening solution for routine part replacement

• Use the correct screwdriver or nut driver to avoid stripping the head
• Thread into the mating hole carefully; do not cross-thread
• Tighten until snug—avoid overtightening which can strip threads or crack plastic
• Disconnect power and follow appliance safety guidelines before accessing internal parts

This ice door is the refrigerated freezer dispenser door that directs ice from the dispenser chute and helps keep cold air in the ice chute to reduce clumping. It replaces damaged, cracked or sticking dispenser doors. What it does:

• Seals the ice chute to retain cold air and help prevent ice from melting or clumping
• Opens and closes to allow cubes/crushed ice to pass into the dispenser
• Prevents debris from entering the ice chute when closed
• Restores a smooth, leak-free ice dispensing action and reduces jams

• One ice door assembly

• Turn off power to the refrigerator before starting work
• Handle plastic parts carefully to avoid cracking; use gentle prying where needed
• Verify proper alignment and full travel of the door after installation

This door closer secures the appliance door and helps it close smoothly so the unit seals correctly. It restores proper door engagement and reduces gaps that can cause leaks or operation errors. What it does:

• Acts as the door latch/closer to hold the door shut during operation
• Helps the door close smoothly and stay aligned for a tight seal
• Commonly replaces worn or broken closers that prevent the door from latching
• Can resolve symptoms like a door that won't stay closed, won't latch, or closes unevenly

• Disconnect power and any fuel source before beginning work
• Remove the door or access panel per your model's instructions to reach the closer
• Inspect mounting points and strike before installing; align the latch for smooth operation
• Test the door several times after installation to ensure proper engagement and sealing

This is the refrigerator door mullion, also called the flipper rail. It creates the vertical center seal between the fresh food doors, helping reduce air leaks and condensation so the doors close smoothly and temperatures stay consistent. What it does:

• Swings with the left door to cover the gap between the French doors and seal against the opposing gasket
• Helps minimize warm air infiltration, condensation, and frost at the center post
• Restores proper door closure when the original rail is cracked, bent, or has a failed hinge/spring
• Common symptoms: loose or dangling center rail, doors popping back open, moisture/sweating at the center, visible cracks or broken tabs

• One door mullion (flipper rail) assembly

• Unplug the refrigerator before servicing; turn off water supply if lines run through the door
• Work with the doors supported to avoid misalignment or damage
• Transfer and align the rail on the upper and lower pivots, then secure with existing fasteners
• After installation, the rail flips freely and the doors seal and latch properly

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This trivet is a metal oven broiler support that holds the broiler pan and helps position food for even broiling. It restores correct spacing and support inside the oven so broiling and roasting perform as intended. What it does:

• Supports the broiler pan or drip tray so food sits at the proper height from the broiler element
• Helps promote even browning and consistent broiling results
• Replaces a bent, warped, or missing trivet that can cause unstable pans
• Fits into the oven cavity where the original trivet installs

• One oven trivet

• Install by sliding or seating the trivet into the factory support slots; no tools usually required
• Ensure the oven is completely cool and disconnected from power before handling
• Handle carefully—edges may be sharp and the part may be heavy when metal

This replacement bin door frame restores the outer trim that holds a refrigerator door bin or shelf in place, providing a secure fit and a finished appearance for the storage area. What it does:

• Replaces a cracked, warped, or broken bin door frame that lets the bin wobble or fall out
• Restores proper alignment so doors and bins sit flush and close cleanly
• Prevents gaps that can allow cold air loss around the bin area
• Returns a clean, finished look to the refrigerator interior

• Disconnect power to the appliance before starting any repair
• Remove the old frame by releasing any retaining clips or screws; use hand tools as required
• Handle plastic parts carefully to avoid damage from prying; align new frame before fastening

6 - 19 x .250

This gasket seals the ice compartment door to help maintain proper cold temperatures and reduce frost or moisture buildup inside the ice storage area. A worn seal can let warm air in and harm ice quality. What it does:

• Seals the ice compartment door to help keep ice cold and dry
• Helps reduce frost buildup and excess condensation inside the compartment
• Can improve cooling consistency and reduce strain on the refrigerator
• Common symptom fix: visible gaps, torn or compressed seal, frost or melting in the ice area

• One ice compartment door gasket

• Clean the door surface and channel before installing to ensure a proper seal
• Press the gasket into the door channel evenly, working around the perimeter for a uniform fit
• If needed, loosen or remove the door per the manufacturer's instructions for easier access
• Avoid sharp tools that could damage the gasket; check the seal after installation and allow time for it to fully seat

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This replacement cover is a molded housing piece that protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded while helping reduce noise and debris entry. What it does:

• Protects internal components and wiring from physical damage and contamination
• Helps reduce vibration noise and rattling by covering exposed parts
• Restores a finished appearance to the appliance cabinet or control area
• Can prevent loose parts from shifting during operation

• Disconnect power (unplug appliance or switch off breaker) before beginning service
• Use basic hand tools; support the appliance panel while removing fasteners
• Handle with care to avoid scratching painted surfaces or breaking tabs

This slide is the replacement rack glide that helps a rack roll smoothly in and out of the appliance, restoring proper rack movement and preventing scraping or sticking during use. Fits where the factory rack glide has worn or broken. What it does

• Provides a smooth track for a rack to slide in and out without binding
• Replaces cracked, worn or missing glide that causes rubbing or uneven movement
• Helps keep the rack properly aligned during loading and unloading
• Reduces noise and drag from a damaged or missing glide

• One replacement slide/rack glide

• Remove power supply or disconnect appliance before starting any repair
• Access the glide by sliding the rack out and removing any retainer clips or screws as required
• Snap or screw the replacement slide into place and verify smooth rack movement before restoring power
• If other rack parts are damaged, replace them to ensure proper function

The Ice Level Control Board is an OEM part for Whirlpool refrigerators. This board manages the ice maker’s production by monitoring the ice level in the ice bin, ensuring that ice is made when needed and halting production when the bin is full.

Causes of a bad ice level control board can include electrical issues such as power surges, wear and tear over time, or damage from moisture or debris.

Symptoms of a bad ice level control board include:

• The ice maker not producing ice
• Continuous ice production even when the bin is full
• Error codes related to the ice maker
• Irregular or inconsistent ice production

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement retainer secures the ice chute door assembly inside the dispenser, helping maintain a proper seal and smooth ice dispensing. Use it to restore alignment and reduce frost or dripping at the dispenser opening.

• Secures the ice chute/flapper assembly within the dispenser housing
• Helps keep the chute sealed to minimize warm air entering the freezer
• Replace if the chute door is loose, misaligned, or won't stay closed
• Common symptoms include frost/ice buildup at the chute, ice not dispensing smoothly, or visible damage to the retainer

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the dispenser front/escutcheon to access the chute; note part orientation
• Transfer any reusable hardware and seat the new retainer fully
• Restore power and test ice dispensing and chute door sealing

This ice dispenser chute gasket seals the opening at the freezer door's ice chute, helping block warm, humid air from entering. A proper seal reduces frost and moisture around the dispenser and helps keep ice from clumping near the chute.

• Seals the gap between the ice door/flapper and chute to limit air leaks
• Helps minimize frost, condensation, and ice buildup in the dispenser area
• Replaces a torn, flattened, or missing gasket that prevents a tight seal

• Disconnect power to the refrigerator before servicing
• Remove the dispenser front panel/escutcheon to access the ice door and chute area
• Remove the old gasket, clean the mating surfaces, and seat the new gasket evenly all around
• Ensure the ice door/flapper moves freely and seals uniformly before reassembly

This replacement door shelf bin mounts on the refrigerator door to hold condiments, bottles, and small items. Replacing a cracked or missing bin restores secure door storage and helps keep contents organized and easy to reach.

• Provides a stable storage shelf on the fresh-food door
• Replaces bins with cracks, broken tabs, or that won't stay attached
• Helps prevent tipping or spills when opening/closing the door
• Restores original door storage capacity and organization

• Compare to your original to confirm the correct door position
• Engage lower hooks in the door liner slots, then rotate up until top tabs snap in
• Ensure the bin is fully seated before loading; avoid overloading with heavy items
• Transfer any removable dividers or mats from the old bin if your model uses them

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

A small replacement pin that secures the flipper emitter assembly, restoring correct movement and alignment so the flipper can engage and operate reliably. Ideal when the original pin is bent, worn, or missing. What it does:

• Holds the flipper emitter or lever in place so the mechanism can pivot correctly
• Restores proper movement when a loose or broken pin causes misalignment
• Helps stop clicking, scraping, or intermittent operation related to a damaged fastener
• Serves as a direct-fit replacement designed for the OEM emitter/lever assembly

• One replacement pin as shown

• Disconnect power to the appliance before beginning any repair
• Handle small parts carefully; keep screws and pins organized during disassembly
• Use basic hand tools; no special tools or adhesives are typically required

This replacement water tube restores the appliance's internal water pathway so the dispenser and ice system can receive water. It replaces a cracked or clogged line to stop leaks and restore reliable water flow. What it does:

• Routes water from the inlet to internal components such as the dispenser and ice system
• Prevents leaks when replacing cracked or brittle tubing
• Helps restore water flow when the tube is kinked, clogged, or damaged
• Supports proper ice production and dispenser operation when functioning correctly

• Shut off the water supply and unplug the appliance before starting
• Handle tubing gently to avoid kinks; inspect and replace any worn fittings or seals
• Tighten connections to manufacturer torque recommendations and check for leaks after turning water back on
