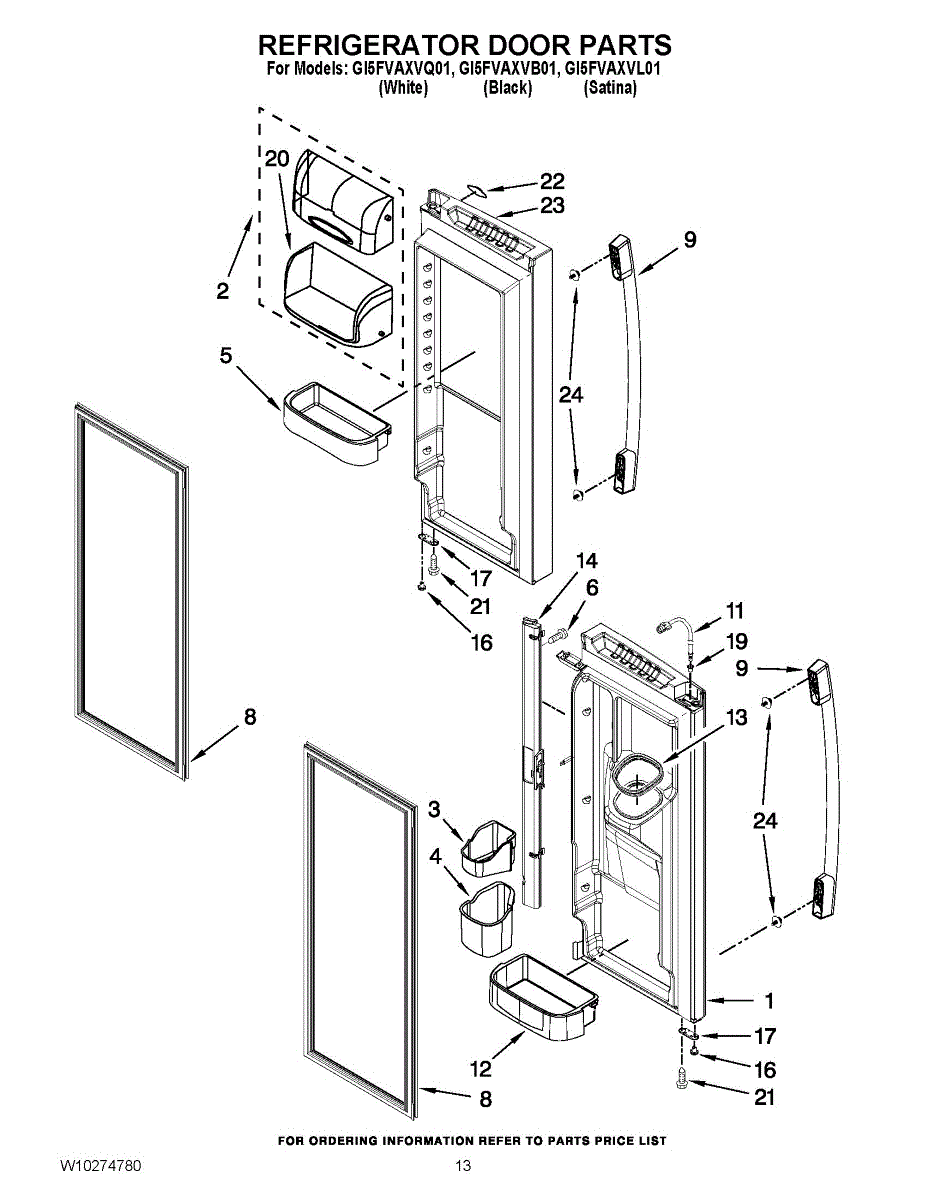

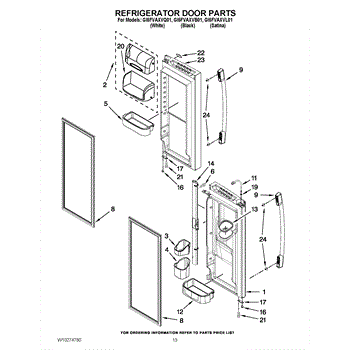

Parts for Whirlpool GI5FVAXVB01: 07 - Refrigerator Door Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This replacement dairy door restores the flip-up cover for the small butter/dairy bin on your refrigerator door. Replace a cracked or missing cover to keep contents contained and your door storage tidy.

• Covers the butter/dairy compartment on the fresh food door
• Flips up for access and down to help secure items
• Helps prevent small items from sliding out of the bin
• Replaces a cracked, broken, loose, or missing cover

• Remove the dairy bin for easier access and alignment
• Align hinge tabs with the bin pivots and press gently until it snaps in
• Avoid forcing cold plastic; let parts warm to room temperature
• If working near electrical components, disconnect power and wear cut-resistant gloves

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black

The Door Gasket is an OEM replacement part for Whirlpool side-by-side refrigerators. This black gasket provides a critical moisture and air seal around the refrigerator and freezer door openings.

Causes of failure may involve cracking or degradation from mechanical stresses or chemical exposure over years of use. Temperature fluctuations can also damage sealing integrity.

Symptoms of a defective door gasket include:

• Excessive frost or moisture buildup inside refrigerator sections
• Higher energy bills from inefficient sealing and cooling loss
• Warm air infiltration impacting optimum storage conditions

This gasket it compatible with additional brands like KitchenAid and Roper.

Color: White

The Refrigerator Door Gasket is an OEM part for Whirlpool refrigerators. This gasket forms a seal around the refrigerator door, ensuring that the cool air stays inside and the warm air stays out. It plays a critical role in maintaining the efficiency and performance of the refrigerator by preventing energy loss.

Over time, door gaskets can wear out, become brittle, or develop cracks and tears. Causes of a bad door gasket include regular wear and tear, exposure to extreme temperatures, or improper cleaning methods that degrade the material.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excess condensation or frost buildup
• The door not sealing properly
• Increased energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door handle assembly replaces a damaged or worn refrigerator door handle to restore a secure grip and smooth opening. It installs in place of the original handle and matches OEM fit and appearance for compatible units. What it does:

• Provides a solid grip for opening and closing the refrigerator door
• Replaces cracked, loose, or cosmetically damaged handles
• Restores correct alignment so the door closes and seals properly
• Matches factory styling and mounting points for a direct replacement

• Disconnect power and empty the door area before starting to avoid injury or damage
• Typical installation uses basic hand tools (screwdriver/socket) to remove the old handle and secure the new one
• Support the door while loosening/tightening fasteners to prevent strain on hinges
• Do not overtighten screws; follow torque guidance from the appliance manual

This is a replacement appliance handle designed to restore a secure, comfortable grip and the original appearance of your appliance door. It lets you open and close the door safely and reliably when the original handle is damaged or worn. What it does:

• Provides a secure grip for opening and closing the appliance door
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Restores proper alignment and fit where the handle mounts to the door
• Helps prevent further wear or damage from using a compromised handle

• One replacement handle

• Disconnect power to the appliance before beginning any repair
• Verify correct orientation and alignment before tightening fasteners
• Use basic hand tools (screwdriver, nut driver) as required by your model
• Inspect mounting hardware; replace any stripped or damaged screws for a secure fit

Restore a secure, comfortable grip with this black replacement handle. It refreshes the look of your appliance and makes opening the door or drawer feel smooth and confident again when the original handle is cracked, loose, or missing.

• Provides a sturdy handhold to open and close the appliance door or drawer
• Common symptoms: cracked or broken handle, looseness, wobble, or missing handle
• Helps resolve difficulty opening the door due to a damaged or unstable grip
• Color-matched black finish to maintain a consistent appearance

• Disconnect power to the appliance before servicing
• Access the handle's mounting screws from the inner side of the door/drawer; some models require removing inner trim
• Support any glass/inner panel while removing and reinstalling the handle
• Reuse existing hardware where applicable; tighten screws evenly and check operation

This door waterline is the replacement tube that routes potable water through the refrigerator door to the dispenser/ice system, restoring reliable water flow and preventing door-area leaks. What it does

• Carries water from the refrigerator cabinet to the dispenser/ice door assembly.
• Replaces cracked, kinked, or clogged tubing that can reduce dispenser flow or stop water delivery.
• Stops leaks that originate inside or at the door hinge area when the original line is damaged.
• Restores proper water supply to ice makers and chilled water dispensers that draw through the door.

• Disconnect power and shut off the water supply before starting replacement.
• Inspect and, if needed, replace any associated quick-connect fittings or O-rings to ensure a watertight seal.
• Avoid sharp bends or kinks when routing the new tube through the door hinge area.
• After installation, turn the water back on and check all connections carefully for leaks.

The Door Shelf Bin is an OEM part for Whirlpool refrigerators. Positioned within the refrigerator door it provides organized storage for condiments, beverages, and other smaller items. This bin measures approximately 7.5” deep x 14” wide x 3.5” high.

Causes of a bad door shelf bin include normal wear and tear, overloading or misuse of the bin, or impact damage from dropped items.

Symptoms of a bad door shelf bin include:

• The bin cracking, breaking, or becoming dislodged from the door
• Items falling out of the bin easily
• Reduced storage capacity in the refrigerator door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Chute Seal is an OEM part for Whirlpool refrigerators, specifically designed to maintain the efficiency and functionality of the ice dispenser system. This crucial component creates a tight seal around the ice chute, preventing cold air from escaping the freezer compartment and blocking warm air from entering.

Causes of a bad ice chute seal can include regular wear and tear, exposure to temperature fluctuations, and repeated opening and closing of the ice chute. A compromised seal can lead to air leaks, causing ice to melt or form frost around the dispenser area.

Symptoms of a bad Ice Chute Seal include:

• Frost or ice buildup around the ice chute area.
• Increased energy consumption as the refrigerator works harder to maintain its internal temperature.
• Moisture or water leakage around the dispenser, indicating air leaks.
• Difficulty dispensing ice, possibly due to frost or ice blockages.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door mullion is the vertical flipper rail that mounts to a refrigerator French door. It swings closed to cover the center gap, helping complete the door seal and reduce warm air leaks and condensation between the doors.

• Provides the pivoting center rail that mates with the opposite door to complete the seal
• Replace if cracked, broken, warped, or if the flipper won't fold or spring closed
• Common symptoms: door won't close smoothly, visible gap/light between doors, moisture or frost along the center seam
• Helps restore a proper air seal for consistent cooling performance

• Disconnect power and clear door bins before servicing
• Open the door; release the upper and lower retainers and lift the old mullion off its hinge points
• Position the new mullion, secure the retainers, and verify it pivots and seals correctly
• Check door alignment and gasket contact along the center seam

This refrigerator door flipper mullion is the folding center rail that bridges the gap between the doors. It helps complete the door seal and reduces condensation along the center for better temperature retention.

• Bridges the gap between doors to complete the center seal and improve efficiency
• Folds out of the way when a door opens; flips into place as the doors close
• Helps limit moisture/sweating at the middle of the refrigerator
• Replaces a cracked, loose, or broken mullion that causes air leaks, doors popping open, or poor sealing

• Disconnect power before servicing; remove door bins for access
• Remove mounting screws; lift off the assembly and disconnect the harness if equipped
• Transfer any end caps/brackets; ensure spring orientation and proper wire routing during reassembly
• After installation, verify smooth flipping action and a continuous gasket seal down the center

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Closure is an OEM part for Whirlpool refrigerators. It is a critical component responsible for ensuring the proper sealing and closure of the refrigerator door, maintaining the desired temperature and preventing air leaks.

A faulty or worn door closure can lead to issues such as inadequate cooling, increased energy consumption, and potential food spoilage. Causes of a bad door closure may include normal wear and tear over time, physical damage from impact or mishandling, or compatibility issues with the specific refrigerator model.

Symptoms of a faulty Door Closure include:

• Air leaks around the door seal, causing cooling inefficiency
• Difficulty in opening or closing the refrigerator door
• The door not sealing tightly or feeling loose when closed
• Visible cracks, breaks, or damage to the door closure mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

This white door stop limits how far the door swings open, helping protect hinges and nearby surfaces. Replace a worn or missing stop to restore the intended opening range and smooth, controlled door movement.

• Limits door swing to prevent overextension and impact
• Helps protect door hinges and surrounding cabinetry
• Restores proper opening range when the original stop is cracked or missing
• Common signs: door opens too wide, door hits adjacent surfaces, visible broken/missing stop

• Disconnect power and clear items from the door before service
• Support the door to prevent strain on the hinges
• Remove hinge cover and fasteners as needed, swap the stop, and reassemble
• Open and close the door to verify proper swing and gasket seal

This left door bushing supports a refrigerator/freezer door hinge for smooth, stable operation and helps prevent wear and noise. It restores proper door movement and alignment when the original bushing is worn or damaged. What it does:

• Guides and cushions the door hinge to reduce friction and wear
• Helps stop door binding, sticking, or misalignment
• Reduces squeaks and rattles from a loose or worn hinge area
• Maintains consistent door pivot for reliable opening and closing

• Disconnect power to the appliance before attempting any repair.
• Access may require removing the door or hinge trim; follow manufacturer instructions.
• Inspect hinge and surrounding parts for wear; replace any damaged hardware for best results.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Color: For white, black and bisque models.
