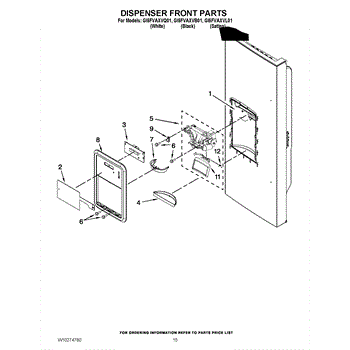

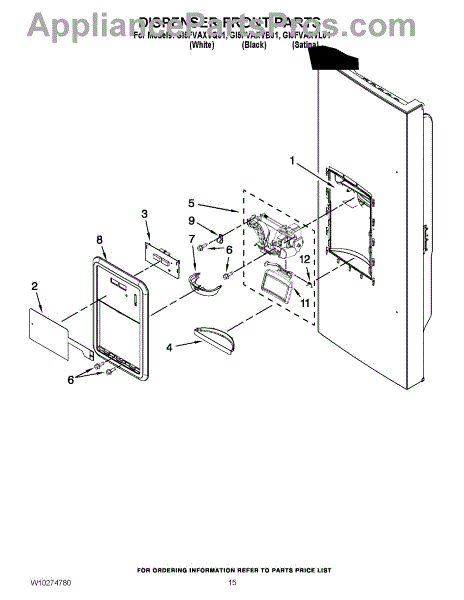

Parts for Whirlpool GI5FVAXVB01: 08 - Dispenser Front Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This electronic control board is the appliance's main control module that manages cycles, timing, and user commands so the unit operates as designed. Replacing a failed control restores normal electronic control functions. What it does:

• Receives input from the user interface and sensors to start and regulate cycles
• Controls timing, valves, motors, and heaters based on programmed logic
• Common symptoms: no power to controls, unresponsive buttons, erratic operation, or appliances that won't start

• Always disconnect power (unplug or shut off circuit breaker) before starting service
• Handle the board carefully and avoid static discharge; use anti-static precautions if available
• Compare the replacement board to the original to ensure matching connectors and mounting before installation

This electronic control board is the appliance's central control module, routing power to key components and executing the programmed logic. Replacing a failed board can restore normal operation when controls are unresponsive or the unit behaves erratically. What it does:

• Regulates power to motors, valves, fans, heaters, and lights according to control logic
• Monitors inputs from sensors and switches to manage operation and safety
• Communicates with the user interface to accept and execute commands
• Common failure signs: no response, won't start, intermittent shutdowns, error codes, or relay clicking

• One electronic control board

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board by edges and use anti-static precautions; avoid touching connector pins
• Photograph wire routing; transfer connectors one at a time to matching terminals
• Secure the board and verify all harnesses are fully seated before restoring power and running diagnostics per the service guide

This electronic control board is the brain of your appliance, managing power, timing, and user inputs. Replacing a failing board can restore responsive controls, accurate cycles, and reliable operation when the original becomes unresponsive or erratic. What it does:

• Distributes power and timing to relays and components according to selected settings
• Interfaces with the keypad/touch controls and display
• Monitors sensors/switches and executes programmed cycles
• May address symptoms such as no display, unresponsive buttons, won't start, cycles that won't advance, random beeping, or error codes

• 1 electronic control board

• Disconnect appliance from power before servicing; verify no voltage is present
• Use ESD protection and handle the board by the edges
• Photograph/document all wire harness connections; move connectors one at a time
• Transfer any mounting brackets or jumpers from the original board as needed
• After installation, run service diagnostics or control calibration if the model provides it

This chute extension yoke is a replacement plastic mounting piece that secures and aligns the chute assembly for proper material flow and door fit. It restores correct positioning so the chute operates as intended. What it does:

• Secures and aligns the chute/door assembly to prevent misalignment and binding
• Guides material or airflow through the chute for consistent operation
• Replaces cracked, worn, or broken yoke surfaces that cause fit issues
• Helps reduce rattling or movement from a loose chute connection

• One chute extension yoke

• Inspect mating surfaces and fasteners; replace any damaged clips or screws
• Installation typically requires basic hand tools and access to the appliance's chute area
• Disconnect power (or unplug appliance) and follow the manufacturer's safety instructions before servicing

This chute extension yoke is the pivoting lever inside the dispenser that supports the ice chute extension in select refrigerators. Replacing a broken or worn yoke restores smooth, reliable dispenser actuation when you press your glass.

• Provides the pivot point and support for the chute extension behind the dispenser opening
• Transfers your push to the dispenser switch to start dispensing
• Helps keep the chute area aligned for consistent dispensing
• Common symptoms: broken or loose dispenser lever, dispenser won't activate when pressed, lever sticks or fails to return

• Disconnect power to the refrigerator before servicing the dispenser
• Remove the dispenser trim and cover to access the yoke
• Note the orientation and any springs/pins; transfer existing hardware from the old yoke to the new one
• Reassemble, restore power, and test for smooth lever action and proper switch engagement

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This target ring is a small trim piece that restores the original fit and appearance around a control button or panel opening. Replacing a damaged ring helps ensure clean button engagement and a finished look. What it does:

• Serves as the trim/target around a control button or panel opening
• Keeps the button aligned for consistent engagement and operation
• Restores finished appearance when the original ring is cracked, warped, or missing
• Prevents debris from collecting around the control area

• One replacement target ring

• Disconnect the appliance from power before attempting replacement
• Usually installs by snapping into place or securing with retained fasteners — handle gently to avoid breaking tabs
• Confirm proper button movement and secure fit before returning appliance to service

Color: White

Color: Black

The Ice Chute Door Spring is an OEM part for Whirlpool refrigerators. This part returns the ice chute door to its closed position after ice has been dispensed, ensuring the door remains sealed to maintain proper temperature and efficiency.

Causes of a bad ice chute door spring can include wear and tear over time, corrosion from exposure to moisture, or damage due to repeated use or mishandling.

Symptoms of a bad ice chute door spring include:

• The ice chute door not closing properly
• Ice or frost buildup around the ice chute
• Warm air entering the freezer compartment
• Difficulty in dispensing ice

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
