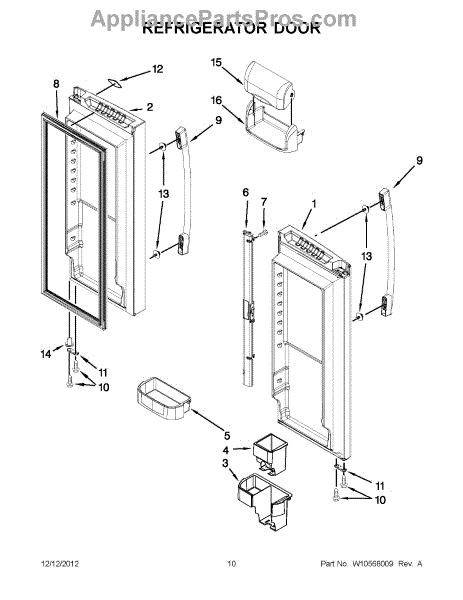

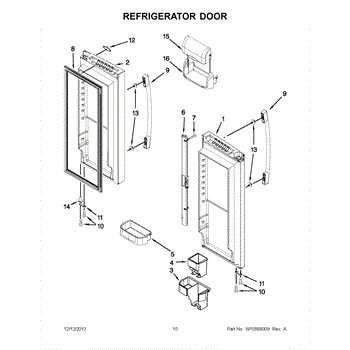

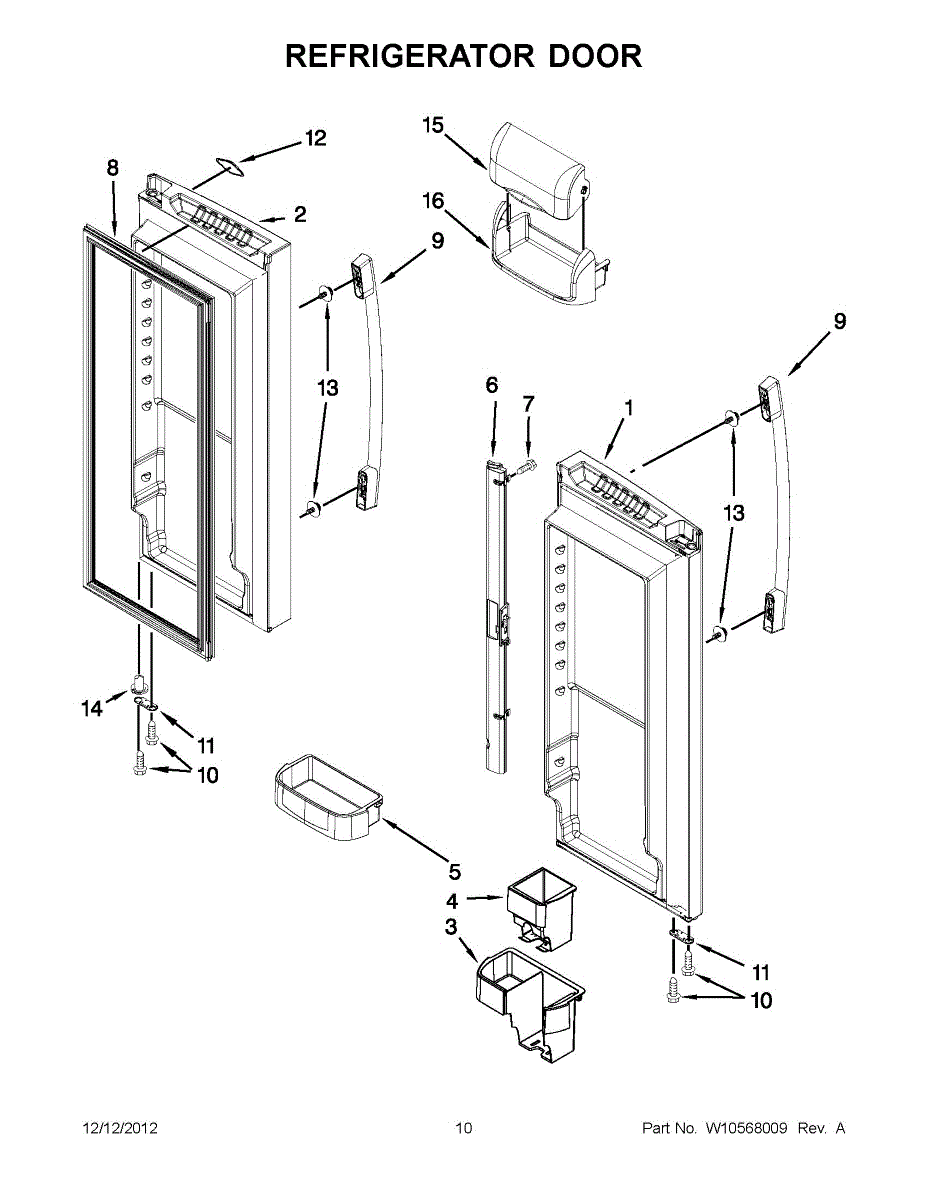

Parts for Whirlpool GX2FHDXVB07: 05 - Refrigerator Door Parts

The Can Dispenser Sleeve is an OEM part for Whirlpool refrigerators. It is designed to hold and organize cans within the refrigerator door, making it easy to store and access beverages efficiently.

Causes of a bad can dispenser sleeve can include wear and tear over time, physical damage from overloading or mishandling, or cracks and breaks due to frequent use.

Symptoms of a bad can dispenser sleeve include:

• Difficulty in securely holding cans
• Cracks or visible damage to the sleeve
• Cans falling out or not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: This is the can dispenser sleeve. For the can dispenser bucket use part number WPW10169346.

This Door Shelf Bin replaces a broken or worn refrigerator door bucket to restore secure storage on the door and keep bottles and small items organized. Designed to mount into the door retainer for stable, everyday use. What it does:

• Provides a dedicated shelf on the refrigerator door to hold bottles, condiments and small containers.
• Replaces cracked, warped or loose bins that allow items to shift or fall when the door opens and closes.
• Restores proper spacing and containment to prevent spills and improve interior organization.
• Matches factory mounting points so the bin seats into the door retainer for a secure fit.

• One door shelf bin

• Disconnect power or unplug the refrigerator before starting any repair to avoid injury.
• Remove all items from the door shelf, then lift and pull the old bin out of the door retainer; retain any clips or screws for re-use if present.
• Align the new bin with the door rails/retainer and slide it into place until it seats; some models may use clips or screws.
• Inspect door retainer clips and mounting points for damage during installation; replace damaged hardware to ensure a secure fit.

This clear refrigerator door bin snaps into the inner door liner to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure door storage and keep frequently used items organized and within reach.

• Provides removable shelf storage on the refrigerator door
• Replace if the bin is cracked, warped, or has broken locking tabs
• Common symptoms: bin falls off, won't stay seated, or won't install securely
• Restores proper door capacity and helps prevent spills

• Remove the old bin by lifting up and out of the door slots
• Align the new bin's hooks with the door slots and press down firmly until fully seated
• Ensure both ends are fully engaged; test with a light load before filling
• Distribute weight evenly and avoid overloading

The Door Shelf Bin is an OEM replacement part for Whirlpool refrigerators. It is a specialized storage compartment designed to fit the refrigerator door, providing convenient and organized storage space for smaller items such as condiments, jars, or bottles. The bin measures approximately 15 inches wide, 3 inches high, and 6 inches deep.

Causes of a damaged or unusable door shelf bin can include physical impact, cracks or breaks due to excessive weight or pressure, or general wear and tear over time.

Symptoms of a door shelf bin that needs replacement include:

• Cracked or broken shelves, making it difficult to store items securely
• Warping or misshaping, preventing a proper fit in the door compartment
• Missing or loose components, resulting in items falling out or shifting during use

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The Door Guide is an OEM part for Whirlpool refrigerators. It helps to guide and align the refrigerator door during opening and closing, ensuring a smooth and secure fit that maintains the seal and efficiency of the refrigerator.

Causes of a bad door guide can include wear and tear from regular use, physical damage from accidental impact, or misalignment due to improper handling or installation.

Symptoms of a bad door guide include:

• Difficulty in opening or closing the door
• The door not sealing properly
• Visible damage or misalignment of the door guide
• Unusual noises during door operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

Color: Black
Note: For left door

The Door Gasket is an OEM part for Whirlpool refrigerators. It creates an air-tight seal around the refrigerator and freezer doors, keeping cool air in and external heat and moisture out. The resilient gasket material can maintain flexibility through hundreds of open and close cycles.

Symptoms of a bad door gasket can include cracking or splitting of the rubber seal, gashes or punctures that breach the barrier, or warping so that a flush seal can no longer form.

Symptoms of a bad door gasket include:

• Cooler air leaking from door openings
• Defrost issues or frost build-up
• Inability to maintain set temperatures
• Moisture collection inside door interiors

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Black for Right Hand Door

The Gasket-FIP (BLK) is an OEM part for Whirlpool refrigerators. This gasket is designed to create a tight seal around the refrigerator or freezer door, helping to maintain the internal temperature by preventing cold air from escaping and warm air from entering.

Causes of a bad gasket can include wear and tear over time, cracks or tears from frequent door openings and closings, and deformation due to improper cleaning or handling. A compromised gasket can lead to energy inefficiency, increased frost build-up, and higher utility bills.

Symptoms of a bad gasket include:

• Warm spots inside the refrigerator or freezer
• Excessive frost or condensation buildup
• The door not sealing properly or gaps in the seal
• Higher than usual energy consumption

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: For WHITE gasket, order W10830189.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This replacement screw fastens appliance panels, brackets, and internal components so everything stays aligned and rattle-free. Use it to replace stripped, corroded, or missing hardware and restore a solid, secure fit during repairs.

• Secures panels, brackets, covers, and assemblies in place
• Replaces damaged or missing hardware to maintain a firm hold
• Helps reduce vibration and rattling from loose fasteners
• Supports proper fit and alignment after service

• Disconnect power and shut off water/gas (as applicable) before servicing
• Match to the original fastener and replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; do not overtighten, especially into plastic
• Repair threads or use the manufacturer-specified hardware for that location

Color: Black

The Door Closure is an OEM replacement part for Whirlpool refrigerators. It is a small component that the door rides on that allows it to open and close properly.

Causes of impaired operation involve age-related spring coil fatigue, dislodged or cracked plastic housing pieces, or confined door alignment stripping closure grooves.

Symptoms of a faulty closure include:

• Cool air escaping around door edges driving up energy costs
• The fridge unable to maintain set interior temperatures
• Inability to securely latch doors closed

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

Replace a cracked or missing dairy tray on your refrigerator door. This door bin restores a dedicated spot for butter and small items so they stay organized and easy to reach while maintaining a secure fit on the door.

• Mounts on the refrigerator door as the dairy compartment tray
• Holds butter, cheese, and other small items securely
• Restores proper fit when the original tray is cracked, warped, or missing
• Common symptoms: broken tabs, tray falls off, loose/wobbly fit, items spilling when the door opens

• Open the door, lift the old tray straight up and out; align the new tray with the door slots and lower until fully seated
• Handle plastic parts gently and avoid forcing; allow parts to warm to room temperature to reduce risk of cracking
• Confirm both sides are fully engaged before loading items

Color: clear. Measures about 11 inches wide by 7 inches high.
