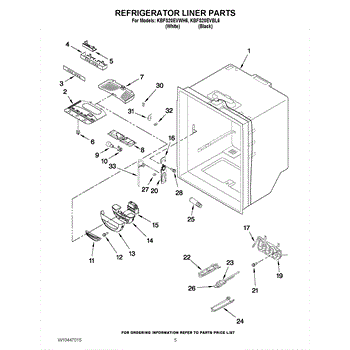

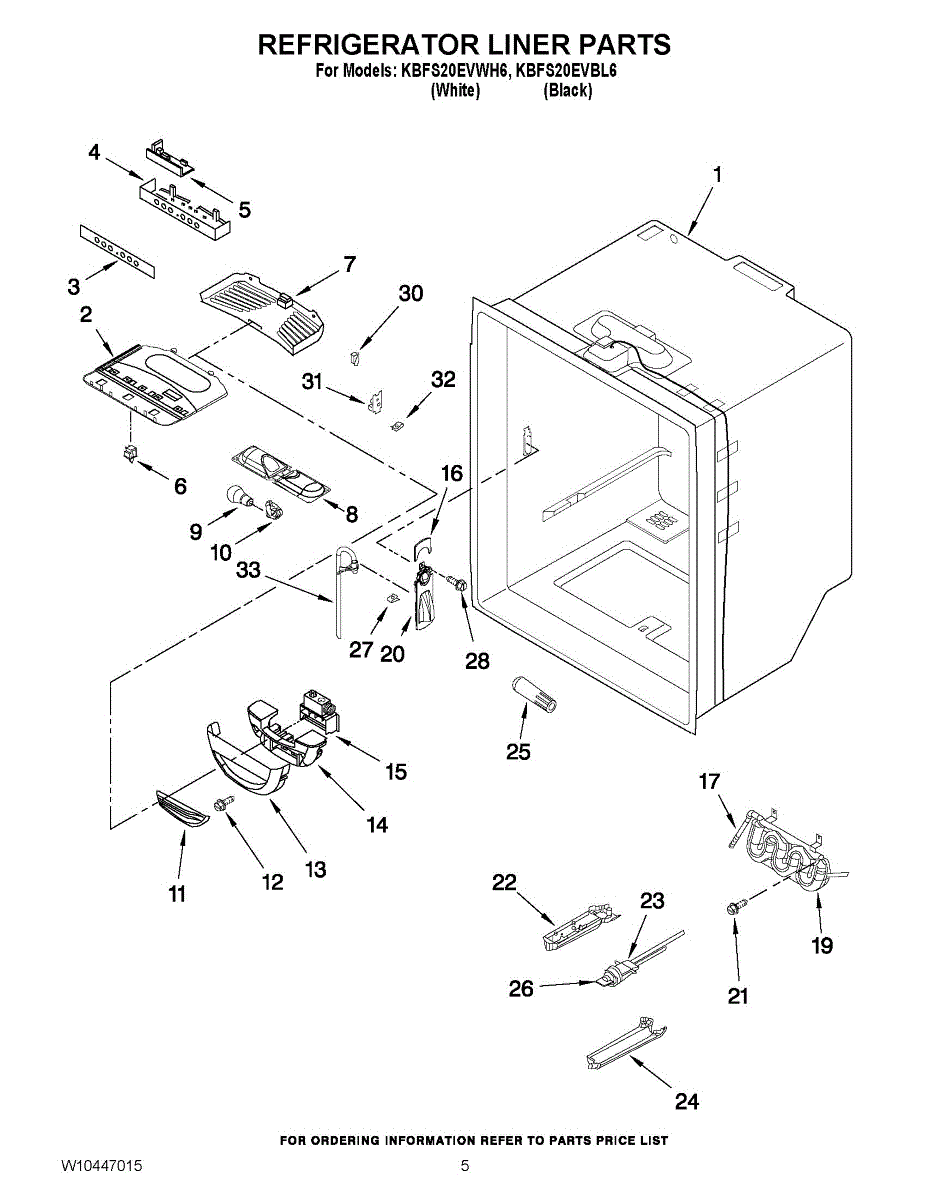

Parts for Kitchenaid KBFS20EVWH6: 03 - Refrigerator Liner Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Replacement control panel overlay for refrigerators. Restores clear button labels when printed text is worn, faded, or peeling. French-language version.

This is a protective housing that encloses the electronic control board in a refrigerator. It shields the control board from moisture, dust, and physical damage while keeping wiring connections secure. Replace this housing if it is cracked, warped, or broken, as a damaged housing can leave sensitive electronics exposed and lead to control board failure.

Refrigerator not cooling or maintaining temperature? This control board manages cooling cycles and defrost timing. Moderate difficulty installation.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

Replaces cracked or broken refrigerator light covers. Protects bulb and shields components from moisture. Slides into place with mounting tabs. Verify fit.

Freezer or fridge light not working even with a new bulb? This light socket provides the electrical connection. Basic DIY repair with video guide.

Plastic insert that seats inside the refrigerator air damper cover to guide airflow from freezer to fresh food. Replace when cracked, broken, or missing.

Plastic cover that protects and supports the damper assembly in your refrigerator. Replace if cracked, broken, or missing to keep airflow components secure.

Reduces heat transfer in your refrigerator cabinet for efficient cooling and less frost buildup. Replace if damaged or deteriorated. Verify fit by model.

Refrigerator making clicking or knocking noises? A faulty damper control causes noise and uneven cooling. Easy DIY repair—remove cover, swap unit in minutes.

Dispenser facade cracked or discolored? This trim assembly restores your refrigerator's dispenser appearance and proper fit. Straightforward install.

Connects water line sections in your refrigerator. Replace if cracked, leaking, or damaged to restore secure connections to ice maker and dispenser.

Stores chilled water in the fresh food compartment for steady dispenser flow. Replace if cracked, leaking, or damaged to stop interior leaks.

Replacement mounting screw for refrigerators, ranges, and other appliances. Replaces lost, stripped, or damaged screws during repairs or maintenance.

Secures your refrigerator's water filter in place for proper filtration. Replace if cracked, chipped, or filter won't stay locked. Confirm fit by model number.

Protective cover that secures and encloses the water filter in your refrigerator's interior. Replace if cracked, broken, or tabs are damaged.

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Bypass cap replaces water filter when filtration isn't needed. Install when using RO system or preferring unfiltered water. Confirm fit with your model.

Secure mounting clip for refrigerator interior components. Replaces broken, cracked, or missing clips that hold shelves, drawers, or panels in place.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

This wire harness connects the freezer/fresh-food control assembly to the refrigerator's wiring, restoring proper signal and power routing so controls and sensors communicate reliably. Designed to replace a damaged or worn control harness. What it does:

• Routes power and signal between the freezer/fresh-food control board and connected components
• Restores communication to sensors, switches, and control circuits
• Common symptom: control errors, intermittent cooling, or non-responsive controls when harness is damaged
• Prevents intermittent connections caused by frayed wires, broken terminals, or loose plugs

• Disconnect power to the appliance before attempting any repair
• Handle connectors and terminals carefully to avoid bending pins or causing additional damage
• Route harness along original wire paths and secure with existing clips or ties; avoid sharp edges and heat sources
