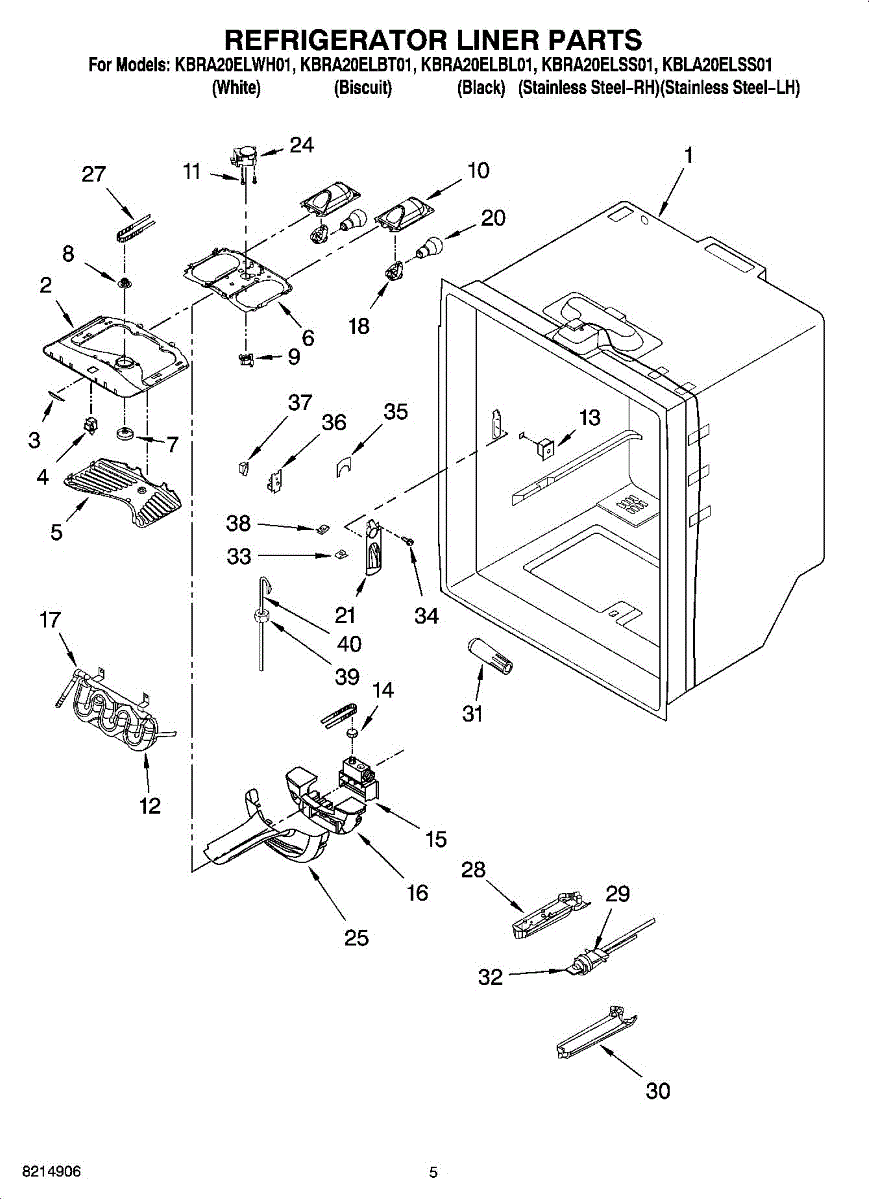

Parts for Kitchenaid KBRA20ELBL01: 03 - Refrigerator Liner Parts

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Refrigerator light won't turn off or on? The door switch detects when the door opens and closes. Easy 5-minute DIY repair with a pick tool or scraper.

This replacement pan-timer/light housing assembly secures the timer and light components behind the control panel and restores proper fit and operation. Use it when the original housing is cracked, loose, or not holding the lamp/timer correctly. What it does:

• Provides the mounting structure for the timer and control panel light so components sit securely
• Keeps the light assembly aligned to illuminate the control area
• Prevents rattling or movement of timer/light parts caused by a damaged housing
• Safe, common symptom fix for visible cracks, loose control trim, or intermittent light alignment

• One pan-timer/light housing assembly

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the control panel or trim; handle plastic tabs and clips carefully to avoid breakage
• Reinstall screws and connectors to factory torque; do not force parts into position
• If wiring or bulbs are damaged, replace those items separately

Gear knob for refrigerators. Installs on control mechanisms to adjust settings. Replace if cracked, broken, worn, or missing for proper operation.

This outer cabinet housing provides a durable structural shell that supports internal components and protects them from debris and wear. It restores proper alignment and enclosure for safe, stable appliance operation. What it does:

• Replaces a cracked, dented, or misshapen outer housing that can allow debris or moisture into the appliance
• Restores proper mounting surfaces and clearances for panels, controls, and internal assemblies
• Helps reduce rattling or vibration caused by a compromised cabinet
• Prevents exposure of internal wiring and components to contaminants

• One outer cabinet housing

• Recommended for experienced DIYers; some disassembly of panels and components is required
• Disconnect power and any water lines before beginning work
• Keep track of screws and brackets; some fasteners may be reused

Connects water line sections in your refrigerator. Replace if cracked, leaking, or damaged to restore secure connections to ice maker and dispenser.

Freezer or fridge light not working even with a new bulb? This light socket provides the electrical connection. Basic DIY repair with video guide.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

Freezer icing up or fridge warm while freezer works? The defrost timer controls defrost cycles. DIY-friendly fix in about 1 hour, saves $150+ on service.

Secures your refrigerator's water filter in place for proper filtration. Replace if cracked, chipped, or filter won't stay locked. Confirm fit by model number.

Protective cover that secures and encloses the water filter in your refrigerator's interior. Replace if cracked, broken, or tabs are damaged.

2 pack of water filters.

Replace your refrigerator water filter every 6 months to ensure clean, fresh-tasting water and ice. Easy twist-on installation. Verify fit with your model.

Bypass cap replaces water filter when filtration isn't needed. Install when using RO system or preferring unfiltered water. Confirm fit with your model.

Secures refrigerator water tube to cabinet, preventing shifting and rubbing. Replace if cracked or loose. Verify fit with your model number.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

Dispenser facade cracked or discolored? This trim assembly restores your refrigerator's dispenser appearance and proper fit. Straightforward install.

Restores the outer housing on your refrigerator. Replaces a cracked, broken, or missing cover panel. Shields internal components from dust and debris.

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

Secure mounting clip for refrigerator interior components. Replaces broken, cracked, or missing clips that hold shelves, drawers, or panels in place.

This is a plastic guide that secures and routes the water supply line inside the refrigerator. It keeps the tubing properly positioned so it doesn't kink or interfere with moving parts like drawers or shelves. Replace this guide if it is broken or missing, which can cause the water line to become pinched, kinked, or disconnected.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
