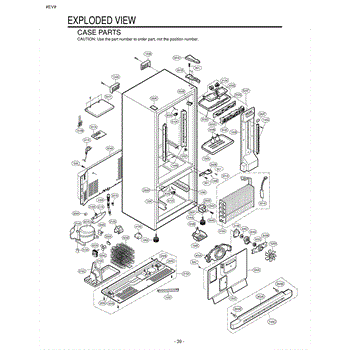

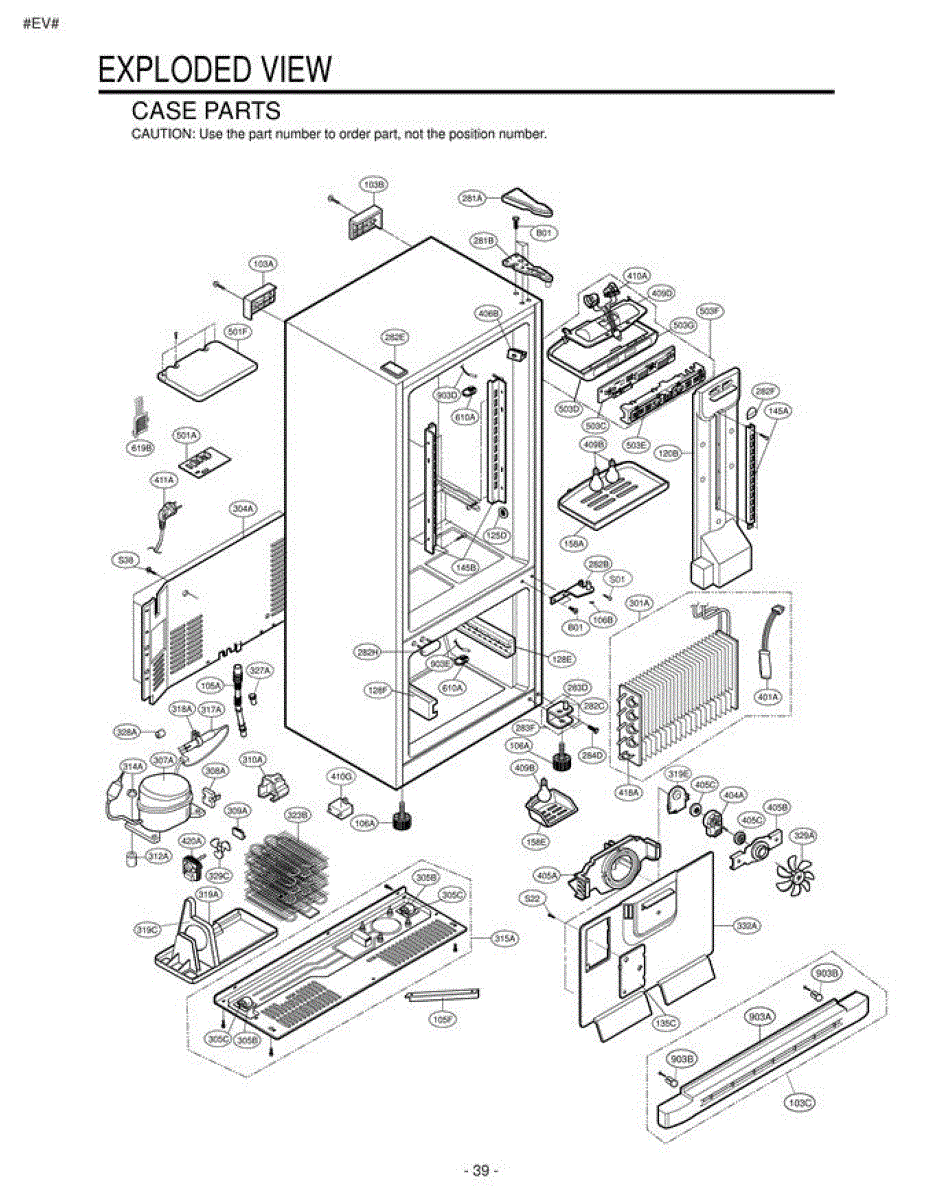

Parts for Lg LRBC20512TT / ATICLGG: Section 1 Parts

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This small fastener washer restores proper spacing and support under a screw or nut in your appliance. It helps distribute clamping force, protect mounting surfaces, and keep brackets and panels secure during normal operation and vibration. What it does:

• Distributes load under a screw or nut to prevent damage to the mounting surface
• Helps maintain correct spacing and alignment of the attached components
• Aids in keeping fasteners secure under vibration when assembled correctly
• Common symptoms: missing or damaged washer, loose/rattling parts, fastener won't tighten flush

• One washer

• Disconnect power and shut off water supply before servicing
• Note the original hardware order and orientation; replace any deformed or corroded pieces
• Install the washer flat against the mating surface under the fastener head or nut
• Tighten fasteners securely; do not overtighten to avoid stripping threads or deforming parts

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

A small plastic hinge cap that covers and protects a refrigerator/freezer door hinge, restoring a finished appearance and shielding the hinge from dust and debris. Simple replacement for a cracked, broken, or missing cap. What it does:

• Covers the exposed door hinge to improve appearance and protect moving parts
• Helps keep dirt, lint, and debris out of the hinge area
• Prevents sharp or rough hinge edges from catching on clothing or food-packaging
• Replaces cracked, broken, or missing hinge caps that leave the hinge exposed

• Support or brace the door before removing or replacing hinge covers to avoid door movement
• Use basic hand tools as needed; remove nearby trim or screws per the appliance service instructions
• Check fit and orientation before tightening any fasteners; do not force or snap parts beyond their designed engagement

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This overload protector is a safety device that helps prevent compressor damage by stopping electrical current during overheating or locked-rotor conditions. It's a direct-fit replacement that restores proper compressor protection and helps keep the appliance running safely. What it does:

• Protects the compressor by interrupting power if the motor overheats or experiences an electrical fault
• Common symptom: refrigerator runs but compressor won't start or only hums
• Common symptom: fridge cycles frequently or doesn't maintain temperature due to compressor protection tripping
• Works with the start device to help ensure reliable compressor startup

• Disconnect power before servicing; work only with the appliance unplugged
• Access typically requires removing the rear access panel to reach the compressor area
• Replace using the same mounting and terminal connections; ensure secure electrical connections

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

This genuine OEM part is a control board assembly for refrigerators. The control board assembly is the main circuit board that controls the refrigerator's primary functions such as adjusting and maintaining temperature. Over time, a refrigerator's control board can become inoperable due to excessive use. If the refrigerator is no longer cooling and failing to maintain its desired temperature, the control board might need to be replaced.To replace the control board assembly, start by unplugging the refrigerator. After that, proceed to open the freezer door and uninstall the side panel to gain access to the old control board. Once accessed, remove the wire harness and any individual wires attached to the control board assembly. Unfasten the mounting screws holding the assembly in place, and pull the control board out. Set it to the side, and proceed to install the new board. Reattach the wires in their correct terminals, and reinstall the side panel. This authentic replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with LG brand refrigerators.

This outer housing cover protects internal components and gives the appliance a finished appearance. It replaces a cracked, damaged, or missing panel to restore protection and reduce rattling. What it does

• Shields motors, controls, and wiring from dust and debris
• Prevents foreign objects from contacting internal parts
• Reduces vibration noise caused by loose or broken panels
• Restores the appliance's exterior fit and finish

• One outer housing cover

• Disconnect power to the appliance before starting any work
• Remove any trim, screws, or clips holding the old cover in place; keep fasteners for reassembly
• Handle the cover carefully to avoid scratching the finish or damaging mounting tabs
• Replace any broken clips or fasteners before finishing installation

This decorative control panel covers and protects the appliance's user controls while giving the console a finished appearance. It restores the look and button access so you can see and press the controls normally. What it does:

• Replaces a cracked, faded, or damaged decorative panel that surrounds the control buttons
• Restores proper button labeling and tactile surface for reliable user input
• Helps protect the underlying control board and switch assembly from spills and wear
• Reduces light bleed or obscured buttons from cosmetic damage

• Disconnect power before beginning any repair to avoid shock or damage
• Removal typically requires opening the console and removing fasteners; keep track of screws and clips
• Handle edges and buttons gently to avoid scratching or bending the panel
• Inspect connectors and underlying components while installing; do not force the panel into place

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

This lower cover is the front access panel that protects the appliance's internal components and gives the cabinet a finished look. It restores the lower front appearance and shields wiring and assemblies from dust and debris. What it does

• Replaces a cracked, dented, or missing lower front panel to restore protection and appearance
• Covers and protects wiring, hoses, and base components from dust and accidental contact
• Helps reduce drafts and keeps the cabinet interior cleaner
• Common symptom: visible damage, loose panel, or exposed lower components

• Remove power and disconnect the appliance before beginning any work.
• Usually secured with a few screws or clips at the front base; support the panel while removing fasteners to prevent drops.
• Use basic hand tools; avoid forcing clips to prevent cabinet damage.
• If wiring or components are exposed or damaged, inspect and address those issues before reassembly.

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
