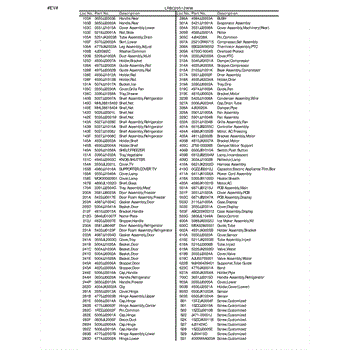

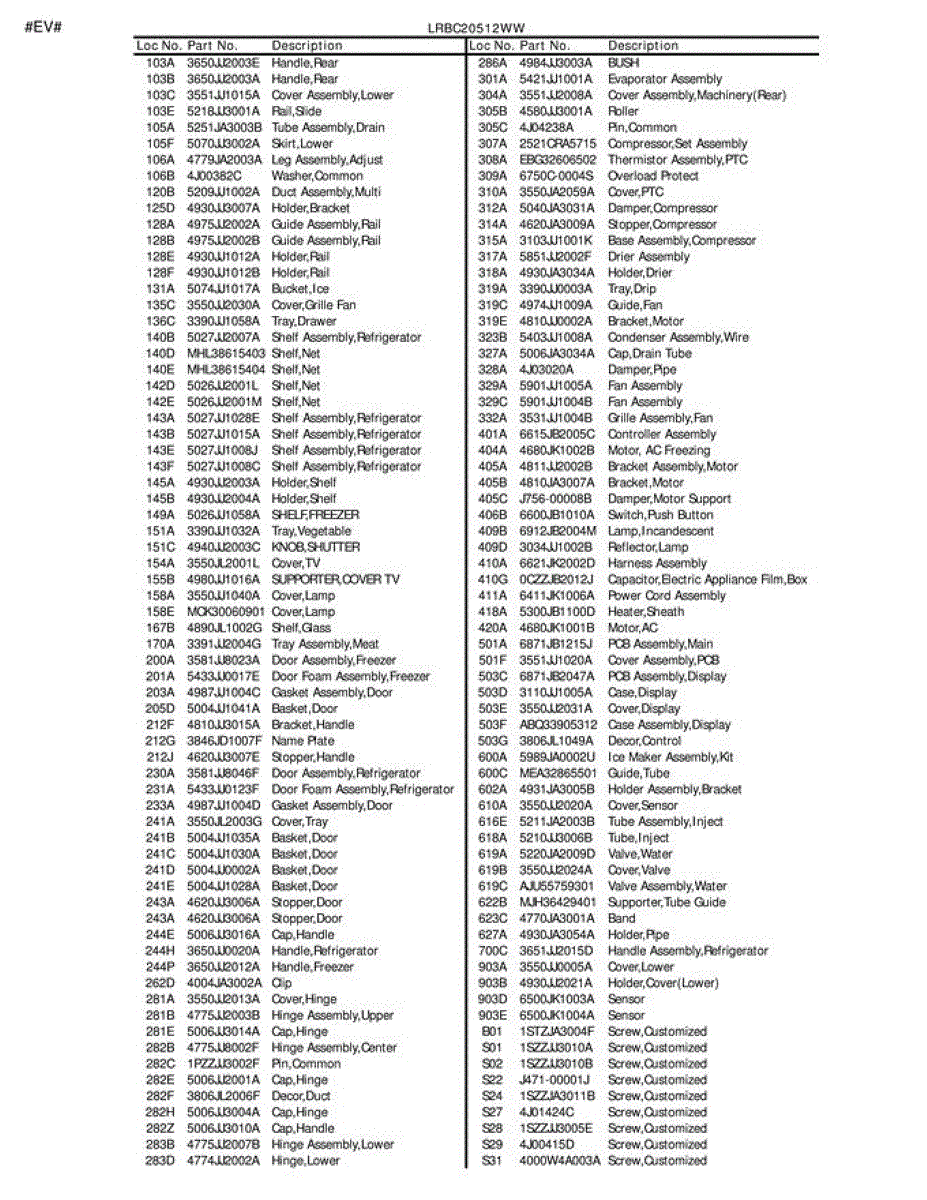

Parts for Lg LRBC20512TT / ATICLGG: Section 7 Parts

This hinge bolt secures the hinge to the appliance cabinet or door, keeping alignment true and motion smooth. Replacing a stripped, missing, or corroded bolt helps restore proper door operation and reliable closing.

• Fastens the hinge to support and stabilize the door
• Helps maintain alignment for smooth opening and closing
• Replaces damaged, stripped, or missing hardware

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door to prevent strain on remaining hardware; enlist a second person if needed
• Note the order/orientation of any shims or washers and transfer them during reassembly
• Start threads by hand to avoid cross-threading; tighten securely without overtightening

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This slide rail mounts inside the refrigerator and guides a storage drawer so it opens and closes smoothly. Replacing a worn or broken rail restores proper drawer alignment and easy access to stored items. What it does:

• Supports the drawer and provides a smooth glide path along the cabinet wall
• Maintains alignment to keep the drawer level and on track
• Replaces cracked, warped, or worn rails that cause rough, uneven movement
• Common symptoms: drawer binds or sticks, tilts or sags, falls off track, or shows visible rail damage

• 1 slide rail

• Disconnect power to the refrigerator before servicing interior components
• Remove the drawer and any shelf/glass cover to access the rail
• Save and reuse existing mounting screws and any end caps/brackets; match the rail's orientation to the original if your model uses left/right rails
• Align the new rail with factory mounting points, tighten screws, and test for smooth operation

This small fastener washer restores proper spacing and support under a screw or nut in your appliance. It helps distribute clamping force, protect mounting surfaces, and keep brackets and panels secure during normal operation and vibration. What it does:

• Distributes load under a screw or nut to prevent damage to the mounting surface
• Helps maintain correct spacing and alignment of the attached components
• Aids in keeping fasteners secure under vibration when assembled correctly
• Common symptoms: missing or damaged washer, loose/rattling parts, fastener won't tighten flush

• One washer

• Disconnect power and shut off water supply before servicing
• Note the original hardware order and orientation; replace any deformed or corroded pieces
• Install the washer flat against the mating surface under the fastener head or nut
• Tighten fasteners securely; do not overtighten to avoid stripping threads or deforming parts

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This rail guide assembly supports and steers a refrigerator drawer along its track. Replacing a worn or broken guide restores smooth sliding and proper alignment, helping prevent binding and damage to bins and rails.

• Guides the drawer as it opens and closes for smooth movement
• Helps keep the drawer level and properly aligned on the track
• Restores easy operation when the rail is cracked, worn, or deformed
• Typical symptoms: drawer hard to slide, tilts or drops, scraping/grinding noises, visible damage to the rail

• Disconnect power and empty the affected drawer before servicing
• Remove the drawer/bin and any screws or locking tabs securing the old guide
• Transfer any reusable clips or end caps from the old guide to the new assembly if present
• Reinstall, ensure proper engagement on the track, and test for smooth operation

This rail guide assembly supports and guides a refrigerator drawer so it slides smoothly and stays aligned. Replace a cracked or worn rail to restore easy opening/closing and keep the drawer from jumping off its track.

• Provides the sliding track and side support for one refrigerator drawer/pan
• Restores smooth movement and proper alignment of the drawer
• Can help resolve sticking, binding, tilting, or the drawer popping off the track
• Often needed when the rail is cracked, stop tab breaks, or wear causes rough travel

• Disconnect power and empty the affected drawer before service
• Remove the drawer (and any shelf above) for clear access; note the original side/orientation
• Release locking tabs or remove mounting screws to swap the rail; secure the new assembly in the same positions
• Reinstall the drawer and test for smooth travel before reloading

This ice bucket holds and stores ice produced by the refrigerator's icemaker, keeping cubes contained and easy to access. It replaces a cracked, damaged or missing bucket so ice can be collected without spilling into the freezer. What it does:

• Collects and stores ice produced by the icemaker until you remove or dispense it
• Keeps ice contained to prevent loose cubes from scattering in the freezer
• Restores proper seating for the ice delivery area to reduce jams or blockages
• Useful when the original bucket is cracked, warped, or missing

• One ice bucket

• Unplug the refrigerator or switch the icemaker to OFF before replacing the bucket
• Remove all loose ice and the old bucket before installing the new one
• Slide the new bucket into place until it seats securely; do not force
• Rinse the new bucket with clean water before first use

This grille cover protects the appliance's cooling/ventilation fan and helps direct airflow where it's needed. It restores the cabinet finish and keeps debris away from the fan housing for more reliable operation. What it does:

• Shields the fan from loose debris and small objects that can cause damage
• Helps channel airflow for proper cooling/ventilation
• Prevents direct contact with fan blades for improved safety
• Reduces rattling or vibration caused by damaged or missing grille

• Disconnect power to the appliance before beginning any work
• Remove any trim or access panels as required to reach the fan area
• Secure with the factory fasteners; do not overtighten to avoid cracking
• Handle edges carefully; wear gloves if needed and test operation after reassembly

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

This shelf net is a mesh-style refrigerator shelf designed to support and contain food items while allowing airflow. It replaces torn, stretched, or missing nets to restore storage organization and help prevent items from shifting. What it does:

• Provides a flexible, ventilated surface for storing packaged foods, produce, or deli items
• Helps keep small or irregularly shaped items from falling through larger shelves
• Restores proper storage function when original netting is damaged, loose, or missing
• Compatible with designated shelf frames and snaps into place where equipped

• Unplug the appliance or turn off power to the unit before servicing for safety.
• Empty and remove food items from the affected shelf area before installation.
• Install by aligning the net with the shelf frame and securing per the owner's manual; do not force or modify parts.
• If installation requires removal of shelves or trim, keep fasteners and small parts organized and follow manufacturer instructions.

Restore a broken or missing shelf with this refrigerator shelf assembly. It provides a sturdy, level surface for everyday storage, helping keep items organized and reducing spills or tipping in the fresh food compartment.

• Provides a stable, flat storage surface inside the refrigerator compartment
• Replace when the shelf surface or frame is cracked, chipped, bowed, or missing
• Helps keep items organized and maximizes usable space
• If the shelf won't sit level or falls from its supports, replacement is recommended

What's included: One refrigerator shelf assembly. Installation notes:

• Unplug the refrigerator and remove items from the shelf area before starting
• Lift out the old shelf carefully; handle any tempered surfaces with two hands and wear cut-resistant gloves
• Align the new shelf with the side rails/support tabs and slide it fully into place until level and secure
• Do not force the shelf; ensure all support points are properly seated

This replacement shutter knob snaps onto the refrigerator's vent lever and gives you fingertip control of the air shutter. Restores smooth, accurate vent adjustment so you can fine-tune airflow to the intended compartment.

• Attaches to the shutter/vent lever on a drawer or shelf cover
• Provides manual open/close control of the air passage
• May help fix: broken or missing knob, slider won't engage, vent stuck in one position, hard to adjust temperature in that compartment
• Durable OEM design for a precise, secure fit

• Unplug the refrigerator before servicing
• Remove the drawer or cover if needed for access to the vent lever
• Pull the damaged knob straight off; align the new knob with the keyed lever and press to seat
• Cycle the slider to confirm the shutter opens and closes smoothly before reassembling

The Drawer Cover is an OEM part for LG refrigerators. It serves as a protective cover for the refrigerator's crisper drawers, providing a barrier that helps maintain optimal humidity levels and freshness for stored fruits and vegetables. The shelf measures approximately 19" in depth and 26" in width. This product does not include glass. As per the manufacturer's note, the original center support is not compatible with the updated crisper cover.

You should replace the drawer cover if it becomes cracked, broken, or warped. Common causes of damage include placing heavy items on top of the cover, accidental impacts, or normal wear and tear over time, which can compromise its structural integrity and functionality.

Symptoms of a bad drawer cover include:

• Cracks or breaks in the cover
• The cover not fitting properly or sitting securely
• Difficulty in opening or closing the crisper drawers
• Reduced efficiency in maintaining the freshness of stored produce

This OEM LG part is also compatible with Sears/Kenmore models.

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

This lamp cover encloses and shields the light bulb while diffusing illumination inside the appliance. Replacing a cracked, discolored, or missing cover restores safe, even lighting and protects the bulb from accidental contact and debris.

• Covers and protects the light bulb; diffuses light for better visibility inside the compartment
• Helps prevent bulb damage from impact, moisture, and debris
• Common symptoms: cover is cracked, warped/melted, yellowed, loose, or missing; exposed bulb or harsh glare
• Sometimes called a light lens; may rattle or fall out when tabs or screws break

• Disconnect power to the appliance and allow the lamp area to cool completely
• Handle the lens carefully; align tabs/clips and seat fully before securing—do not overtighten
• Inspect and replace the bulb if damaged or heat-darkened

This replacement door basket restores usable storage space in the refrigerator door, keeping bottles and condiments organized and easy to reach. Durable design maintains proper fit and function with the original door system. What it does:

• Replaces a cracked, warped or missing door basket to recover door storage capacity
• Supports upright storage of bottles and jars to prevent tipping and spills
• Helps keep frequently used items within easy reach for faster access
• Restores door seal alignment by properly supporting stored items

• Generally installs by sliding or snapping into the door track
• Inspect mating tracks or retainer clips and replace if damaged for a secure fit
• Do not force the basket into place; damage can occur to the door or bin
• Clean and dry mating surfaces before installation; avoid overloading beyond manufacturer load guidance

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

A replacement refrigerator door gasket that restores the door seal to help maintain proper cooling and energy efficiency. Replaces torn, cracked, or hardened gaskets to reduce warm air leaks and moisture buildup. What it does:

• Seals the refrigerator door to keep cold air inside and warm air out
• Helps reduce frost buildup and prevents moisture from entering the compartment
• Supports consistent internal temperature for better food preservation
• Stops drafts and improves compressor efficiency when sealing properly

• Disconnect power to the appliance before starting any repair
• Remove the old gasket by loosening door trim or fasteners as needed; clean the sealing surface before installing the new gasket
• Press the new gasket into the channel evenly and ensure the magnetic/locking edge seats fully around the door
• After installation, close the door and check for gaps; allow the gasket to form to the door over normal use

Please Note: The Sears/Kenmore parts diagram shows this part to be a 16 inch refrigerator door shelf. However, this piece is actually 8 inches in length. If you need the 16 inch shelf, you will need to order 5004JJ1028A.

Please Note: The Sears/Kenmore parts diagram shows this part to be a 8 inch refrigerator door shelf. However, this piece is actually 16 inches in length. If you need the 8 inch shelf, you will need to order 5004JJ1030A.

This is the door basket that mounts on the inner door to hold bottles, jars, and condiments. Replace a cracked or missing bin to restore secure, convenient storage and keep items organized on the refrigerator door.

• Attaches to the door liner to provide easy-access storage for small items
• Common failure signs: cracked plastic, broken mounting tabs, bin falls off, won't stay level, or missing bin
• Helps restore original storage layout and capacity
• Designed to fit the designated door slots for a solid, stable hold

What's included: One door basket/bin. Install notes:

• Compare the new bin to the original to confirm size and mounting points
• Empty contents; lift the old bin up and out of the door slots
• Align the new bin with the slots and lower until fully seated—do not force
• Distribute weight evenly and avoid overloading to prevent future damage

This is the small trim cap that snaps over the end of a refrigerator door handle. It finishes the handle, covers the mounting hardware, and helps keep the handle secure and looking clean.

• Covers exposed door-handle screws and mounting points
• Restores a finished appearance if the original cap is missing or damaged
• May help reduce handle looseness if the old cap no longer held properly
• Common symptoms: missing end cover, visible handle screws, loose or rattling handle

• Unplug the appliance before starting and open the door for access
• Remove the old cap by gently prying at the seam; avoid scratching the door finish
• Align the new cap with the handle end and press until it snaps fully into place
• If required, tighten handle mounting screws before installing the cap

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

A small plastic hinge cap that covers and protects a refrigerator/freezer door hinge, restoring a finished appearance and shielding the hinge from dust and debris. Simple replacement for a cracked, broken, or missing cap. What it does:

• Covers the exposed door hinge to improve appearance and protect moving parts
• Helps keep dirt, lint, and debris out of the hinge area
• Prevents sharp or rough hinge edges from catching on clothing or food-packaging
• Replaces cracked, broken, or missing hinge caps that leave the hinge exposed

• Support or brace the door before removing or replacing hinge covers to avoid door movement
• Use basic hand tools as needed; remove nearby trim or screws per the appliance service instructions
• Check fit and orientation before tightening any fasteners; do not force or snap parts beyond their designed engagement

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This overload protector is a safety device that helps prevent compressor damage by stopping electrical current during overheating or locked-rotor conditions. It's a direct-fit replacement that restores proper compressor protection and helps keep the appliance running safely. What it does:

• Protects the compressor by interrupting power if the motor overheats or experiences an electrical fault
• Common symptom: refrigerator runs but compressor won't start or only hums
• Common symptom: fridge cycles frequently or doesn't maintain temperature due to compressor protection tripping
• Works with the start device to help ensure reliable compressor startup

• Disconnect power before servicing; work only with the appliance unplugged
• Access typically requires removing the rear access panel to reach the compressor area
• Replace using the same mounting and terminal connections; ensure secure electrical connections

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Light Bulb is an OEM part for LG refrigerators. It can be used in either the fresh food section or freezer compartment, providing illumination for easy visibility of the stored items.

Causes of a faulty light bulb can include regular wear and tear, reaching the end of its lifespan, or accidental breakage. These factors can result in issues such as a dark or poorly lit interior, making it difficult to see the contents of the refrigerator.

Symptoms of a bad light bulb may include:

• No illumination or dim lighting inside the refrigerator
• A flickering or intermittent light
• Visible damage or broken filament inside the bulb

This LG OEM bulb is also compatible with Sears/Kenmore models.

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This condenser fan motor spins the cooling fan that draws air across the condenser coils and around the compressor. Replacing a weak or seized motor restores proper heat removal so the refrigerator can hold temperature and run more efficiently. What it does:

• Drives the condenser fan to move air through the rear condenser/compressor compartment
• Helps dissipate heat from the refrigerant and protects the compressor from overheating
• Supports stable internal temperatures and efficient cooling performance
• Common symptoms: fan not running, louder rattling/grinding at the back-bottom, hot cabinet sides, warmer-than-normal refrigerator temperatures

• Includes 1 cooling fan motor

• Disconnect power before servicing; pull the unit away from the wall for access
• Remove the rear lower access panel to reach the condenser fan area
• Note wiring and fan-blade orientation; transfer the blade and any mounting hardware from the old motor as needed
• The fan spins freely and airflow direction matches the original before reassembly

This genuine OEM part is a control board assembly for refrigerators. The control board assembly is the main circuit board that controls the refrigerator's primary functions such as adjusting and maintaining temperature. Over time, a refrigerator's control board can become inoperable due to excessive use. If the refrigerator is no longer cooling and failing to maintain its desired temperature, the control board might need to be replaced.To replace the control board assembly, start by unplugging the refrigerator. After that, proceed to open the freezer door and uninstall the side panel to gain access to the old control board. Once accessed, remove the wire harness and any individual wires attached to the control board assembly. Unfasten the mounting screws holding the assembly in place, and pull the control board out. Set it to the side, and proceed to install the new board. Reattach the wires in their correct terminals, and reinstall the side panel. This authentic replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with LG brand refrigerators.

This decorative control panel covers and protects the appliance's user controls while giving the console a finished appearance. It restores the look and button access so you can see and press the controls normally. What it does:

• Replaces a cracked, faded, or damaged decorative panel that surrounds the control buttons
• Restores proper button labeling and tactile surface for reliable user input
• Helps protect the underlying control board and switch assembly from spills and wear
• Reduces light bleed or obscured buttons from cosmetic damage

• Disconnect power before beginning any repair to avoid shock or damage
• Removal typically requires opening the console and removing fasteners; keep track of screws and clips
• Handle edges and buttons gently to avoid scratching or bending the panel
• Inspect connectors and underlying components while installing; do not force the panel into place

This outer housing cover protects internal components and gives the appliance a finished appearance. It replaces a cracked, damaged, or missing panel to restore protection and reduce rattling. What it does

• Shields motors, controls, and wiring from dust and debris
• Prevents foreign objects from contacting internal parts
• Reduces vibration noise caused by loose or broken panels
• Restores the appliance's exterior fit and finish

• One outer housing cover

• Disconnect power to the appliance before starting any work
• Remove any trim, screws, or clips holding the old cover in place; keep fasteners for reassembly
• Handle the cover carefully to avoid scratching the finish or damaging mounting tabs
• Replace any broken clips or fasteners before finishing installation

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

This guide tube is a small routing sleeve that supports and protects a rod, shaft, cable, or line inside your appliance. It keeps the path straight to reduce friction, noise, and premature wear.

• Guides and supports a rod/shaft/cable/tube through the chassis
• Maintains alignment for smooth movement or flow
• Helps prevent chafing, kinks, and vibration-related damage
• Typical failure signs: scraping or rattling noises, binding/misalignment, or visible cracks/deformation

• Disconnect power; turn off water or gas before servicing
• Refer to your model's parts diagram for routing and mounting points
• Reuse original screws/clips unless damaged
• Route exactly like the original; avoid pinches/kinks and verify clearances before restoring power

The Water Supply Tube (1/4" O.D.) is an OEM part for LG refrigerators. It transports water from the household water line to the refrigerator’s water dispenser and ice maker, ensuring a steady and reliable supply of water for these functions.

Causes of a bad water supply tube can include wear and tear over time, kinks or bends restricting water flow, or leaks due to cracks or punctures.

Symptoms of a bad Water Supply Tube include:

• Leaks or water pooling behind or under the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or kinks in the tube
• Ice maker not producing ice or dispensing water intermittently

This OEM LG part is also compatible with some Kenmore models.

This injection tube directs water to the refrigerator ice maker so the mold fills correctly and produces ice. It replaces a cracked or blocked tube to restore reliable water flow to the ice-making assembly. What it does:

• Channels water from the valve to the ice maker fill cup for proper ice production
• Helps prevent leaks caused by cracked or brittle tubing
• Commonly replaced when the ice maker won't fill, fills slowly, or leaks near the ice mold
• Works with the ice maker fill system; not a water valve or pump

• Disconnect power and shut off the water supply before starting work
• Inspect adjoining fittings and seals; replace worn grommets or clips as needed
• Handle carefully to avoid kinks or damage to the tube during installation

This replacement water inlet valve controls the flow of water to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production. Designed to match OEM fit and function. What it does:

• Opens and closes to route water to the dispenser and ice maker when commanded
• Helps stop water flow when the dispenser is inactive to prevent leaks
• Commonly replaces failed valves that cause no water, weak dispensing, or continuous running
• Works as a direct-fit valve for compatible LG refrigerator units

• Disconnect power and shut off the water supply before starting work
• Handle connectors and tubing carefully; confirm tight, leak-free connections when reassembling
• Inspect and replace damaged inlet tubing or fittings as needed to prevent leaks

This replacement water inlet valve controls the flow of water to the refrigerator's dispenser and ice maker, restoring reliable water delivery and ice production. Designed to match OEM fit and function. What it does:

• Opens and closes to route water to the dispenser and ice maker when commanded
• Helps stop water flow when the dispenser is inactive to prevent leaks
• Commonly replaces failed valves that cause no water, weak dispensing, or continuous running
• Works as a direct-fit valve for compatible LG refrigerator units

• Disconnect power and shut off the water supply before starting work
• Handle connectors and tubing carefully; confirm tight, leak-free connections when reassembling
• Inspect and replace damaged inlet tubing or fittings as needed to prevent leaks

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

This lower cover is the front access panel that protects the appliance's internal components and gives the cabinet a finished look. It restores the lower front appearance and shields wiring and assemblies from dust and debris. What it does

• Replaces a cracked, dented, or missing lower front panel to restore protection and appearance
• Covers and protects wiring, hoses, and base components from dust and accidental contact
• Helps reduce drafts and keeps the cabinet interior cleaner
• Common symptom: visible damage, loose panel, or exposed lower components

• Remove power and disconnect the appliance before beginning any work.
• Usually secured with a few screws or clips at the front base; support the panel while removing fasteners to prevent drops.
• Use basic hand tools; avoid forcing clips to prevent cabinet damage.
• If wiring or components are exposed or damaged, inspect and address those issues before reassembly.

The Toe Grille Clip is an OEM part for LG refrigerators. This part secures the toe grille to the base of the refrigerator, ensuring it remains in place while providing easy access for cleaning and maintenance.

Causes of a bad Toe Grille Clip can include breakage due to accidental impacts during cleaning or general wear and tear over time.

Symptoms of a faulty Toe Grille Clip include:

• The toe grille coming loose or falling off
• Difficulty attaching or detaching the grille for routine maintenance
• Visible damage or deformation of the clip
• Unusual gaps between the grille and the refrigerator base

This OEM LG part is also compatible with some Kenmore models.

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.
