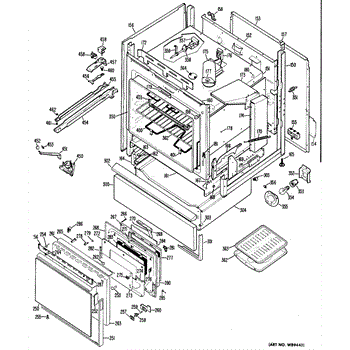

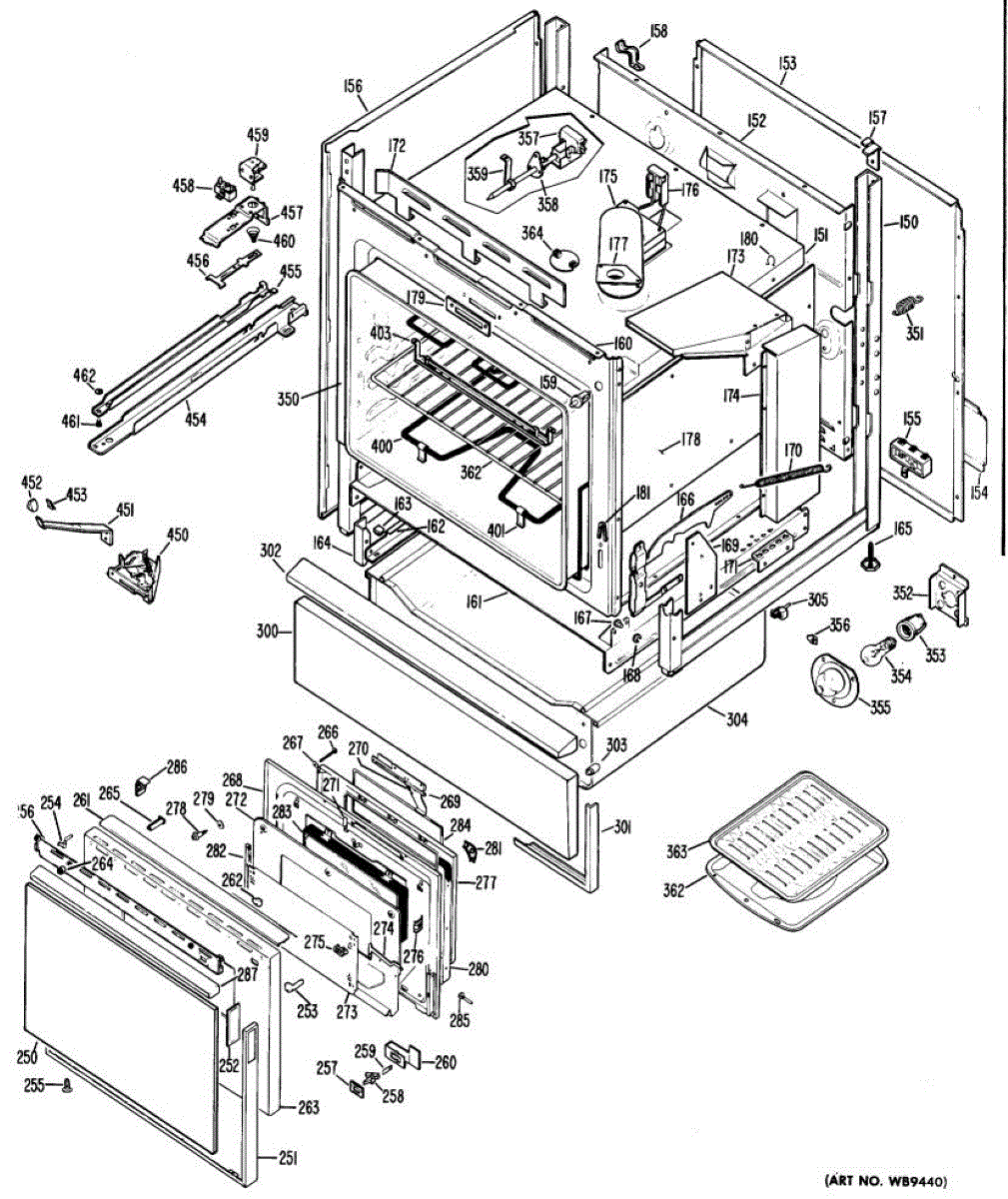

Parts for Ge RS776GX01: 02 - Section2 Parts

Package of 12

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pad is a small bumper-style cushioning part that protects surfaces, reduces vibration and noise, and prevents metal-on-metal contact in appliance assemblies. It helps maintain quiet, secure operation and prevents cosmetic damage where parts meet. What it does:

• Acts as a cushion between components to absorb shock and reduce rattling or vibration.
• Prevents direct contact and wear between adjacent surfaces or panels.
• Helps keep parts aligned by providing a friction surface that resists shifting.
• Reduces noise caused by vibration or loose-fitting panels.

• One replacement pad.

• Inspect the mounting area and remove any debris or adhesive residue before installing.
• Typically presses or adhesively mounts into place; align carefully to ensure full contact.
• Replace only with the exact part number to ensure fit and function.
• Disconnect power to the appliance or follow model-specific safety precautions before accessing internal panels.

Includes 12 washers.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Size: 8-32 t. Includes 12 screws.

The Oven Door Gasket is an OEM replacement part for GE ranges and wall ovens. It provides a secure seal around the oven door to contain heat within the cooking cavity. The gasket is essential for efficient operation as it helps maintain optimal cooking temperatures.

Causes of a bad door gasket can include heat damage over time, warping from repeated door openings and closings, or accidental tears and ruptures.

Symptoms of a bad oven door gasket include:

• Excessive heat loss around the door area
• Inconsistent or inefficient cooking performance
• The door not sealing properly, allowing heat to escape
• Rust or corrosion on interior door parts

This OEM GE part is compatible with GE, Hotpoint, Monogram, and certain Kenmore wall oven models.

Includes 12 screws.

Package of 12

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This GE oven heating element is an OEM part for GE wall ovens and ranges. The element measures 18” wide x 15 1/2” deep With 1-1/2 inches from the mounting bracket to the end of the terminals that are screw-type. It generates 2585 watts at 240 volts or 1940 watts at 208 volts of heat within the oven cavity.

Symptoms of a bad heating element are:

• Inadequate or uneven baking with cold spots
• The oven taking excessively long to preheat or maintain set temps
• Tripped circuit breakers indicating element failure

Causes of a bad heating element include deterioration of coil insulation from sustained exposure to temperatures upwards of 500°F. Normal wear reduces heat output over many years of use.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This retainer is a small mounting clip that secures compatible appliance components in place to prevent movement and wear. It restores proper alignment so related parts stay seated and operate quietly and safely. What it does:

• Holds a specific component or harness firmly to the appliance frame or assembly
• Prevents rubbing, vibration noise, or parts shifting during operation
• Helps maintain correct part alignment for reliable function
• Common symptom: loose, rattling, or misaligned components where the retainer is missing or damaged

• One retainer

• Disconnect power and any fuel sources before starting work
• Inspect surrounding parts for damage before installing the retainer
• Typically installs with basic hand tools; avoid over-tightening nearby fasteners

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
