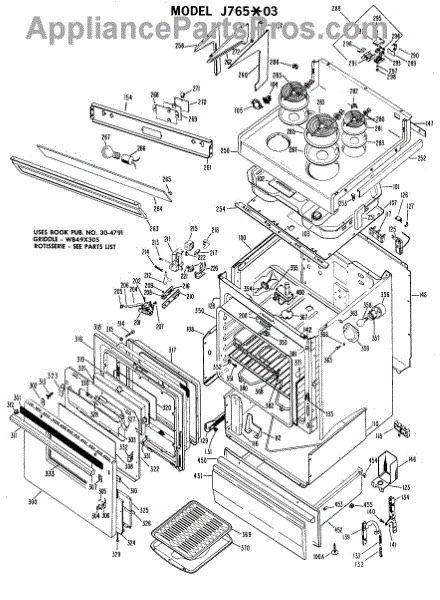

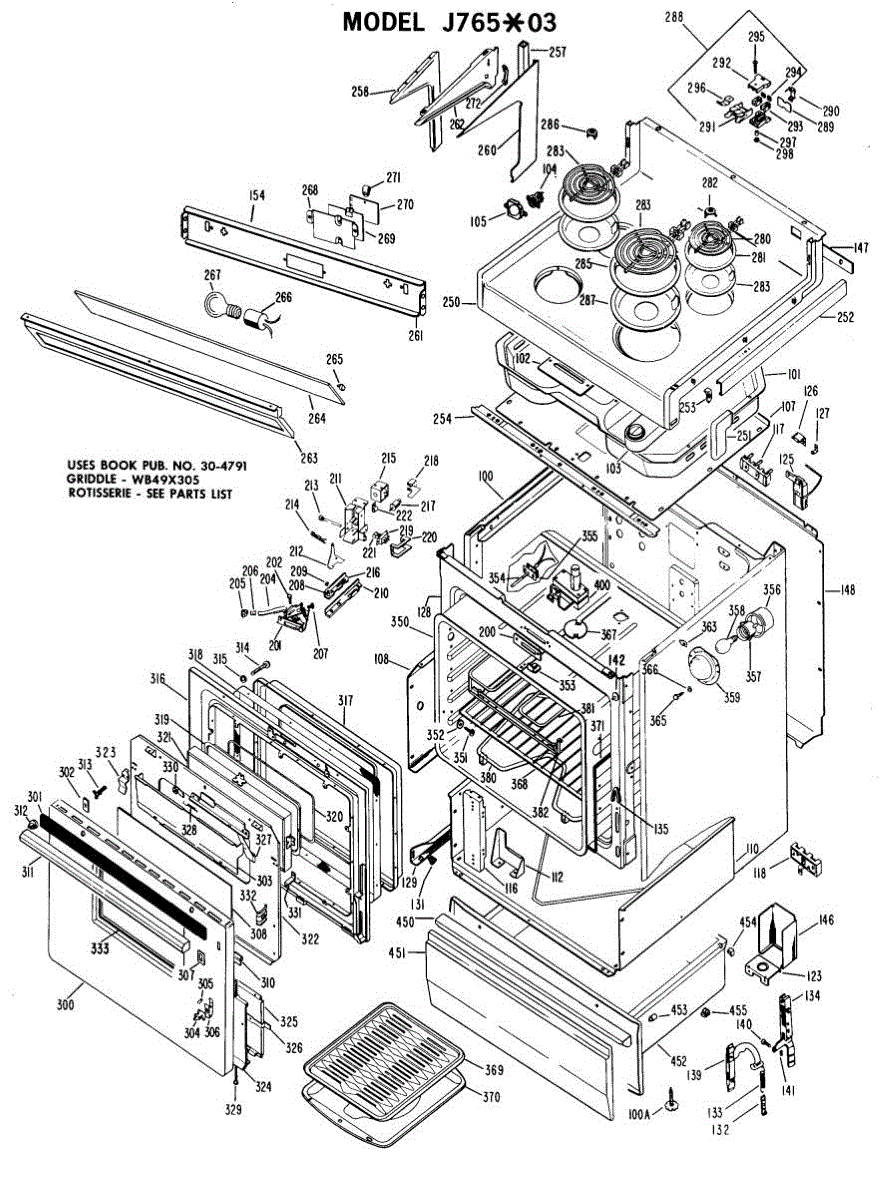

Parts for Ge J765X03: 03 - Section3 Parts

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right hand side

Left hand side

This retainer secures the oven door hinges in place and is located at the bottom corners of the oven door frame. Replace if the oven door sags, won't stay closed properly, or if the hinges appear loose or misaligned.

Package of 12

27-inch broiler pan for electric ranges. Installs in oven cavity to catch grease and drippings during broiling. Replace if cracked, warped, or missing.

Package of 12

Package of 12

Mounting clip secures appliance components to prevent movement and wear. Replace if parts shift, vibrate, or become loose. Verify fit with your model number.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replace missing or stripped mounting screws in your washer dryer combo. This 12-pack secures panels, components, and internal parts during assembly or repair.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Burner not heating? This 6-inch surface element fits GE and Hotpoint ranges with looped terminals. Simple plug-in replacement takes 10 minutes.

The 6 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the stove's burner, enhancing the appliance's aesthetic while also serving a functional purpose by catching spills and drips. This component helps keep the cooking surface clean and reduces the risk of burns or stains by containing minor spills.

Causes of a bad 6 Inch Trim Ring can include exposure to high temperatures leading to warping or discoloration, accidental damage such as dents or bending from cookware impact, and corrosion from frequent exposure to moisture and cleaning chemicals.

Symptoms of a bad 6 Inch Trim Ring include:

• Loose fit around the burner
• Noticeable rust or corrosion
• Discoloration or uneven surface
• Difficulty cleaning or removing debris from under the ring

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Compatible 6-inch drip pan: WB32X10012. Matching 8-inch drip pan: WB32X10013 and ring: WB31X5014.

This 6-inch drip pan installs under your electric range coil burner to catch spills and boil-overs. Replace when cracked, warped, or excessively worn.

The 8 Inch Trim Ring is an OEM part for GE ranges and cooktops. It fits around the 8-inch burner elements, providing a clean, finished look while also helping to contain spills and crumbs on the stovetop.

Symptoms of a bad 8 Inch Trim Ring include:

• Misalignment or improper fit around the burner, which can affect cooking performance and cleaning.
• Visible rusting, warping, or deterioration, which can detract from the appearance of the cooktop.
• Loose fitting that may cause the ring to move or rattle during use.

Causes of a bad trim ring can include frequent exposure to high temperatures, spills of acidic or sugary substances that cause corrosion or damage, and general wear and tear from cleaning and use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If you’re looking to replace all of the trim rings and drip pans:

• 8” Drip Pan - WB32X10013
• 6” Drip Pan - WB32X10012
• 6” Trim Ring - WB31X5013

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

Replace cracked, rusted, or stained 8-inch drip pans under coil burners on electric ranges and cooktops. Catches spills and protects cooktop surface.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

Insulation panel for ranges and cooktops. Installs inside the unit to provide heat and sound dampening. Replace if cracked, torn, or missing.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

By GE. This electric range terminal block assembly includes the ceramic block, the metal mounting bracket, the mounting screws and the two contacts (Contacts not avalailable seperate). Fits GE and HotPoint ranges where a ceramic terminal block is used. Its recommended to also check and replace the surface elements if needed. Matching surface elements: 6 inch element order WB30X218. For 8 inch element order WB30X219.

Rubber grommet that cushions and protects range components from vibration and wear. Replace if cracked, torn, or missing to restore proper fit.

Replacement door spacer bushing for electric and gas ranges, ovens, and microwaves. Installs between door and frame to maintain proper alignment.

Includes 12 washers.

Replace your range door gasket to restore proper sealing and heat retention. Install when you notice heat escaping or visible wear. Verify fit with your model.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

Includes 12 washers.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Includes 12 washers.

Package of 12

This is a oven rack, and it is made for ranges and ovens. This is a genuine replacement part made by General Electric. There are usually two oven racks in typical ranges or ovens. The oven rack is where dishes or sheet pans are placed so that the food is able to be cooked or baked completely. The oven racks provide a level and sturdy place for dishes.A new oven rack might be needed if the current ones are bend, dented, or broken in any way. Oven racks might become uneven or unlevel overtime and it is common that they might need replacing due to normal wear and tear. Be sure the oven is powered off and cooled down before replacing the oven rack.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with ranges or ovens made by General Electric.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Broiler pan for ranges and ovens. Installs in main oven cavity to hold food under broiler element. Replace if cracked, warped, or heavily stained.

Oven not heating or baking unevenly? This lower bake element restores proper oven temperature. DIY-friendly repair takes about 20 minutes to install.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Broiler won't heat or sparked out? This broil element restores high-heat broiling. DIY-friendly repair takes 20-30 minutes with basic tools.
