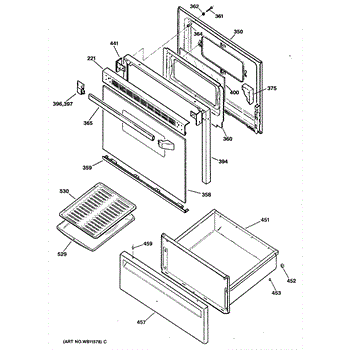

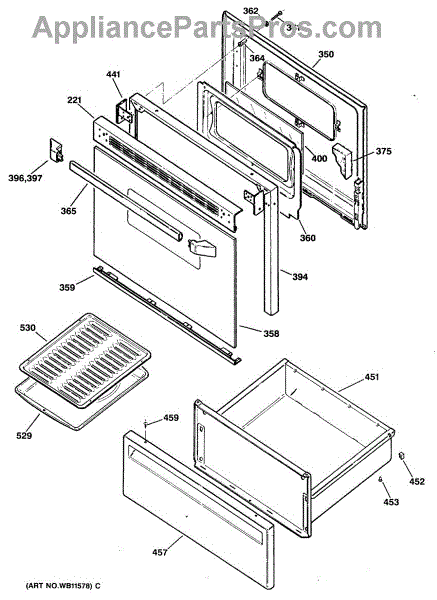

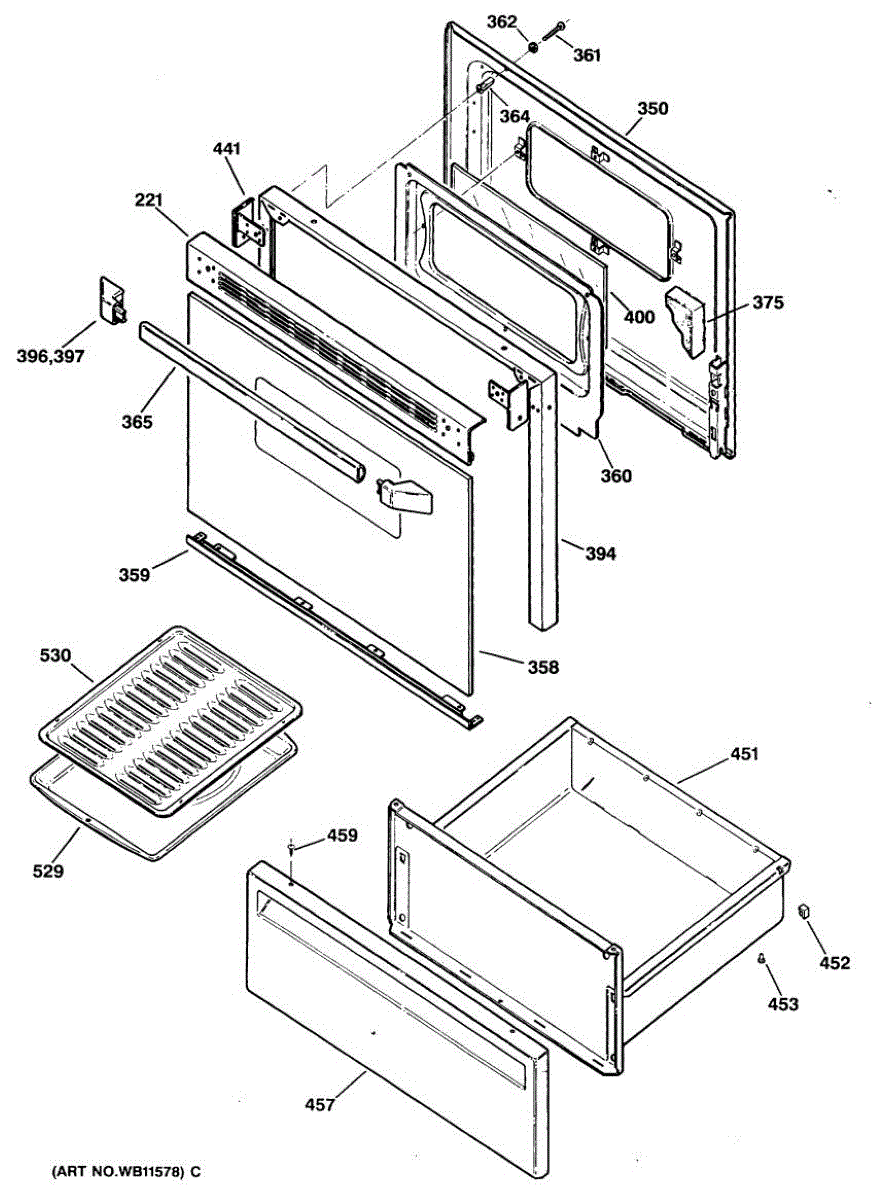

Parts for Ge JBC17GS1: 03 - Section3 Parts

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw is used in refrigerators to fasten specific components. Replace a lost or damaged fastener to restore a secure, factory hold so brackets, panels, or covers stay properly mounted and rattle-free.

• Secures the designated component per your model's parts diagram
• Replaces missing, stripped, or corroded hardware
• Helps eliminate looseness, vibration, or rattling from unsecured parts
• Supports proper alignment and fit after service

• Disconnect power to the refrigerator before servicing
• Match this screw to the original location using your model's parts diagram
• Hand-start threads to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver for the screw head style

Includes 12 washers.

Ceramic

The Oven Door Handle is an OEM part for GE ovens. This handle provides a secure grip for opening and closing the oven door, ensuring safe and convenient access to the oven cavity. The handle measures approximately 22 inches by 1 inch.

Causes of a bad oven door handle can include wear and tear from frequent use, accidental impact, or exposure to high heat, which can weaken or damage the handle over time. A faulty handle can compromise the ability to safely operate the oven door.

Symptoms of a bad Oven Door Handle include:

• Loose or wobbly handle
• Cracks or breaks in the handle
• Difficulty in opening or closing the oven door
• Handle detaching from the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

10 - 16 pl pnp 2.5s

Color: Black
Each package includes one end cap. For the white version, order part number WB7K5319.

The Handle End Cap is an OEM part for GE ranges. This part plays a role in capping the ends of the range handle, allowing a seamless and aesthetically pleasing finish while also preventing injuries by covering potentially sharp edges.

Causes of a bad handle end cap include physical impact, frequent cleaning that leads to wear, or degradation due to exposure to kitchen grease and heat.

Symptoms of a bad hand end cap:

• A loose or incomplete look of the range handle, affecting the overall design and functionality.
• Exposed sharp edges that could pose a safety risk to users.
• An unsecured handle, which may affect the ease of opening and closing the oven door.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement screw is a simple fastener used to secure panels, trim, and internal components on GE appliances, restoring proper fit and preventing loose parts. It's a direct-replacement hardware piece for common mounting and assembly points. What it does

• Secures panels, brackets, and trim to prevent rattling or gaps
• Replaces missing, stripped, or corroded fasteners that compromise fit
• Helps maintain proper alignment of controls and components
• Keeps internal parts fixed for safe, reliable operation

• Screw as shown

• Unplug or disconnect power to the appliance before starting repairs
• Use the correct screwdriver or bit to avoid stripping the head
• Install with moderate torque; do not overtighten to prevent thread or component damage
• If threads are damaged or the mating hole is stripped, replace the mating hardware or repair the thread before reuse

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges

The Broiler Pan Kit is an OEM part for GE ranges. It serves as a secure platform for positioning meats, vegetables, and various foods directly beneath the broiler element, ensuring safe and efficient cooking. The pan is about 17 inches wide by 13 inches deep.

Over time, wear and tear can affect broiler pans, causing issues such as flaking or stripping of the non-stick coating and the development of small ridges or holes that permit grease to drip down.

Symptoms of bad broiler pans include:

• Grease fires caused by dripping grease contacting the heating element
• A burnt or smoky flavor transferring to foods
• Difficulty removing baked-on grease and food deposits
• Pans that are misshapen or developing small cracks

This OEM GE replacement part is also compatible with select Hotpoint, RCA, and some Kenmore ranges
