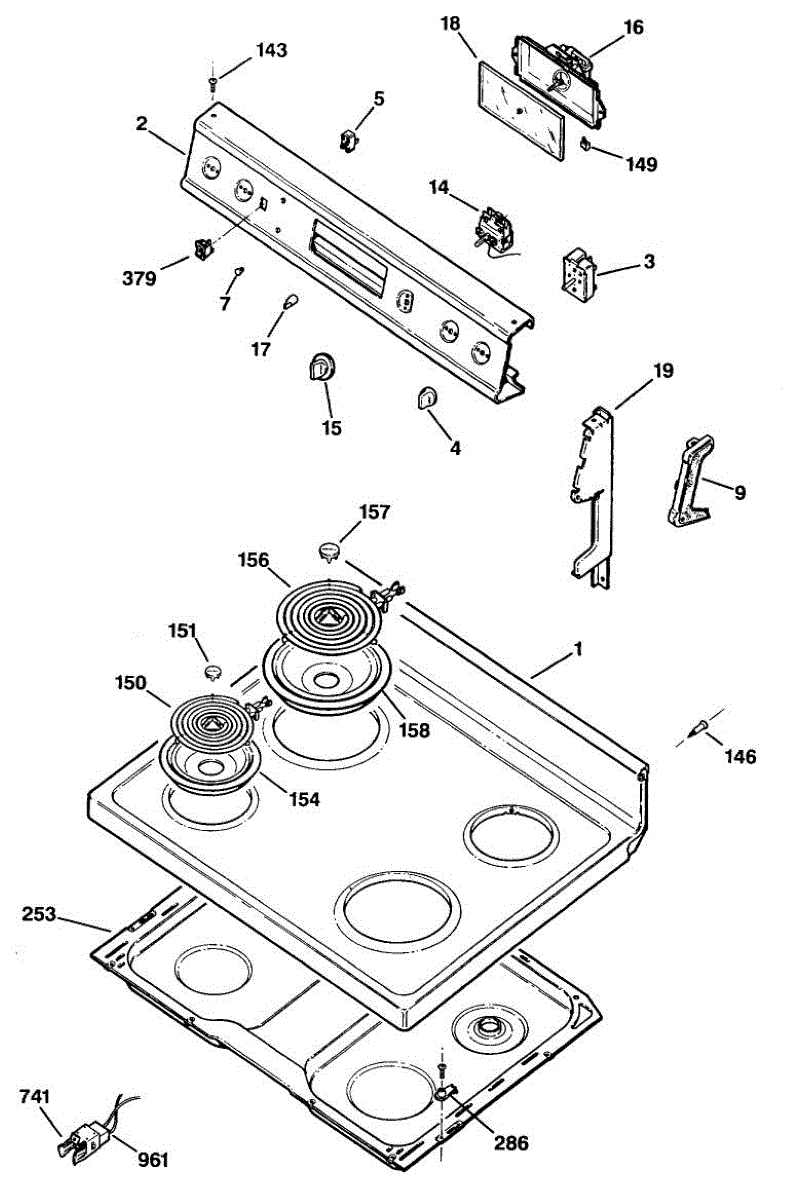

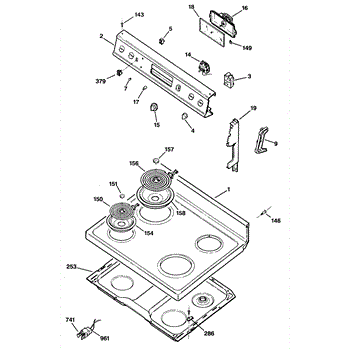

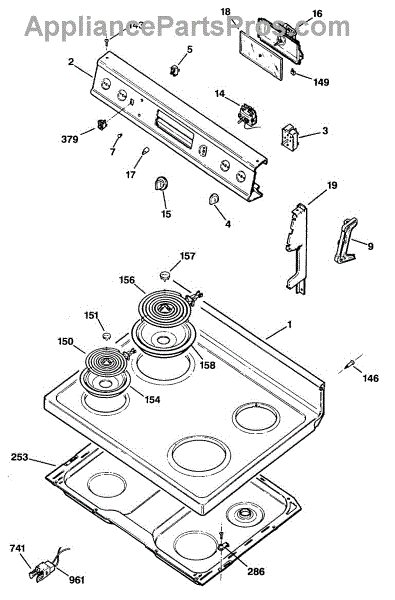

Parts for Ge JBC17GS1: 01 - Section1 Parts

Color: White

Color: Almond

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A small decorative bezel that restores the finished look of the control panel and helps protect the underlying opening from dust and debris. Replaces a cracked, faded, or missing jewel to freshen appliance appearance. What it does:

• Covers and protects a control-panel opening or indicator area, improving cosmetics.
• Hides mounting hardware and helps keep dust and spills out of internal components.
• Commonly used to replace cracked, broken, or missing jewels that distract from the appliance finish.
• Simple cosmetic replacement — does not affect electronic functionality.

• Always disconnect power to the appliance before starting any repair.
• Typically snaps into place or secures with small screws; handle gently to avoid cracking.
• If screws are present, use the correct size screwdriver and avoid over-tightening.

The Clock Knob Kit is an OEM replacement part for GE ranges. It contains the necessary knobs to control clock and timer functions from the control panel. This 3 pack of range clock knobs is all you need to cover one timer control. Color: Black. Each knob measures about 1/2 an inch in diameter, and 1 inch deep

Symptoms of faulty knobs include:

• Knobs no longer stay securely attached to shafts
• Issues selecting timer options or adjusting clock settings
• Incorrect rotation feel or knobs difficult to turn
• Display issues arising from loose or faulty internal connections

This GE replacement kit is also compatible with Hotpoint, RCA and some Kenmore ranges for convenient cooking.

NOTE: For chrome order WB3X459.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

This double terminal block provides a secure connection point for two incoming power leads and the appliance harness, helping restore reliable electrical feed to heating and control circuits. Direct-replacement electrical mounting for affected ranges and ovens. What it does:

• Joins and secures two power supply conductors to the appliance wiring harness
• Restores interrupted power paths that can cause burners, elements, or controls not to heat or operate
• Prevents loose or corroded connections that lead to arcing or intermittent operation
• Matches original mounting and terminal spacing for a straightforward replacement

• One double terminal block

• Disconnect power at the breaker or unplug appliance before servicing to avoid shock
• Verify correct wire routing and tight, torqueed terminal screws; use a replacement screw if original is damaged
• Inspect adjacent wiring and connectors for heat damage; replace any compromised components

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center trim is the molded bezel that fits the front center of the cooktop/oven control area, restoring a finished look and protecting the control panel edges from heat and grime. What it does:

• Covers and protects the exposed edge of the control panel for a clean appearance
• Hides gaps, chips or discolored trim that make the console look worn
• Helps prevent dirt and grease from getting behind the control assembly
• Restores proper alignment and fit where the original trim is cracked or broken

• Disconnect power to the appliance before starting any repair.
• Typically secures with clips or screws—retain hardware and note orientation when removing old trim.
• Handle edges carefully; replacement may require gentle prying with a trim tool.
• If mounting hardware or support brackets are damaged, replace them separately.

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This receptacle assembly connects the appliance's main wiring to the power supply, restoring a secure electrical connection and reliable power transfer. It helps prevent loose cord connections and arcing at the terminal connection. What it does:

• Provides the mating terminal for the appliance power cord or internal wiring harness
• Restores a secure electrical connection when the original receptacle is damaged or corroded
• Stops intermittent power, sparking, or overheating at the cord/terminal area
• Ensures consistent contact between the cord and the appliance's internal wiring

• Always disconnect power at the breaker or unplug the appliance before beginning work
• Verify correct wire placement and tightness of terminal screws; replace damaged wires or connectors
• Use appropriate tools and follow the appliance's wiring diagram; do not force terminals

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This replacement manual mini timer control restores basic cycle selection and timing for compatible GE appliances. It provides a simple, manual method to advance and set appliance cycles when the original timer is worn or nonfunctional. What it does:

• Advances and selects appliance cycles using a manual mini timer mechanism
• Completes internal timing contacts to start and stop functions at set points
• Replaces a failed or intermittent timer that prevents cycles from advancing or completing
• Helps return basic control of wash/dry/spin cycles when electronic controls are not used

• One manual mini timer control

• Disconnect power to the appliance before starting any repair
• Note wire locations or take a photo before removing connections to ensure correct reassembly
• Use basic hand tools; avoid forcing connectors or mounting tabs

Includes: Anti-tip bracket, screws and instruction sheet.
